Beaglebone Black Drilling And Mounting Plates
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
30 min
1 plate
Open in Bambu Studio
Boost
2
7
0
1
17
0
Released
Description

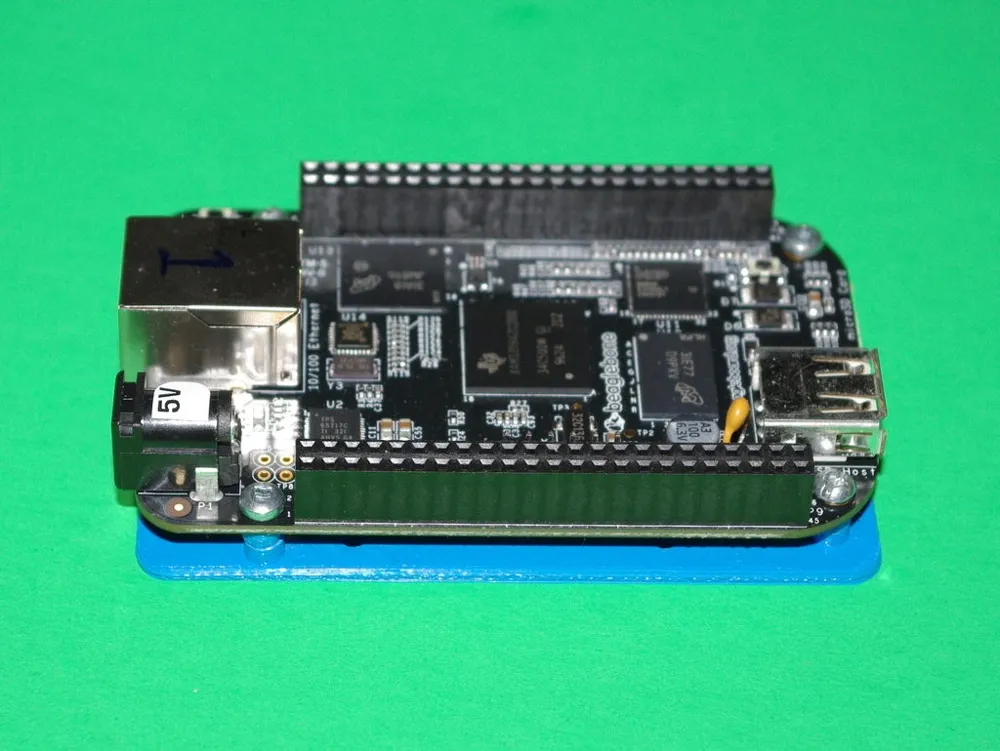

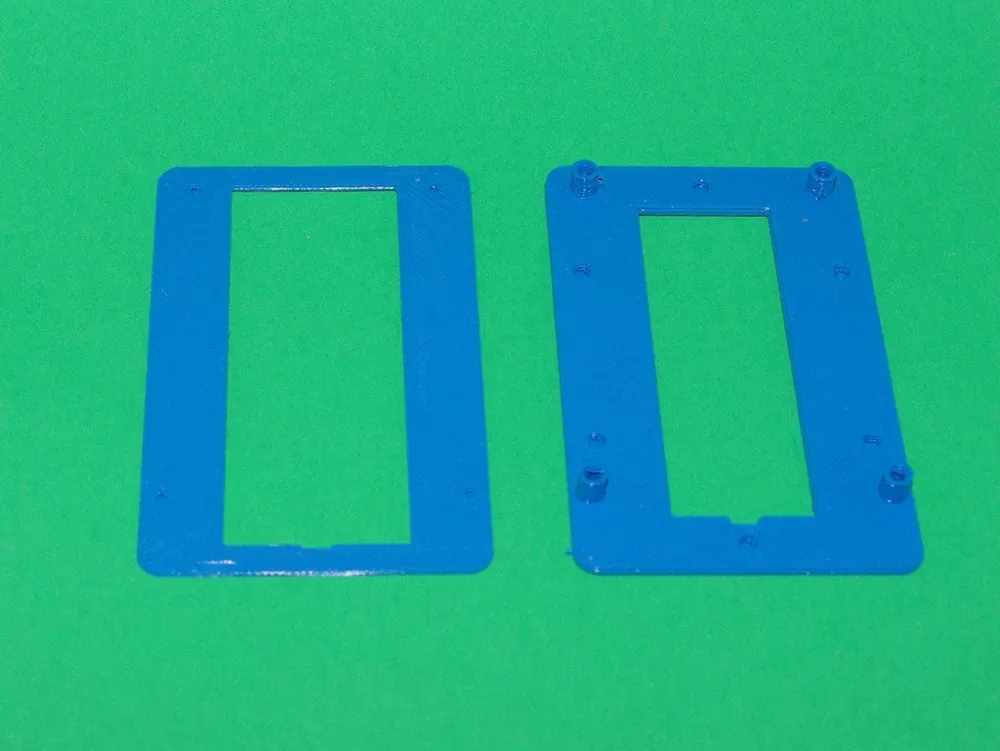

This thing contains a mounting plate and a drilling guide for the “Beaglebone Black”. The plates are not symmetrical. The notch shall be on the power jack and Ethernet cable side.
The baseplate is 2 mm thick. M2 5 mm or 1/4″ 4–40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.
The holes do not go through the lower layer to make it easier to print. You will have to drill them.
