Description

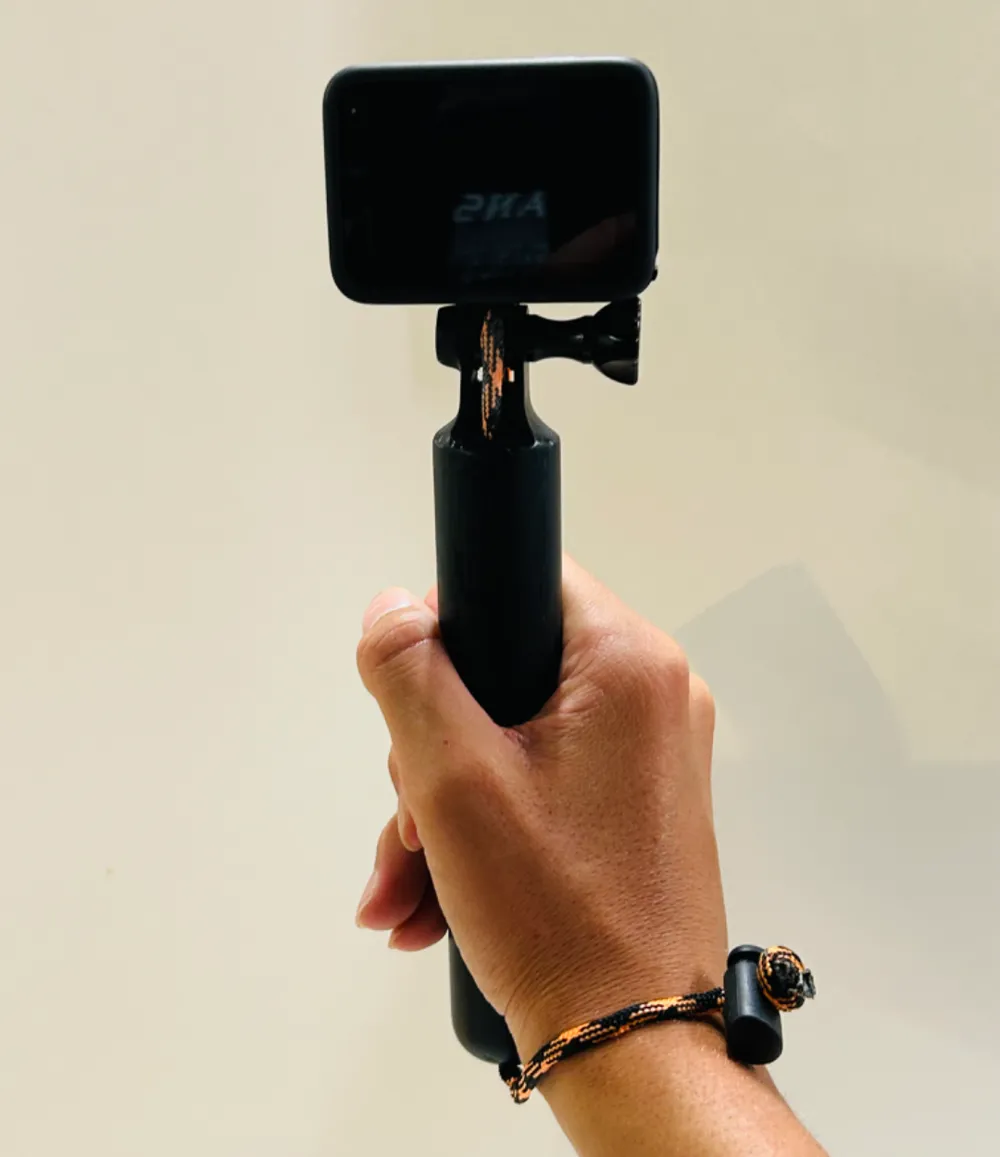

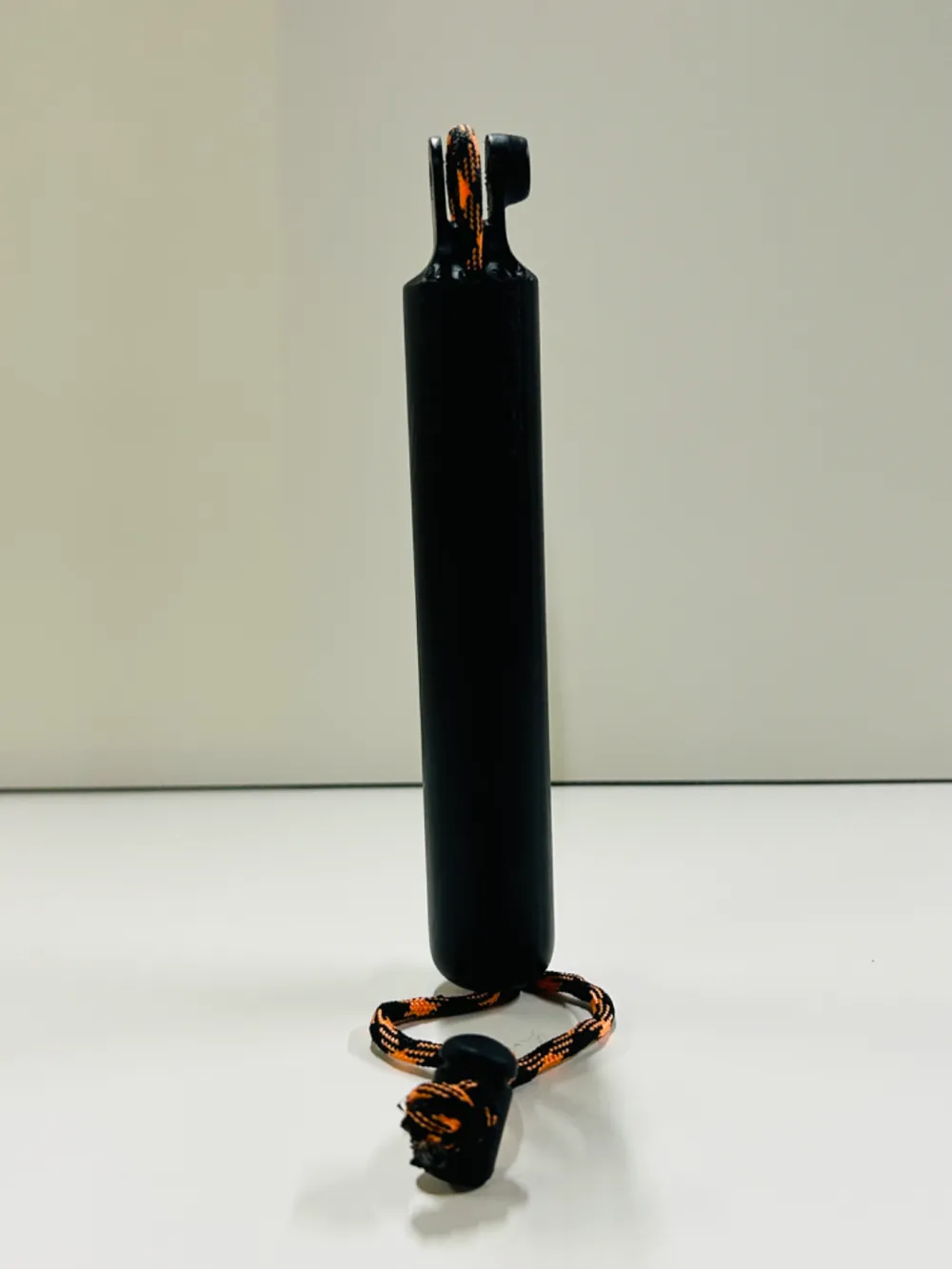

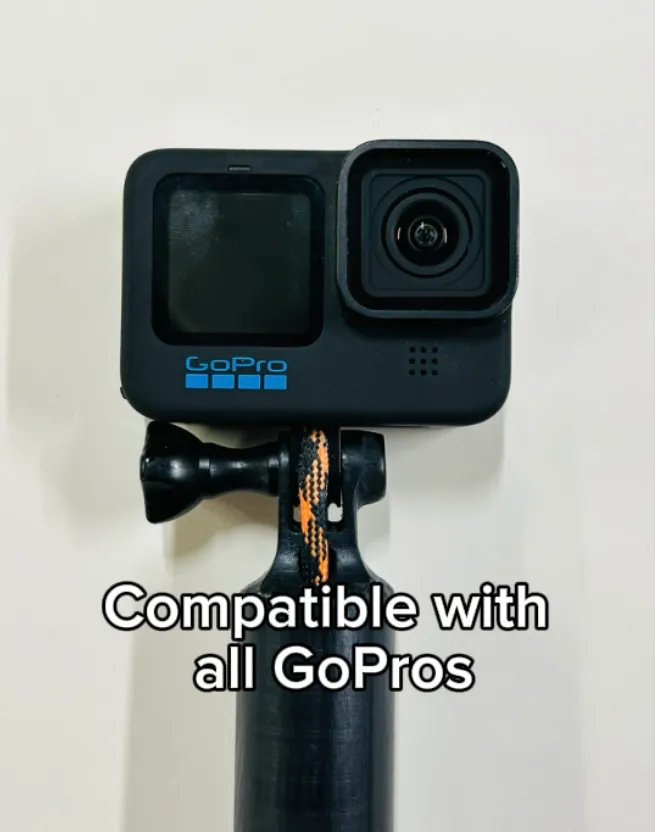

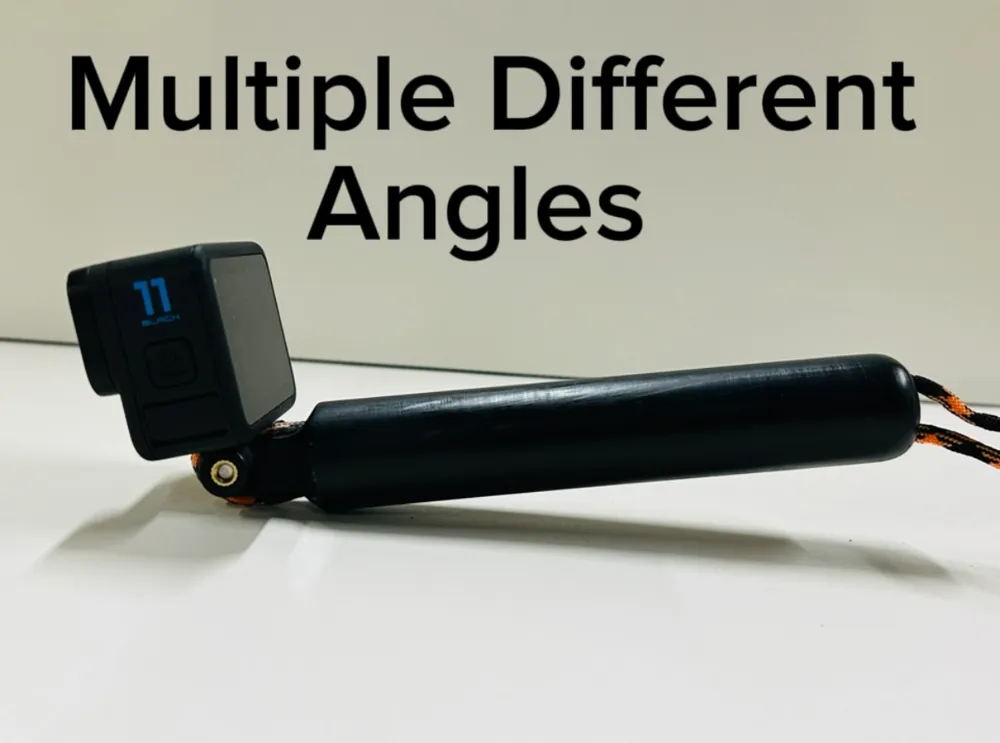

This GoPro grip is perfect for capturing anything you need, providing a much more comfortable way to hold your compact GoPro. The stick is 160mm long, compatible with all GoPro models, and features an adjustable angle for flexible filming. You can also attach a paracord handle for added security. The paracord loops around the GoPro mount, ensuring that even if the mount fails, your camera stays safe—great for water photography. I've also included a GoPro screw handle for convenience in case you don’t already have one.







Assembly

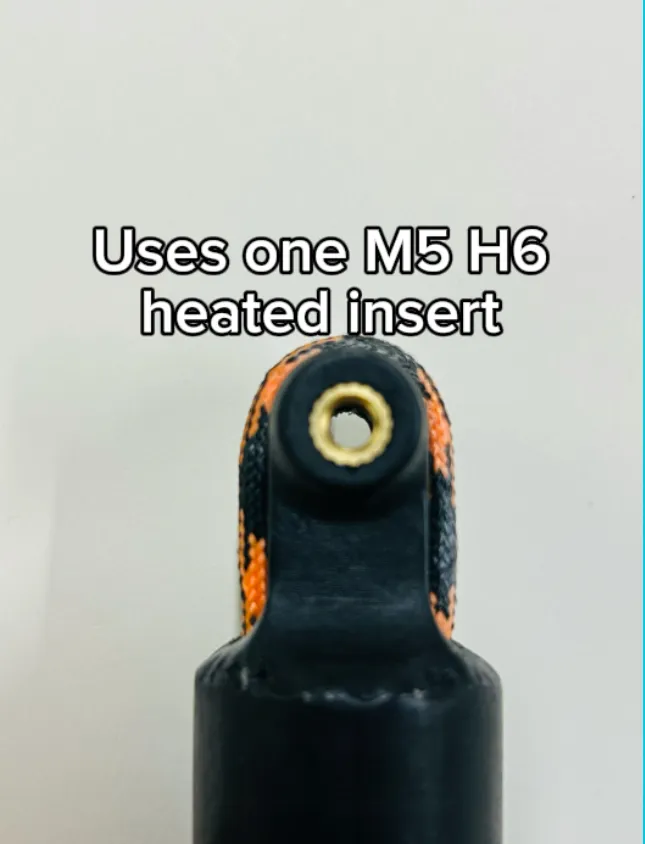

GoPro Grip-------> 1) Take a M5 x 6mm heated-insert and stick in into the mound on the side of the GoPro mount, as strait as you can,

untill flush.

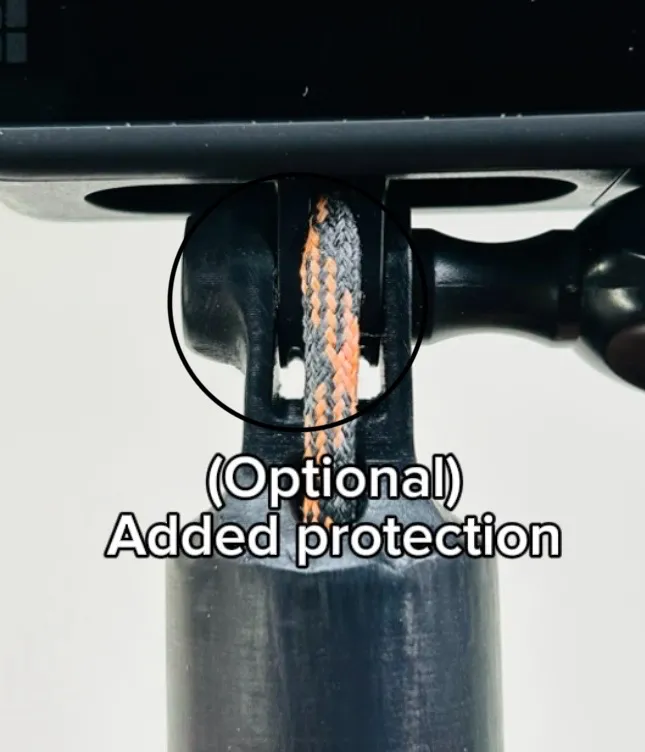

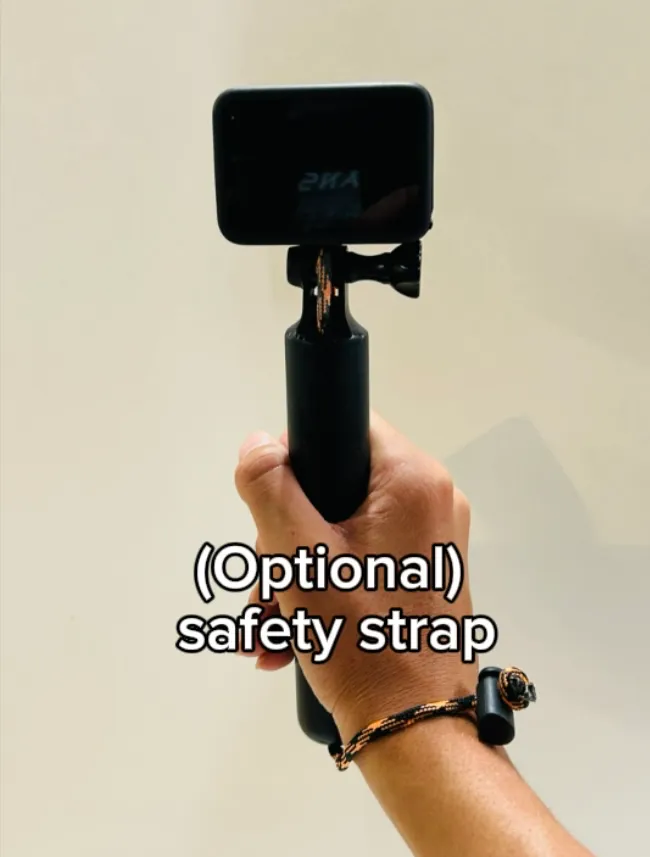

[Optional Safety loop] - definitely recomend

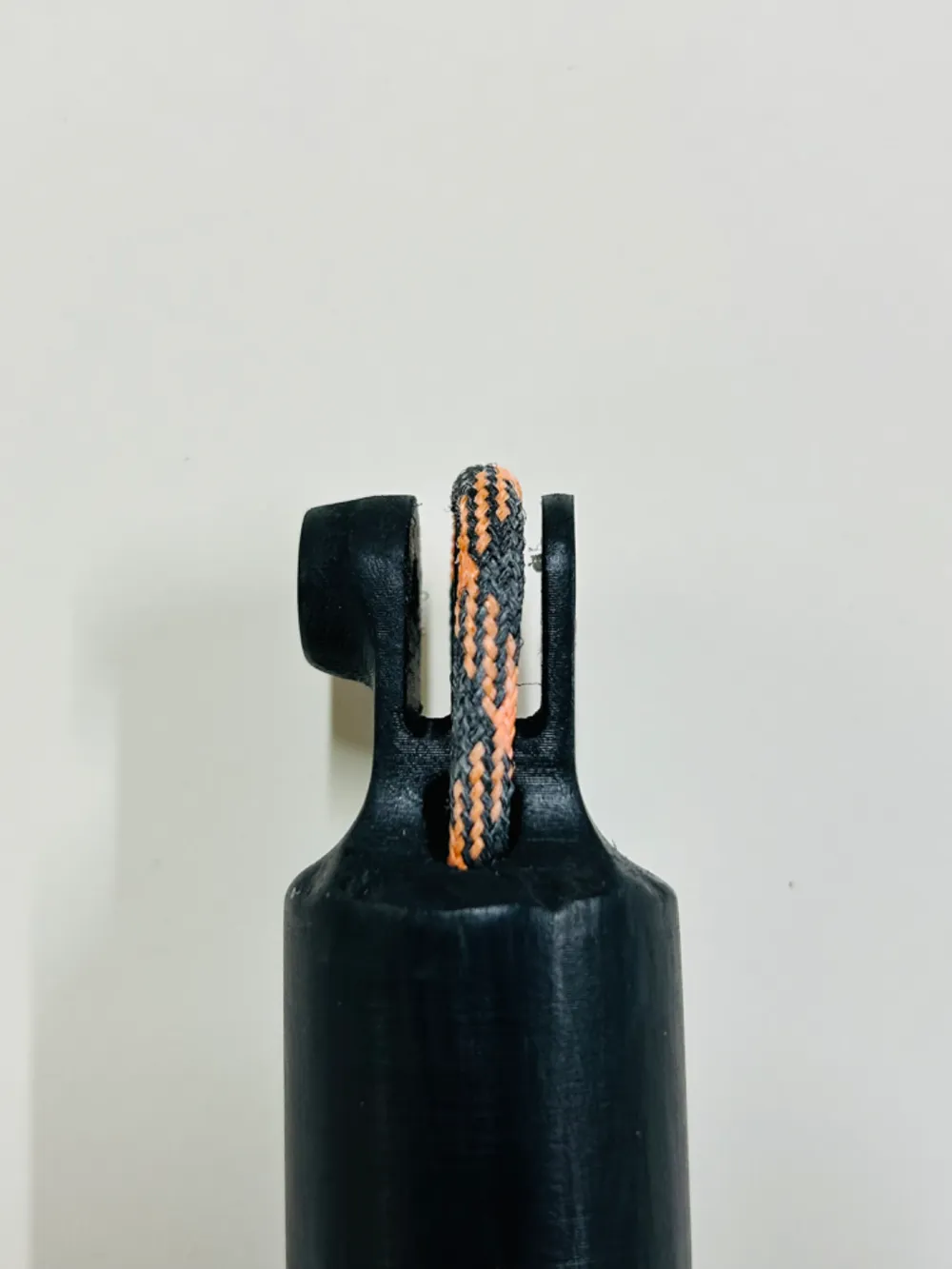

2) feed your two ends of (About three feet) 550 paracord through the two holes on the top. this may be a bit tricky but you'll get it eventually.

(I used a small wooden skewer too shove it throuh)



3) before tying it off, you can add a cord stop if you want to keep it tight around your wrist.







Screw------> 1) all you need to do is take a M5 x 35 hex cap screw and jam it into the knob. you can add glue too if you want







Look at the pictures for further help
