FLSun Cube X-Axis Belt Tensioner
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
55 min
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description

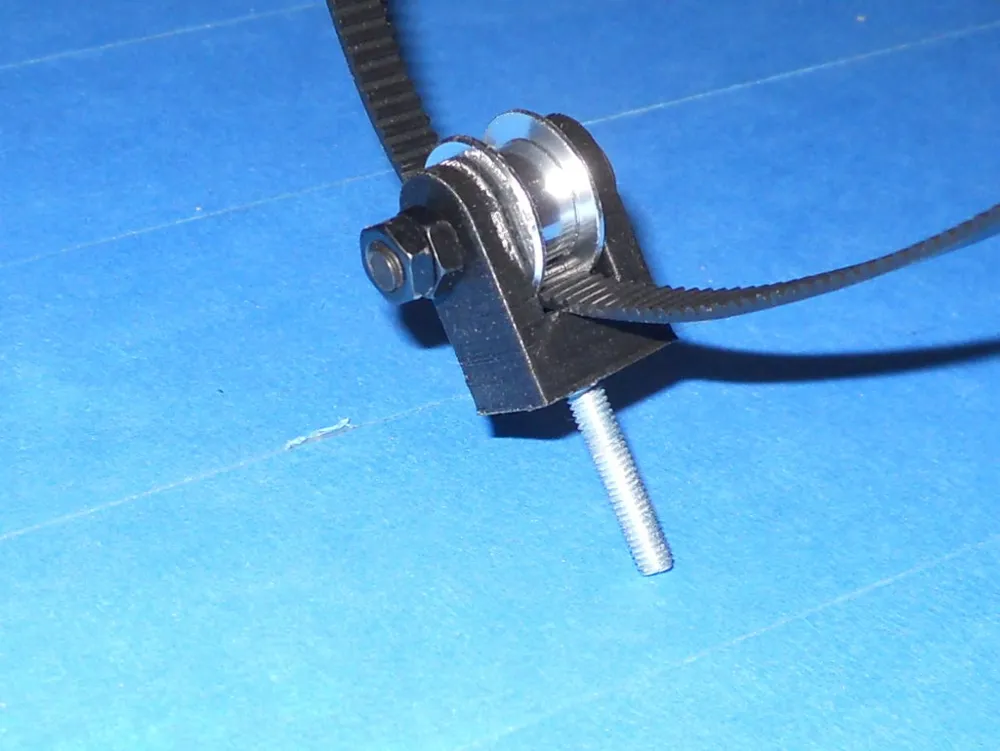

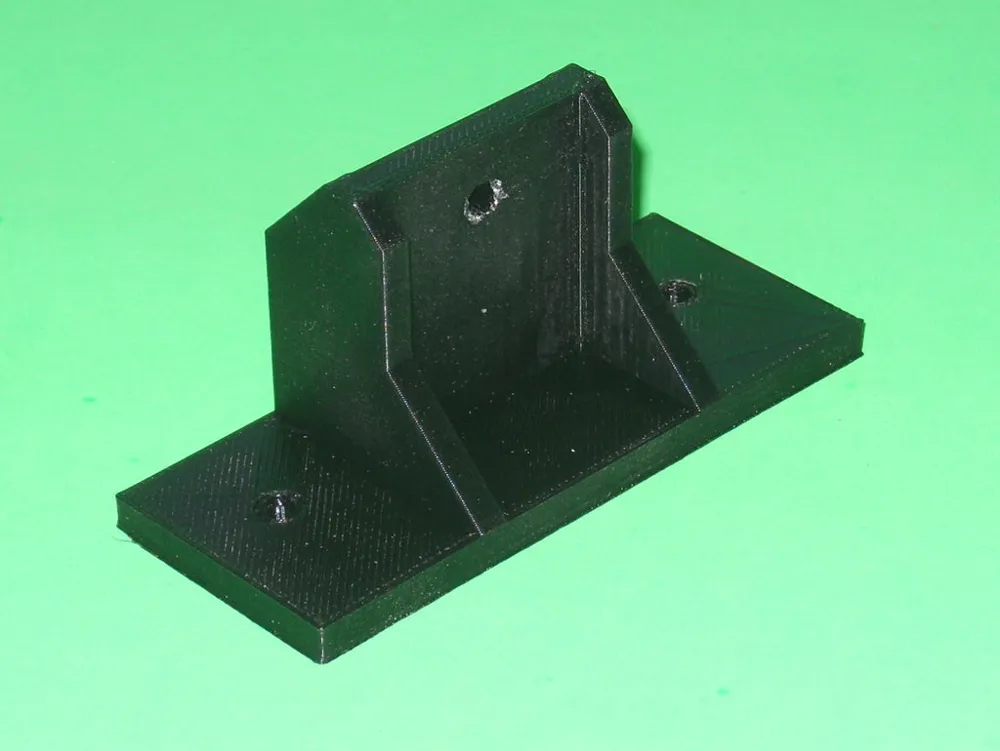

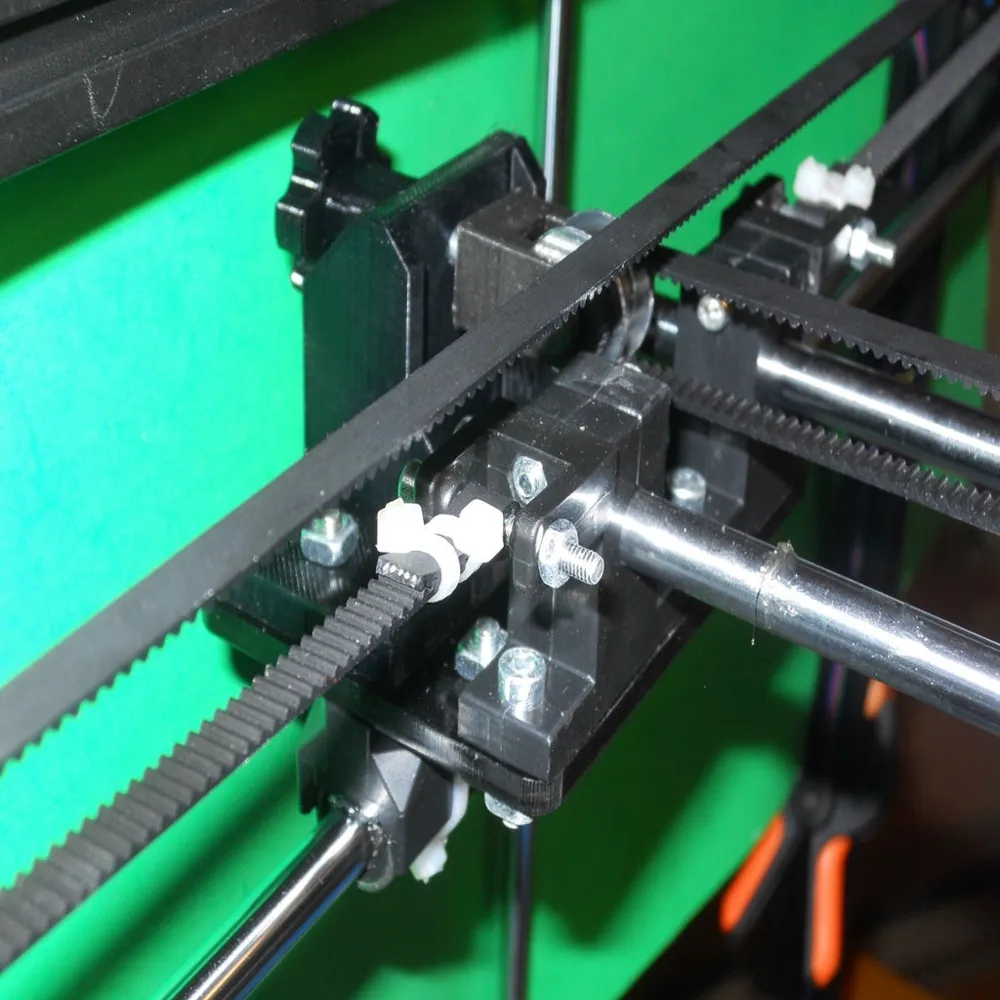

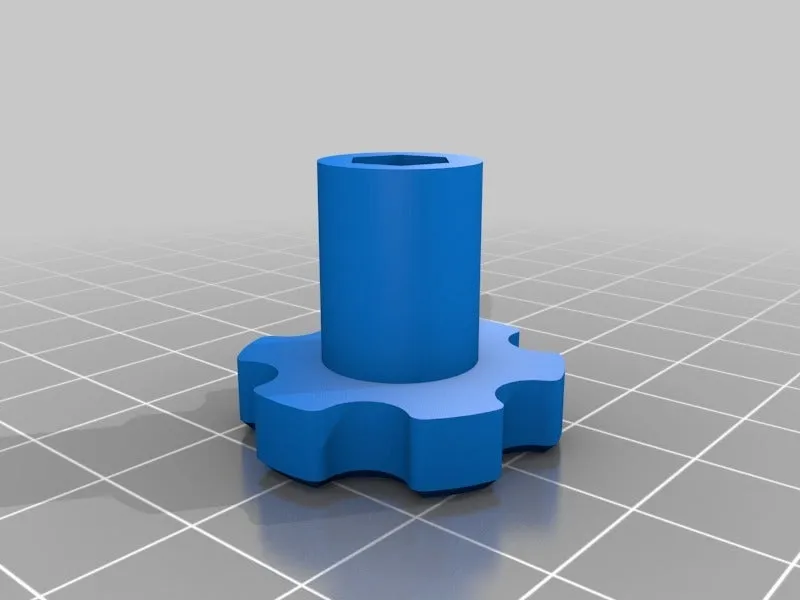

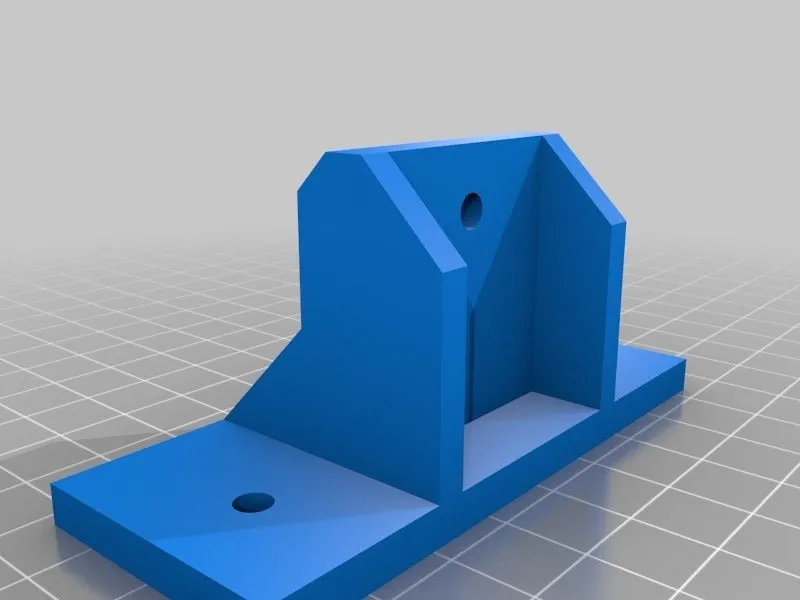

The FLSun Cube 3D printer does not come with an X-Axis belt tensioner. So, I designed one. The design is simple but very effective. It is mounted using the nuts and bolts of the outer linear bearings. Nevertheless, you will need longer bolts. M4 x 20mm works great.

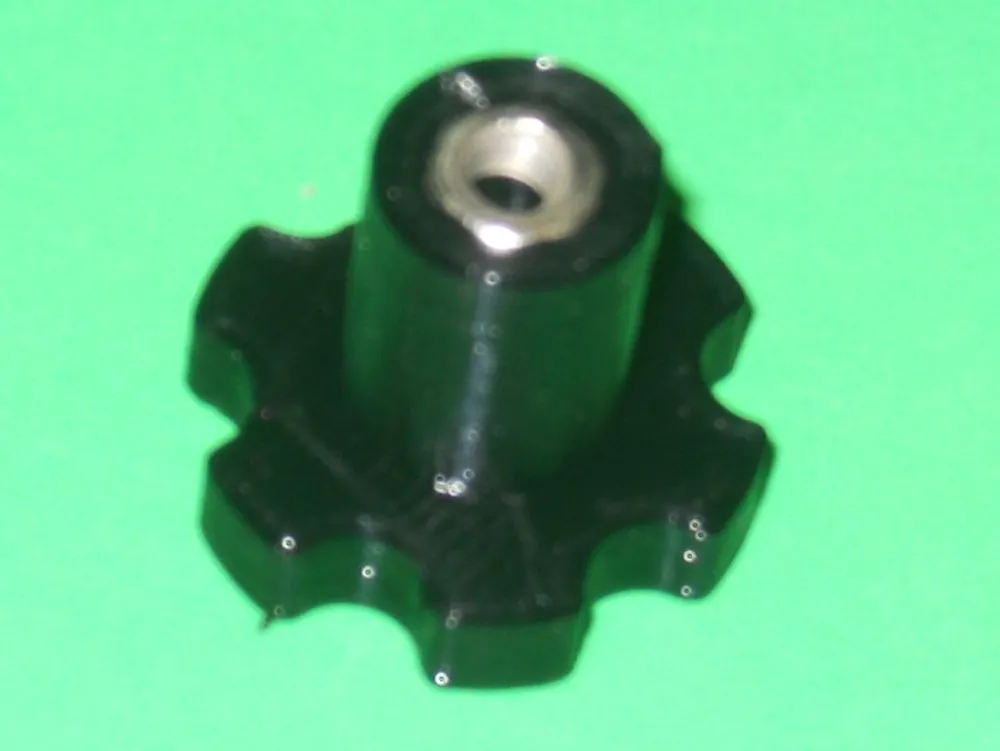

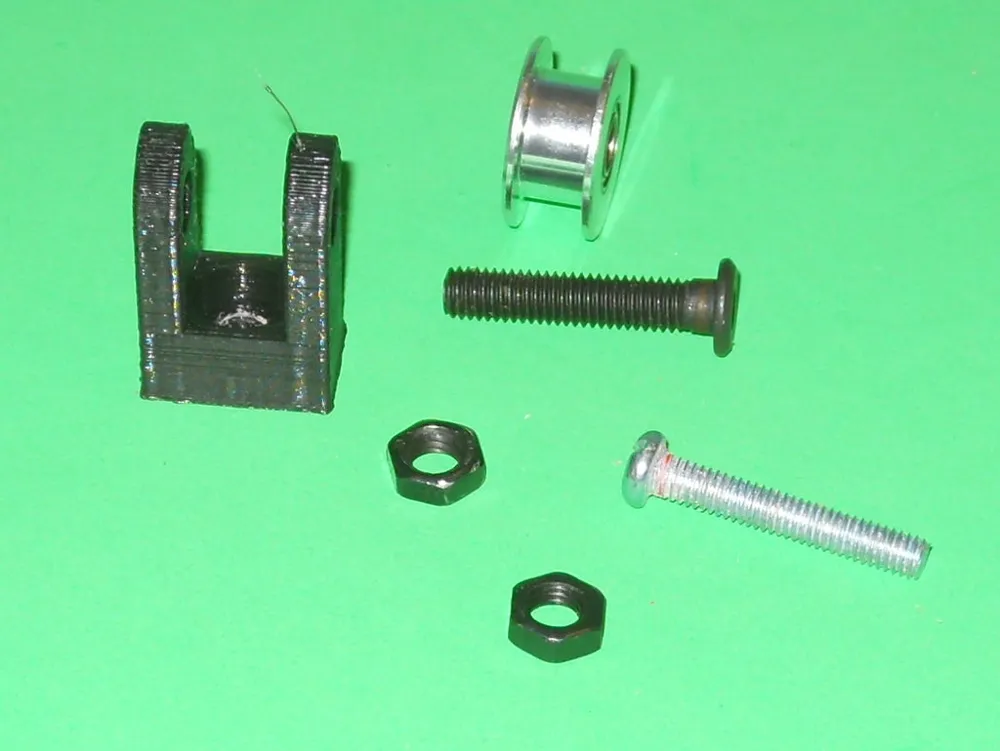

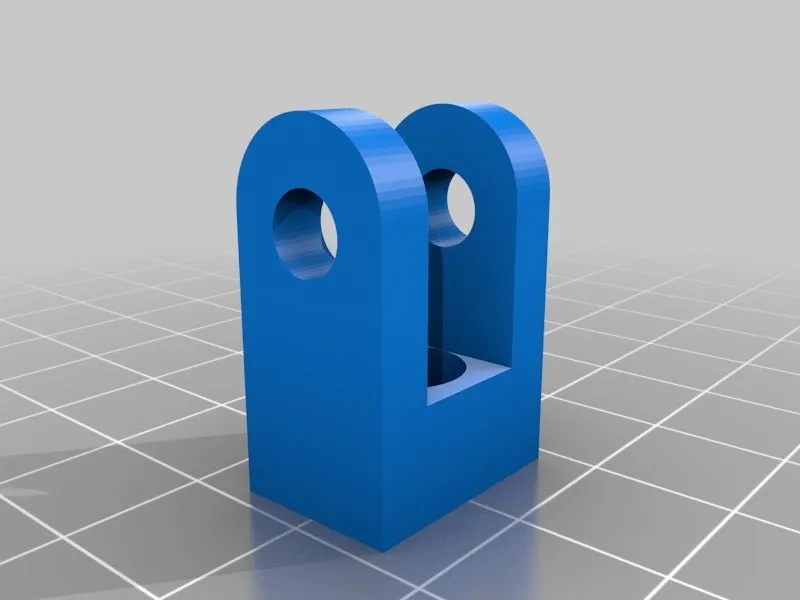

Some extra hardware is also needed for the belt idler. You will need:
- an M5 x 25 mm to mount the pulley
- either 2 M5 nuts or a lock nut to mount the pulley
an M4 x 25 mm bolt and nut to attach the idler to the base Its assembly is pretty straight forward.
This object main web page is: http://www.ctheroux.com/flsun-cube-x-axis-belt-tensioner/.
You can request the source files on the page listed above.
