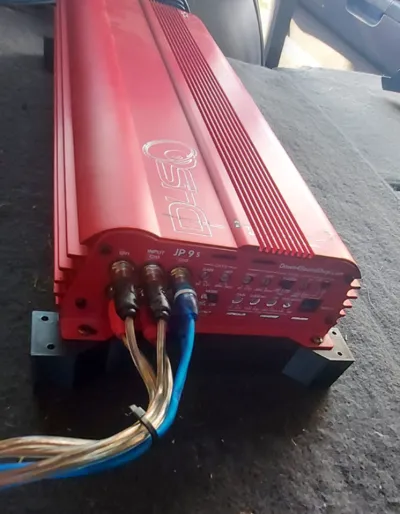

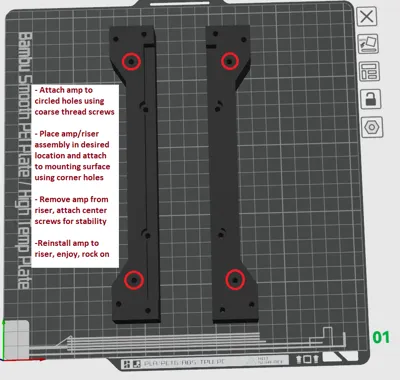

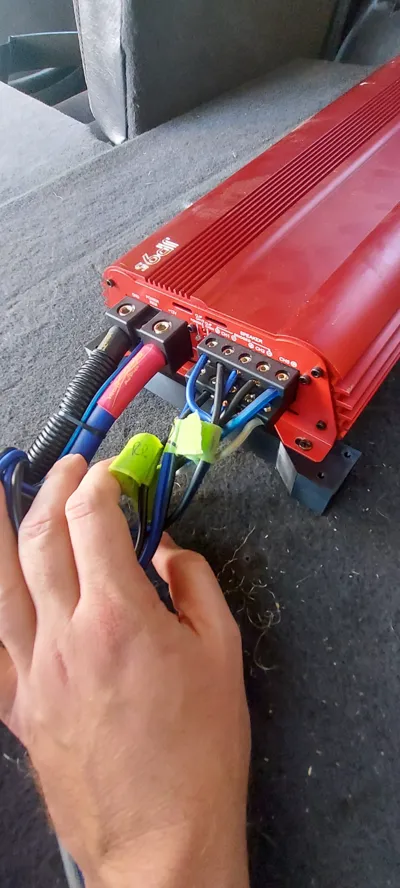

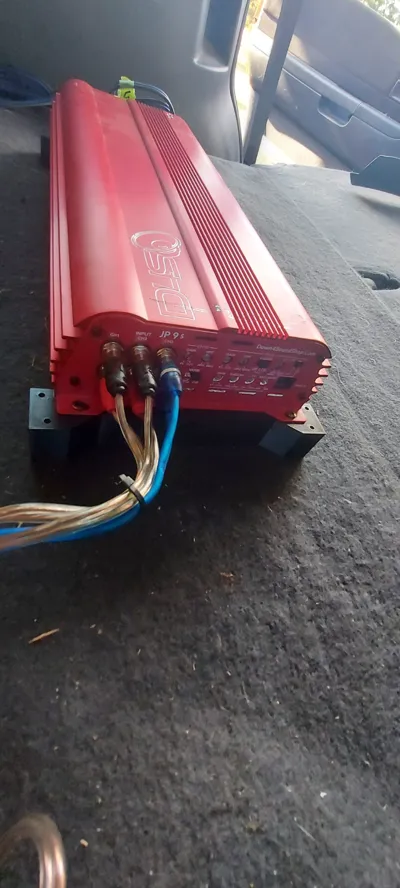

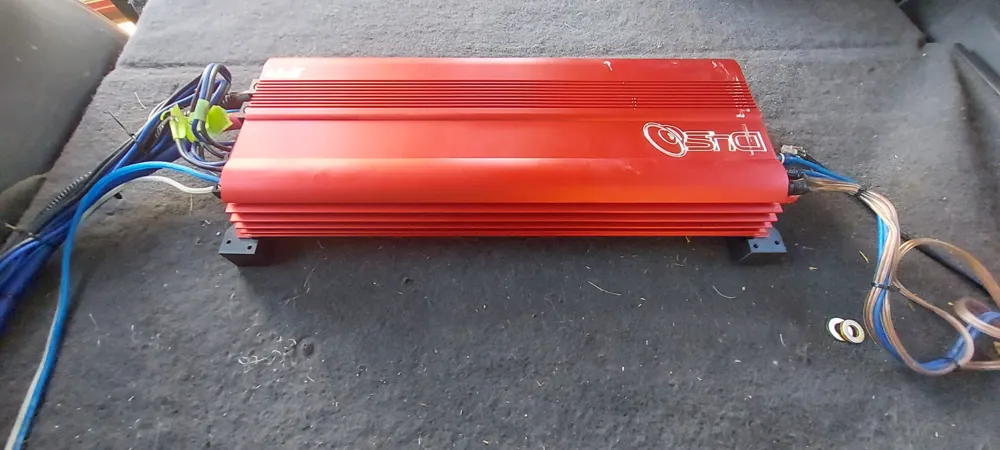

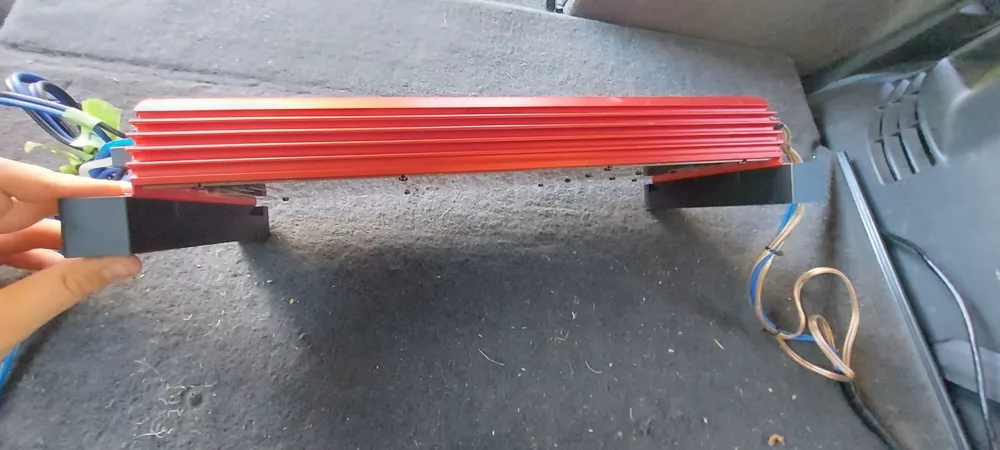

I needed to mount my Down4sound JP95 amplifier in my Durango, and didn't have anything good to space it off of the mounting surface, so I made some 1" amp risers. This should help with cooling quite a bit, due to allowing the fan on the bottom room to get cool air, reducing the likelihood of heat soak. The last photo contains some generalized instructions, but it's pretty straightforward. #8 screws are a little less bitey than #10 screws, but #10 are very tight. play around with your mounting hardware etc to your liking. I used bambu's new PETG-HF to print these, and would recommend at least that, or ABS, if you live anywhere hot. Enjoy
