Crusader Dagger and Shortsword
Print Profile(4)
Description

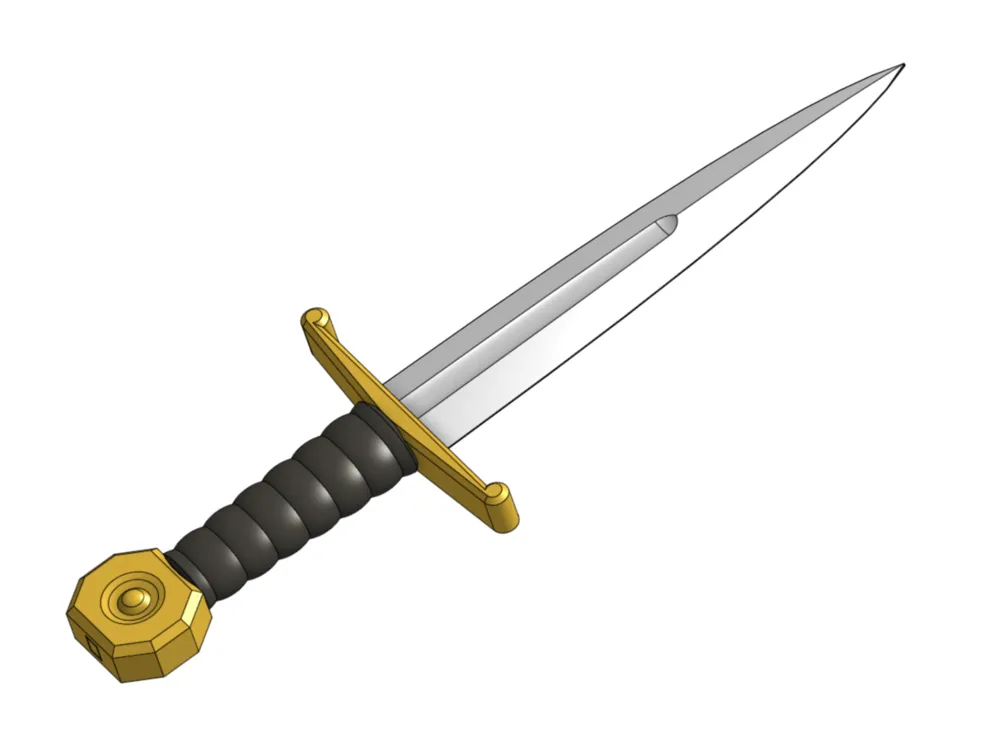

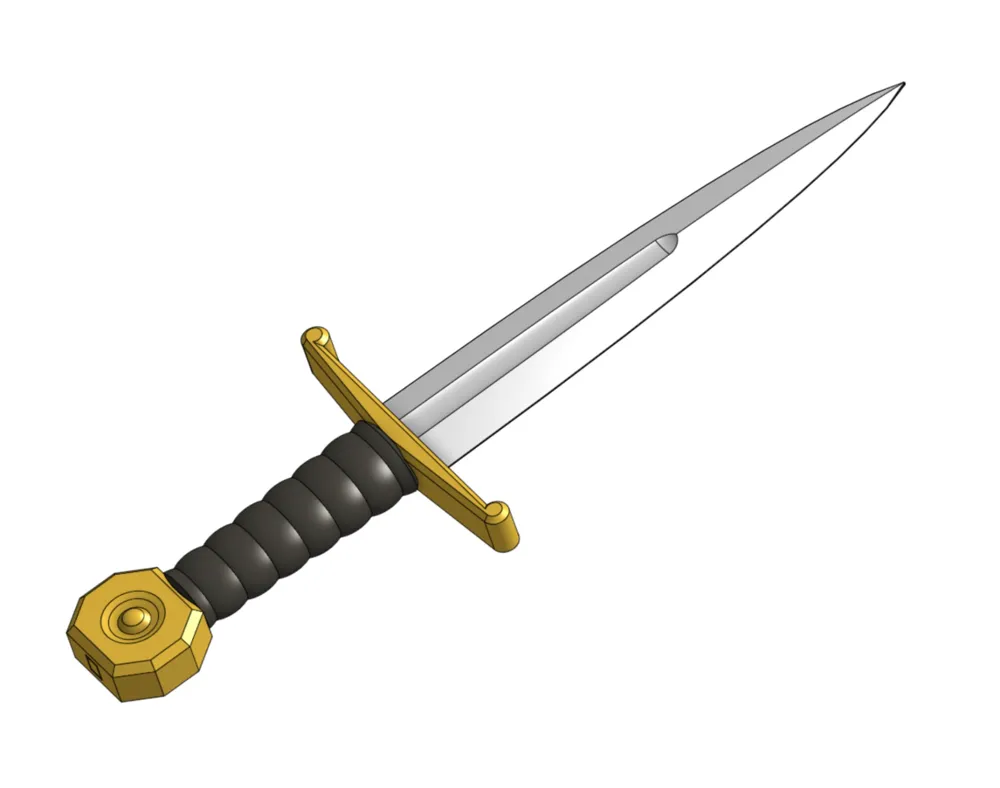

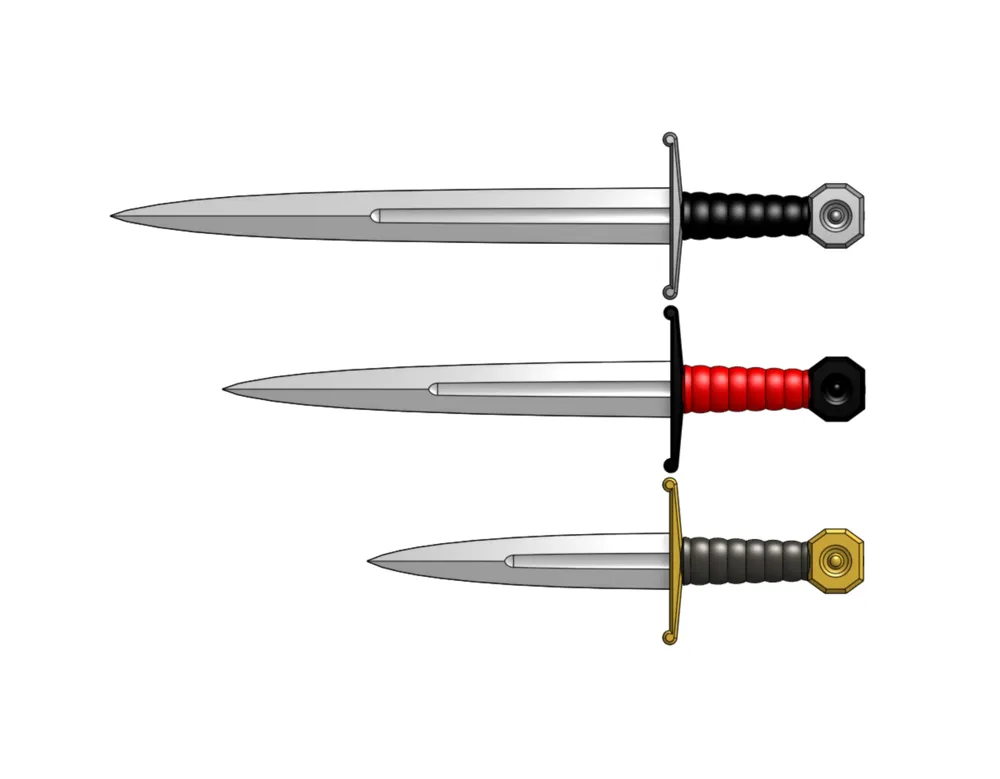

Multi-piece crusader dagger. No support. Glue not required. Easy assembly. Now fits on Prusa and Ender 3. Added H2D models with 12.7" or 15.9" option.

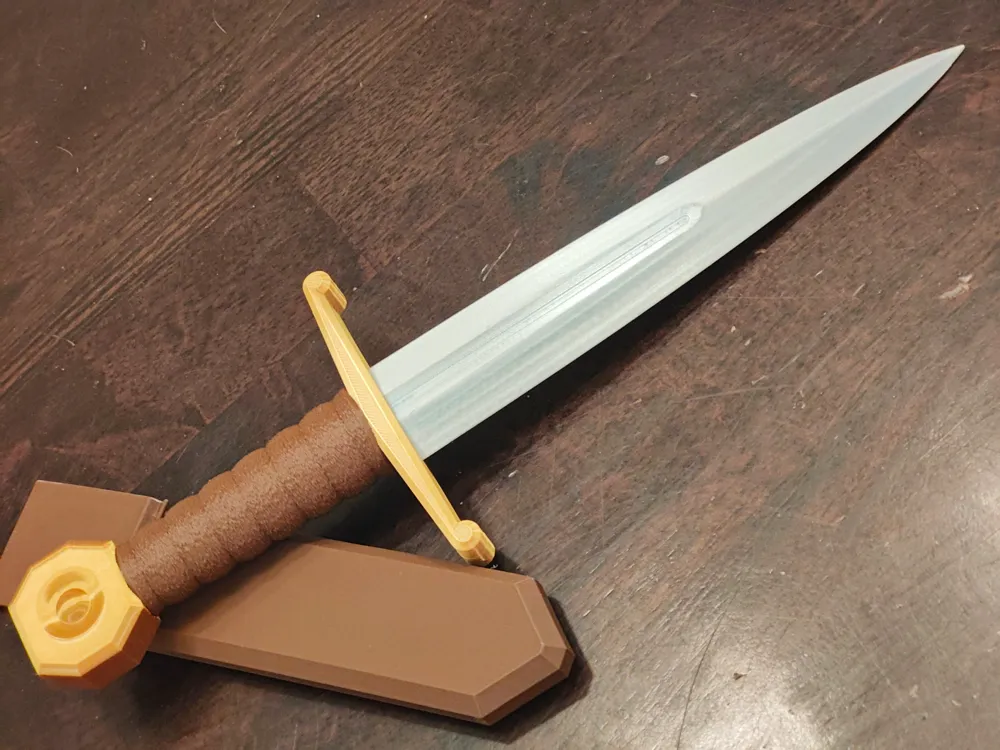

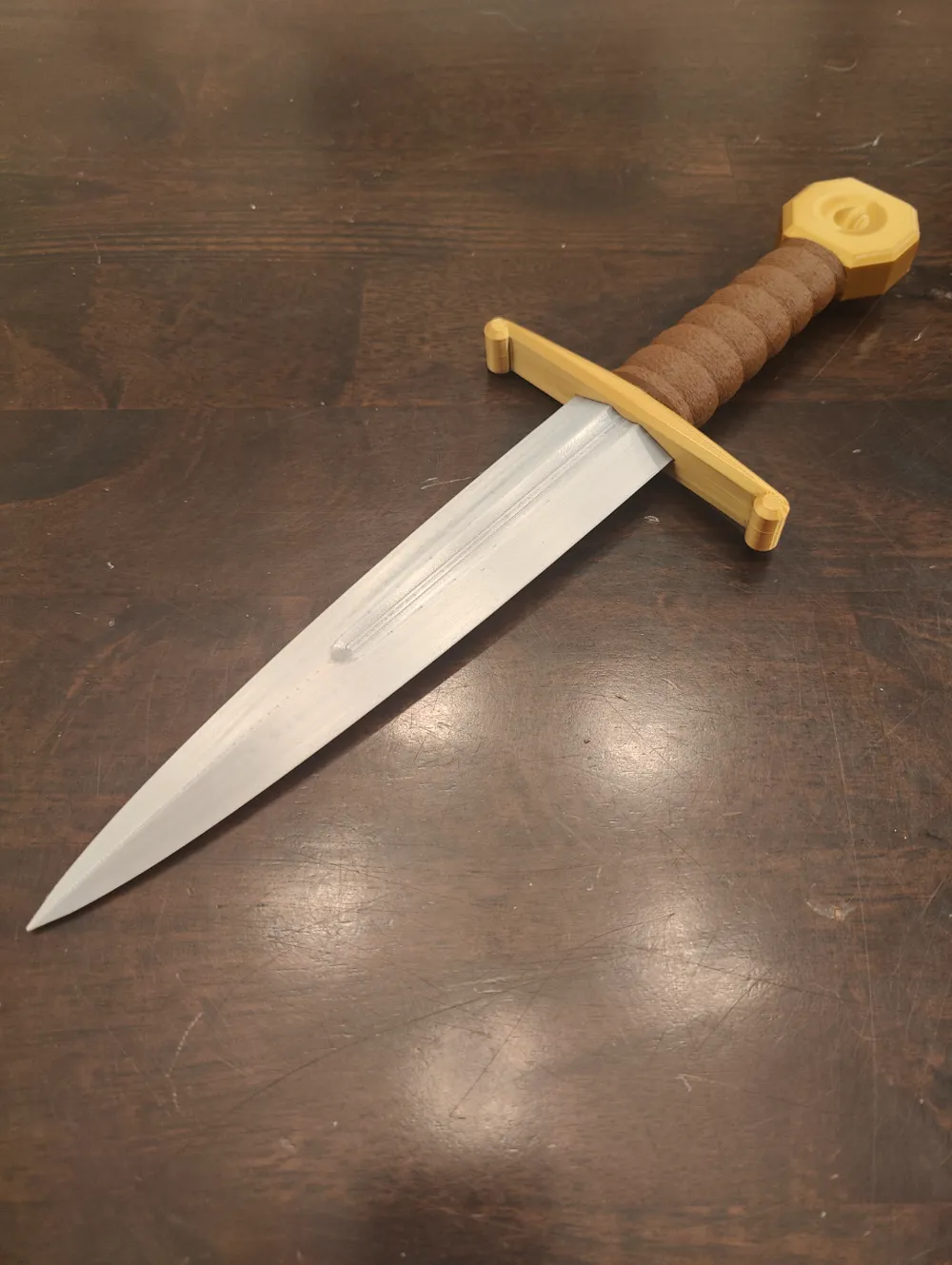

I recommend printing the blades with 0.1 layer height and 100% infill. The handle is very nice with fuzzy skin. You can easily blunt the tip with a nail clipper and/or nail file so your children can play without fear of injury.
Designed to fit on a 256mm Bambu buildplate. There are now alternate blades available with a dovetail cut in the tang that will print on smaller beds like Prusa 3/4 and Ender 3. The dovetails have tight tolerance for stability and may need trimming after printing on some printers.
Assembly:

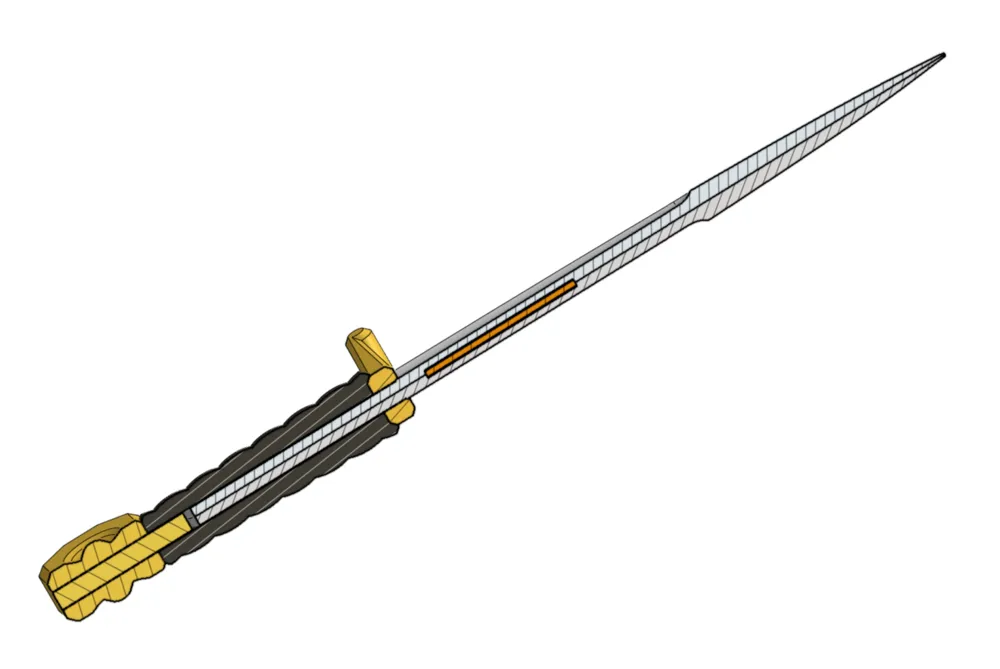

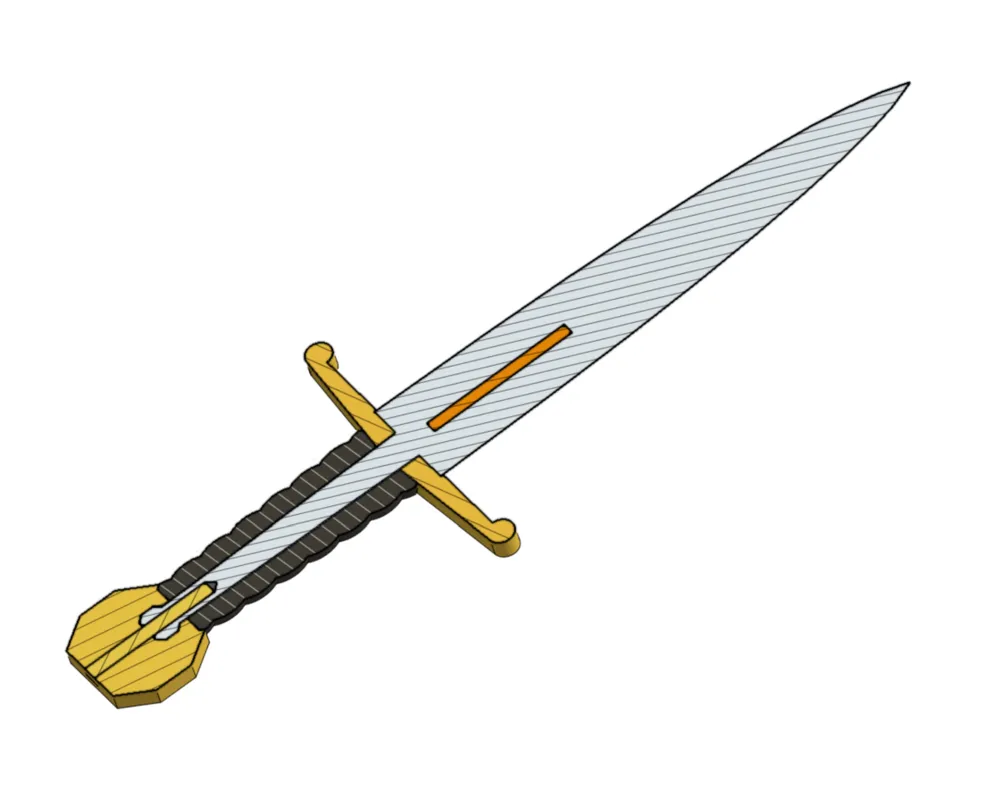

1: Place the two blade pieces together with the blade locator pin in the slot between them
2: Slide the guard, handle, and pommel onto the tang of the blade. The pommel will click in.
3: The pommel pin locks everything together. Tapping it in with a hammer works well.
WARNING: once you put the pommel pin in you will have a very hard time taking the knife apart.
