There is now a version 2 available: https://makerworld.com/en/models/708184#profileId-638351

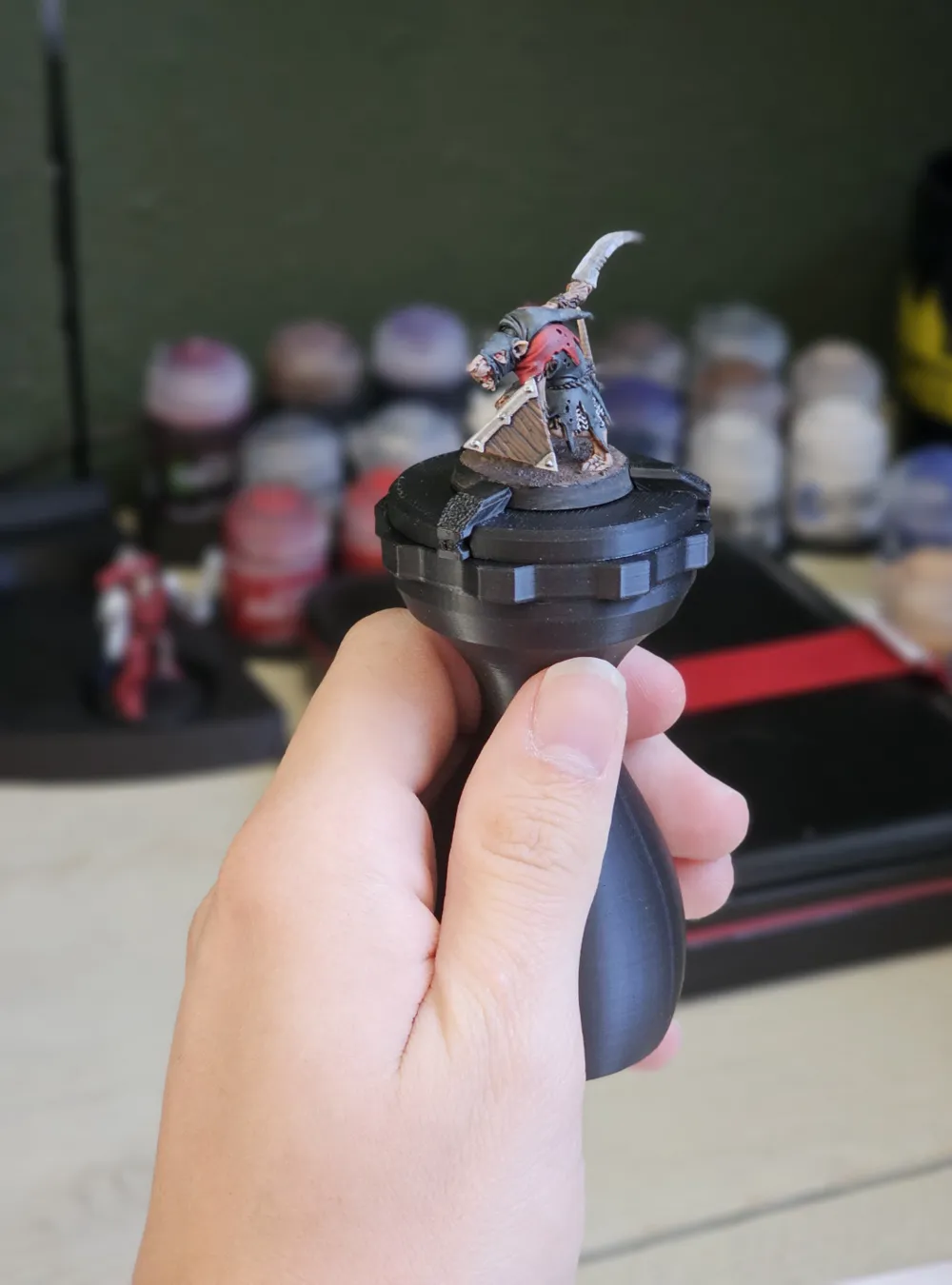

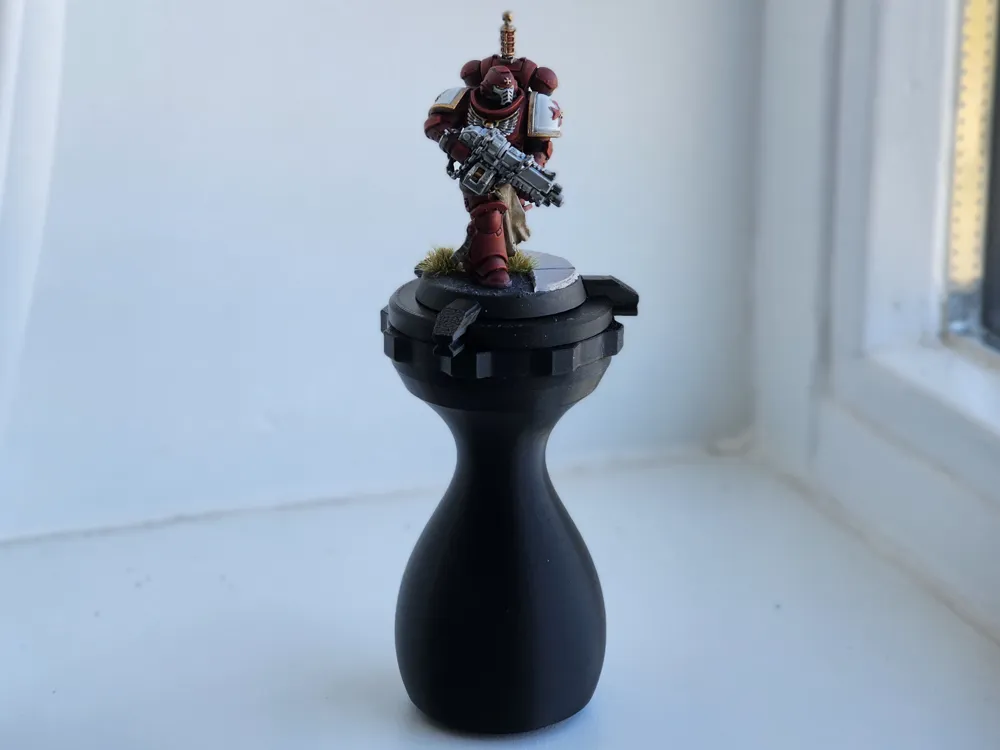

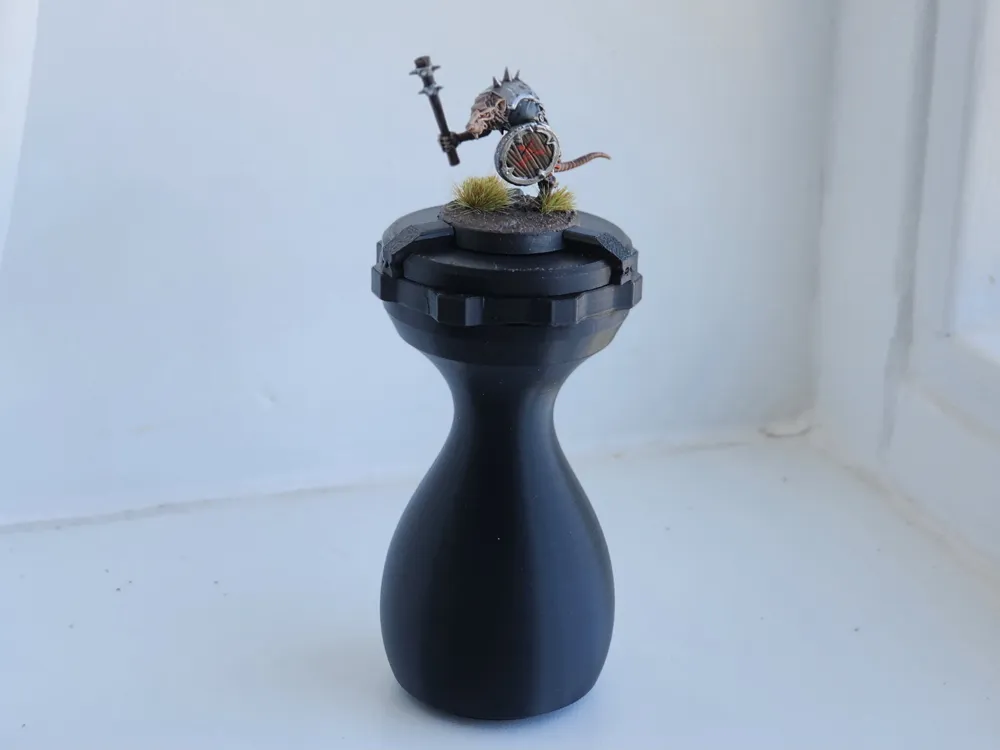

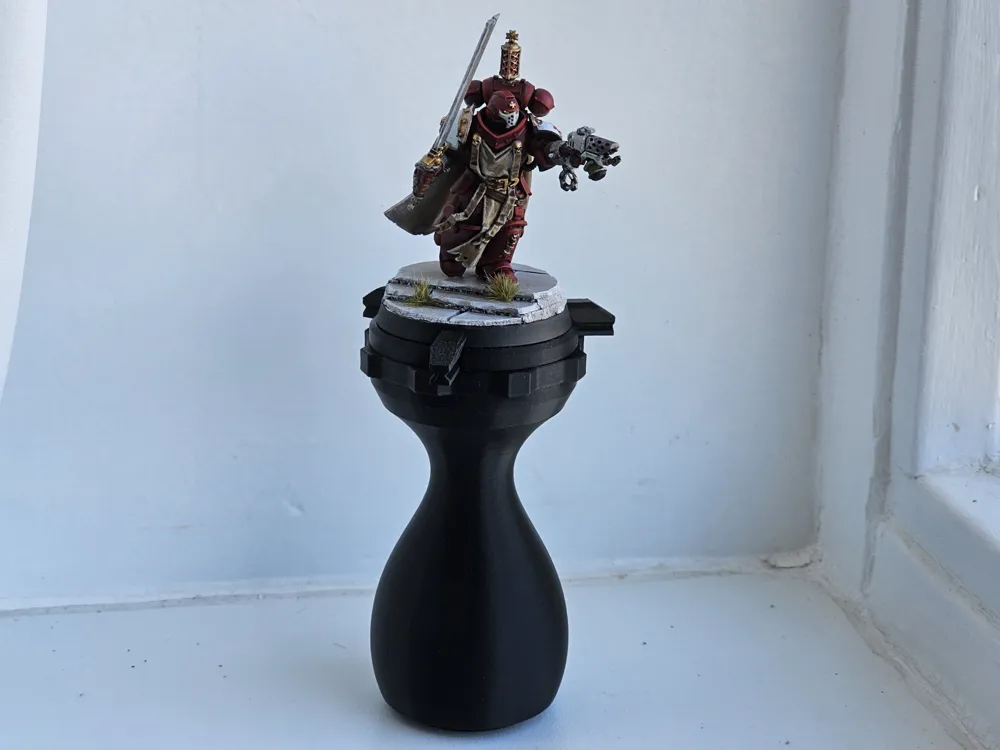

I liked the overall shape of the GW painting handle, but I did not like how it grips the model using a spring/elastics. So I set out to overcomplicate it by adding a chuck mechanism. I really like the mechanical grip the chuck offers, and now my miniatures do not get launched across the room anymore.

Fits 20mm, 32mm and 40mm bases (And everything in between)

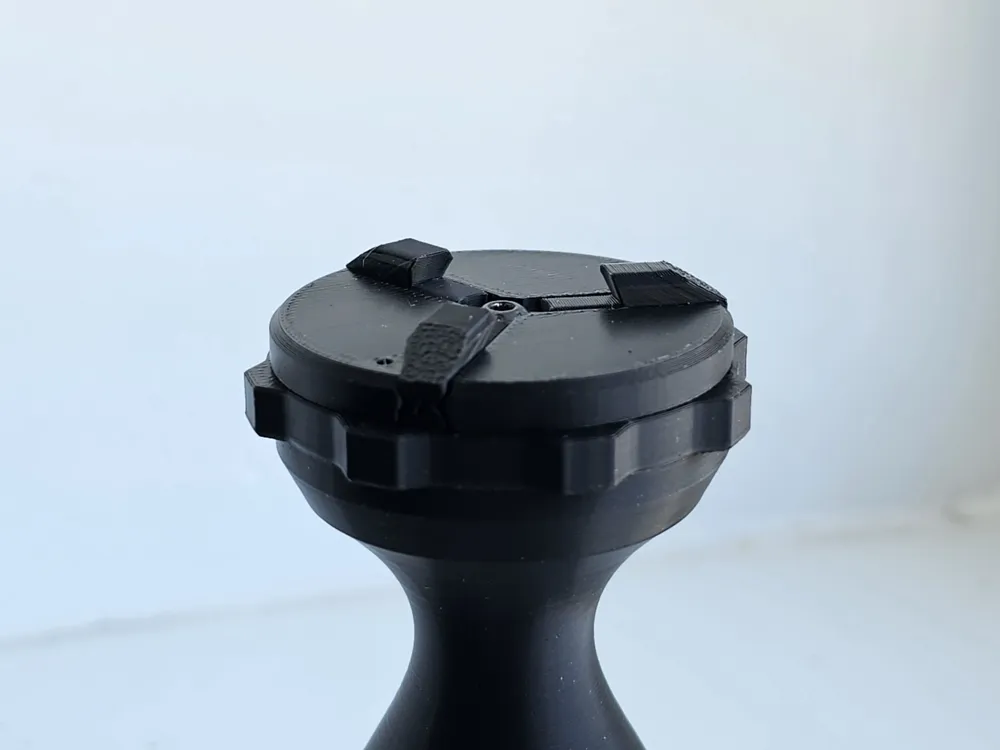

Grips the model tightly with three clamps using a chuck mechanism
Only needs one M3 screw (max 20mm long)

Assembly:

Place the spiral on the handle

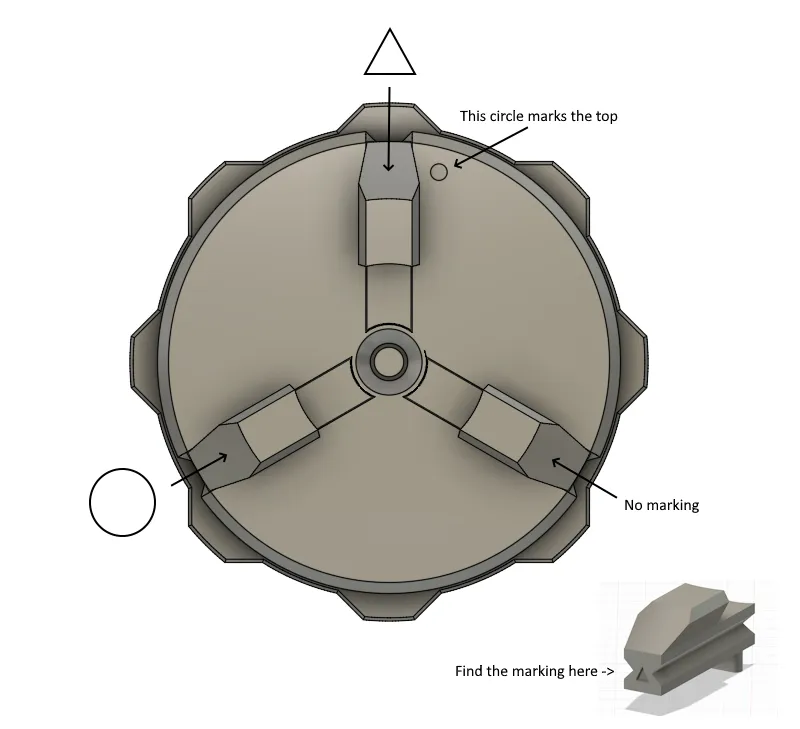

Slide the claws all the way into their slots in the top plate. Use the image below as refference where each claw should go
Place the top plate onto the spiral. It takes some effort to find the correct orientation. You will know that you found the correct position if the top plate sits on top of the spiral, and the claws slot into the spiral grooves with their pegs.
Screw the M3 screw into the center hole.
Happy painting and praise the Emperor.
