Ethernet Punchdown Tool
IP Report
Print Profile(2)
0.12mm layer, 2 walls, 15% infill
Designer
14 min
1 plate
0.2mm layer, 3 walls, 25% infill
9 min
1 plate
Open in Bambu Studio
Boost
76
235
36
24
447
344
Released
Description

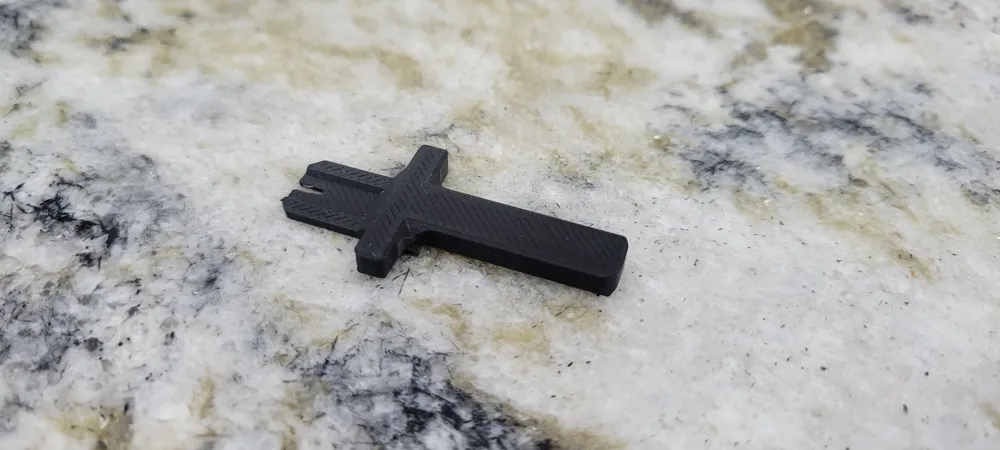

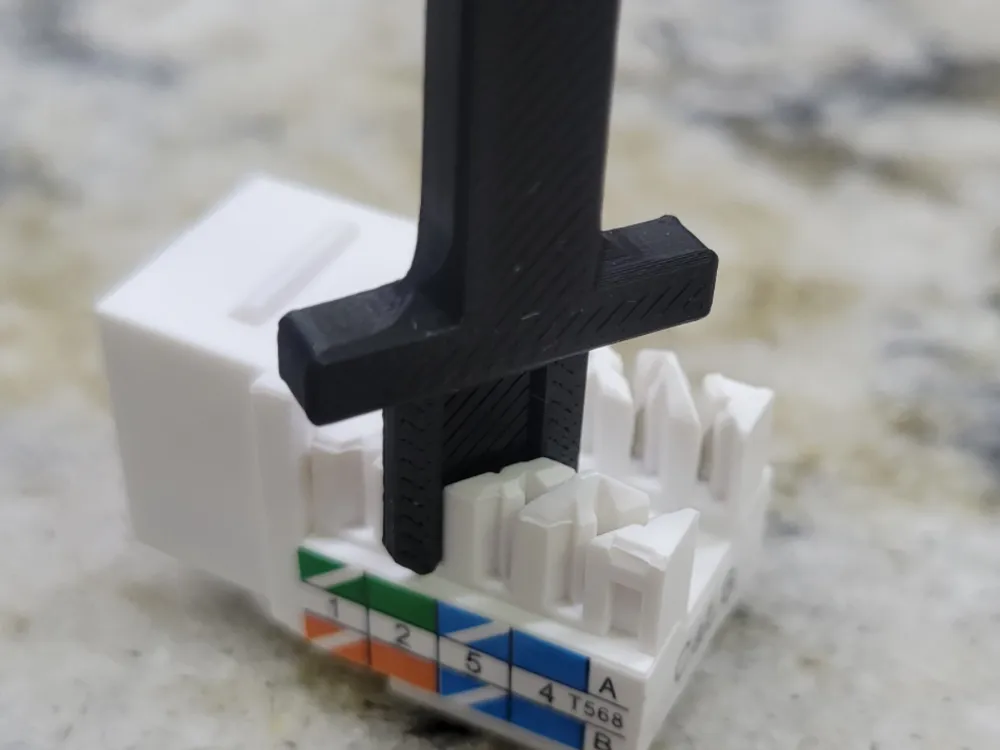

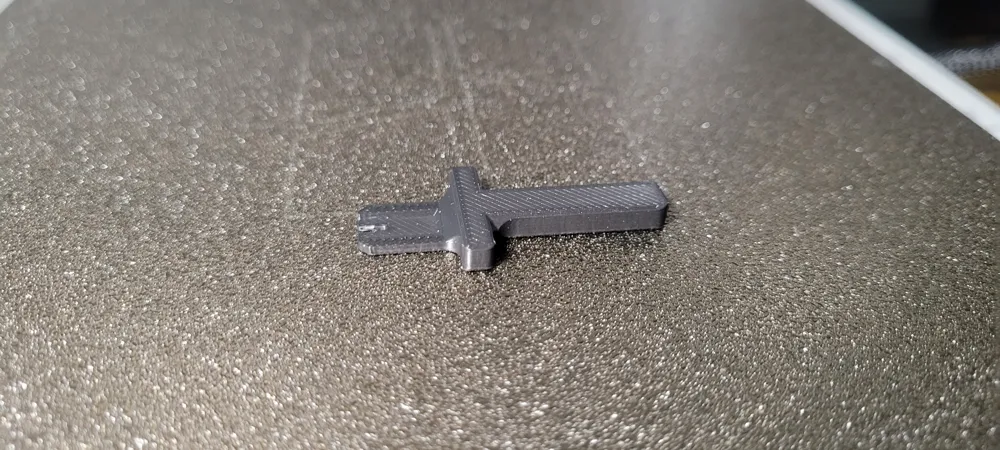

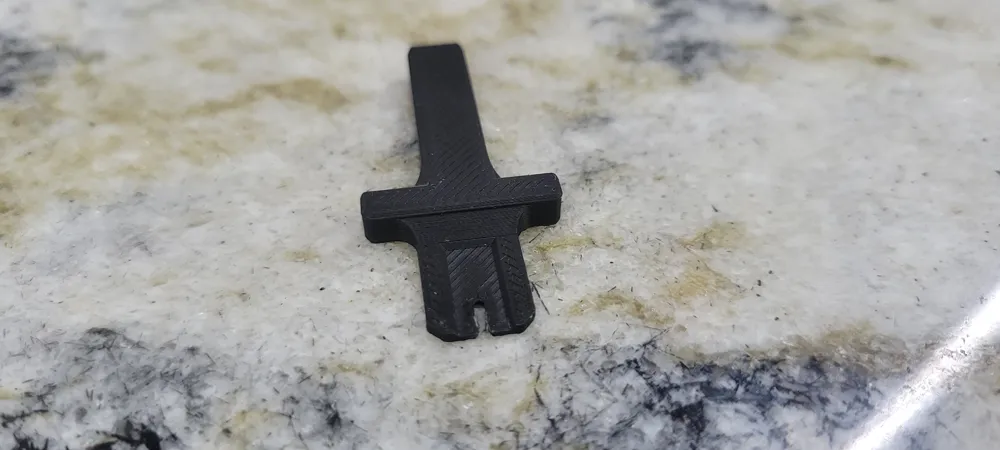

This is a punchdown tool for terminating Cat5 into a RJ45 jack. The punchdown tool I had was damaged so I took the challenge of designing a tool which would print very quickly and require no supports.
Print Settings:
Material: PETG (any other material would likely work just as well)
Supports: None
Nozzle: 0.4mm
Layer Height: 0.12mm (improved detail and strength around the tool end)
