Remix (Muzi Wurks) Heltec T114 HT2 LoRa Case

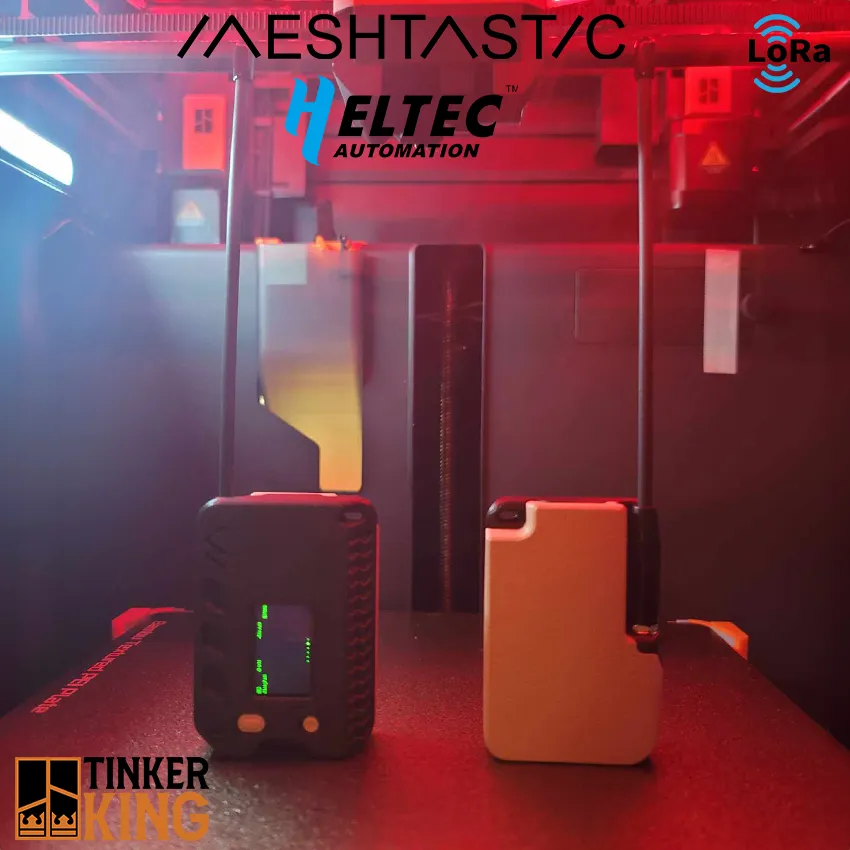

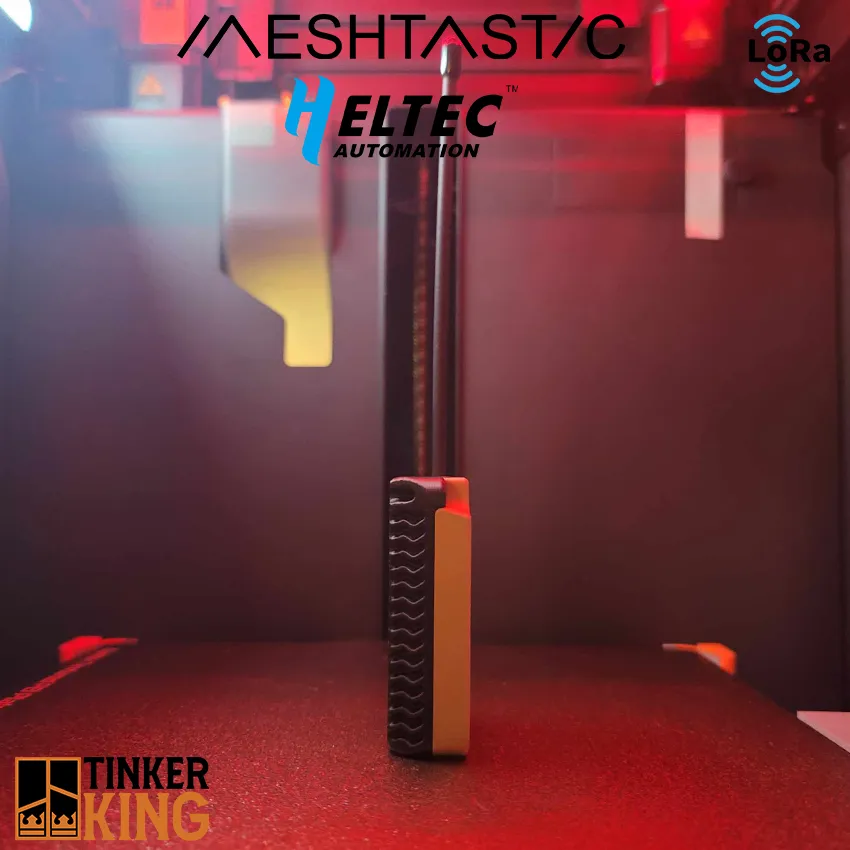

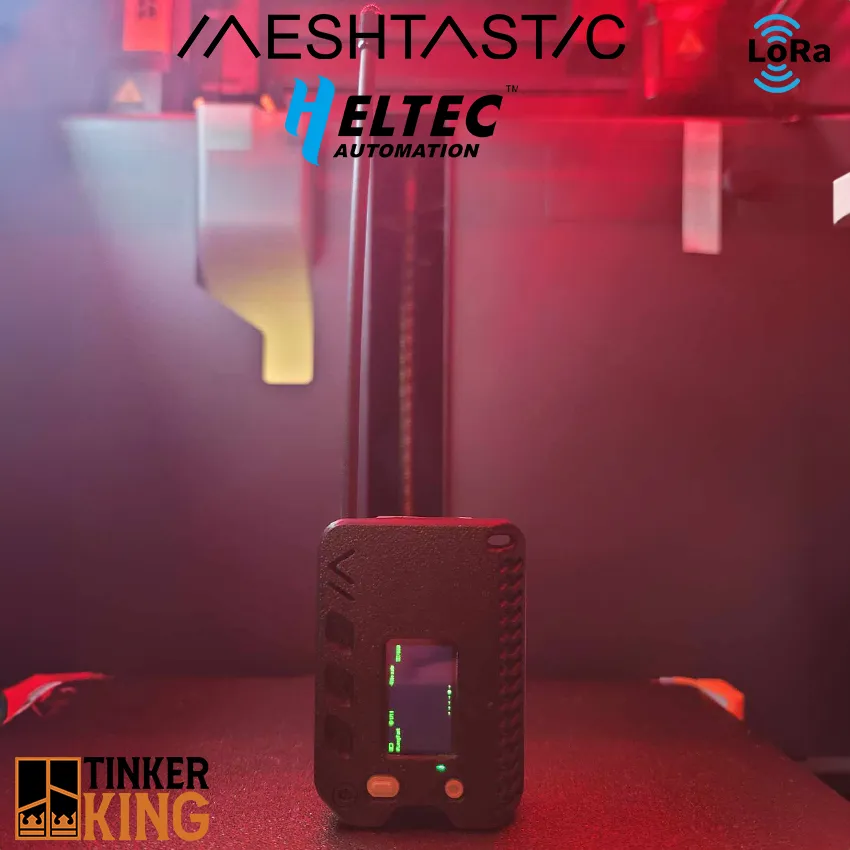

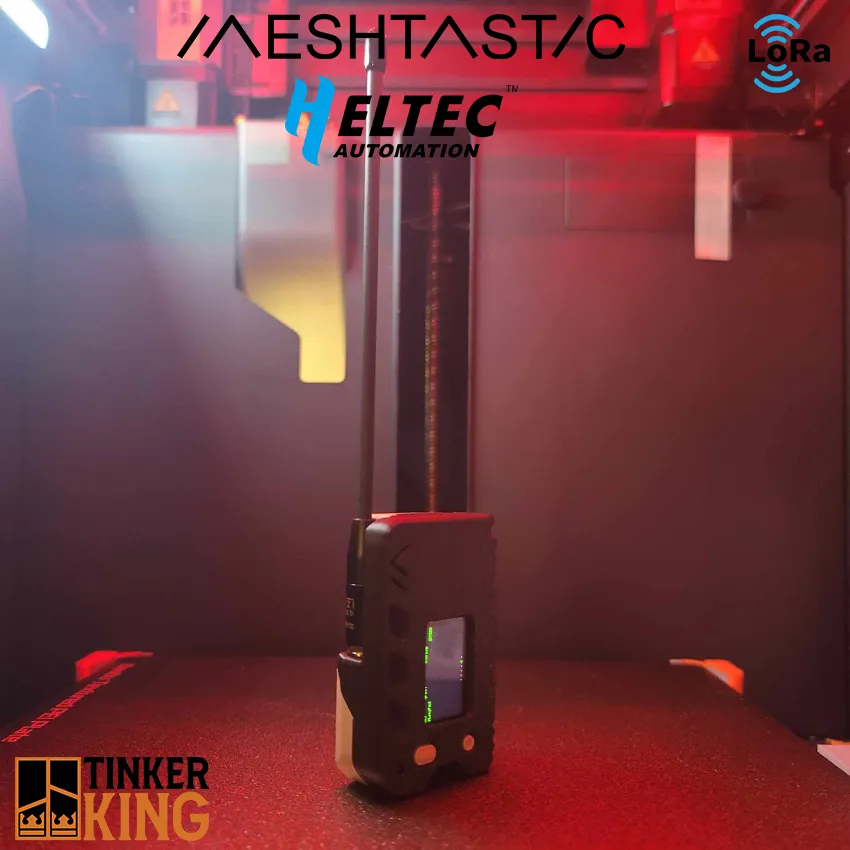

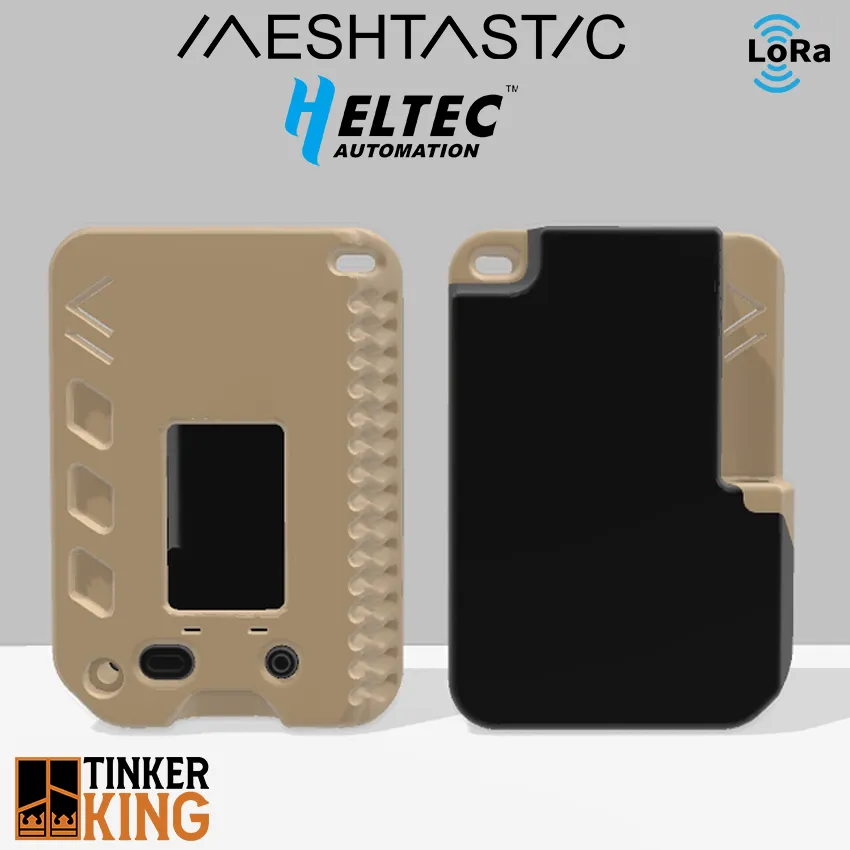

Remix of the Muzi Works H2T Heltec T114 to keep the plastic screen cover. I wanted to be able to have the durability of the cover to assist in protecting the fragile OLED screen in case of a drop. I had to move the screen cutout a smidge (since the original had an insert for the screen cutout without cover) so you can see the screen without being cut off by 1mm. I had to add a little thickness from the front of the case where the AIO chip was inserted to accommodate the thicker screen while lowering the “cut”. Raised the USB C port to also accommodate the raised height from the screen cover. This of course required the buttons to be slightly enlarged to fit nicely without being too recessed. Without the “step” file, you'll notice some rough cut lines in the 3d file where I had to make the additional space without the “step” file, but it is not noticeable to the human eye (macro level). The screw I used was a M3*16 screw and fit perfectly.

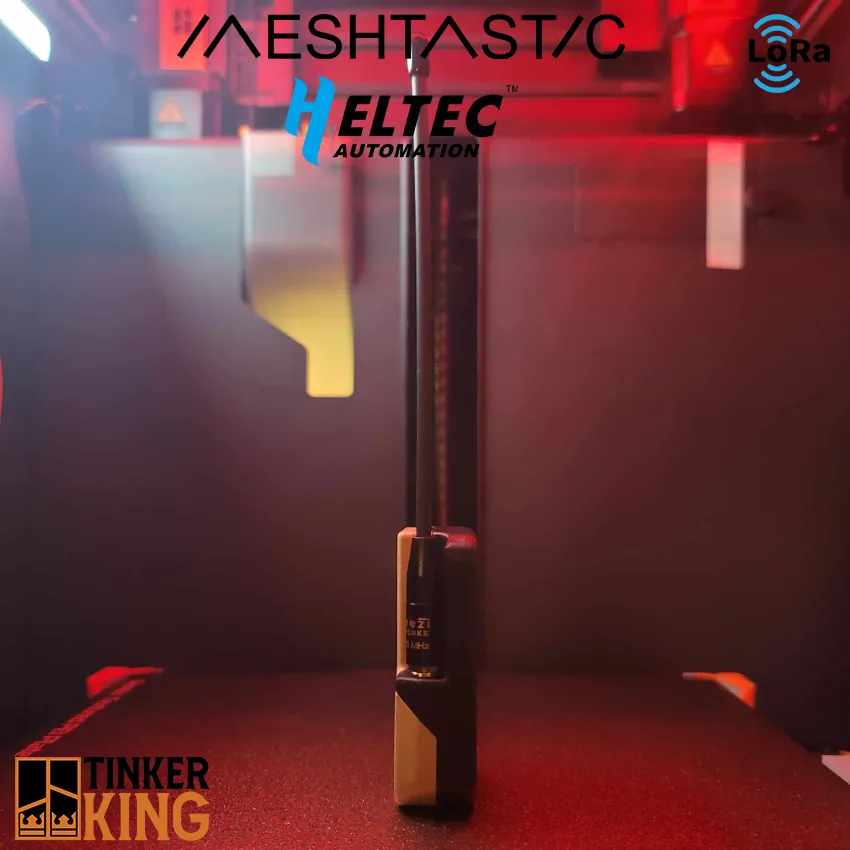

You'll also want to purchase the Muzi Works 17cm antenna. The “stub” antenna creates too much interference with the BLE (Bluetooth Low Energy), but I have not had any issues with the additional antenna and having BLE constantly dropping in and out several times a minute!

Whip Antenna – 17cm – muzi ᴡᴏʀᴋꜱ

NOTE The Original H2T isn't posted here, but was posted on Printables as STL files, so I was unable to link to the original, but here is the link if you prefer the OG! H2T - Case for Heltec T114 with GPS running Meshtastic by muzi.works | Download free STL model | Printables.com
