QCTP AXA BXA Bracket System

Summary

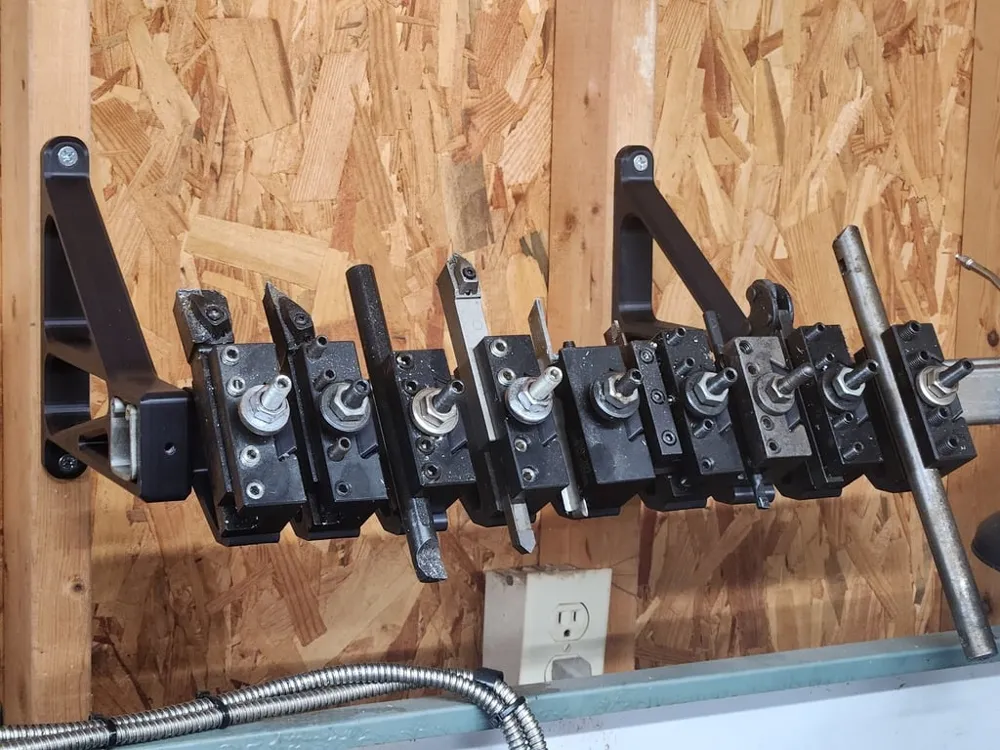

Needed a system to hold all of my BXA tool holders and wanted one to mount to the wall behind the lathe.

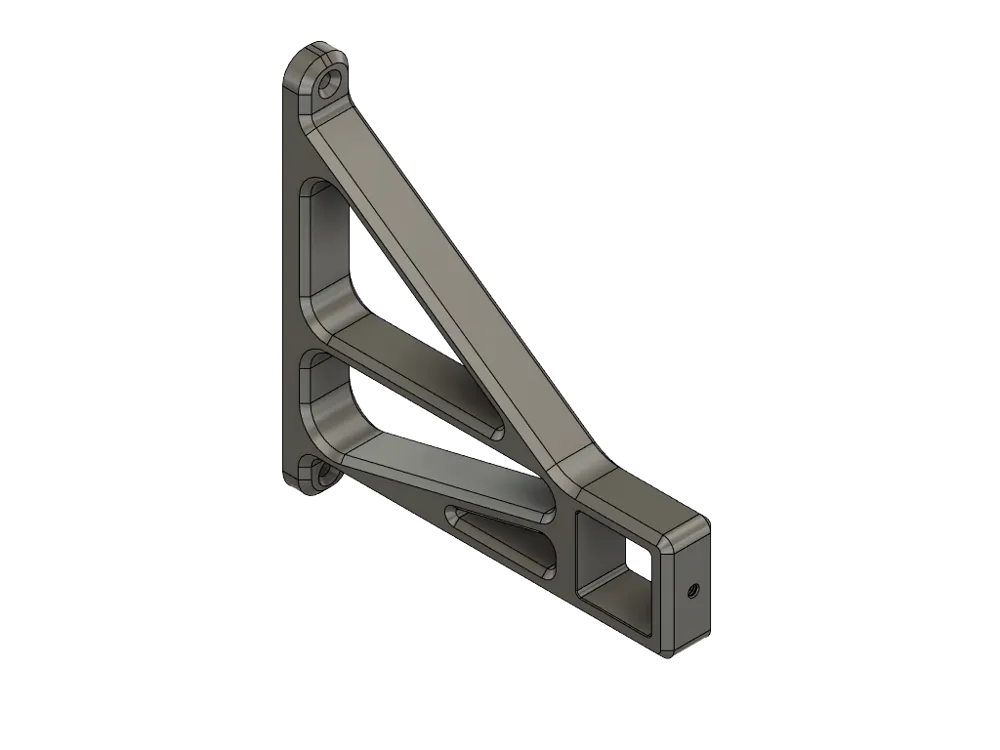

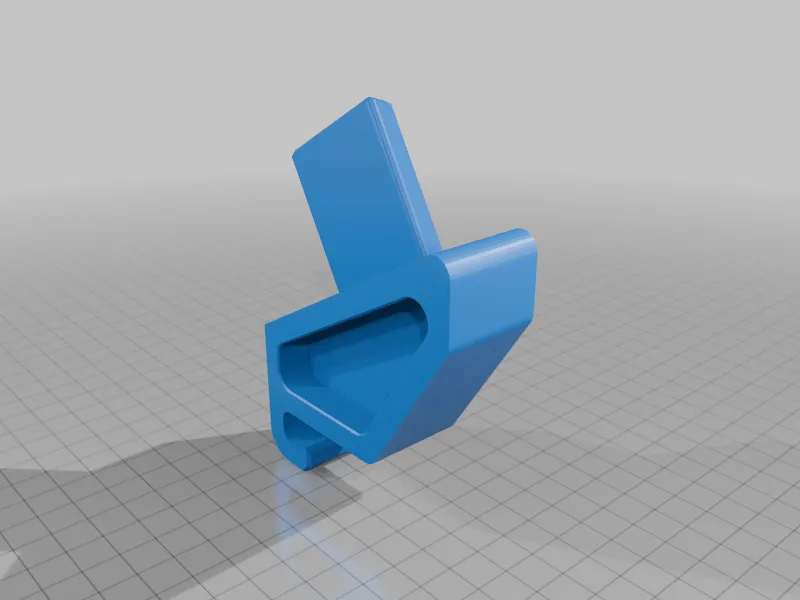

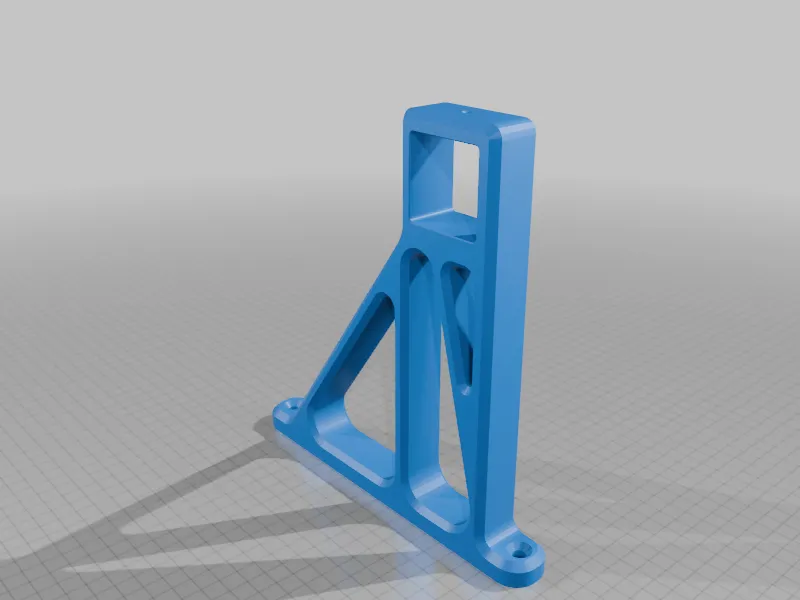

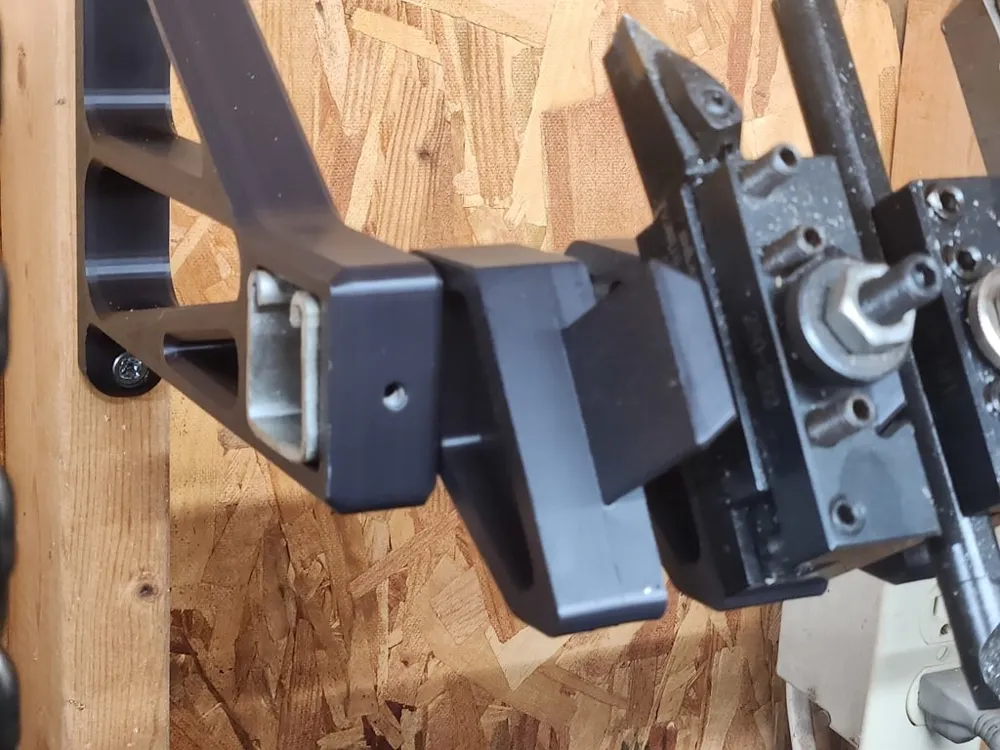

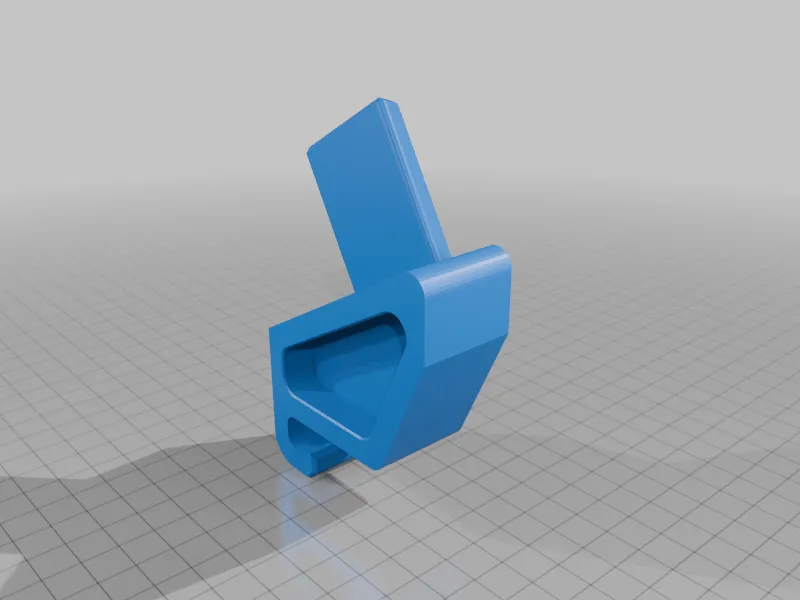

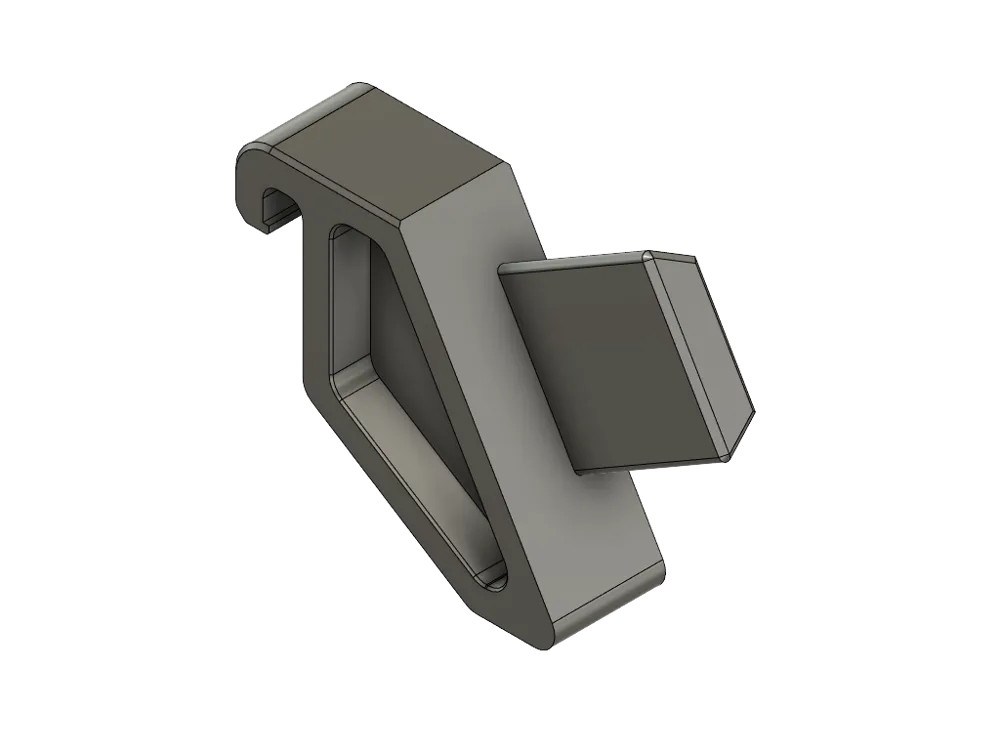

This system uses a piece of 1-5/8 Uni-Strut available from most hardware stores and the AXA or BXA holders clip on and are retained by both the hook and a small 12x3mm magnet pressed in to the back. The wall brackets have printed threads for a ¼-20 set screw in the front to lock the uni-strut in position.

Print Settings

Printer Brand:

Bambulabs

Printer:

Bambu P1S

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

15%

Filament: Polymaker ASA


Notes:

-Printed with generic settings on Bambu P1S

-15% Gyroid Infill

-4 Walls

-Mouse ear brim on the outside corners of the bracket and 100C bed
