A case for the LILYGO/TTGO LoRa32 V2.1_1.6 Board

A case for the LILYGO/TTGO LoRa32 V2.1_1.6 Board

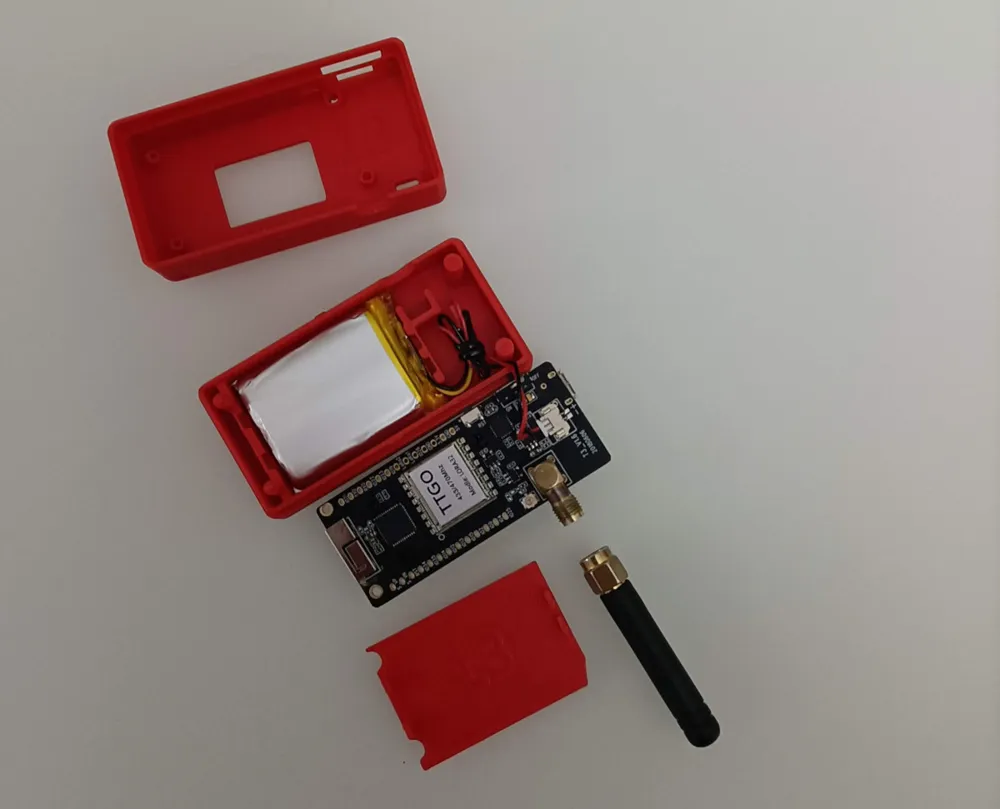

The main features of this enclosure are:

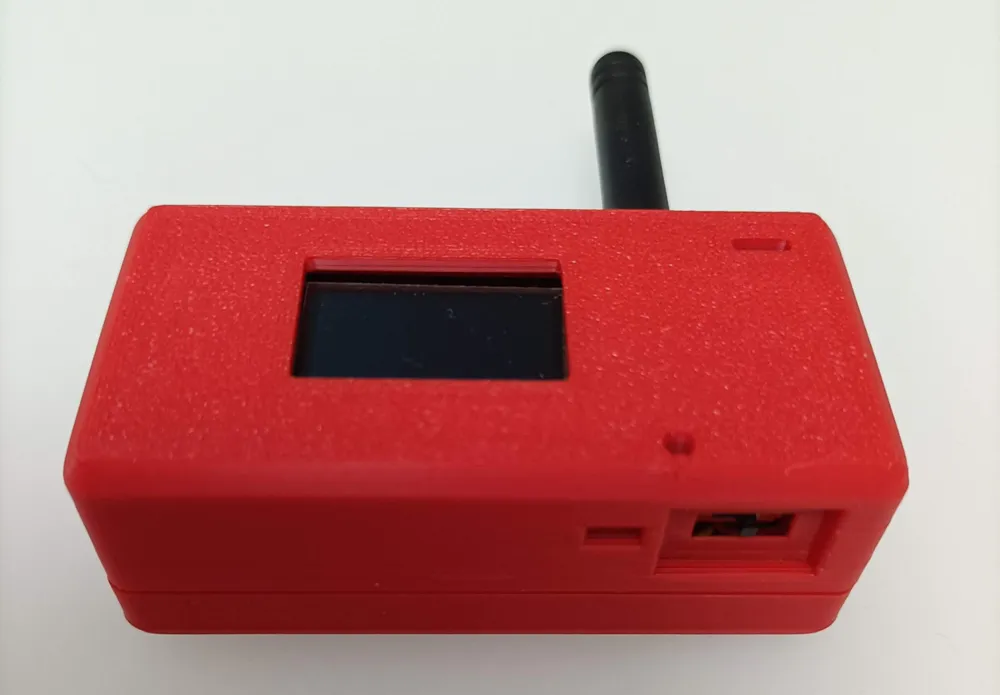

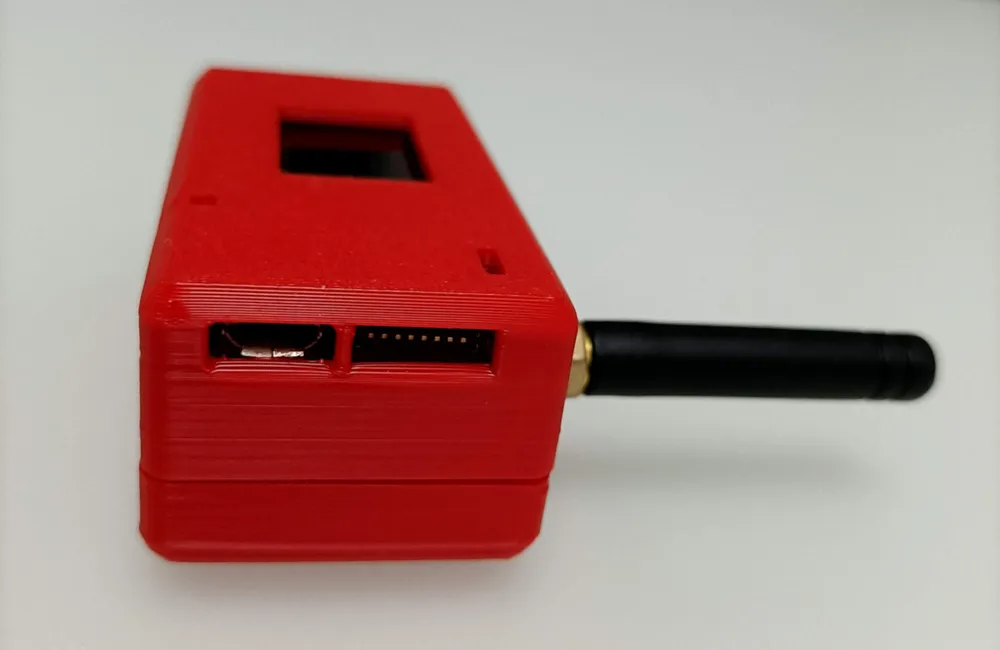

• Tightly assembled with USB, SD, and antenna connectors easily accessible.

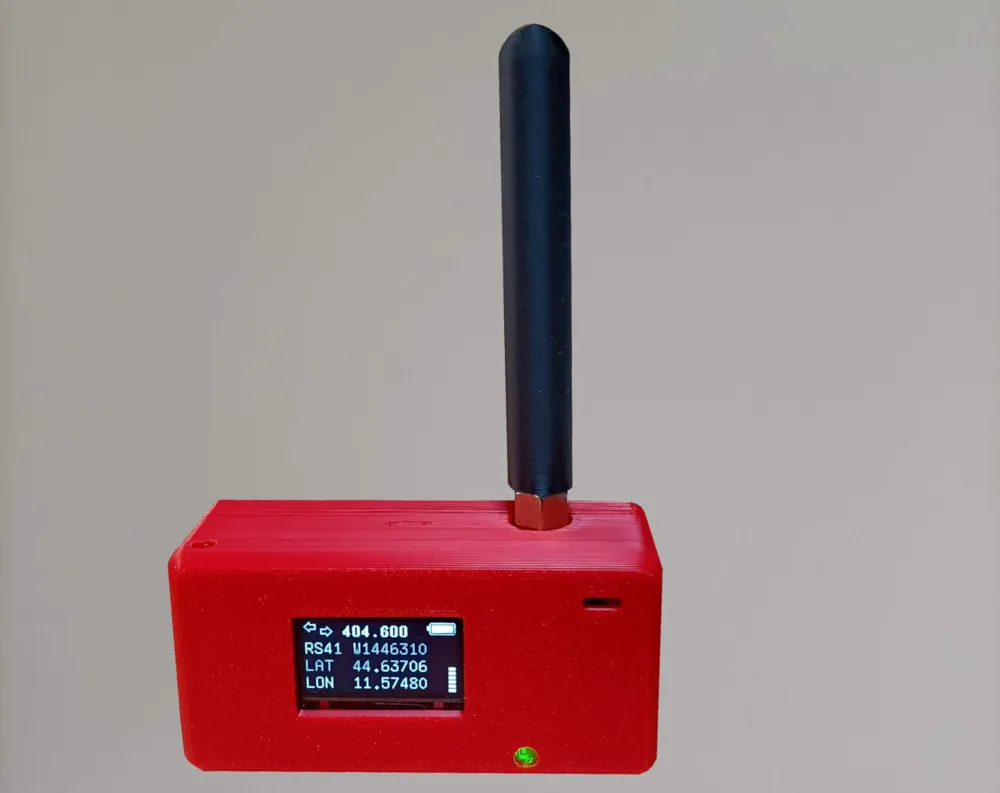

• The LEDs are easily visible through small holes in the enclosure.

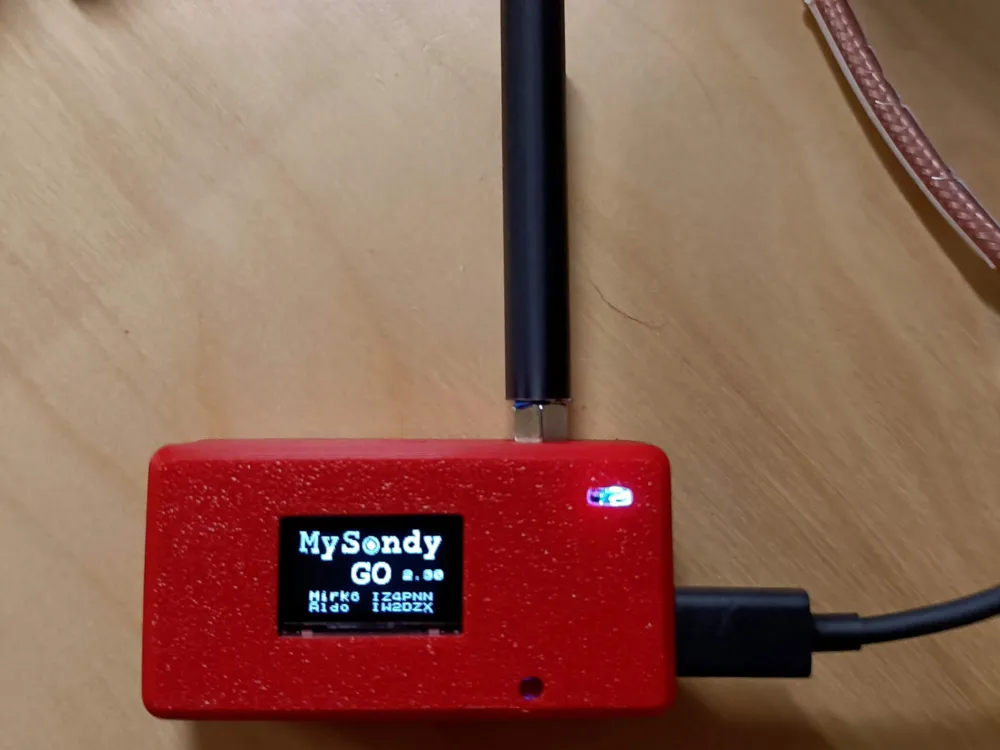

• The power switch on the bottom is easily accessible with a finger.

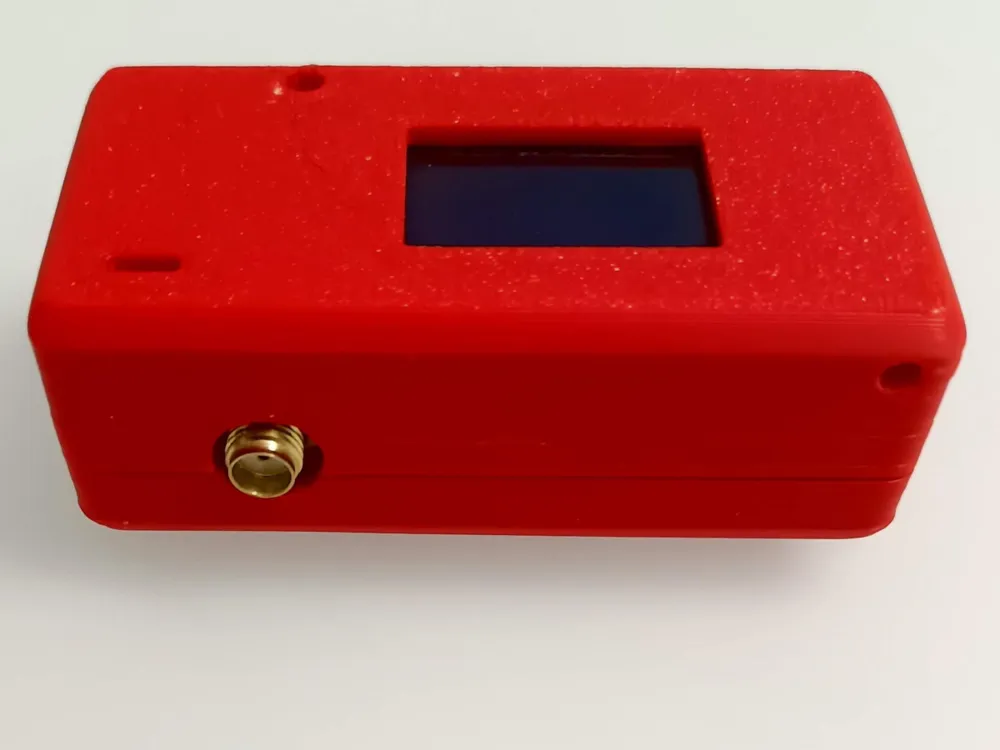

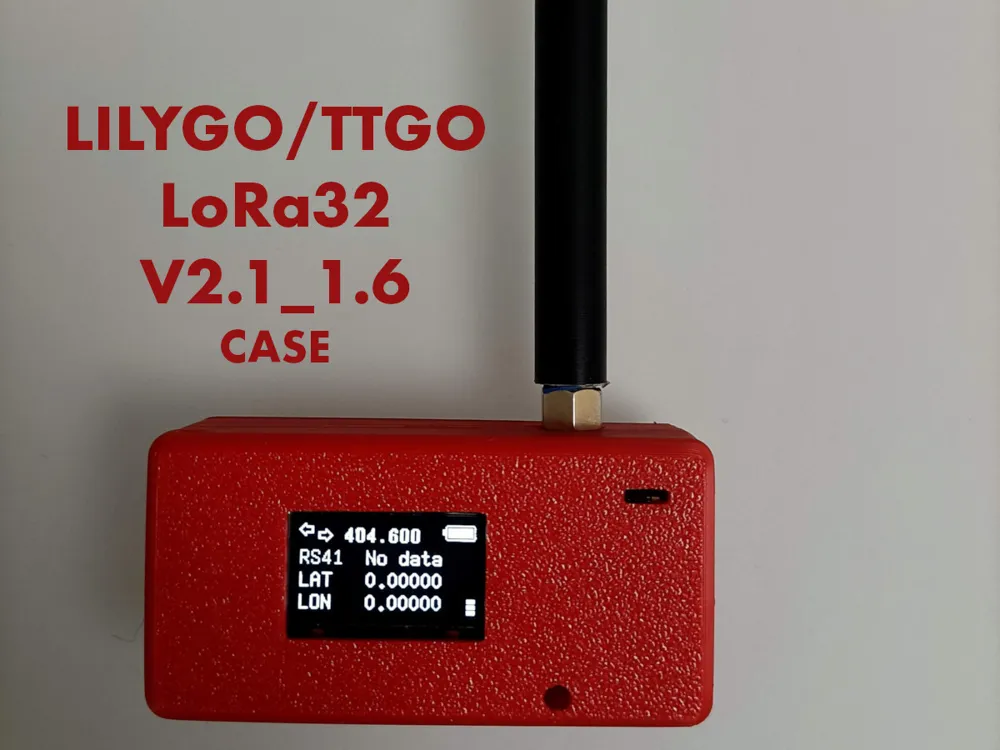

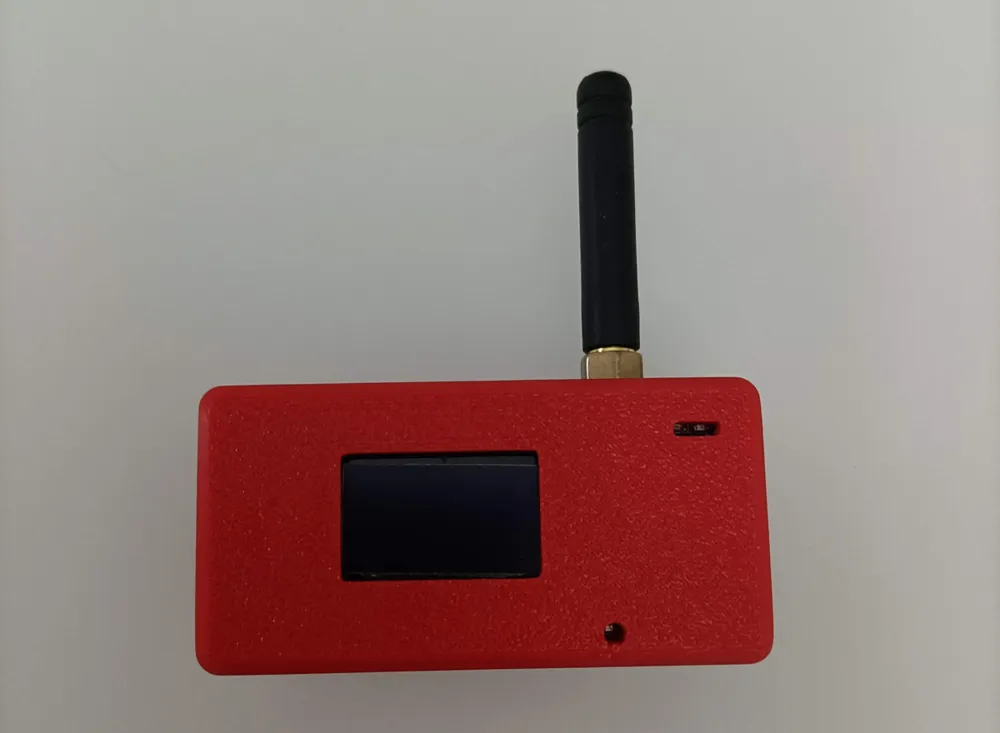

• The display is clearly visible.
• There are dedicated holes for attaching a string.
• No screws are needed; the snap-joint design allows the base and lid to "click" together without screws.

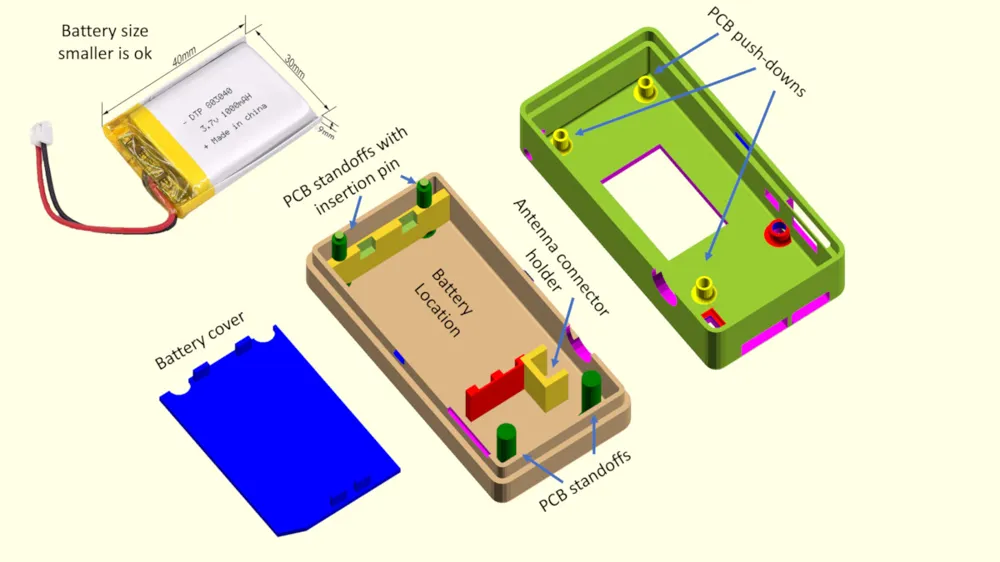

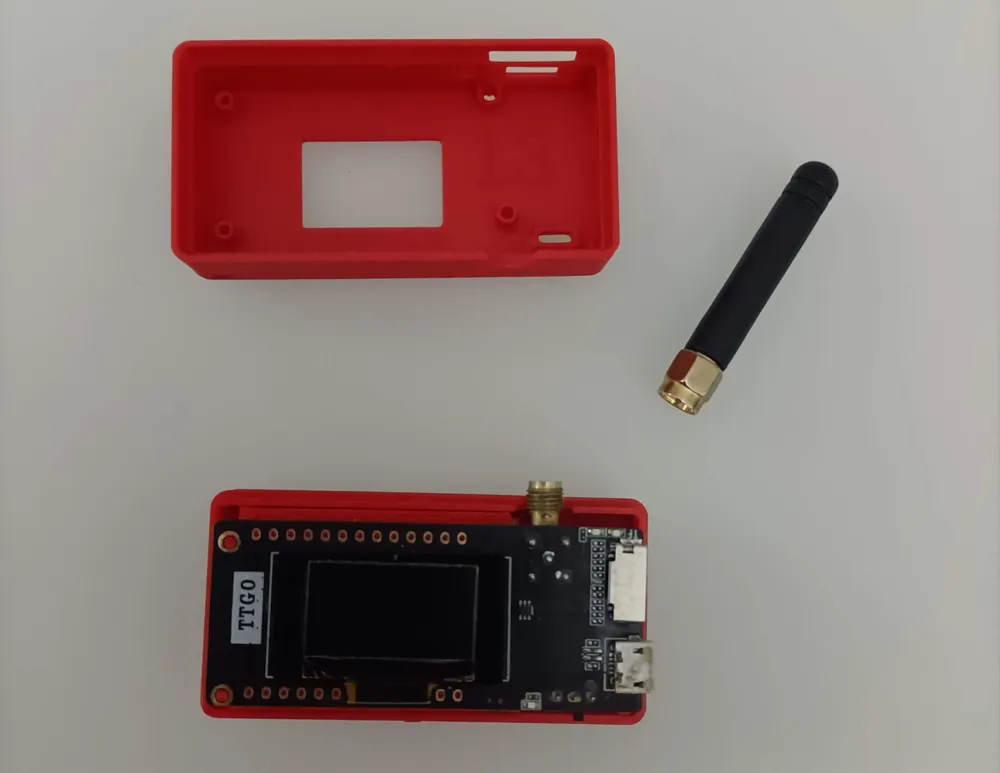

• The circuit board is neatly clamped between the base standoffs and the lid push-downs, ensuring correct alignment, thanks to the antenna connector holder.

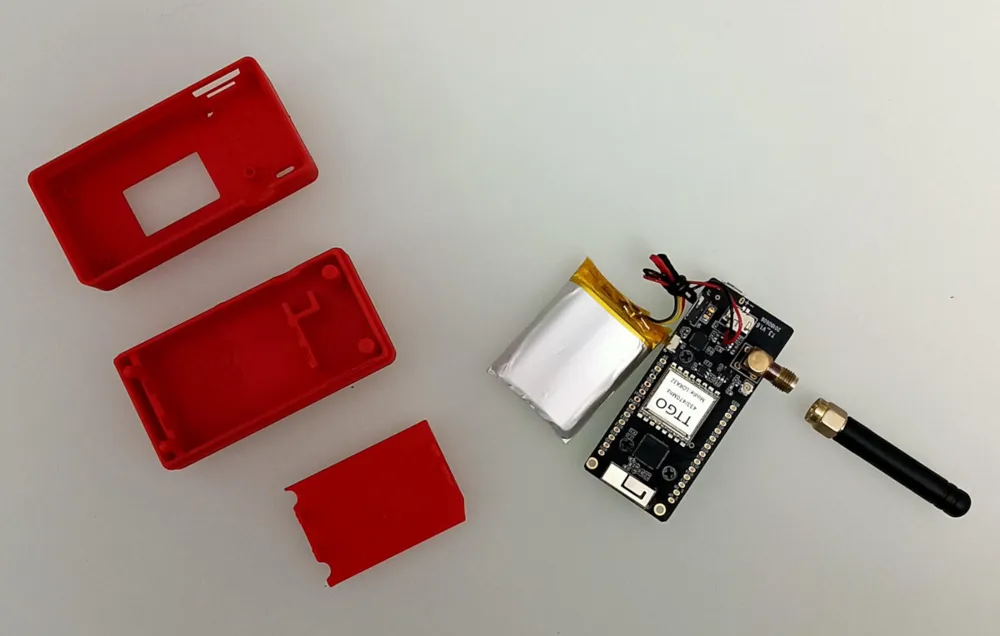

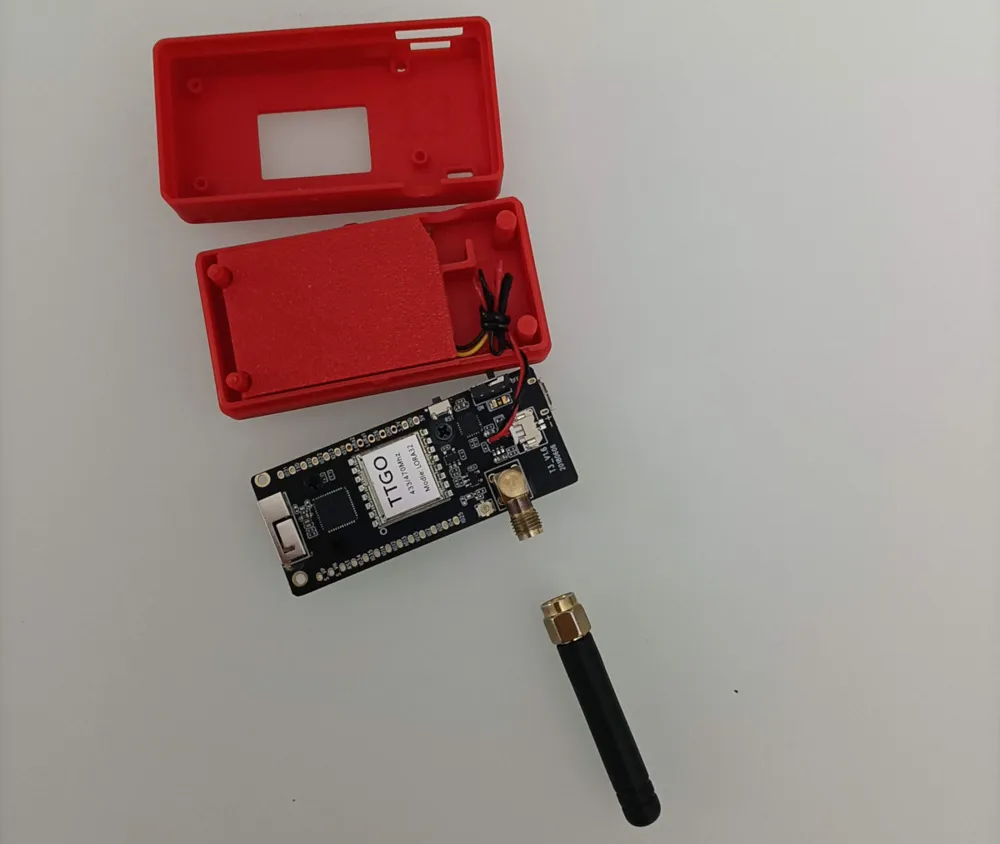

• There is a dedicated space for an optional rechargeable battery, with dimensions of 4 cm x 3 cm x 0.9 cm or smaller.

Notes

To close or open the enclosure, gently press the base near the snap joints (in the center) with your fingers to facilitate the process, or use a small flathead screwdriver to free the lid from the joints. Be careful not to bend the lid during removal or insertion to avoid breaking the standoffs.

Model

This model has been designed with OpenSCAD and the fantastic library YAPP_Box Yet Another Parametric Projectbox generator

The source code is available on my GitHub repository at https://github.com/digiampietro/enclosure-ttgo-lora32
