Y-shunt / Y型分流器
Print Profile(2)
Bill of Materials
Description
First, you will need three straight-through PC4-M6/4mm pneumatic connectors.
The installation has two points that need to be noted:

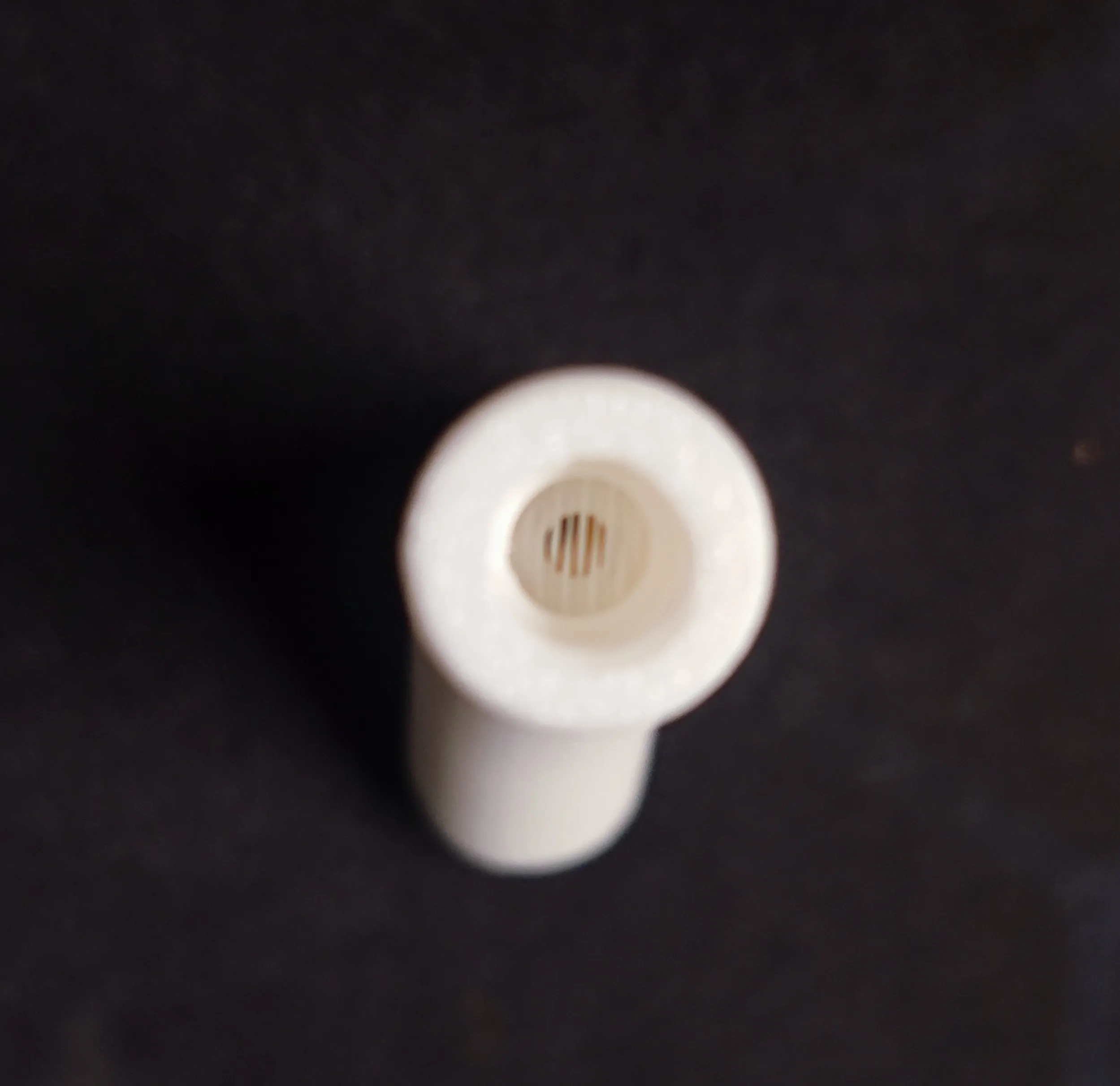

1. After printing, use a thin utility knife or other tool to remove the support bridge I have set. It is the bridge shown in the round hole in the picture below.

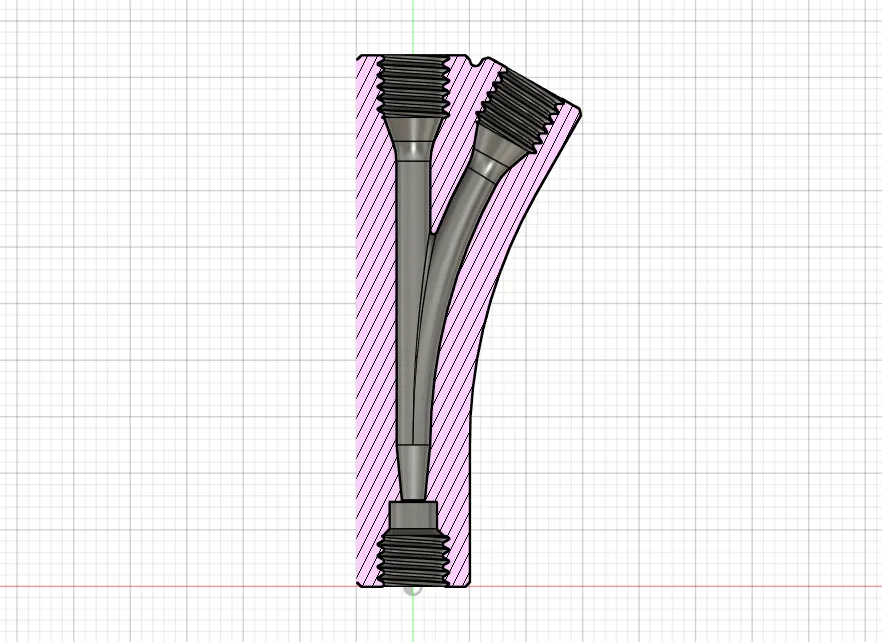

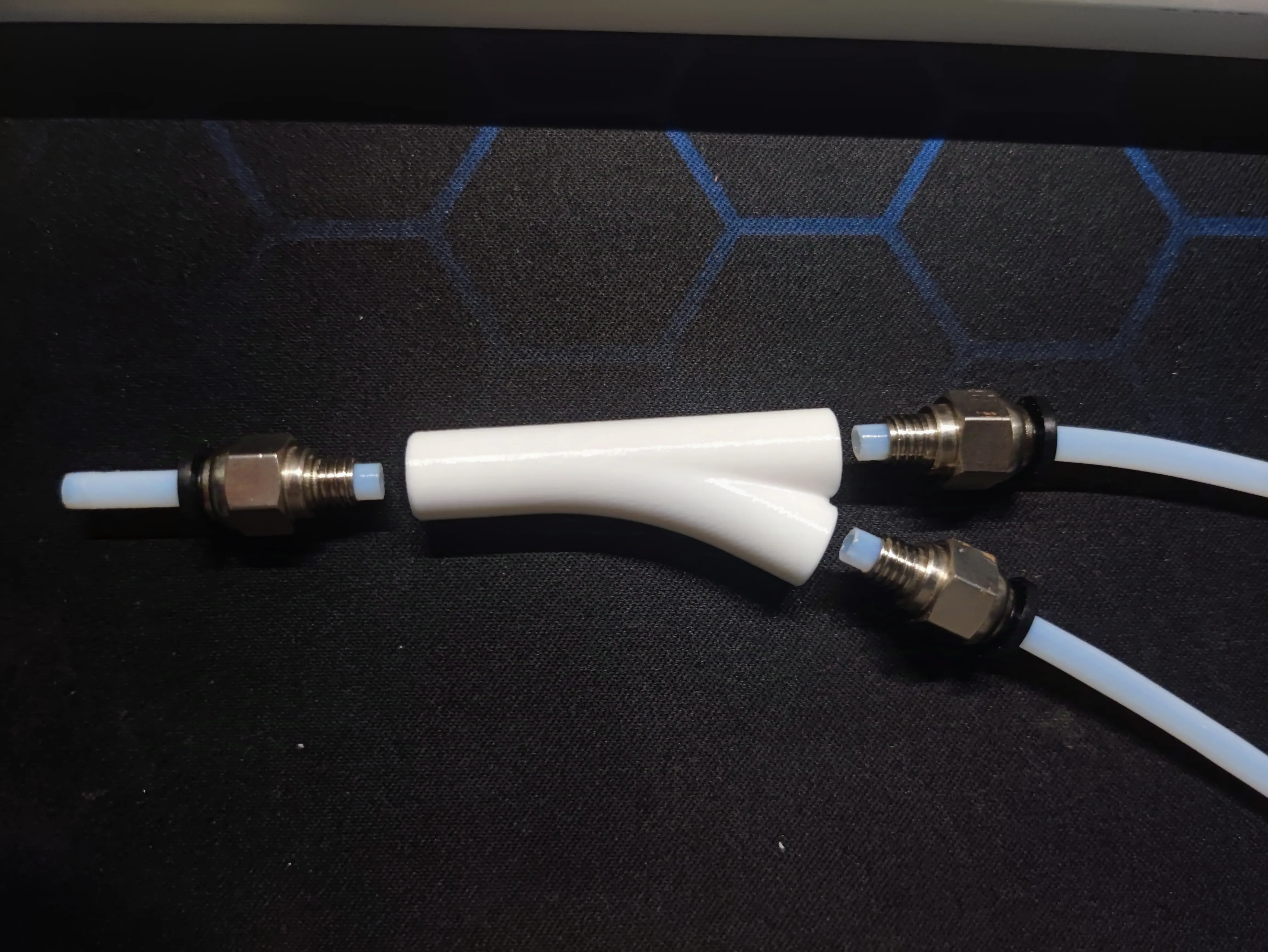

2. For smoother filament passage, I have intentionally left a space for the Teflon tube in the model. So when inserting the Teflon tube into the pneumatic connector, it needs to extend a certain distance. This is why a straight-through pneumatic connector is required. The picture below shows the actual insertion of the Teflon tube.
