This is a 1:12 or 1:20 scale model of the AIM-54 Phoenix long range missile used by the iconic US Navy's F-14 Tomcat fighter jet. This was a very long range missile for its time, capable of ranges around 100 miles compared to the other dominant missile of the era, the AIM-7 Sparrow, which at its max had a range of 38 miles.

Bambu Filaments Used

Basic Light Gray
Matte Yellow
Matte Dark Brown
Basic White
Silk+ Silver

1:12 Scale Version Assembly

1. Start playing the Top Gun Theme – Danger Zone by Kenny Loggins

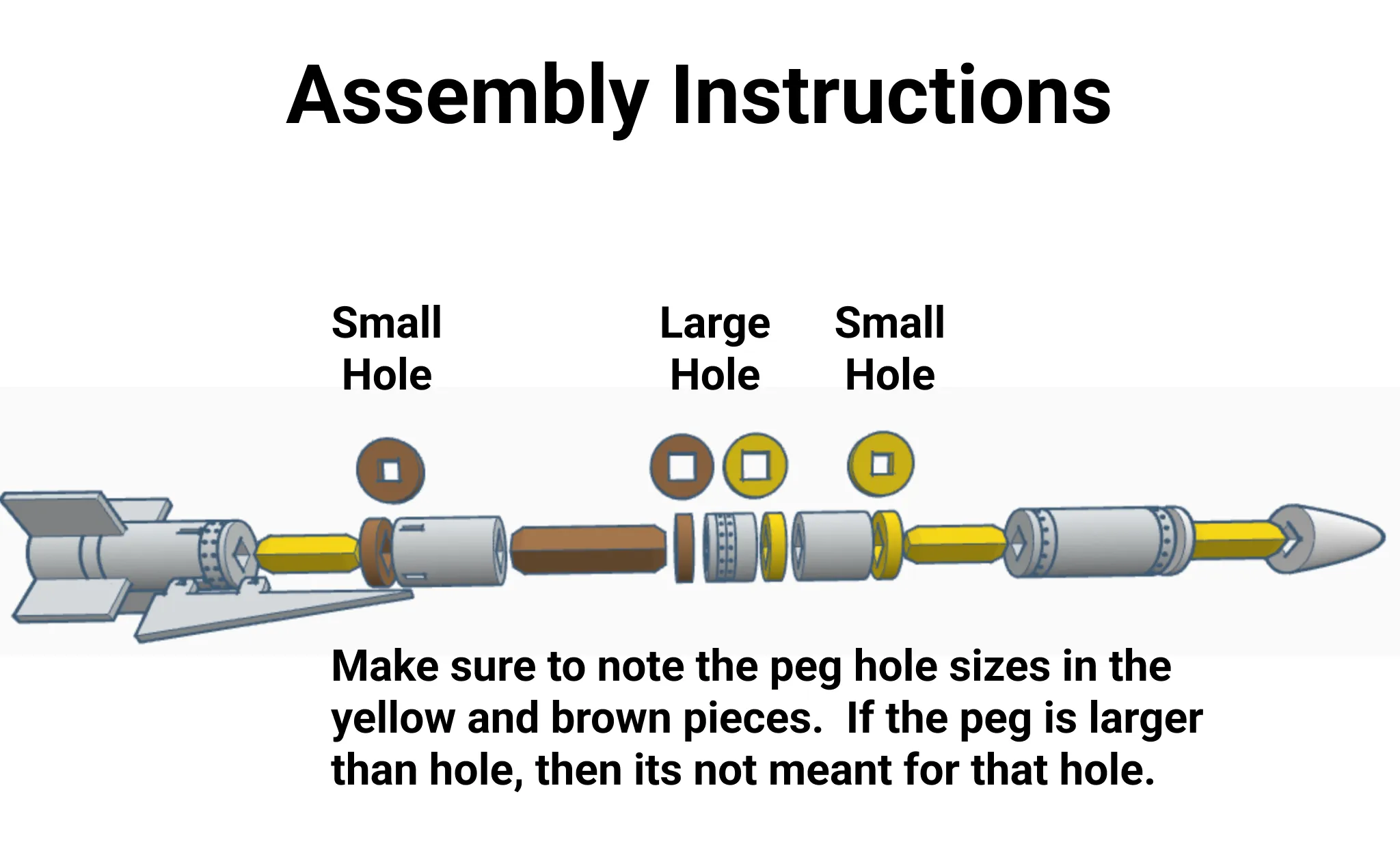

2. First connect the top pieces with the provided pegs as you see below. There are longer and shorter pegs, however, since they are different sizes you can't accidentally put them in the wrong peg hole. If a peg is too lose or too large, then use the other type of peg.

3. Lastly, insert a peg into the bottom of the pieces above before sliding it into the last remaining piece as you see below.

1:20 Scale Version Assembly

Start playing the Top Gun Theme – Danger Zone by Kenny Loggins
Refer to the diagram for assembly order
Crap, I just accidentally re-watched all of Top Gun, where did the time go
