The Magnetic Grip Clip

Description:

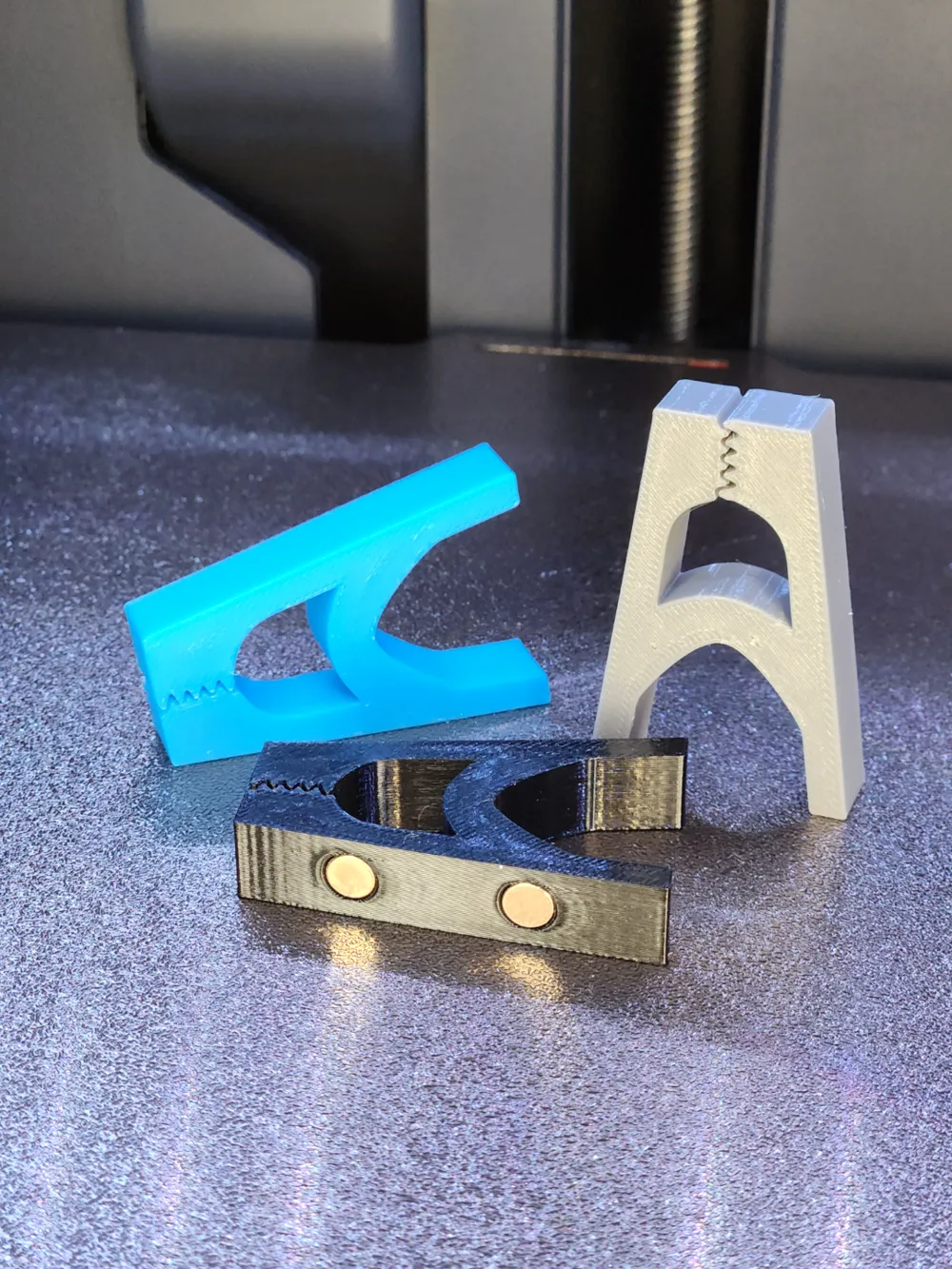

The Grip Clip is a fully 3D-printable clamp, designed for anyone looking to hang small items like grocery lists, photos, or reminders on metal surfaces, such as refrigerators. Created with simplicity and functionality in mind, this tool features a flexible arm mechanism that provides firm clamping pressure, eliminating the need for additional hardware like springs. Its magnet-ready design allows users to insert magnets for hanging capabilities.

Available in three variations, the Grip Clip offers options for 6x2mm magnets, 5x2mm magnets, or a non-magnetic version for general use. All versions are easy to print and require no supports. The design is compact, sleek, and efficient, offering a practical solution to organizing spaces with a modern, minimalist aesthetic.

Specifications:

• Magnet Compatibility:
  • 6x2mm version: 2 slots for 6mm diameter, 2mm thick magnets
  • 5x2mm version: 2 slots for 5mm diameter, 2mm thick magnets
  • Non-magnetic version: No magnet slots
• Clamping Mechanism: Fully 3D-printed flexible arm design, no springs or additional hardware
• Magnetic Strength: Determined by user-supplied magnets
• Design Features:
  • Ergonomic arm design for reliable clamping force
  • Lightweight, easy-to-print design with minimal material use
  • Magnet-ready for customizable strength or non-magnetic use

Key Benefits:

• No Springs, No Screws: The Grip Clip uses a 3D-printed flexible arm for clamping force, eliminating the need for springs or screws.
• Magnet Flexibility: Users can customize magnet strength by choosing their own magnets, or opt for the non-magnetic version.
• Simple and Quick to Print: The design is optimized for easy 3D printing, requiring no supports and minimal filament.

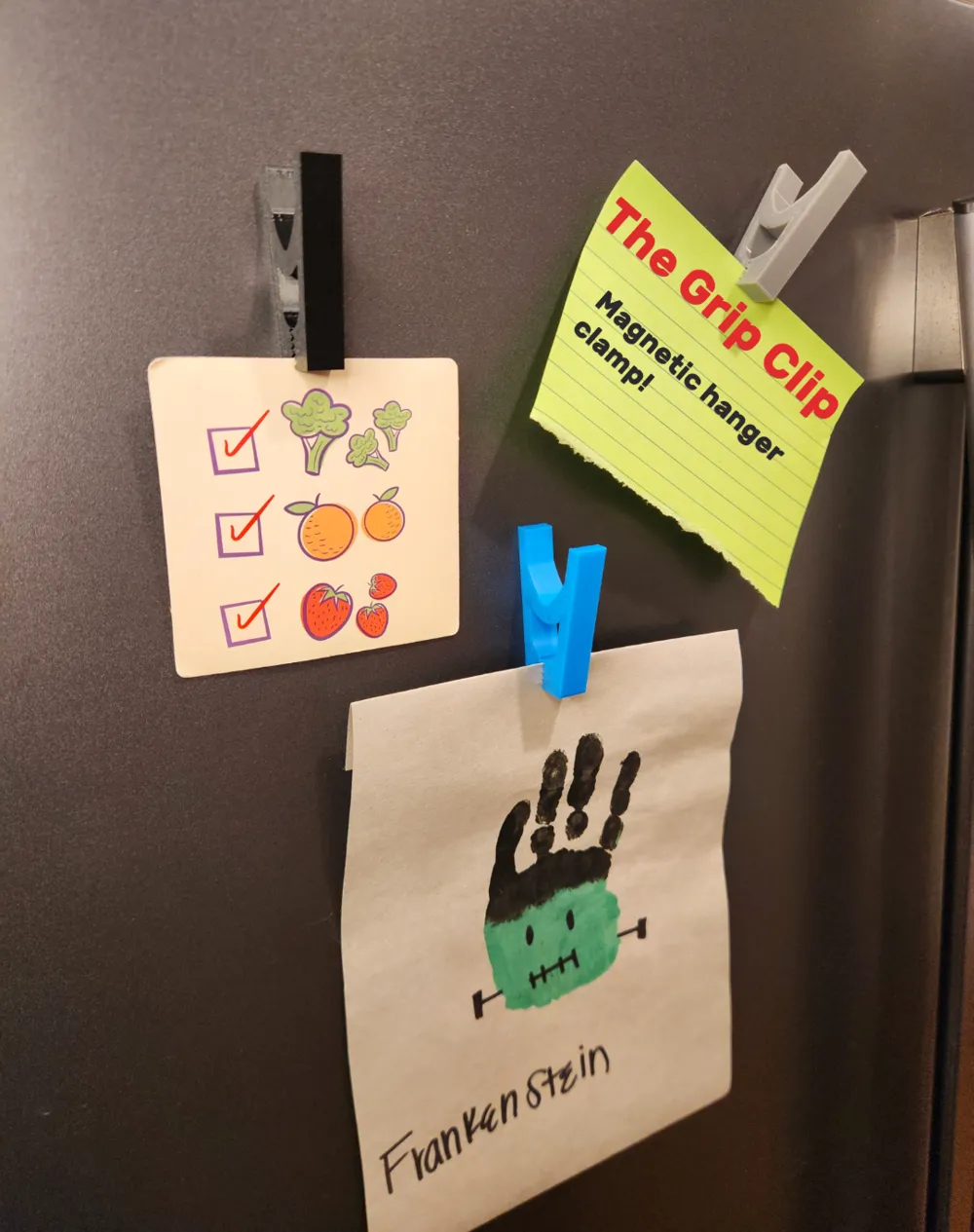

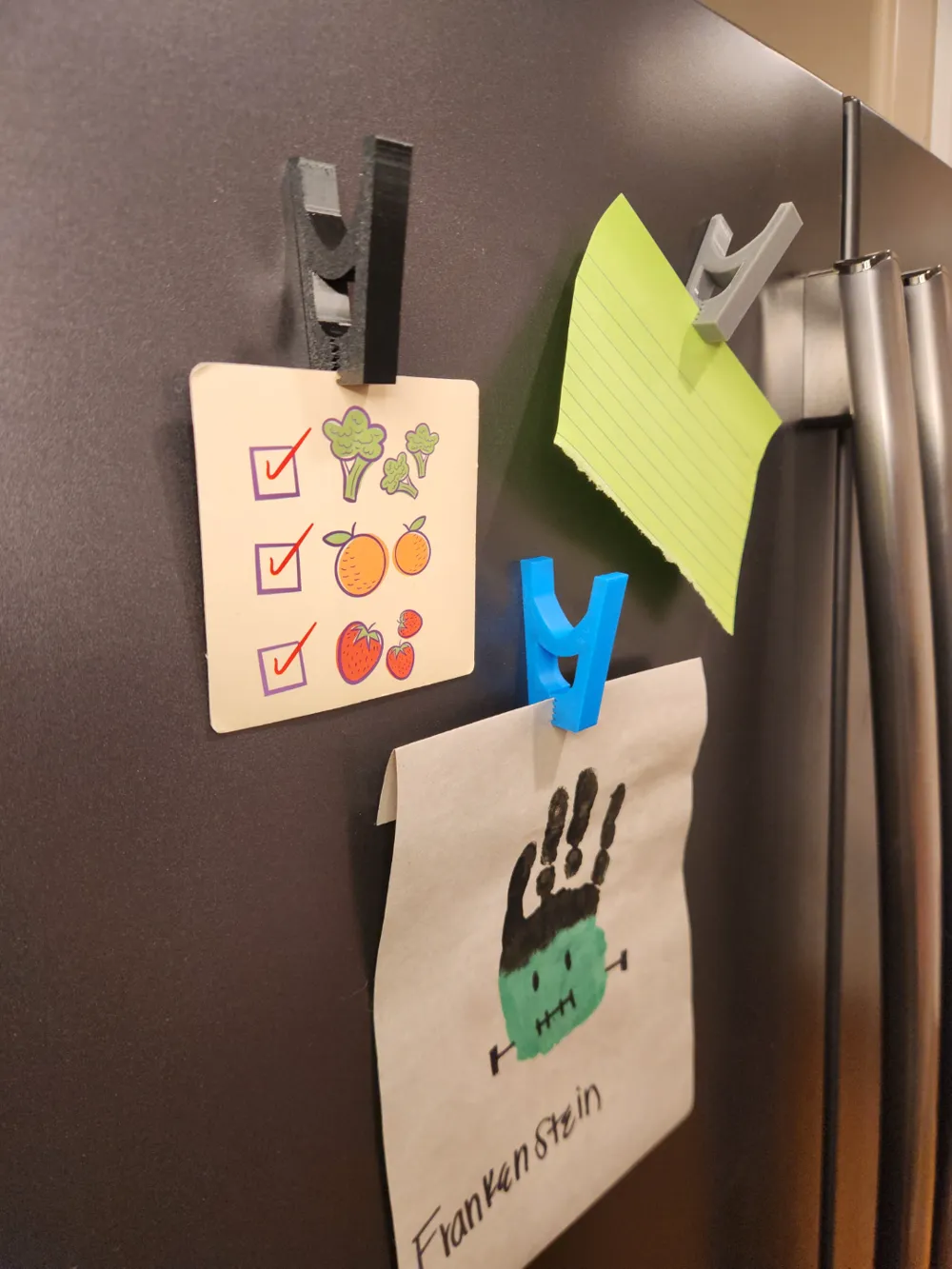

• Versatile Use: Ideal for holding notes, pictures, or small objects on refrigerators, whiteboards, or other metal surfaces.

Suggested Print Settings:

• Material: PLA or PETG
• Infill: 15%
• Layer Height: 0.2mm
• Supports: None required
