NanoStation 5AC Loco Window Mount for Tali

Update 2026.07: A new Adapter Kit for the Taili suction cup simplifies assembly, and the L-bar now features a clip for a more secure connection. For users of the previous version, only the Adapter and Bracket need to be printed; printing the new L-bar is also recommended.

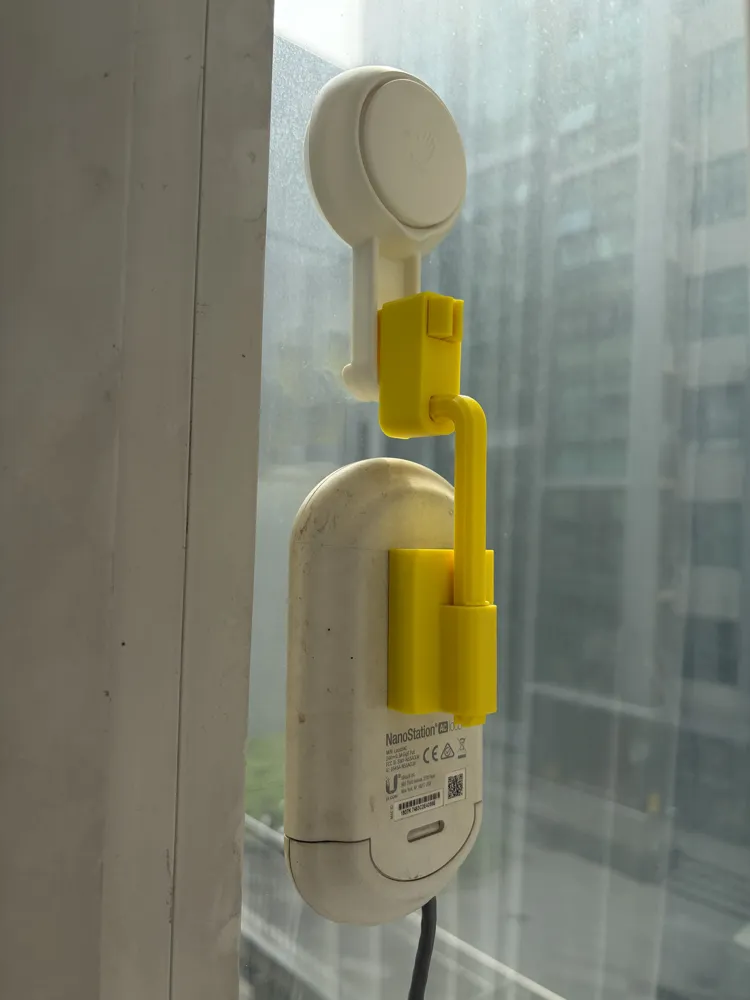

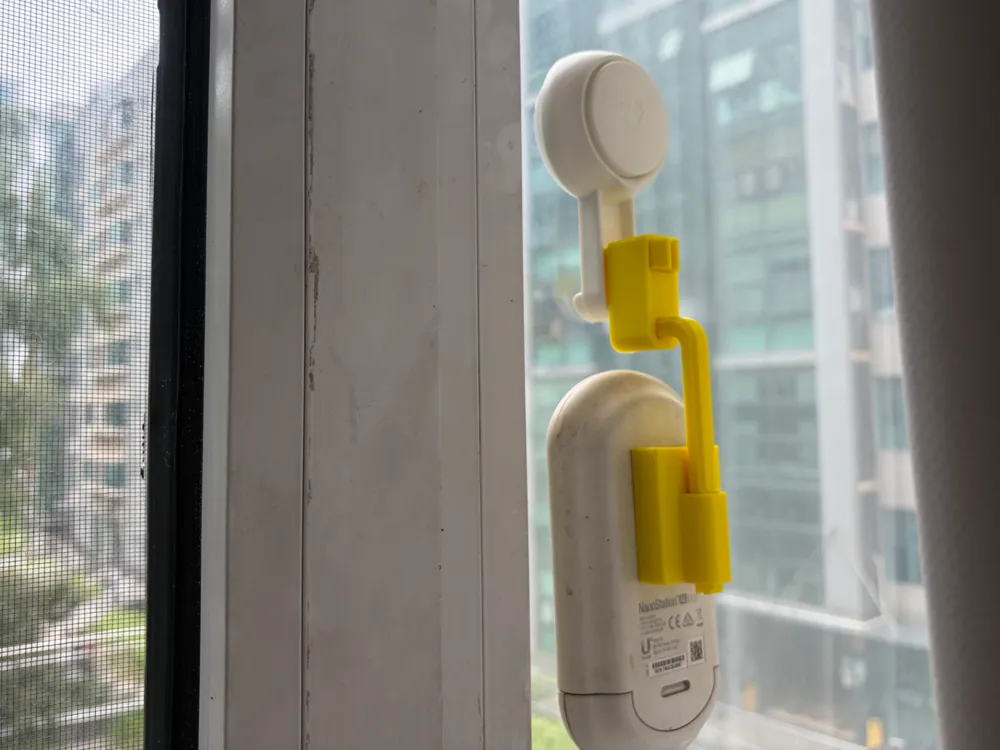

This design works with the TAILI Suction Towel Hook (suction cup body only) to mount the NanoStation 5AC Loco onto windows or other smooth surfaces.
It is recommended to print the parts using PETG filament for better durability.

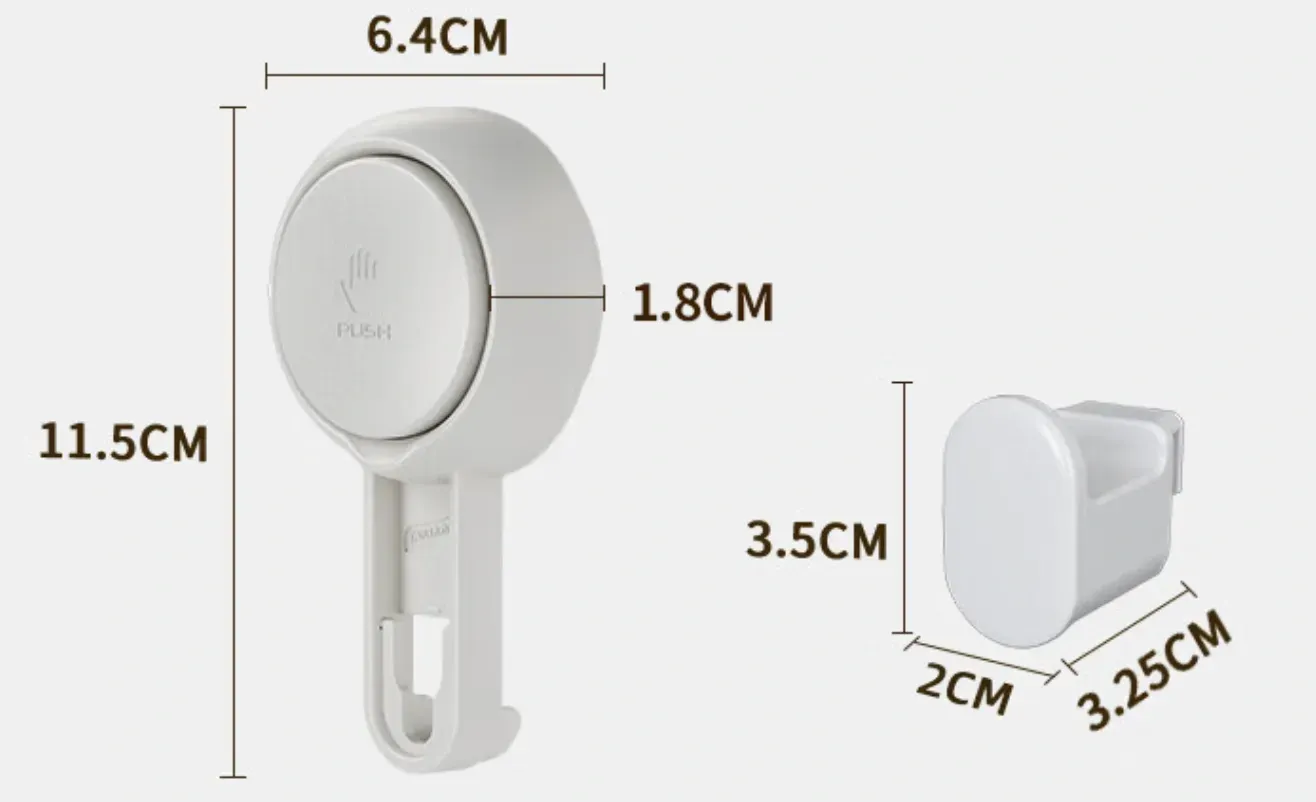

Taili Suction Towel Hook:

https://www.amazon.com/TAILI-Drilling-Waterproof-Adjustable-Bathroom/dp/B07GT1JCX9?ref_=ast_slp_dp&th=1

Assembly Steps:

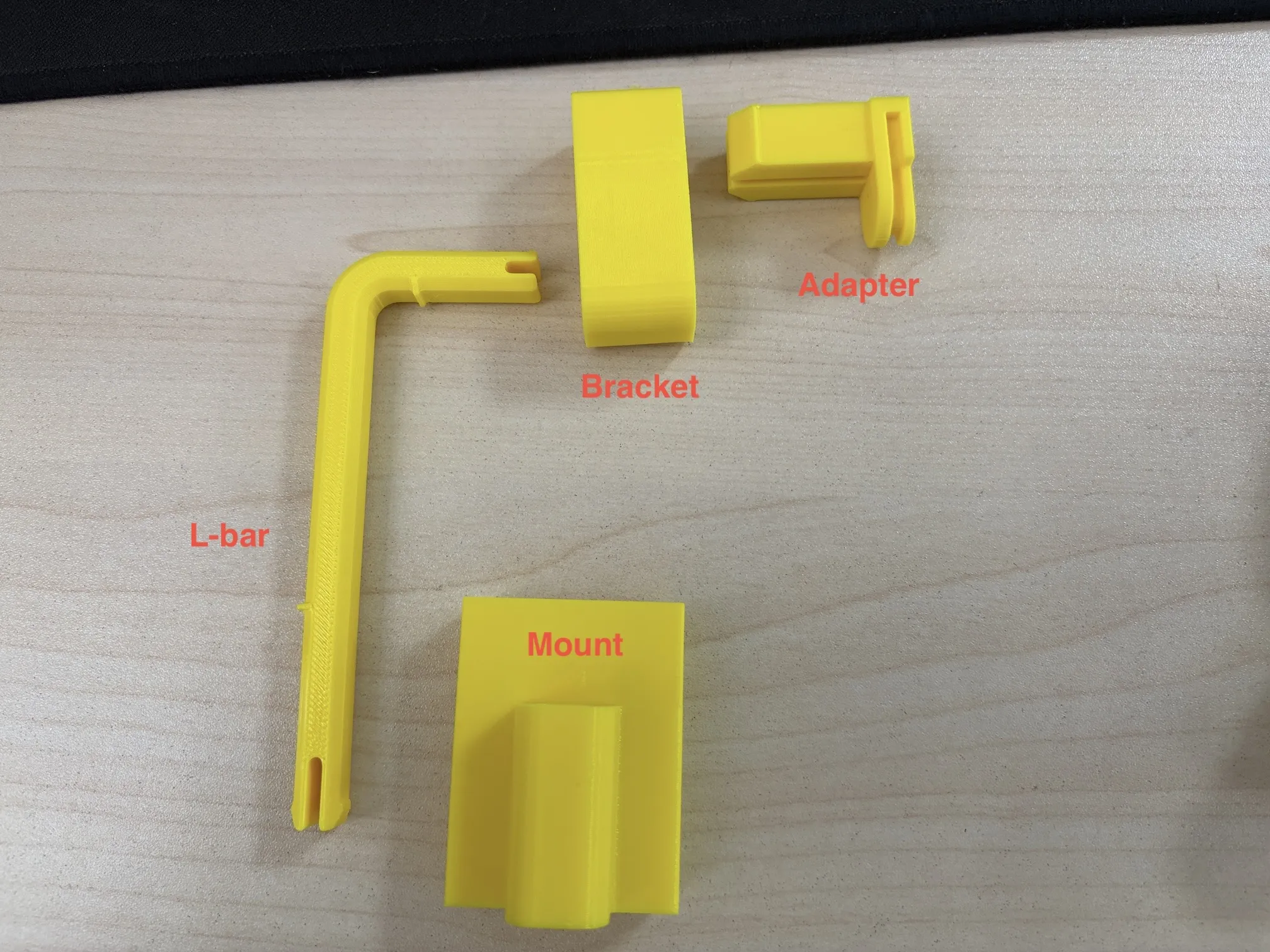

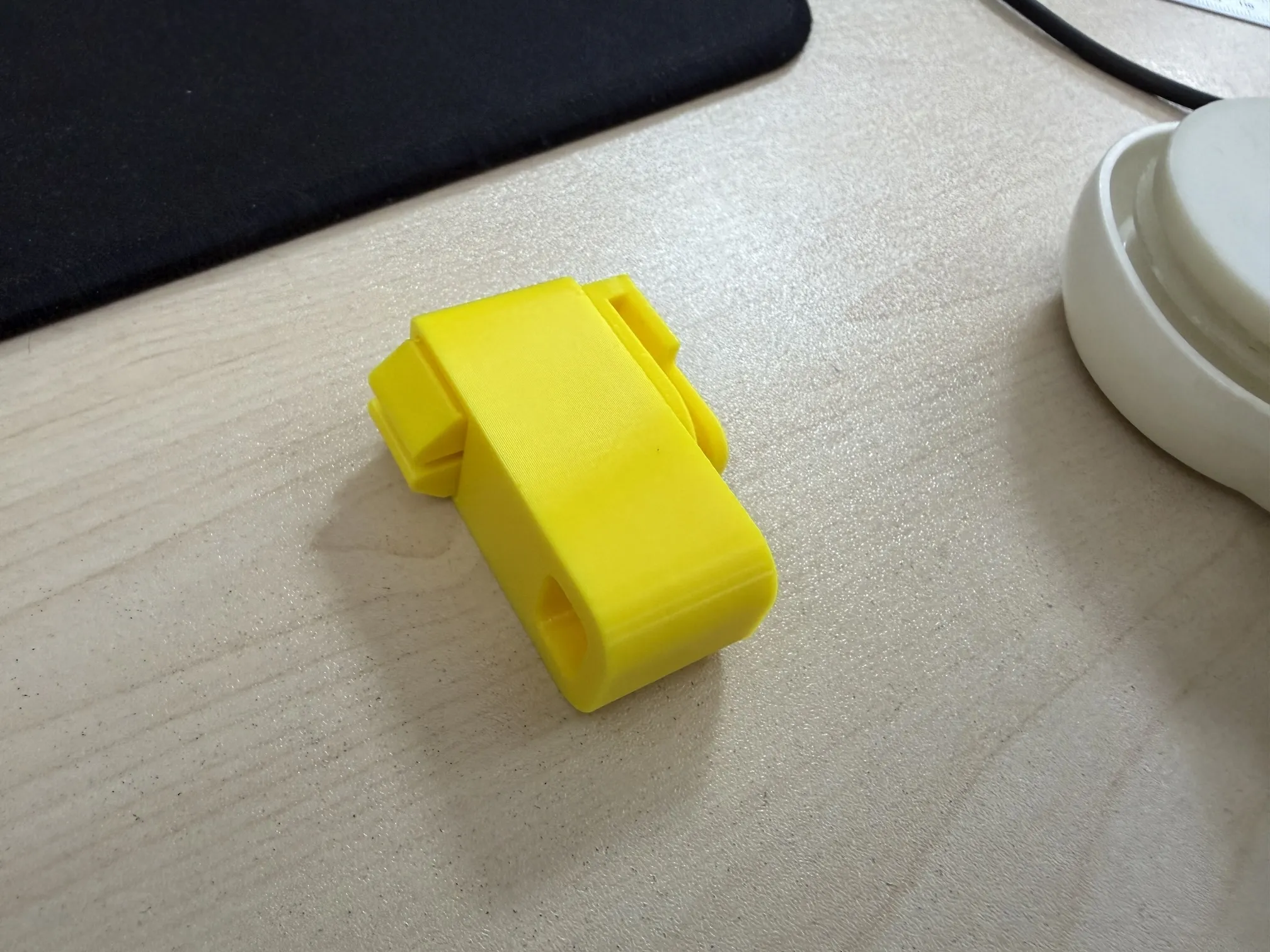

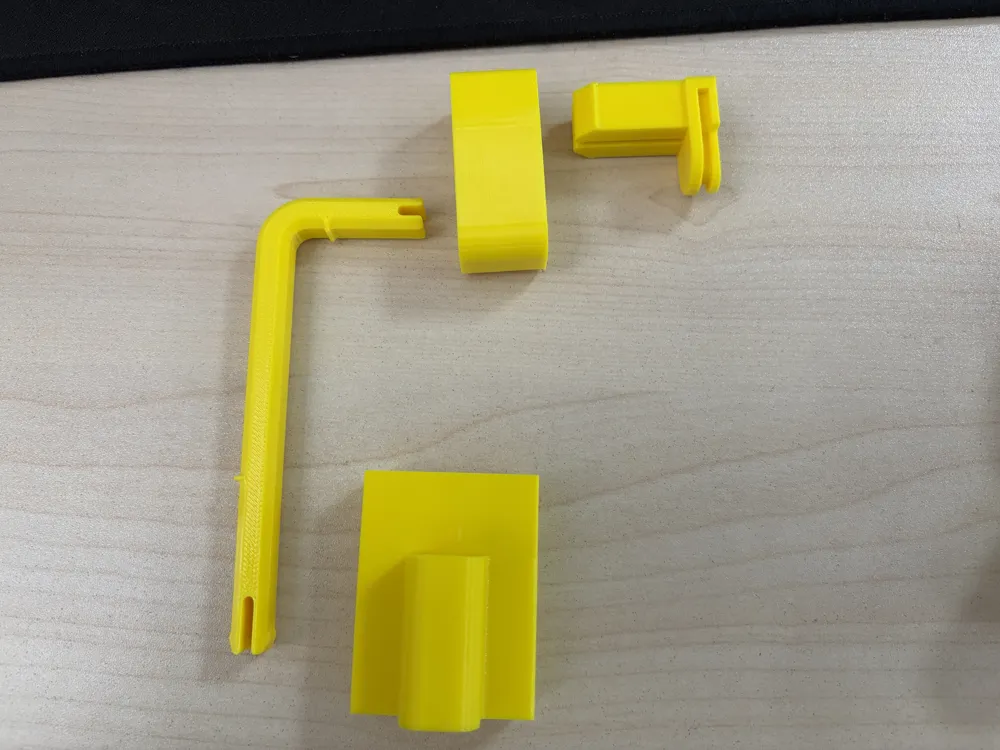

1. Insert Adapter into the larger slot of the Bracket.

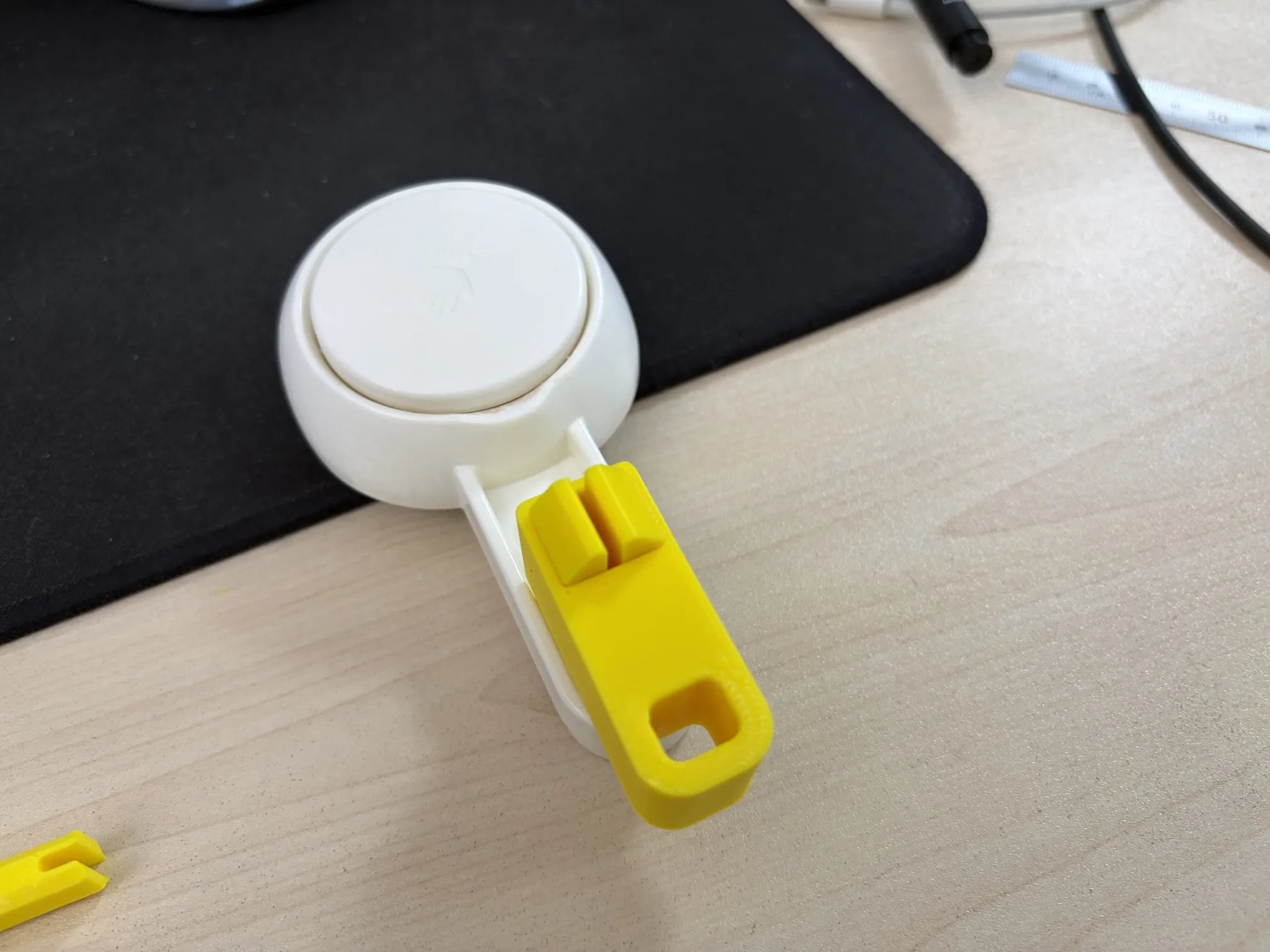

2. Slide the Adapter Kit onto the suction cup body

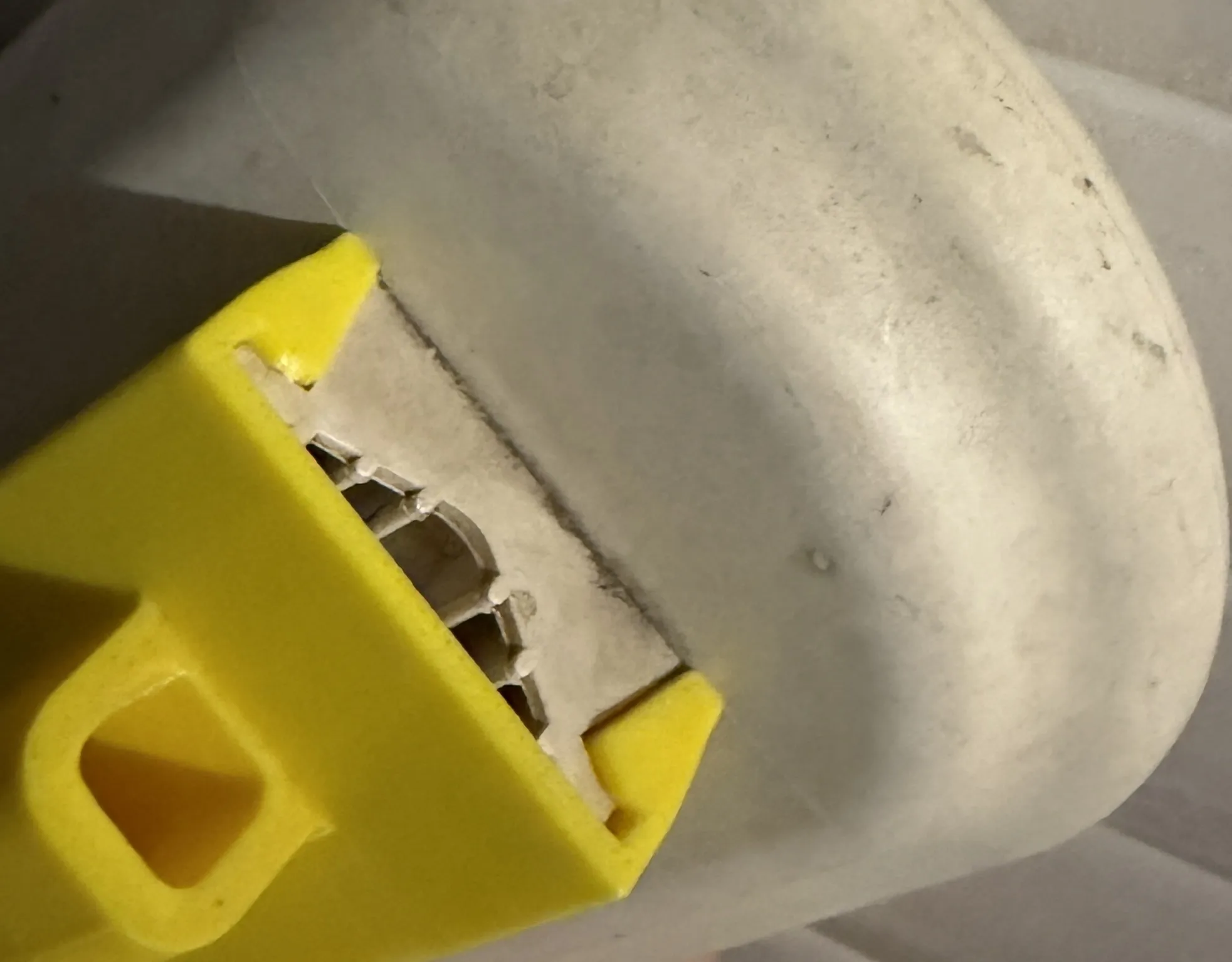

3. Slide the NanoStation 5AC Loco into the Mount.

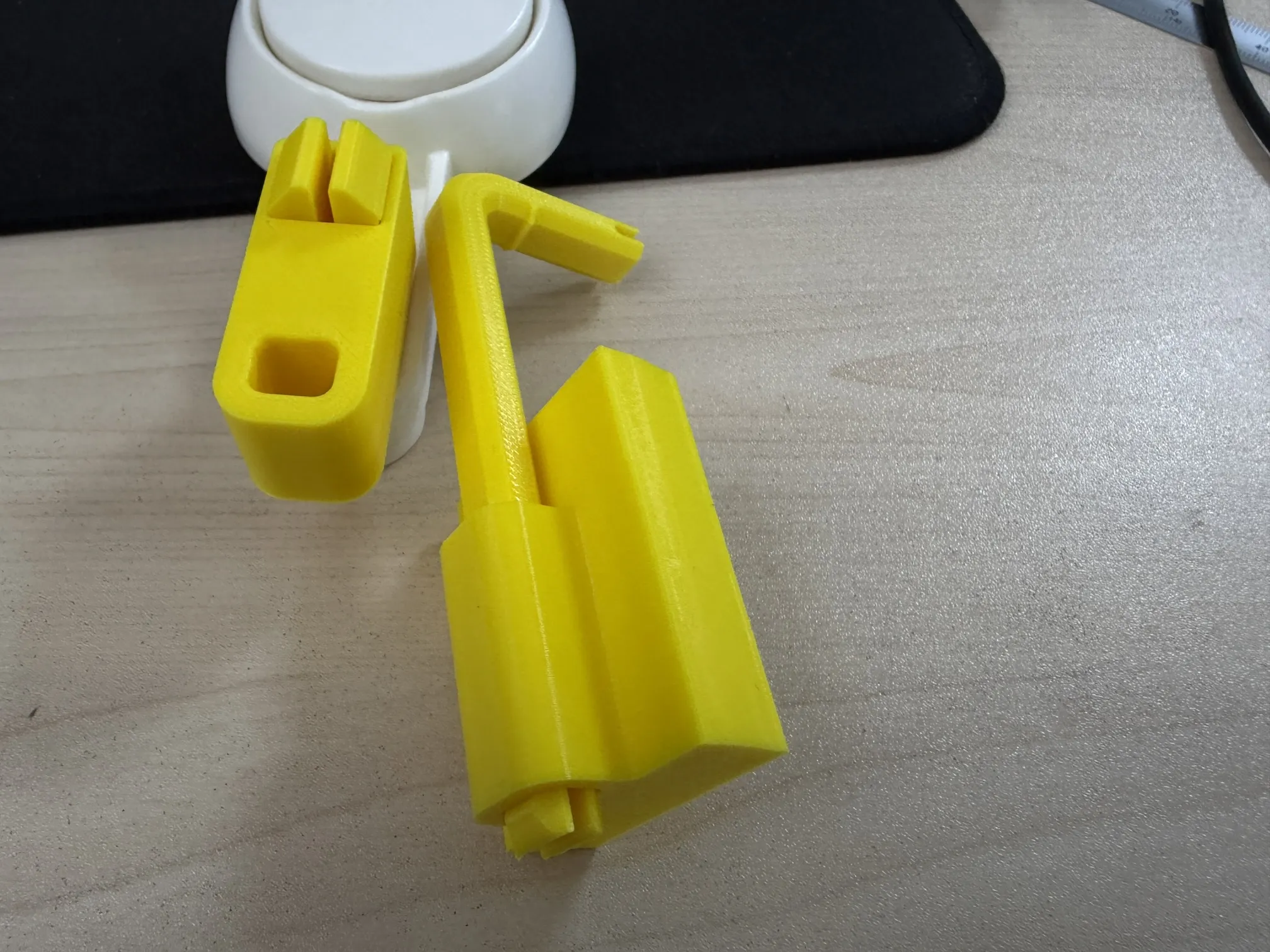

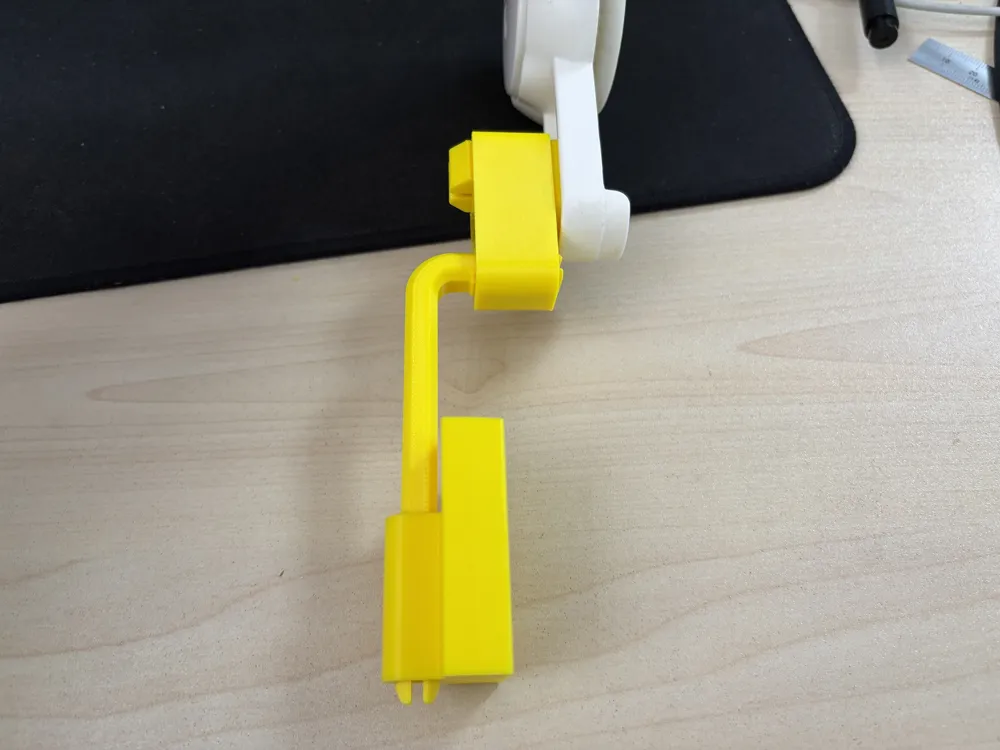

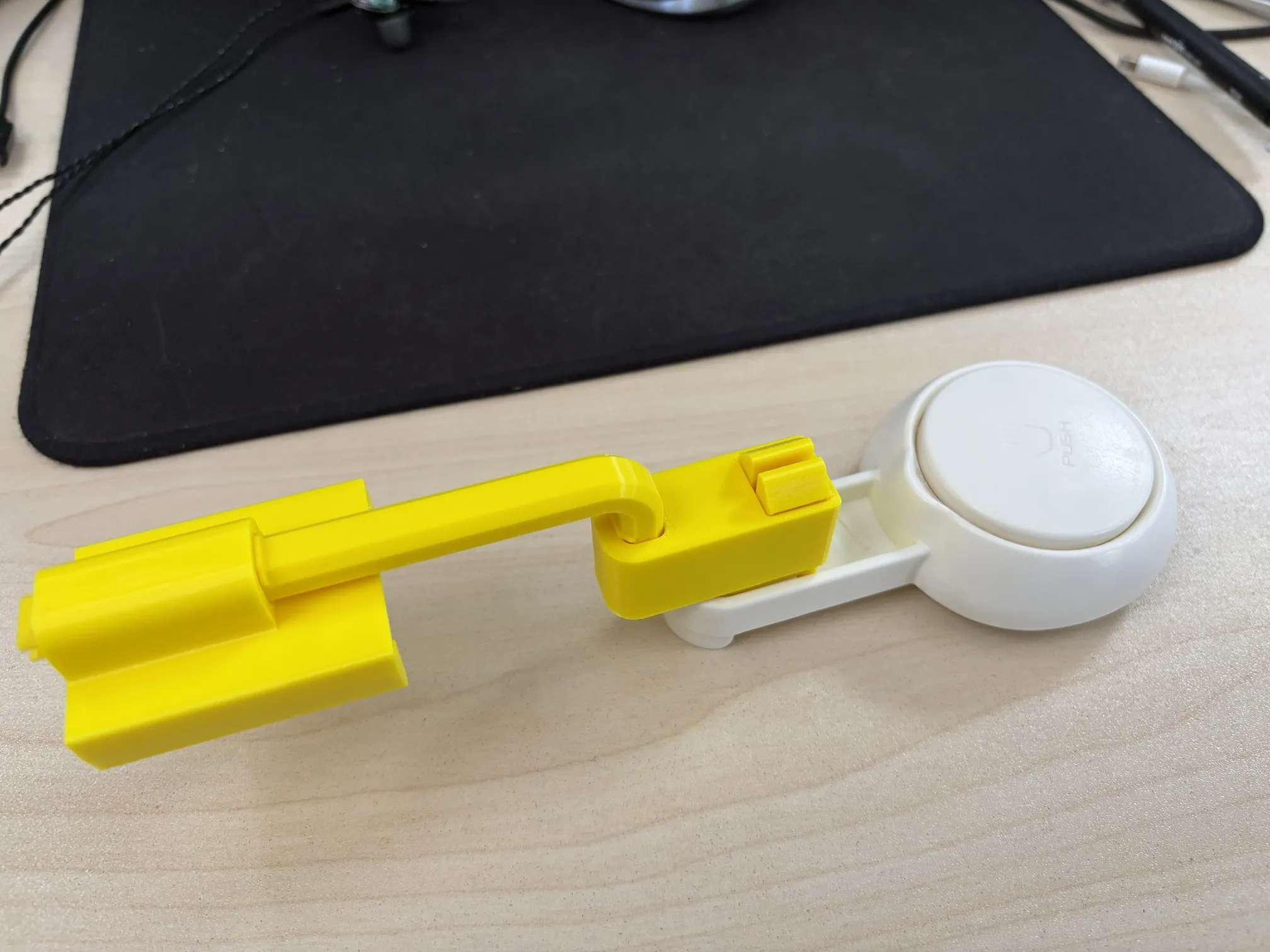

4. Insert the long end of L-bar into the slot of the Mount, and the short end into the smaller slot of the Bracket. (The mount can face forward or backward — your choice.)
