Raspberry Pi 4 Rackmount 1U with Cisco SG300-10
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
5.8 h
3 plates
Open in Bambu Studio
Boost
2
20
0
1
5
2
Released
Description
Summary

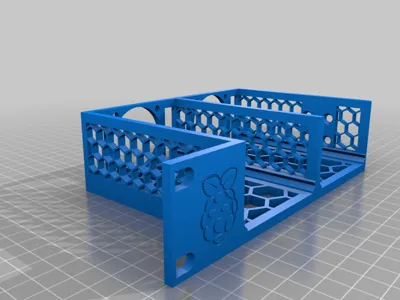

Designed this Raspberry Pi Rack Mount for the Cisco SG300-10 switch.
Idea came from Thingiverse user Boczi.
The Trays should be compatible.
They are remixed from
Raspberry Pi 4 1U rack-mount bracket
You need to Print:
- 1x Case

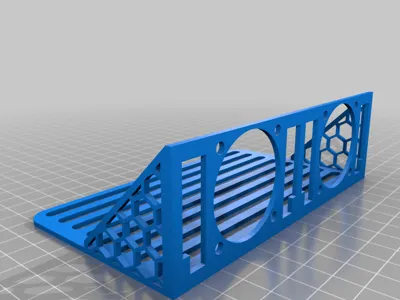

- 1x Rack Ear
- 2x Trays
Optional you can print the extension for storing some SSDs. The extension can be connected with four M5 bolts and nuts thru the fan mounting holes.
Also it is possible to mount two 40x40mm NOCTUA fans at the back for cooling the Raspberrys.
Printing:
- Can be printed without supports.
- I would recommend printing it with 80% infill or more.
- I printed mine in PLA. But i woud recommend printing it in PETG because of warping.
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
