Logitech g305 LR44 bracket

Summary

UPDATE2:

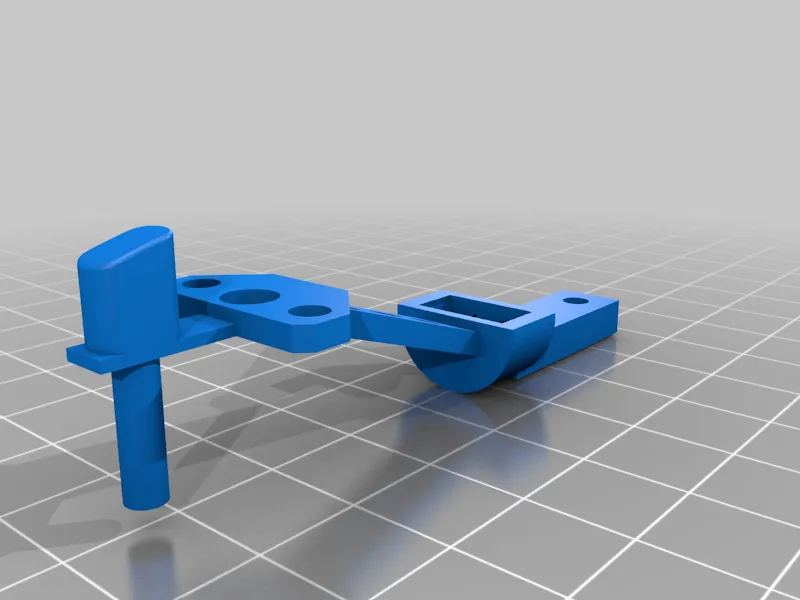

DPI version modified to allow for a tighter click (less travel)
New version feel a lot more like the original DPI button.

UPDATE:

New version with DPI button added. Adds about 1 gram

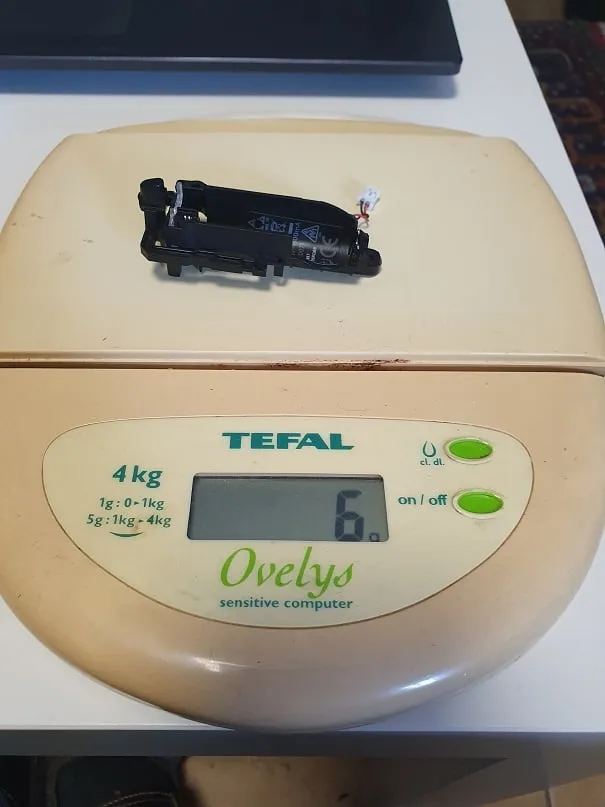

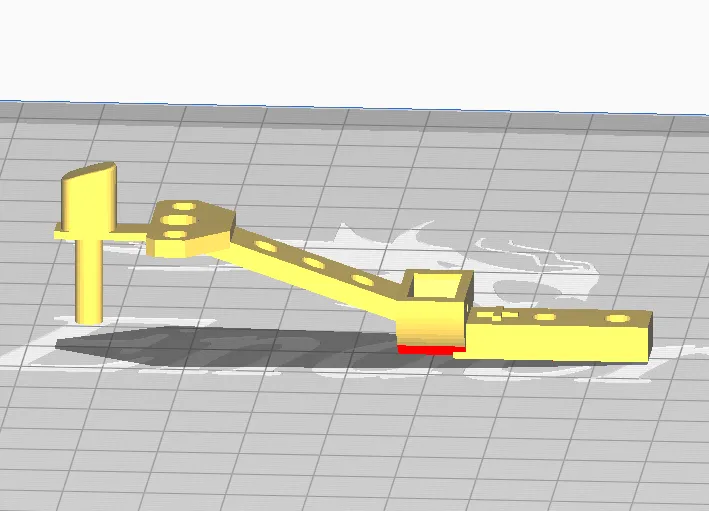

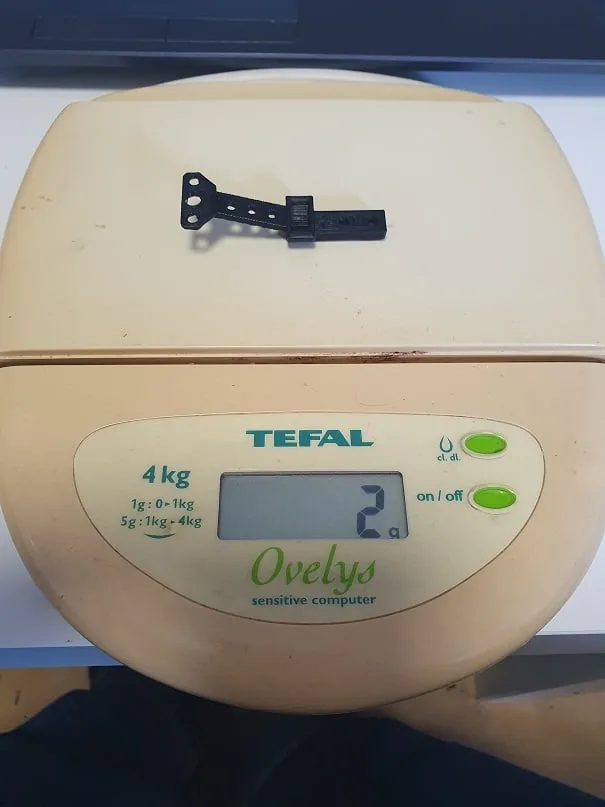

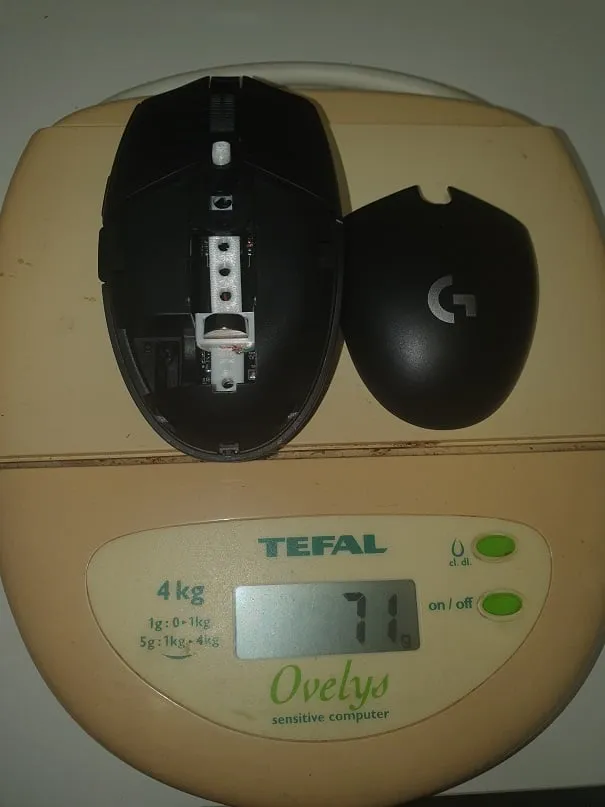

This is a bracket that holds a single LR44 battery and replaces the original AA battery bracket.

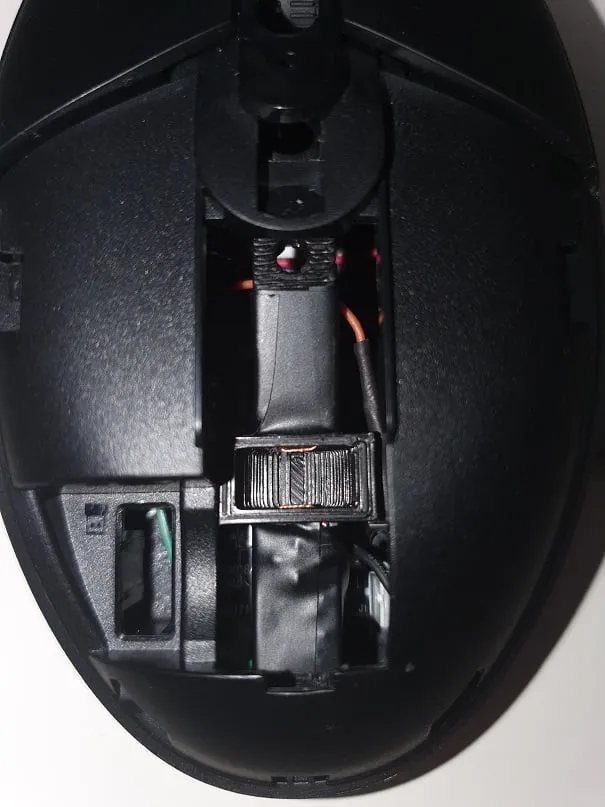

The LR44 is accessible under the battery cover and easy to swap.

The DPI button is part of the original bracket, however this model currently does not have this button!

The LR44 socket has 2 small holes on each side, to loop wires through, which will act as contact points for the battery. Depending on the print quality, these holes might need to be punched through with a needle first.

This is my very first 3d model, so there's probably a lot of room for improvements, but it works great already.
