Dugtrio Keyboard Switch Fidget!

The inevitable sequel to my Diglett Tapper - Dugtrio is here!

Bonus - you can print an angry Diglett to use in the original rock base for a new twist without using more keyboard switches. Or mix in a happy Diglett with your Dugtrio base!

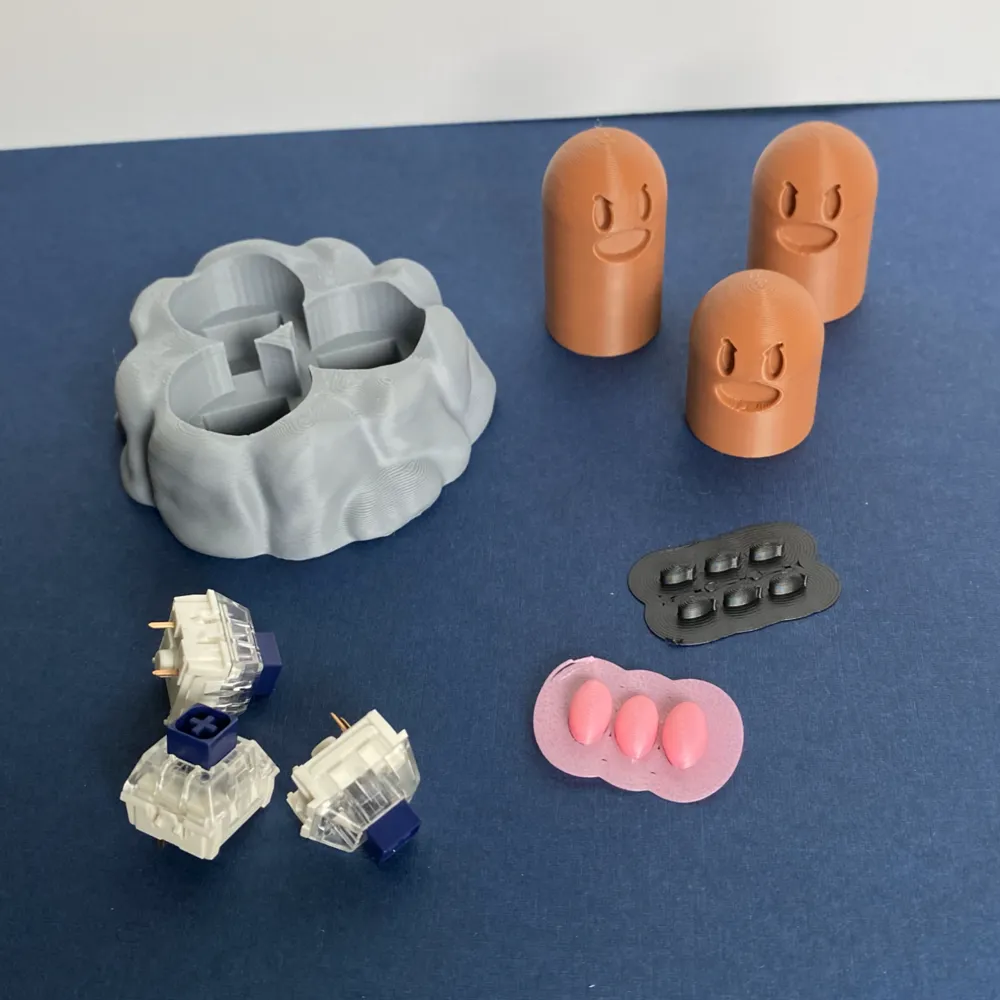

PARTS:

You will need 3 keyboard switches in a cherry mx format or similar. The main print profile contains all printed parts (3 sets of eyes, 3 noses, 1 head of each size, and 1 rock base). There is also a print profile with colors separated by plate, and a profile for just the angry Diglett head so you can customize your original rock base =]

ASSEMBLY:

The eyes should be press fit, the noses may require glue.

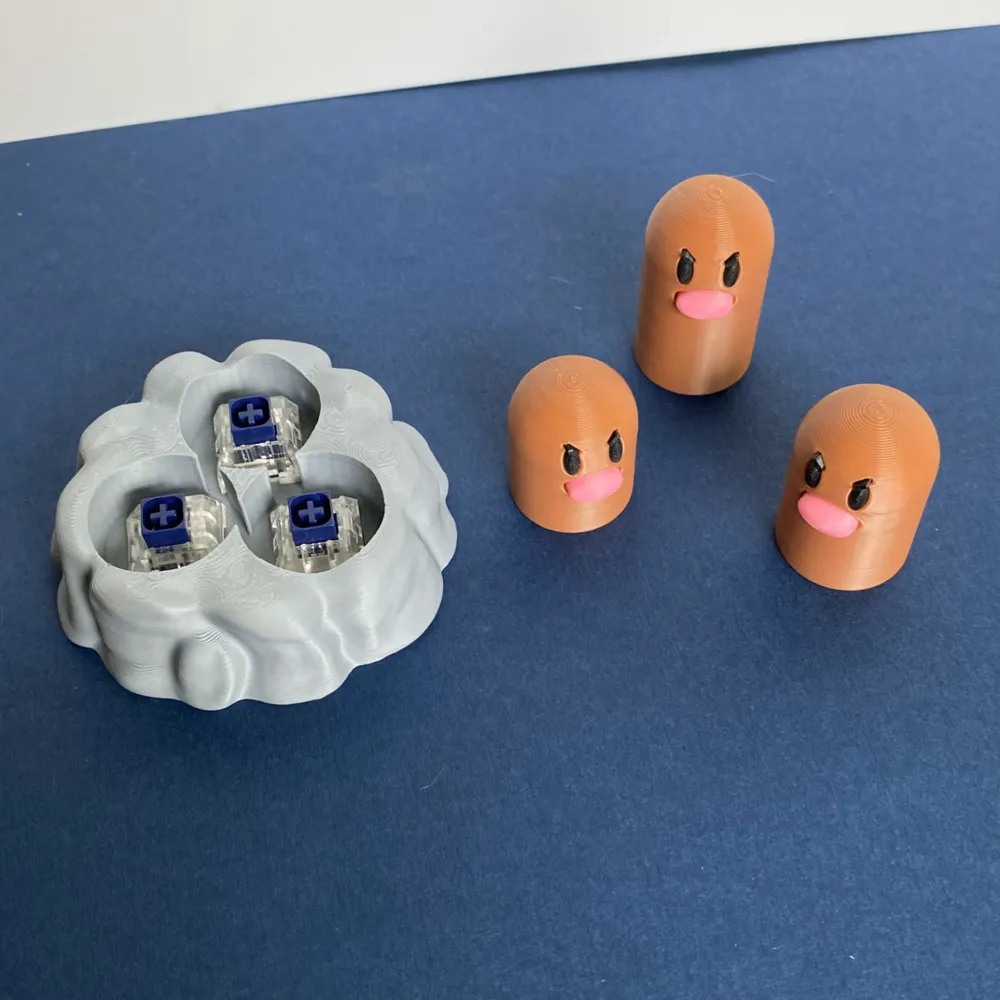

Once the faces are assembled, push the keyboard switches into the base as shown in the photos, and pop the heads on like key caps.

PRINT SETTINGS:

**Ensure your bed is newly leveled, so the keycap stem does not get squished into the bed, causing fit issues. Elephant foot compensation can help too (I used 0.15mm).**

No supports needed.

Base - 3 walls, 10% infill, any layer height

Heads - 4 walls, 10% infill, adaptive layer height (0.12-0.24mm), outer walls first, 80mm/s outer wall speed, scarf joint seam if possible, brim optional

Eyes and noses - any walls/infill, add a brim with brim-object gap of ~0.18mm for easy removal

Please share your makes and feedback!
