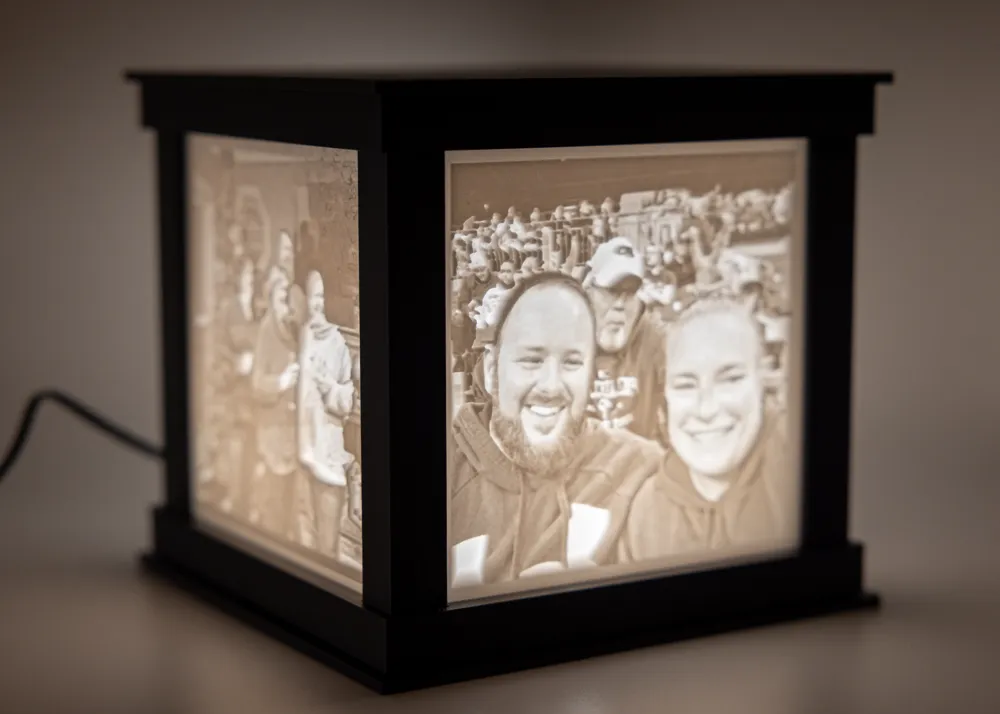

Square Lithophane Light Box

A square lithophone light box with 4 different light options and 4 lid options. This makes a great gift.  Do not use PolyLit PLA Pro for the lithophanes as it won't work (recommend Sunlu White personally).

See Instructions/Assembly Guide for full instructions

Digital Items Needed:

1. 4 pictures (cropped 1:1 ratio preferably)

Non-Printed Items Needed:

Option 1: Amazon https://www.amazon.com/dp/B07Q2HT3ML
Option 2: Makerworld LED Lamp Kit https://us.store.bambulab.com/products/led-lamp-kit-001?id=41806987395208
Option 3: Ikea Kapplake Light https://www.ikea.com/us/en/p/kapplake-led-spotlight-white-30543166/
Option 4: Puck Light https://www.amazon.com/dp/B07S8RWJ71 (+3 AA batteries)

Prints:

Plate 1: Base; 1 needed
Plate 2: Frame & Pins; 1 Frame needed, 4 Pins needed)
Plate 3: Top & Pins; 1 Top needed, 4 Pins optional)
Plate 4: Lid Blank; 1 needed*
Plate 5: Lid Paw; 1 needed*
Plate 6: Lid Hearts; 1 needed*
Plate 7: Lid Wedding Bells; 1 needed*
Plate 8: Cap & Dome; 1 Cap needed, 1 Dome optional (Dome for Amazon/Makerworld light only)
*Only one of the 4 lids is needed

ItsLitho.com Settings:

Shape: Plane
Width & Height: 110mm
Min Thick: 0.8mm
Max Thick: 5mm
Frame: Frame
Thickness: 5mm
Depth: 4mm
Angle: 45 degrees
mm per pixel: 0.1mm
Preview Model: Native
Crop: Yes

See all my lithophane light box designs at https://makerworld.com/en/collections/14413396-lithophane-light-boxes
