Ricoh GR3 Stand

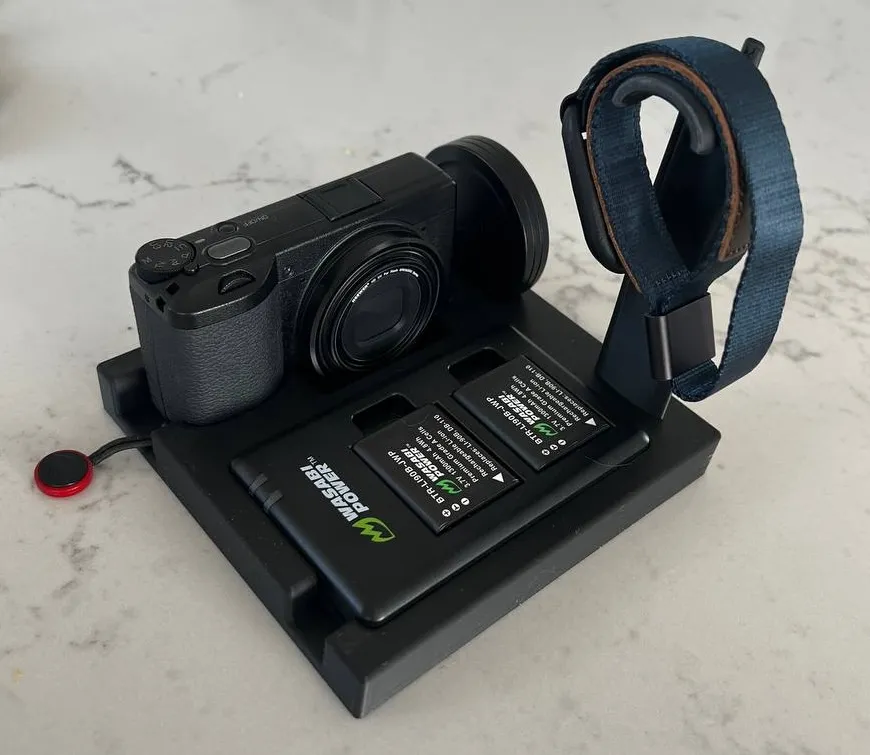

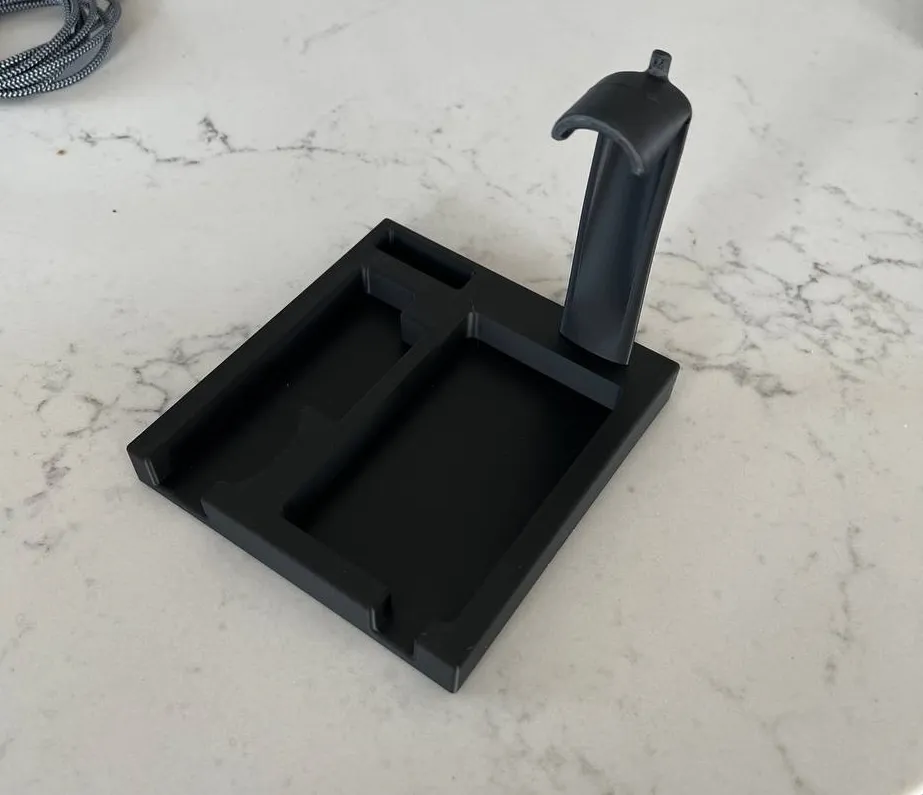

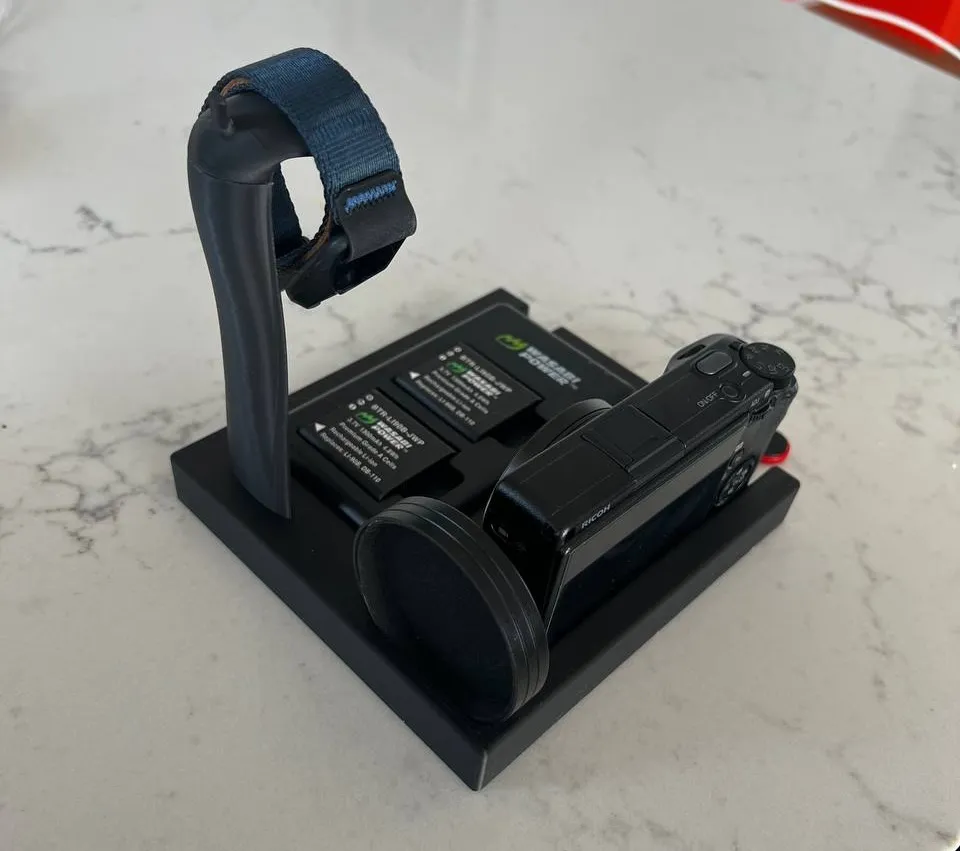

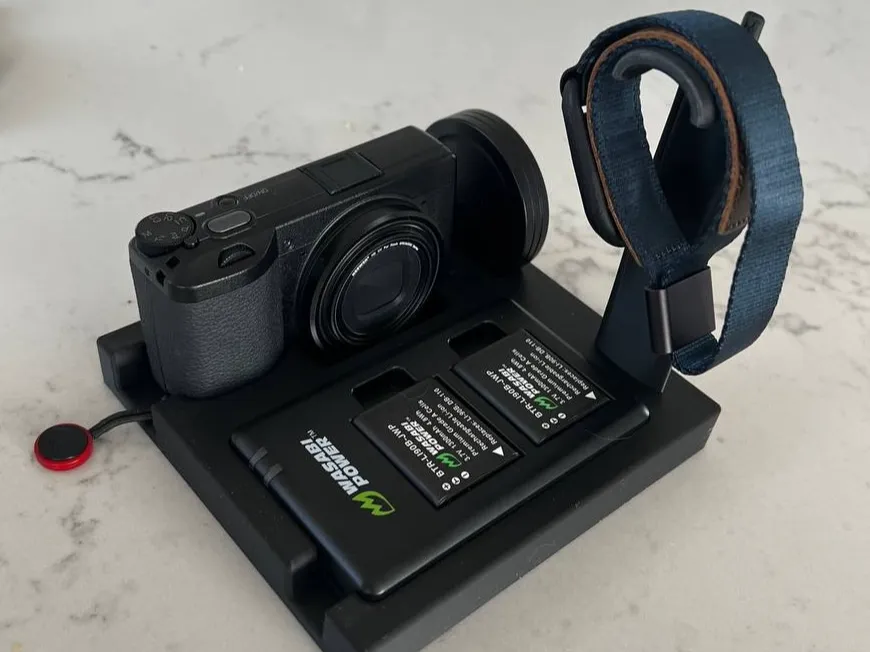

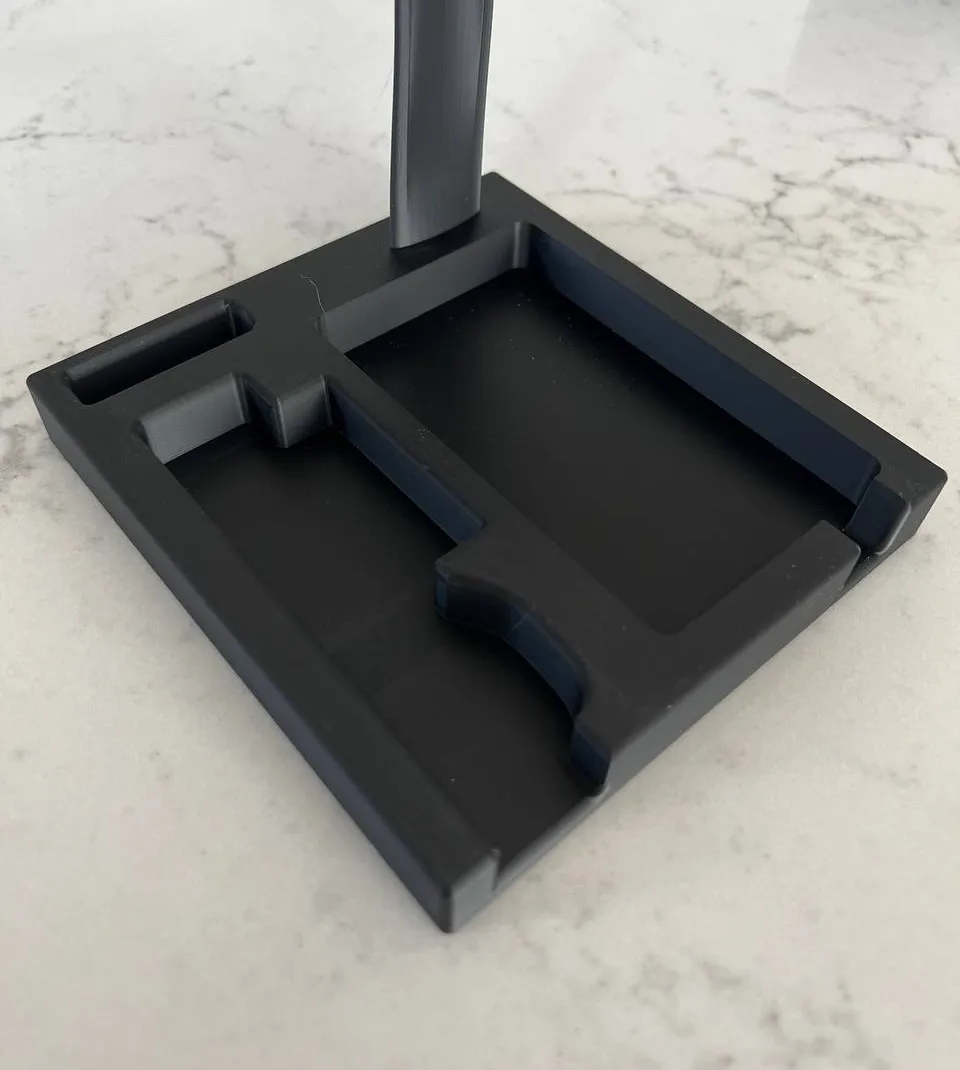

Tabletop stand to hold my Ricoh GR IIIx (works with any GR3 variant, they're all the same body) with a Wasabi Power dual battery charger, metal lens cap, and wrist strap hanger.

• The battery charger and camera USB-C ports are accessible. Charging is possible while everything is in the stand.
• The battery charger spot is modeled for the Wasabi Power dual charger.
• The wrist strap hanger is modeled for the Peak Design detachable strap.
• The lens cap holder is modeled for the JJC metal cap.

Camera fits in the stand with or without the lens cap on. When I'm out shooting I leave the lens cap at home, so I made a spot to store it.

Camera fit is a little tight but it works. Battery charger fit is intentionally very tight.

The attached print profile splits the wrist strap holder at the top and prints the overhanging bit separately. Super glue it together. This avoids cleaning supports.

Printing at 0.08mm with ironing on HS PLA leaves a very nice finish, no post processing needed.

I included a TPU base plate to improve grip on counter tops. Print it separately and glue it on the bottom of the model if desired.

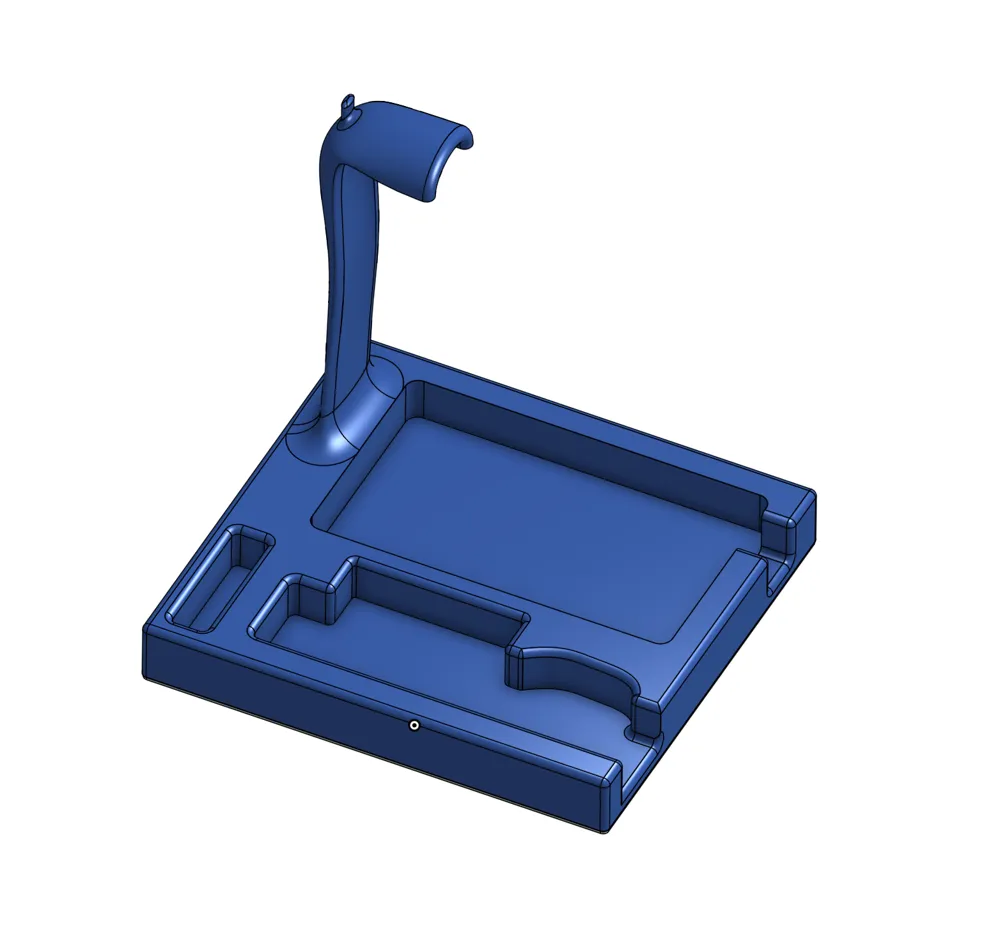

OnShape model for remixing: https://cad.onshape.com/documents/7a0d9f3ccc186a31ab3b1728/w/4e2f90de05d575fc1d7b074c/e/1d557e3427d7d4e72deaadd2
