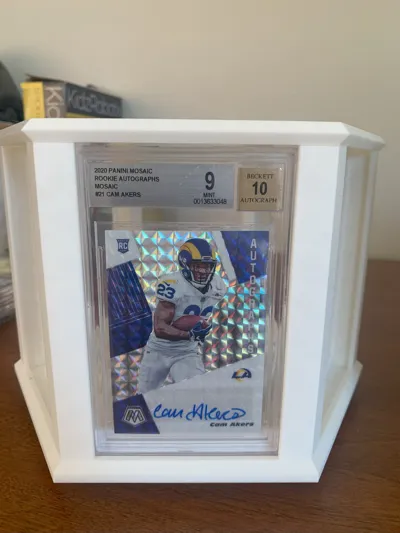

BGS Hex Display

There are two designs: BGS Autograph & Standard. The autograph BGS slab is bigger than the standard BGS slab.

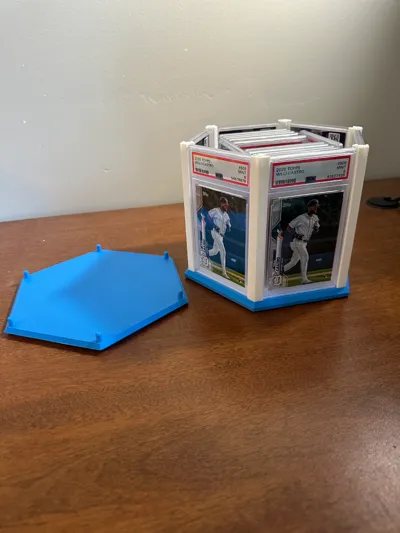

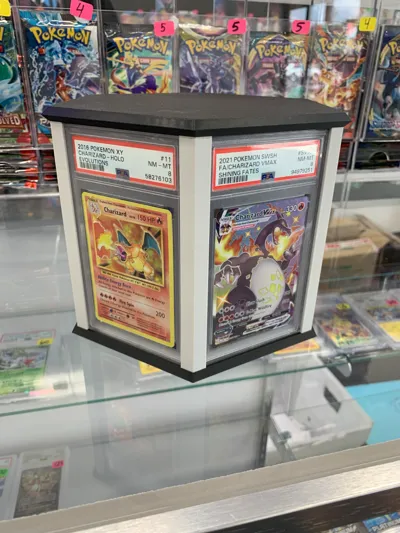

PSA Hex Display

There is one design that will fit both the original and new slab dimensions.

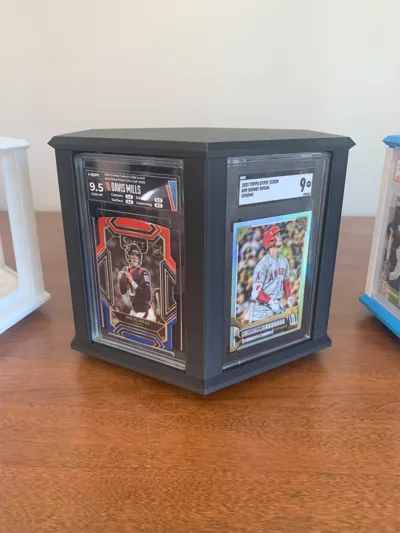

SGC Hex Display

This will also fit HGA slabs, they are just slightly smaller so they are a little loose, but still fit just fine.

One-Touch Hex Display

This will fit most standard one-touch cases.

If you would like to sell these commercially, subscribe to my membership!

Membership

Join

Boost Me (for free)

Drop a boost if you like the design! Thanks for the support.

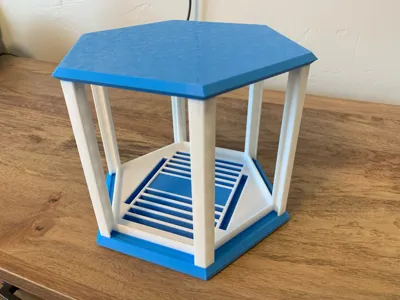

Display Features

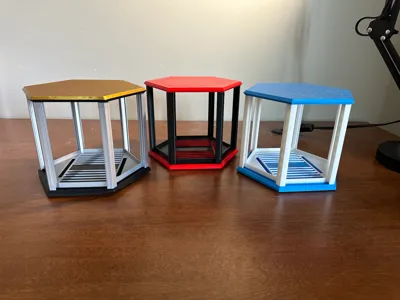

Display 6 cards on the outside

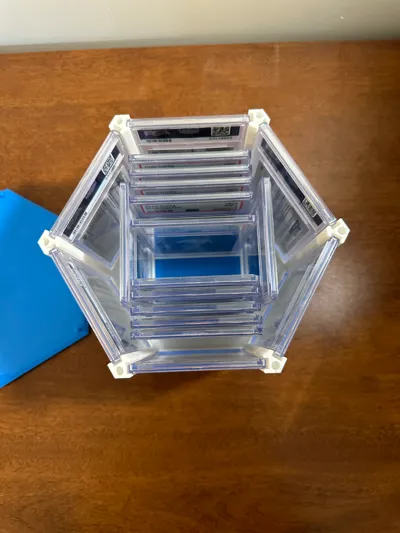

Store 8, 10, or 12 cards on the inside depending which design you print

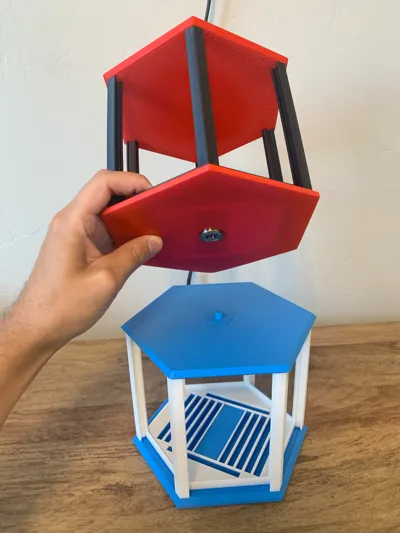

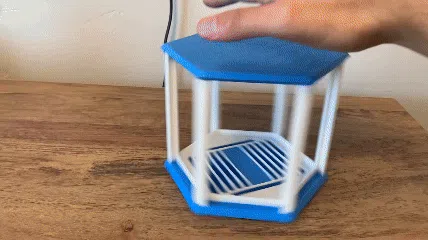

Smooth 360 degree rotation using 608 bearing on the bottom of each display

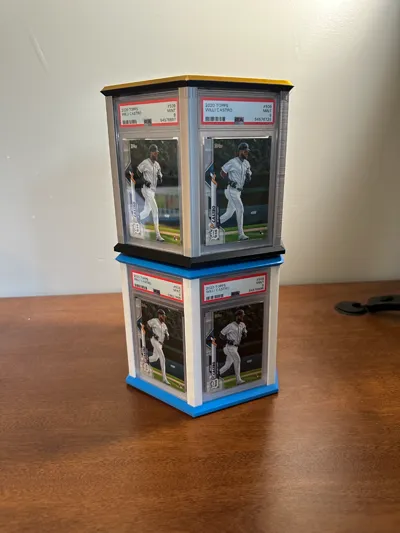

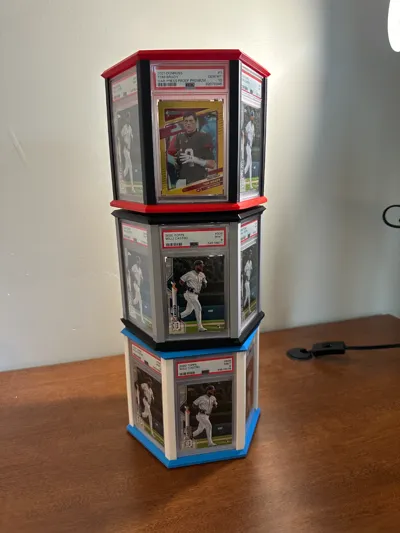

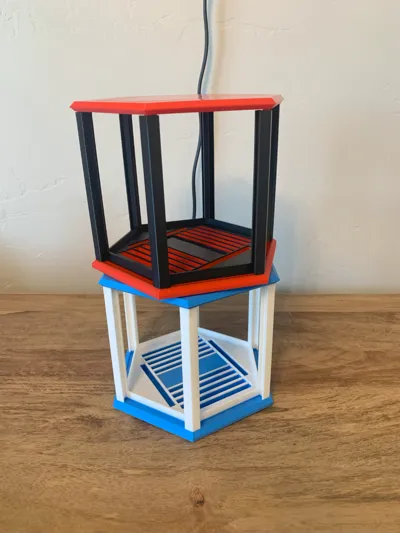

Stack up to 3 display's (not sure if it would be stable enough to do more, let me know in the comments if you try)

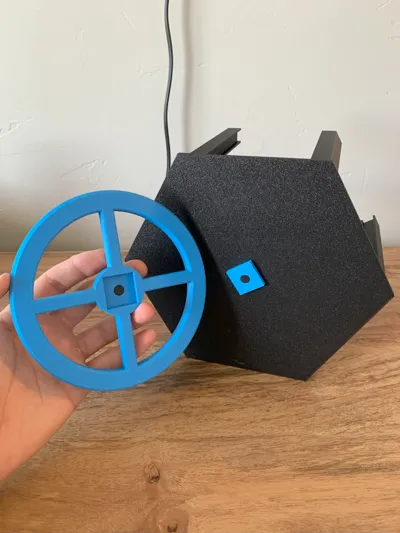

Hot swap parts require a 8x3mm magnet

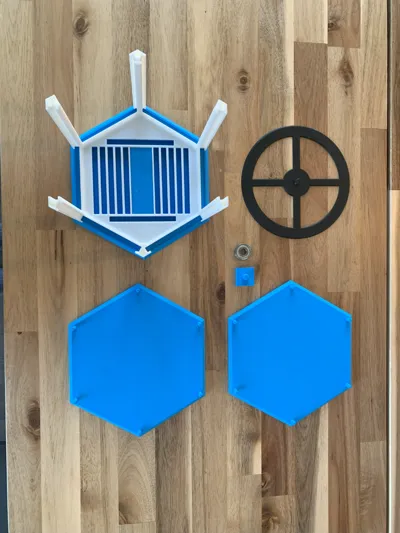

Assembly Instructions

Remove any supports

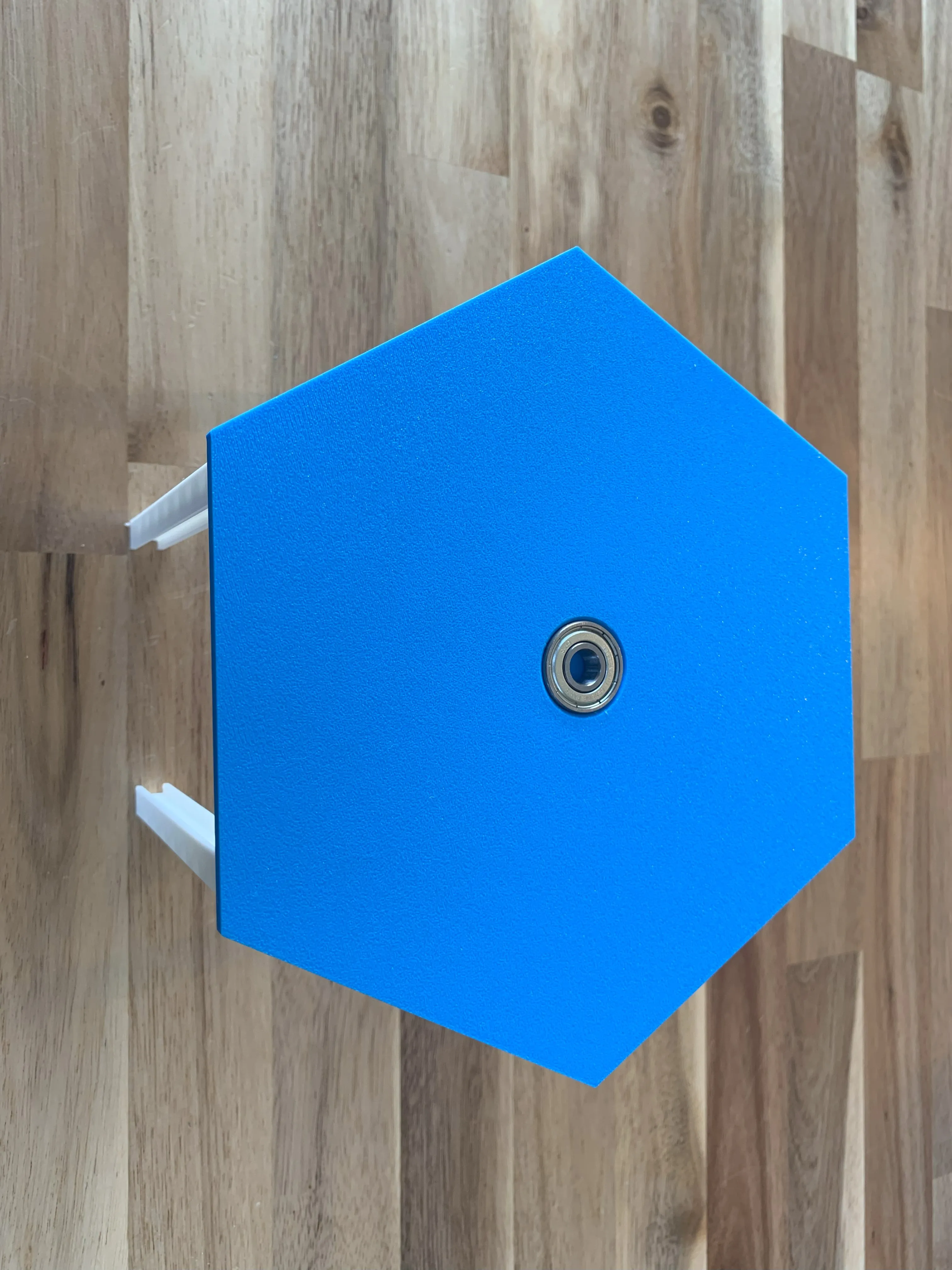

Insert 608 bearing in the bottom of the card display

Connect base to the 608 bearing on the bottom of the card display

Insert your cards and put on the lid. Enjoy!

If you are stacking, glue the stackable insert into the stackable top then simply add your extra card display on top

UPDATES:

4/17/2025

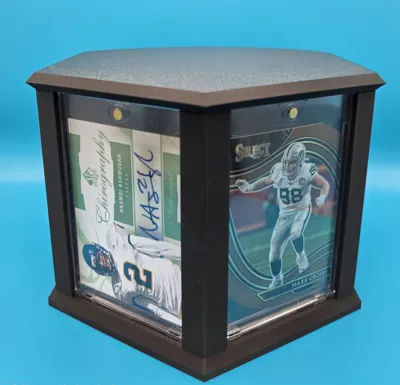

Added One-Touch Hex Display. This will fit most standard one-touch cases. Shout out to @tripleddd for helping test the design and for providing all of the photos for the one-touch display!

1/21/2025

Added PSA Hex Magnetic Display. The ONLY change was instead of pegs, it uses D5x3mm magnets to connect the top to the display. I don't recommend using this if you plan on stacking displays, but will work great for single displays.

11/17/2024

Added SGC, BGS Autograph, & BGS Standard displays
All three designs now have the hot swap feature if you want to effortlessly switch between stacked and single displays

9/23/2024

Increased height of stackable bearing insert to prevent scraping and provide a smoother rotation
Increased thickness of base for more stability and height of base bearing insert to prevent scraping and provide a smoother rotation

9/19/2024

I had someone inform me that the newer PSA slabs are slightly thicker compared to the OG PSA slabs. Each slot on the outside and inside is now 7mm in thickness. This design should work for both the OG & newer PSA slabs. Thanks for the feedback!
