Shelf for Coway Airmega 100 Air Purifier

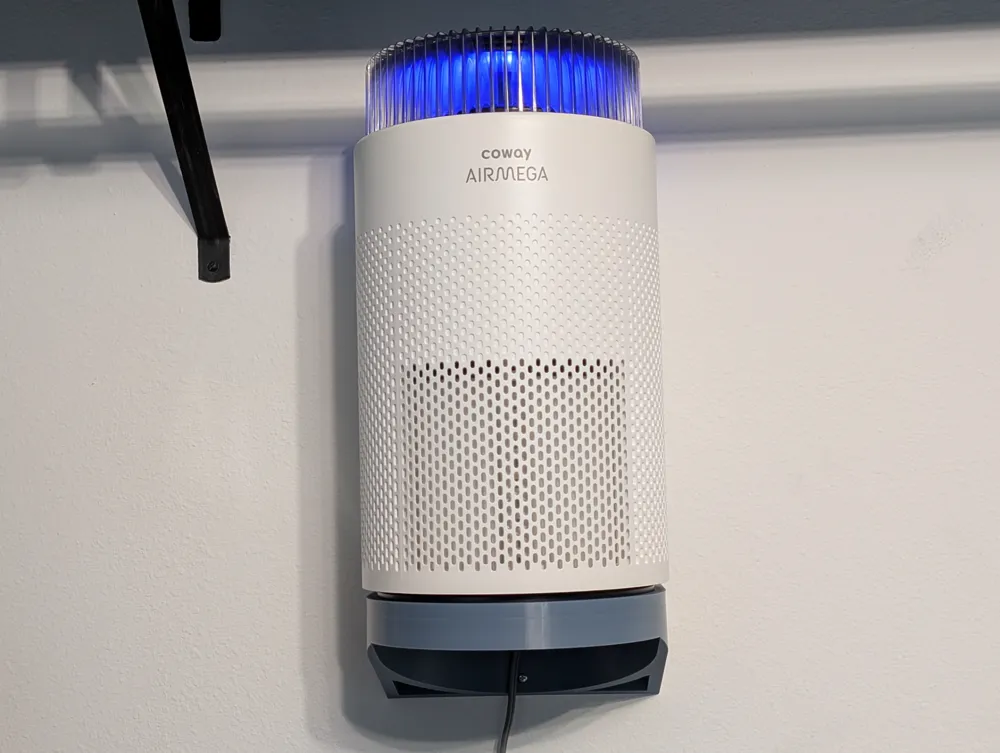

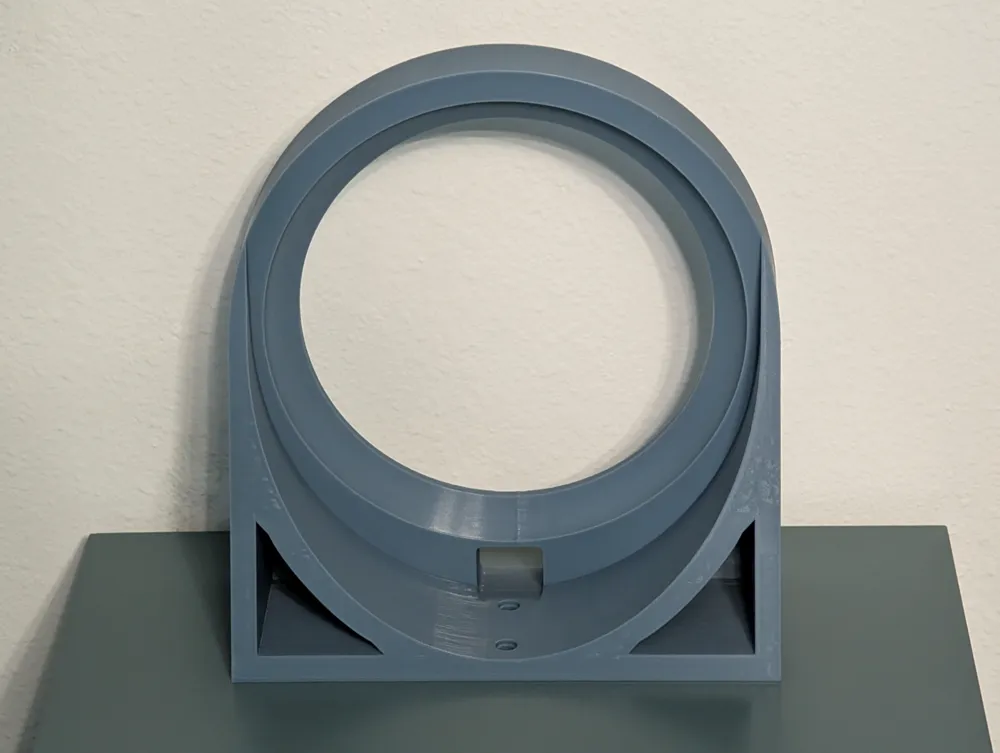

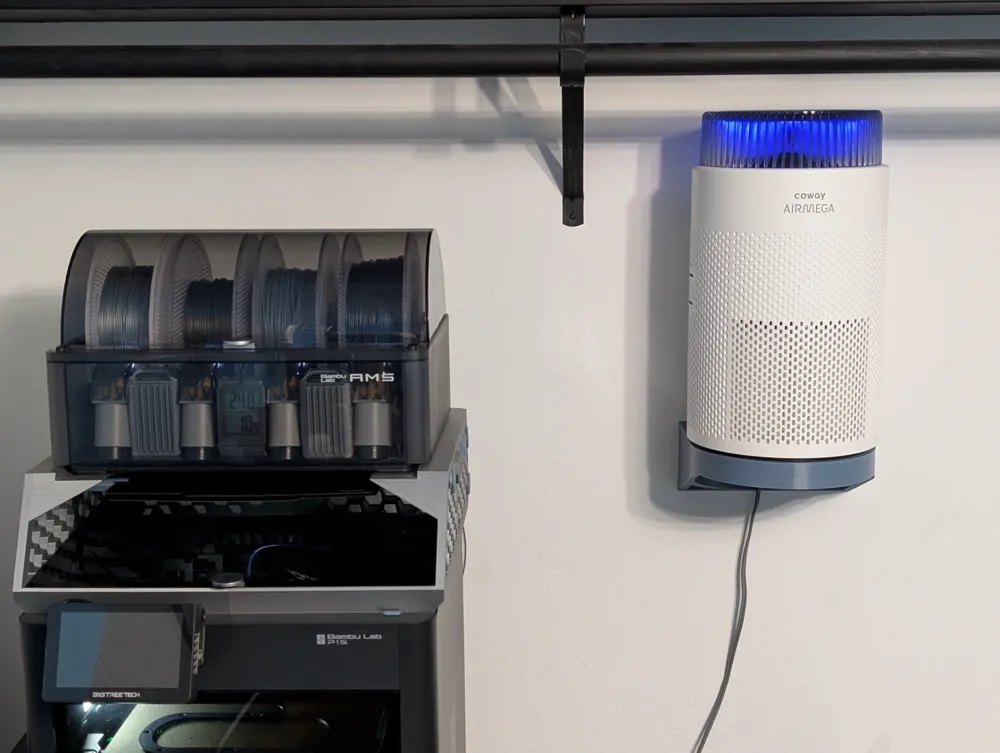

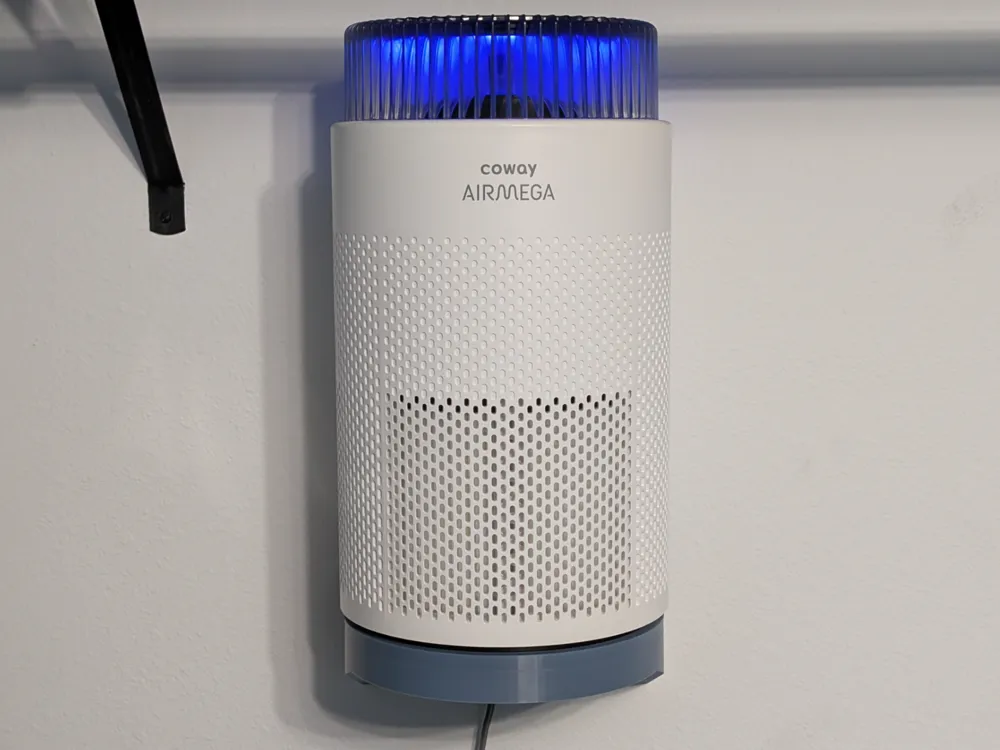

This is a shelf to hang a Coway Airmega 100 Air Purifier on the wall. I designed this so I could add an air purifier to my office “printing closet”, while saving on space. It mounts to the wall easily and securely with just four Wall Dog type fasteners (no need to locate a stud), and has a channel to run the Airmega 100's power cord through the shelf.

My included print profile uses a PETG support interface for the PLA print, so the support removes simply and clean. The profile is also optimized to minimize the “benchy” hull line effect.

Mounting Instructions:

1. Hold against the wall at your preferred location, and attach with the a Wall Dog type fastener in the lower-middle hole, just tight enough to hold in place (or a more standard fastener if you decide to affix it to a stud)

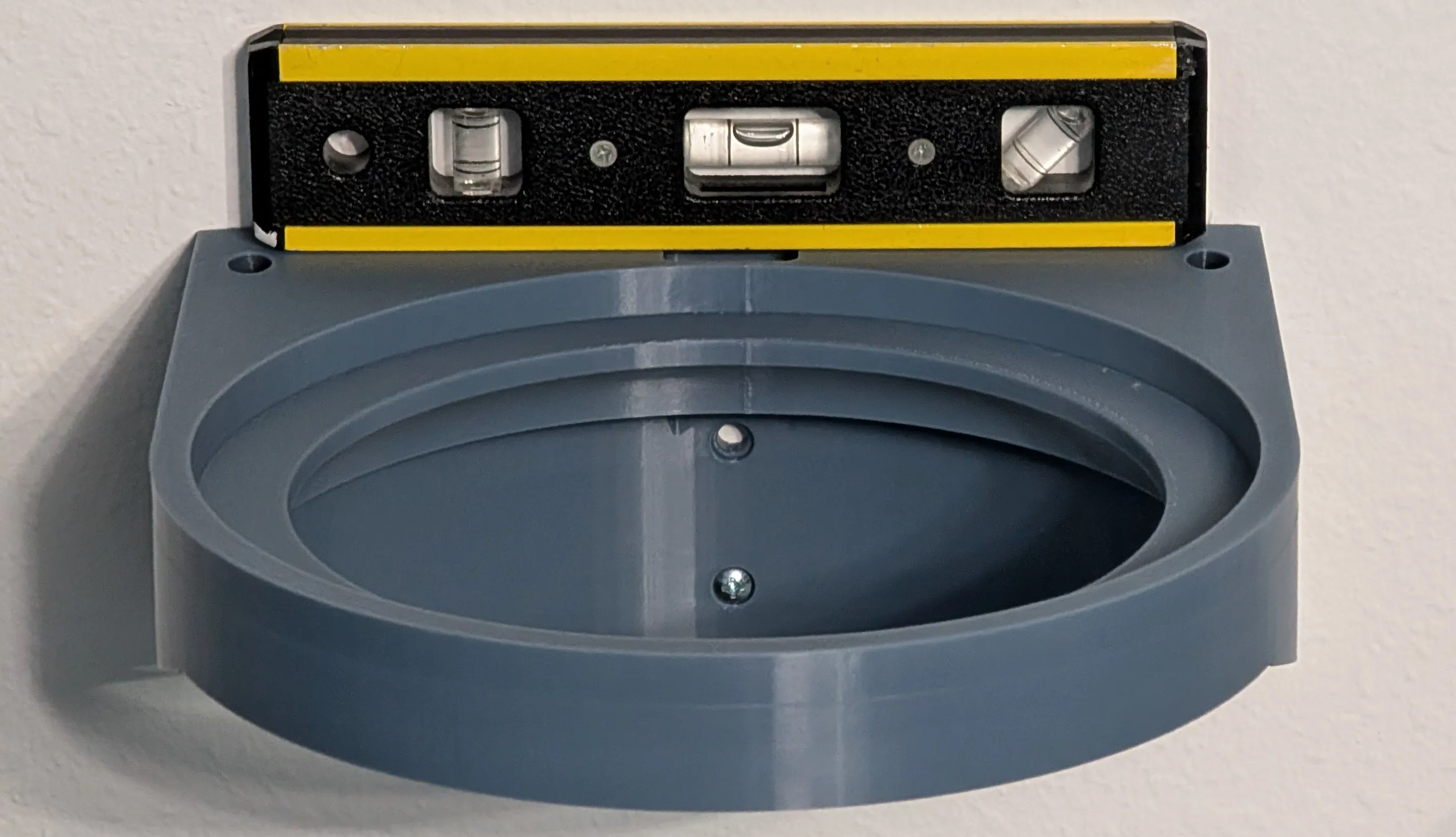

2. Level, then install the second fastener in the top-middle hole, and fully tighten both middle fasteners
3. Press on the front lip to hold the top firmly against the wall while installing/fully tightening the two 45-degree angled top fasteners
4. When finished, it should be tight to the wall

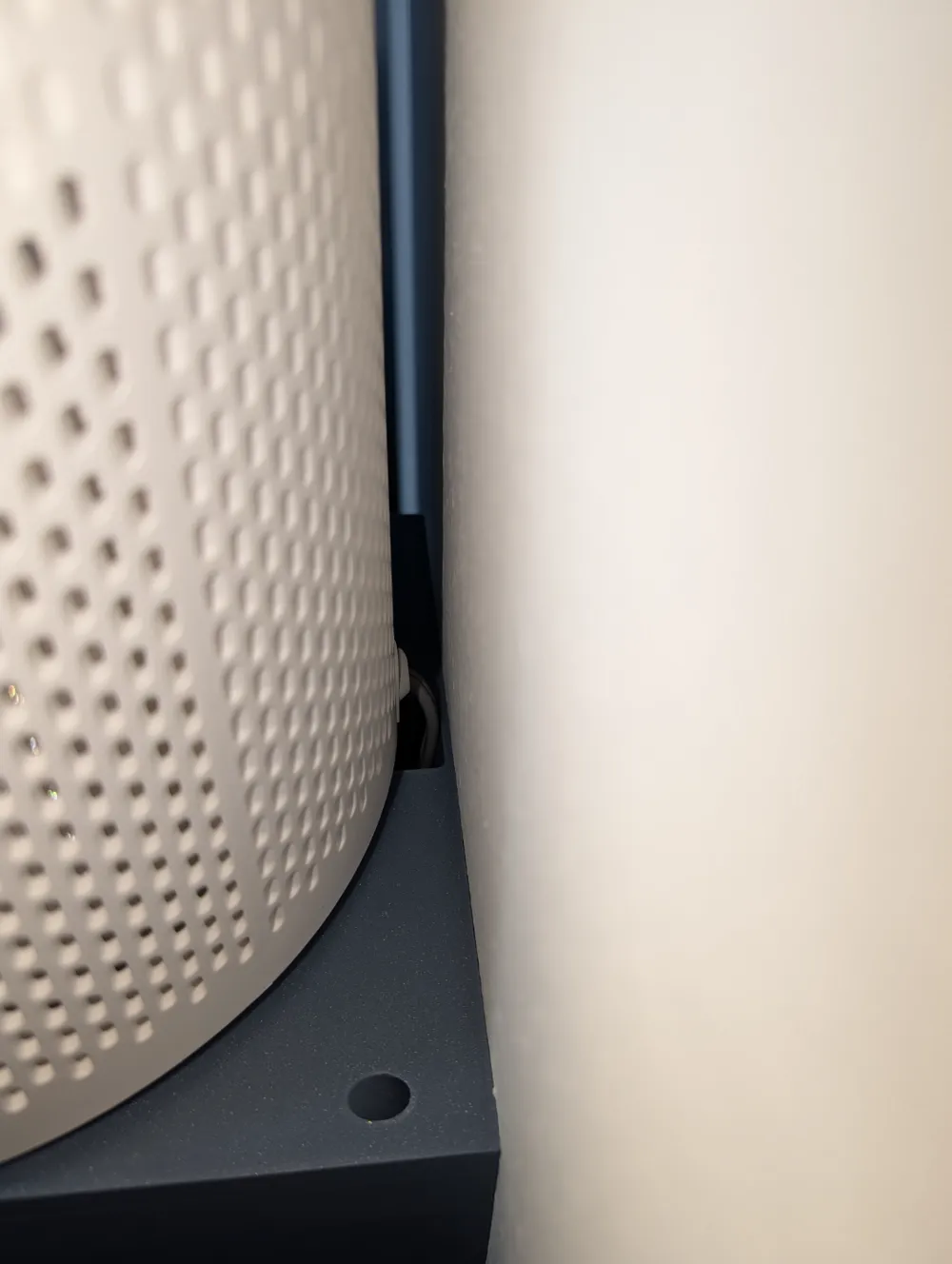

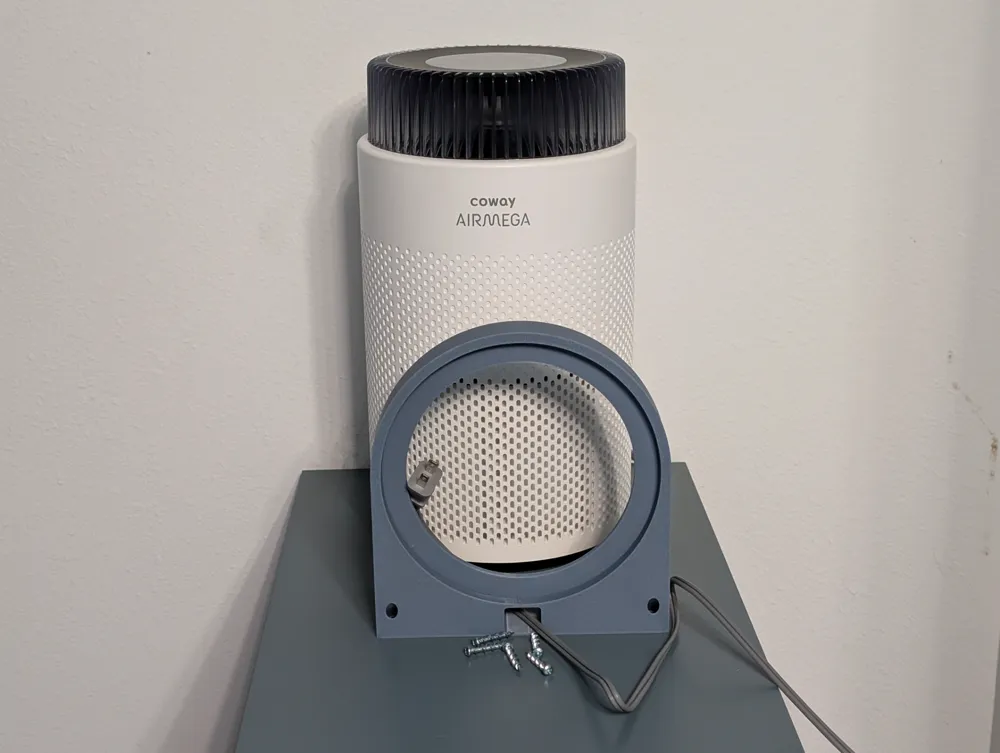

5. When placing the Airmega 100, just thread its power cord through the hole at the back

Notes:

• Filament Type/Color used to print the pictured model is Bambu PLA Basic (Blue Grey)

• I think most Pan Head Wall Dog type fasteners will work, but these are the specific ones that I used:

  https://www.amazon.com/Powers-Fastening-Innovations-02316-Wall-Dog/dp/B00ITG648O

• If you don't use my print profile, I highly recommend using a support interface layer with a different/complementary support material (like special purpose support filament, PETG for a PLA print, or PLA for a PETG print, etc), and setting the Top Z distance under Support/Advanced to 0 for a nice clean shelf surface after the support is removed.

• This is the specific Air Purifier that I designed this for:

  https://cowaymega.com/products/airmega-100

If you dig my model, please post a pic of your finished print. It's fun to see other makes!
