1.8T Turbo Inlet Pipe VAG AUDI A4 B6
Print Profile(1)
Description

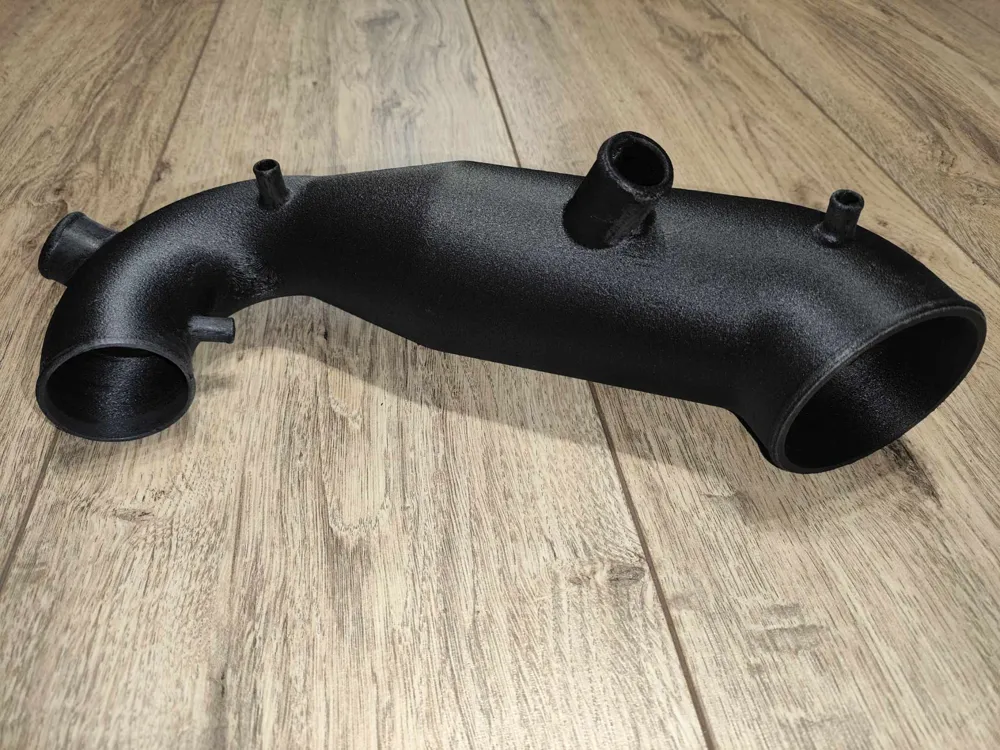

This is a .stl model of a rigid TIP created for the Audi A4 B6 1.8T BEX, but it should fit many versions of the VAG 1.8T.
Importantly, some 1.8T versions have an crankcase breather/CVS/oil separator located close to the TIP, and others have it above the valve cover. This TIP is designed for the version with a valve above the valve cover.
Inlet outer/inner diameter: 73mm/67mm
Outer/inner diameter of the outlet: 49mm/45mm
TIP is suitable for K03s turbochargers.

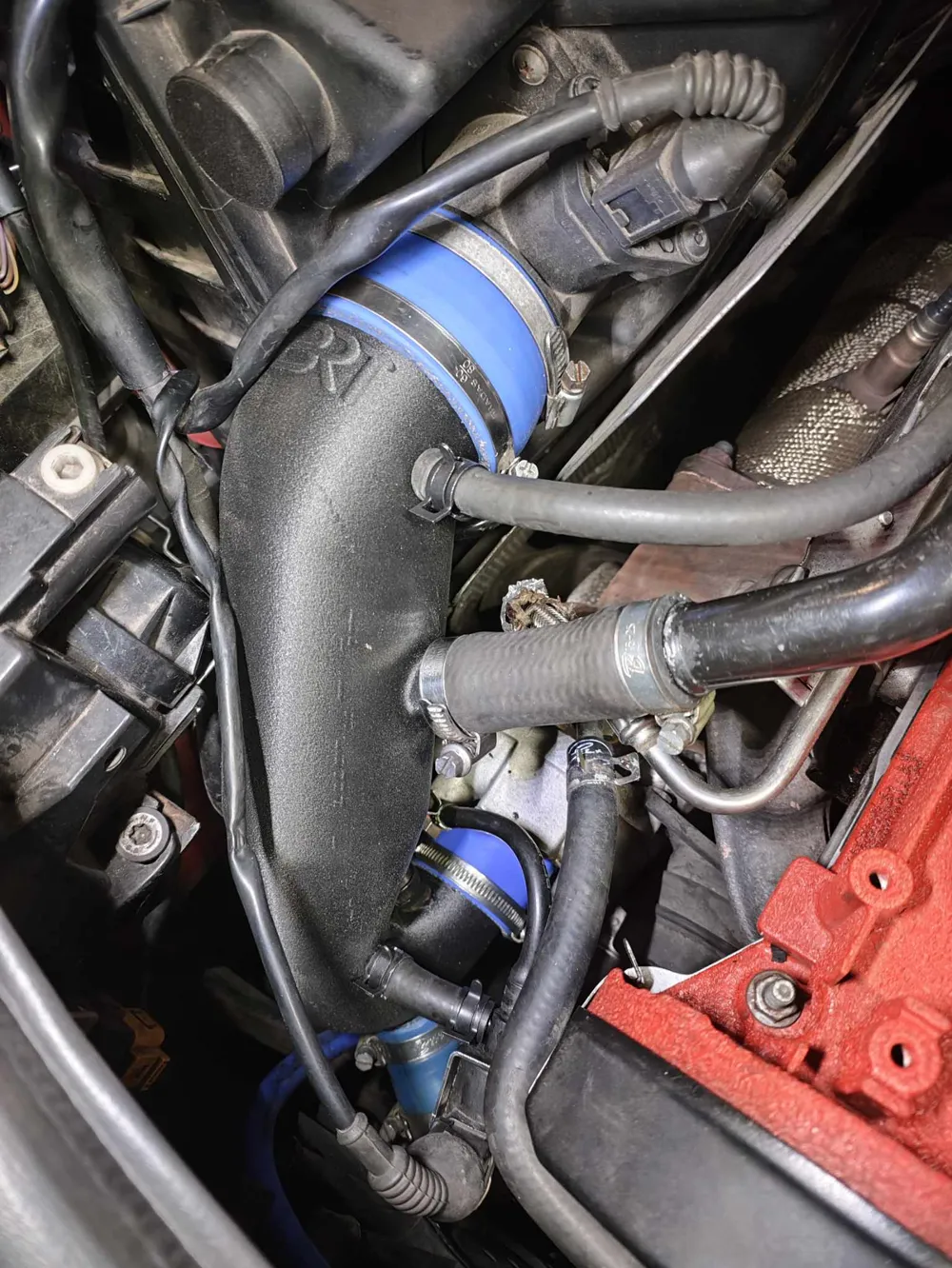

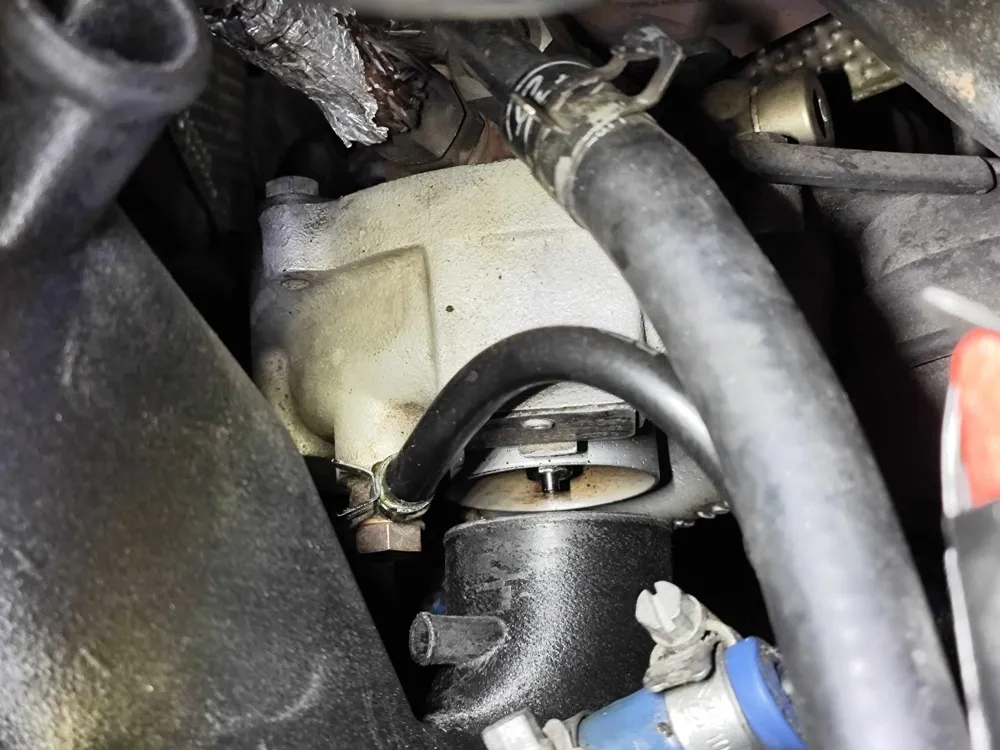

I recommend using spring clamps to install the silicone connectors to avoid the screw clamps deforming the TIP.
The version I tested was made of PA12CF and can easily withstand the conditions under the hood of the car for a long time.
The model does not contain the logo visible in the photo
3D PRINTING SETTINGS

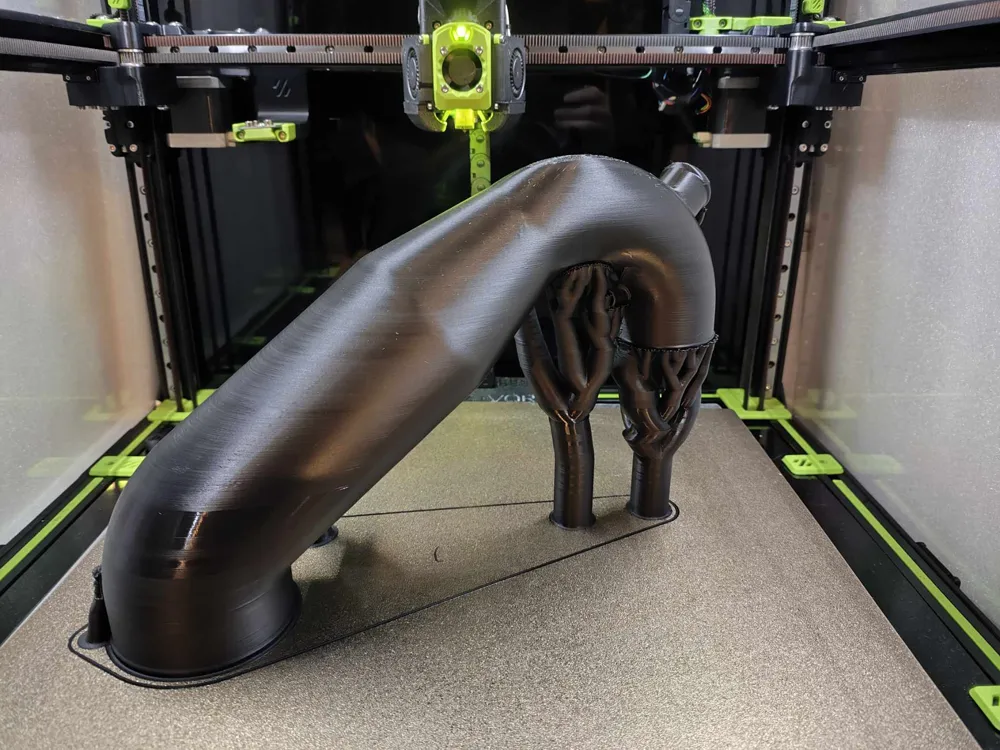

This model is difficult to print, I am attaching a .3mf file (for PrusaSlicer and Voron 2.4) with the print profile I used to print this model, treat it as a tip and help in preparing the file for your printer.
Material: PA12CF15
Layer: 0.2mm or less, Infill 100%
3D model dimensions: (X,Y,Z) 156x263x182mm
Weight: ~200g
