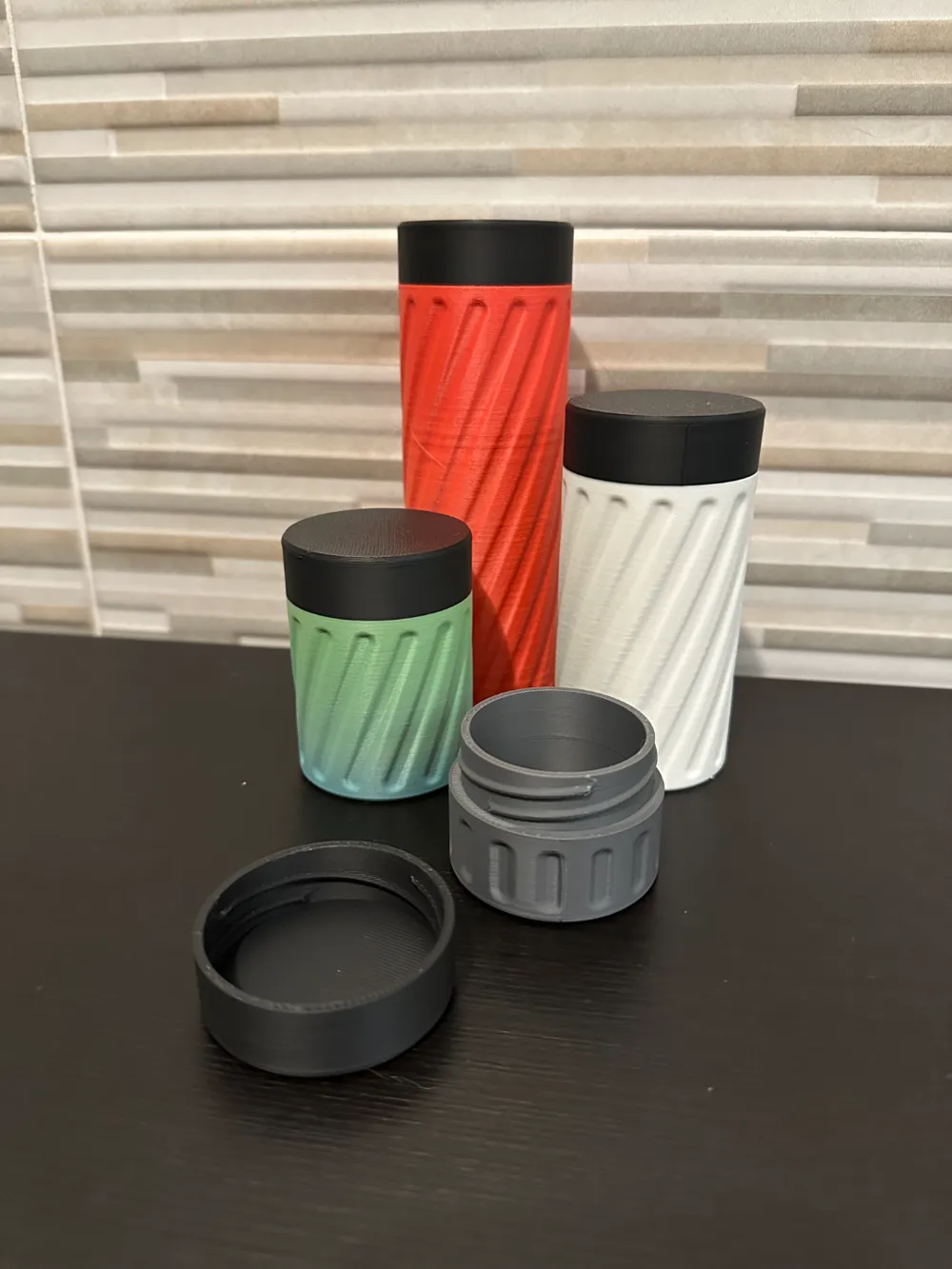

Canister set with lid (triple-start threads)
Print Profile(4)
Description
CANISTER set with lid (triple-start threads)
Outer diameter: 50 - 75 - 100

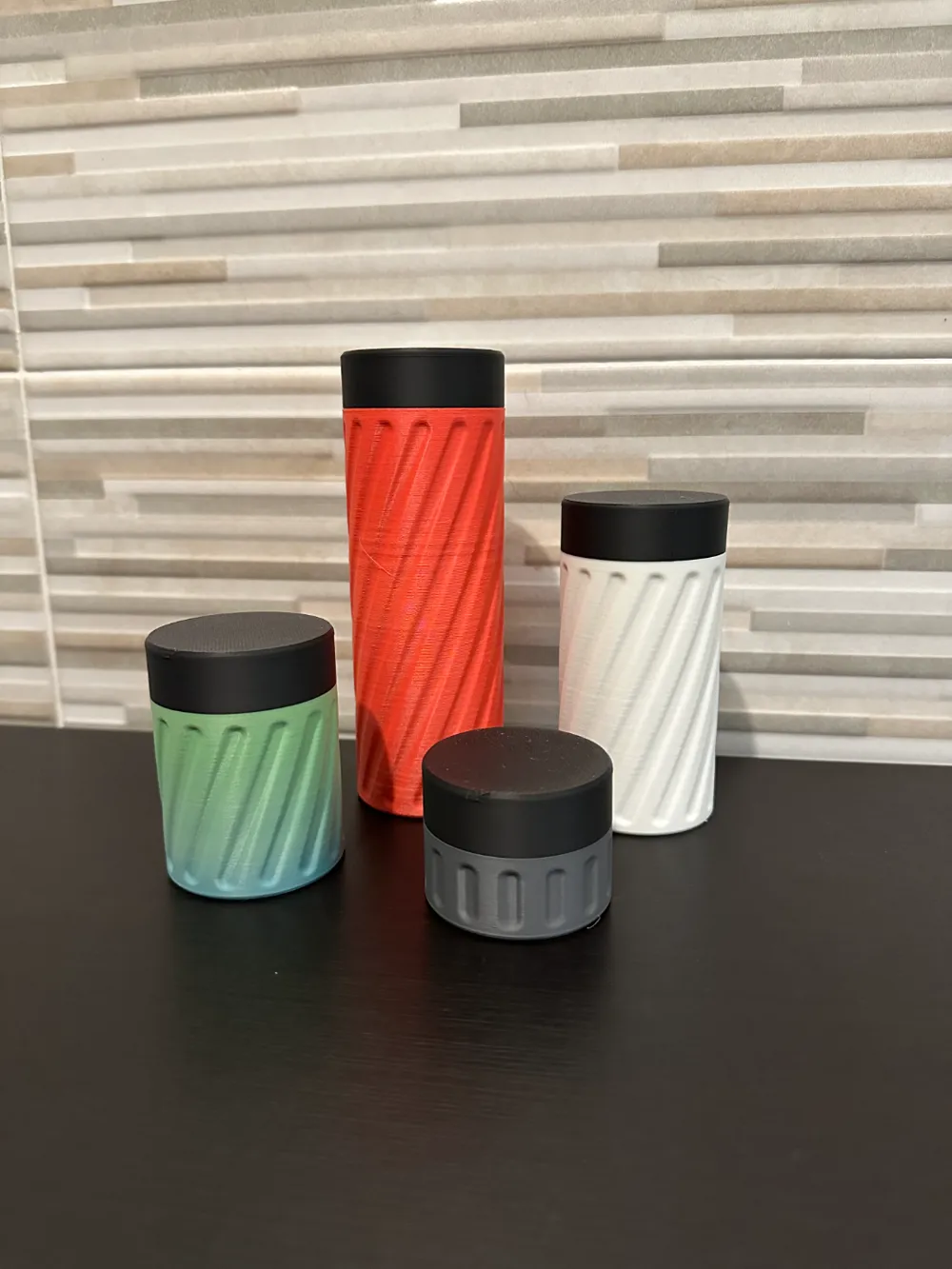

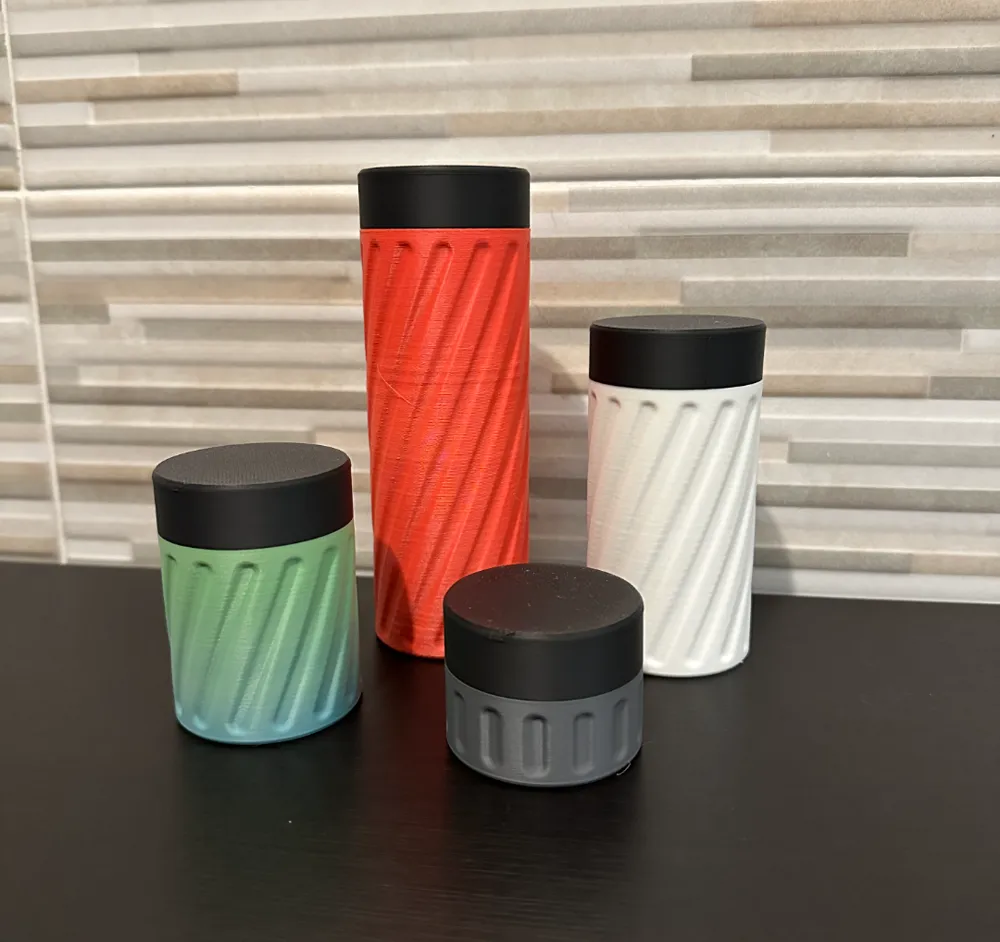

OD50 canister set contains 4 sizes, all canisters have a 50mm outer diameter and 40mm inner diameter
NOTICE:
Both printing profiles contain the 4 versions of the containers but:
- 2-color profile, to be able to print base and lid of 2 different colors in the same plate
1-color profile, to print base and lid of the same color in the same plate
Plate name External height
Internal height
Printing time 1 color
Printing time 2 color
50x50 50
45
57m
54m
50x75 75
70
1h 21m
1h 15m
50x100 100
95
1h 46m
1h 35m
50x150 150
145
2h 31m
2h 13m
OD75 canister set contains 3 sizes, all canisters have a 75mm outer diameter and 65mm inner diameter
NOTICE:
Both printing profiles contain the 3 versions of the containers but:
Plates 1-2-3 contain both canister and lid (single color printing), if you want to print container and lid in different colors, you need to print plate 4 (lid) and plates 5-6-7 (containers)
| Plate N° | Object | External height | Internal height | Printing time |
| 1 | Base 75x40 + lid | 40 | 35 | 1h 12m |
| 2 | Base 75x80 + lid | 80 | 75 | 2h 5m |
| 3 | Base 75x120 + lid | 120 | 115 | 2h 51m |
| 4 | Lid OD75 |
|
| 23m |
| 5 | Base 75x40 | 40 | 35 | 52m |
| 6 | Base 75x80 | 80 | 75 | 1h 44m |
| 7 | Base 75x120 | 120 | 115 | 2h 34m |
OD100 canister set contains 2 sizes, all canisters have a 100mm outer diameter and 90mm inner diameter
NOTICE:
| Plate N° | Object | External height | Internal height | Printing time |
| 1 | Lid OD100 | 33m | ||
| 2 | Base 100x50 | 50 | 45 | 1h 31m |
| 3 | Base 100x100 | 100 | 95 | 2h 57m |
Boost Me (for free)
If you like this project boost it! :-)

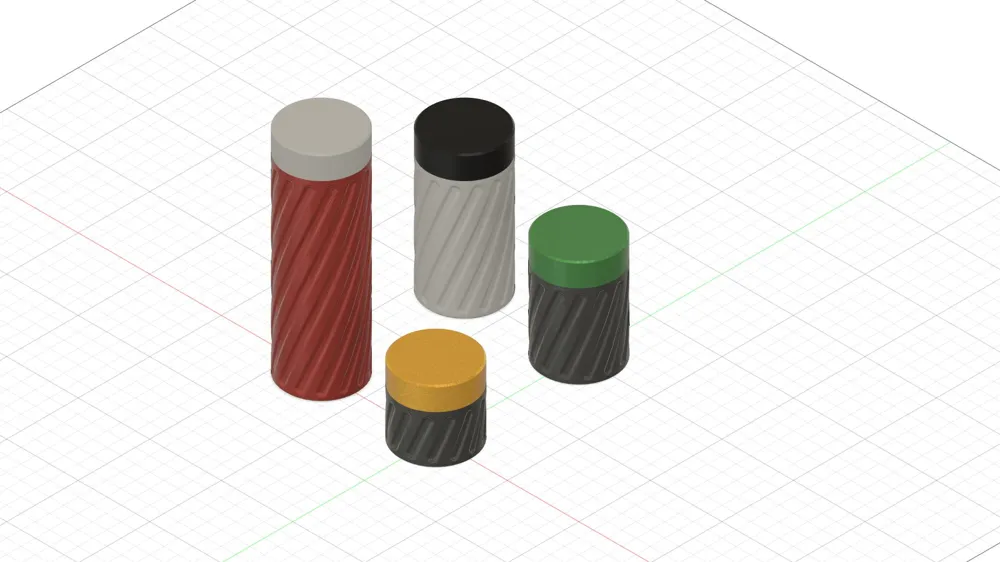

The design of this container was done with fusion360 in a parametric way, if you are interested in having the design to be able to adapt it to your needs, please contact me
