100W PD Powerbank 4p4s 18650 40000mah (3,7V)
IP Report
Print Profile(2)
0.6mm nozzle, 0.24mm layer, 2 walls, 15% infill, ASA Carbon
Designer
17 min
1 plate
0.6mm nozzle, 0.3mm layer, 2 walls, 15% infill, ASA carbon
Designer
3.1 h
1 plate
Open in Bambu Studio
Boost
211
399
23
2
403
93
Released
Description

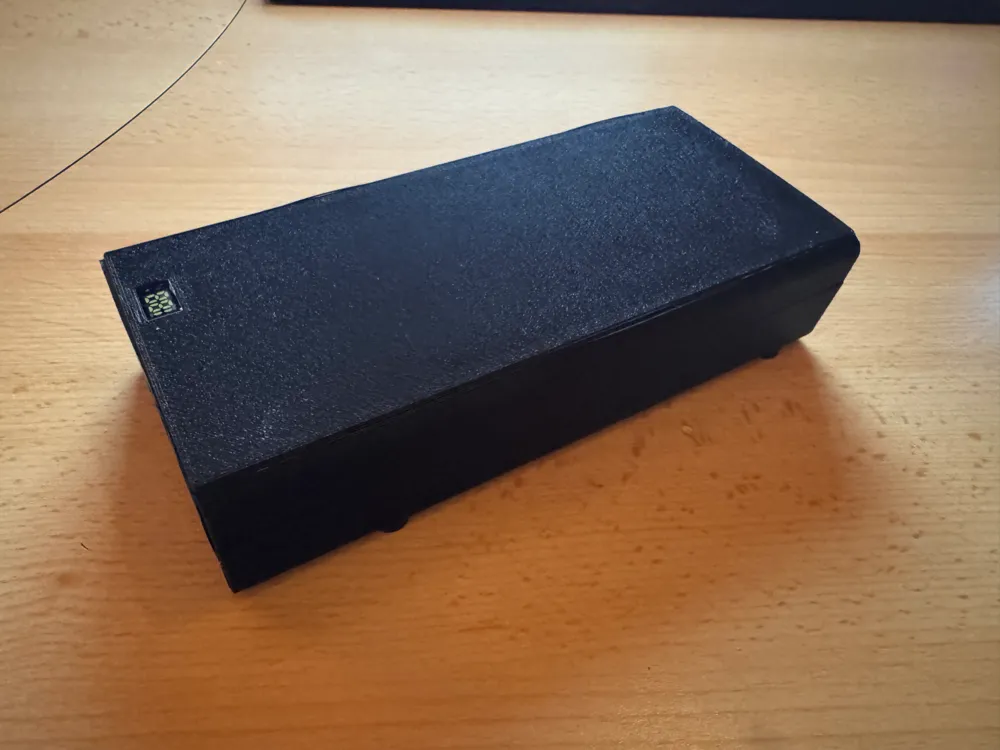

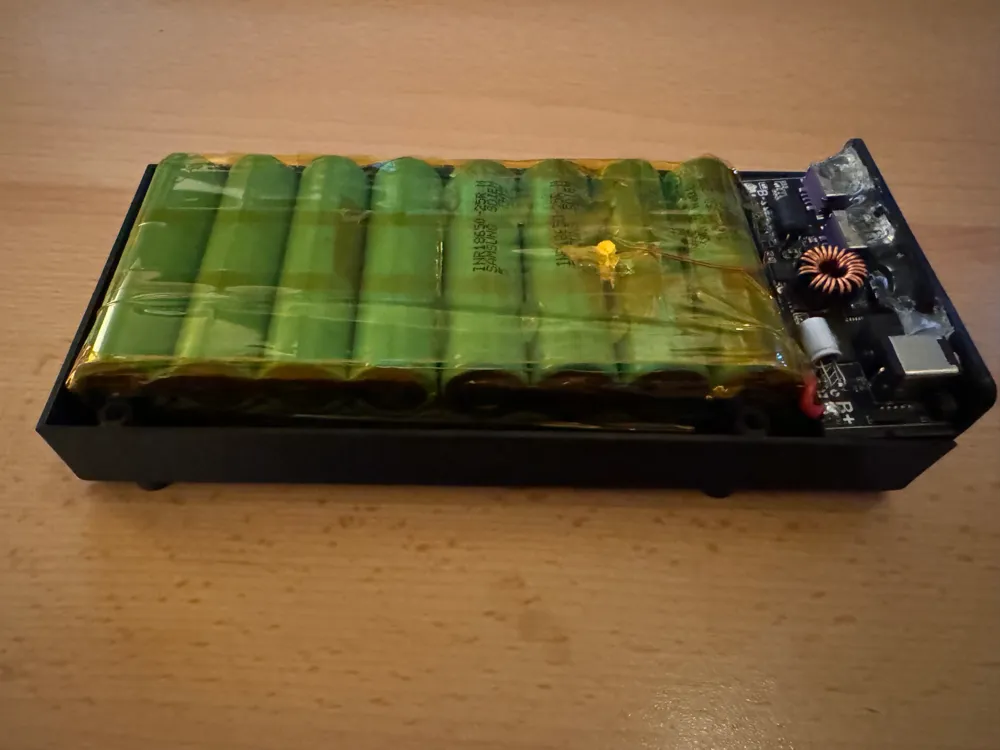

4s4p 18650 Powerbank with 100w USB C Powerbank module.
I chose ASA carbon fiber filament for the power bank module because it generates too much heat at full 100W power output for PLA to withstand.
You need one Powerbank module I used this one:
https://de.aliexpress.com/item/1005004645663172.html?spm=a2g0o.order_list.order_list_main.10.18e95c5f8W1UPW&gatewayAdapt=glo2deu

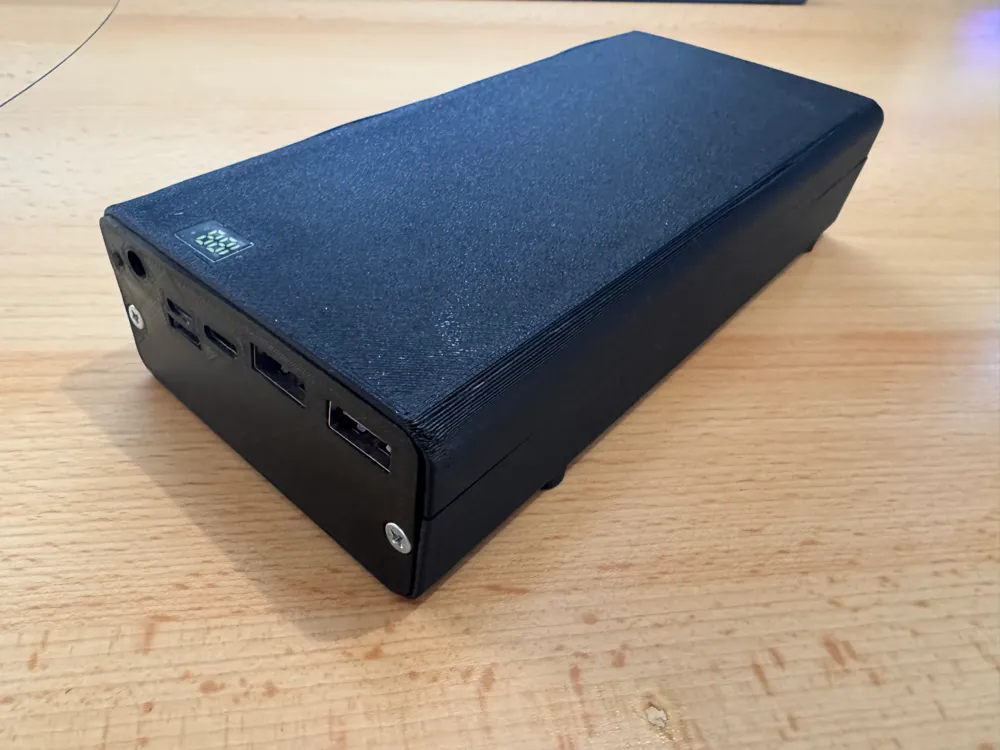

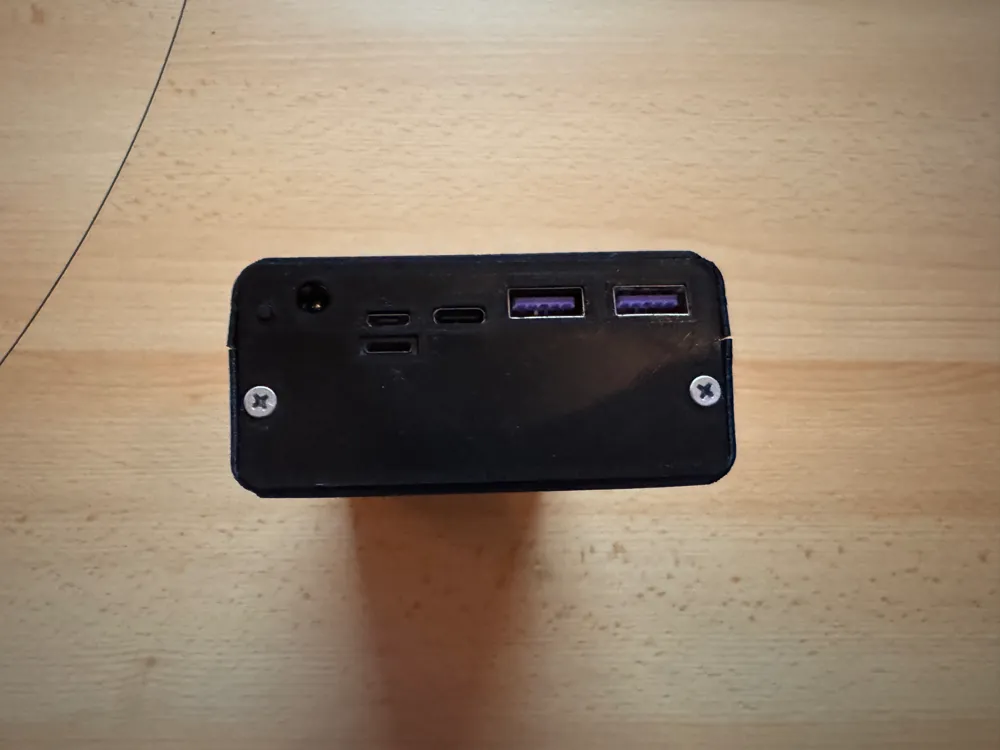

Additional you need for the front two M3x14 screws and M3 nuts and for the case four M4x34 screws with nuts.
⚠️ Safety Notice
Building lithium-ion batteries requires specialized knowledge. Pay close attention to insulation. A short circuit can pose a fire hazard!
