Project box for ESP32 board (Common use WLED)
Print Profile(2)
Description

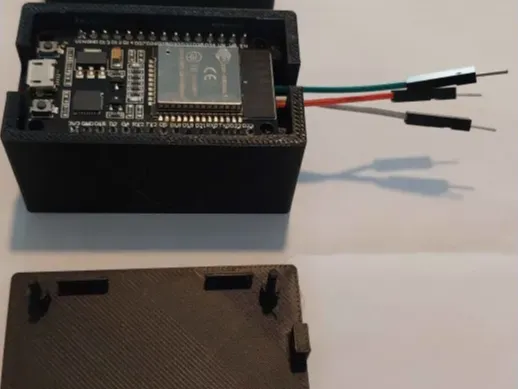

This is a box I designed to hold the ESP controller commonly used for LED applications.

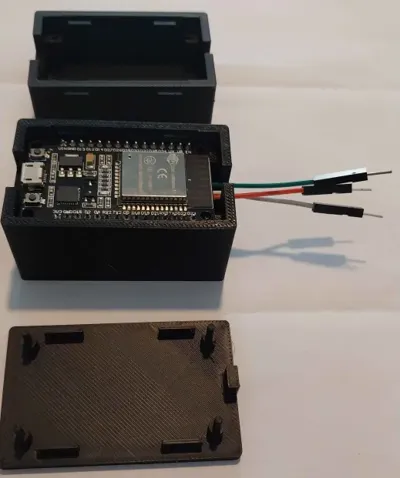

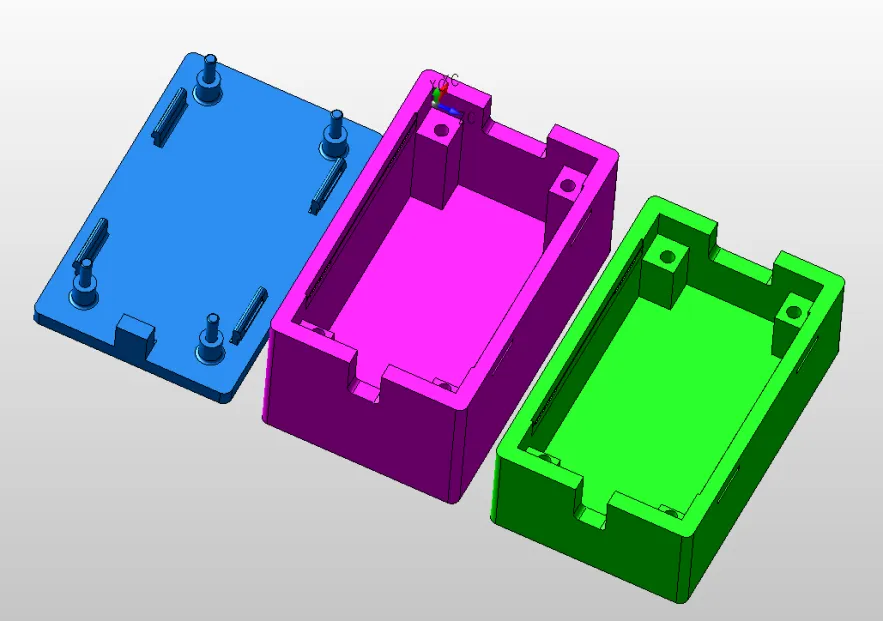

There are two box heights.
If you solder the leads to the pins, you use the shorter box bottom.
If you use breadboard jumpers, you can use the deeper box.
The USB connection on the board goes toward the end with the larger cutout.
This is a one-time-close box. The clips will engage when it is snapped shut. You can open it again by pushing a 1mm pin into the four slots breaking the clips. PLA works fine as does PETG for outdoor use, but of course it is not weather resistant.
The .stp files are included if you want to tinker.
