Permanent Magnet Generator
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
38
73
2
2
64
0
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- Ferrite Blocks Ceramic Magnets 1 7/8" x 7/8" x 3/8" Rectangular Magnets x 8:
- 28 AWG Enameled Copper Wire x 1: May use larger gauge wire.
- Wire nuts or terminal connections x 20: A pack of connectors should do.
- Bearings 608RS x 3:
- USB C Pigtails x 1:
Description

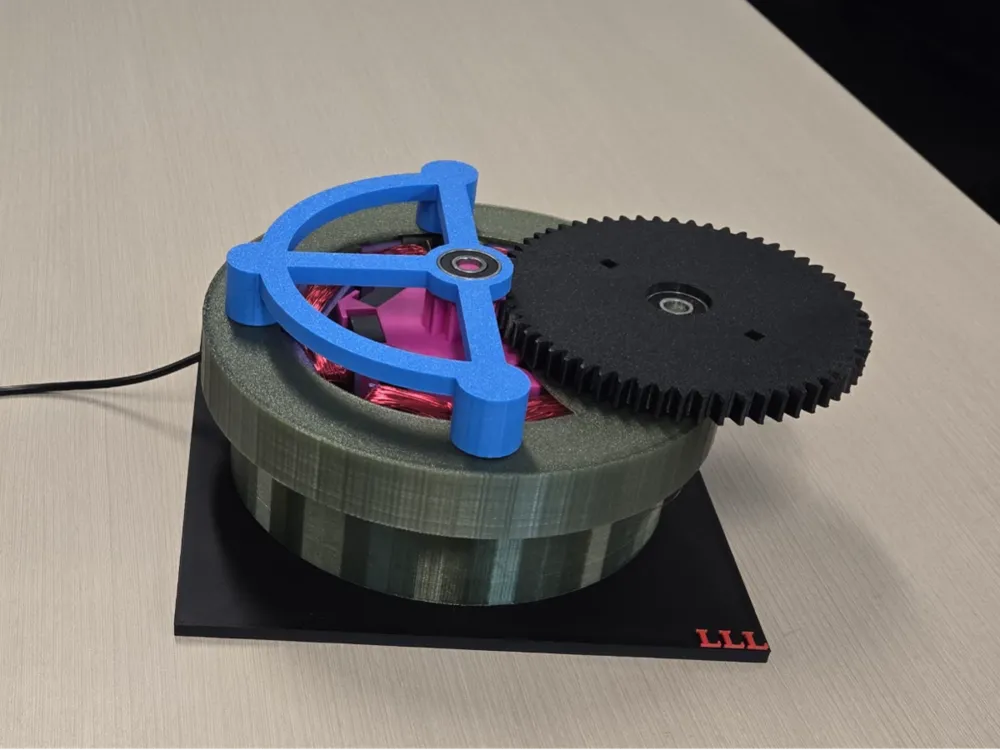

This can be a working generator used for fun only. We connected this up to a light box and watched the light flicker when we spun the big gear. Be careful when spinning the gear as it has teeth that can bite :).
Assembly guide to come soon.
