Anycubic Kobra Go Camera Mount

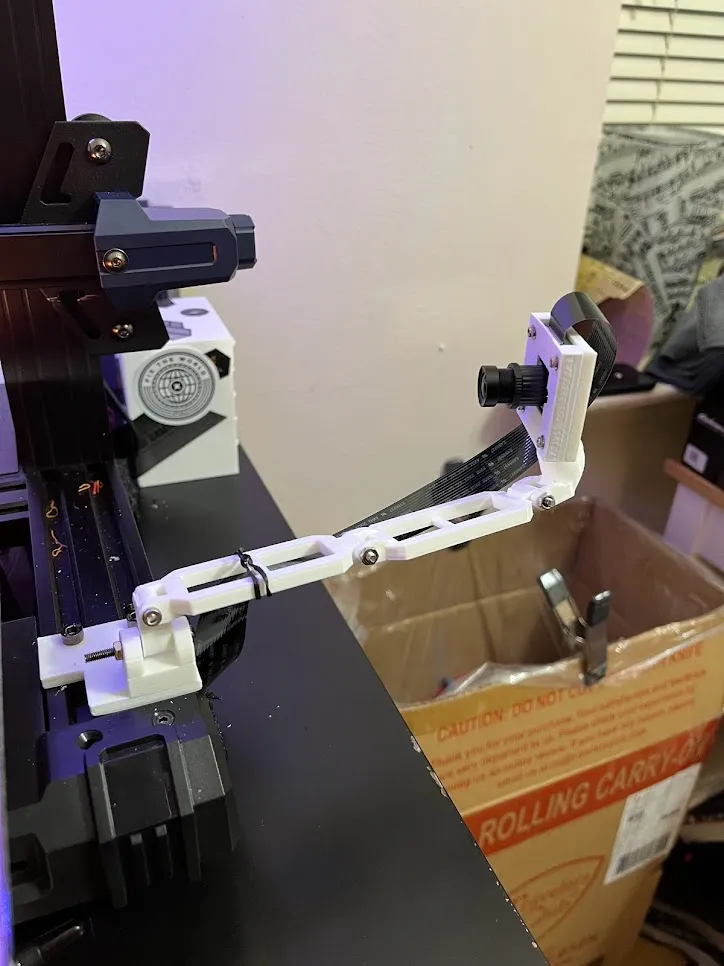

I've remixed the pi camera mount in a few ways. The main two are that it is compatible with mounting directly to the frame of the Kobra Go printer, and it is made to fit the arducam OV5647. Other than that this set is assembled exactly as seen in the original model.

I assembled the extension arm with M4x20 bolts at each joint.

The arducam case is secured with four M3x10 bolts, one per corner.

The assembly is attached to the frame through the motherboard case screws. They're long enough to secure the front motherboard cover and the camera without changing anything! Hurray!
