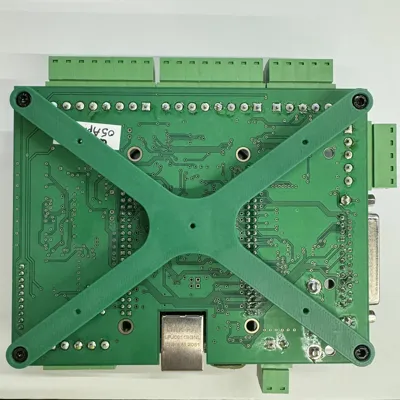

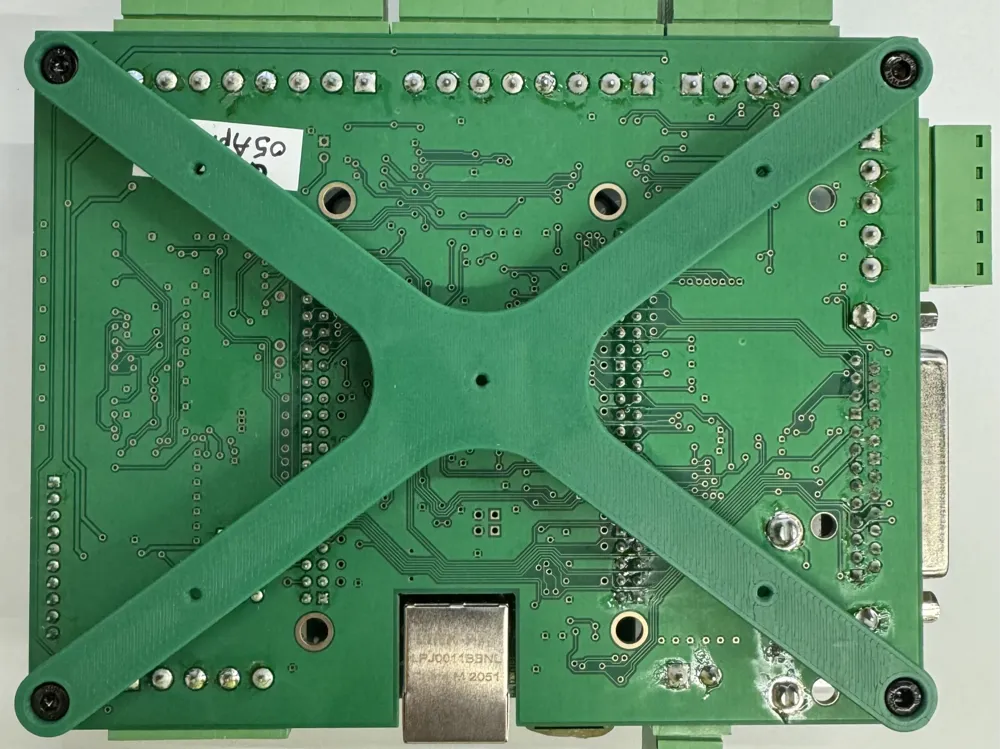

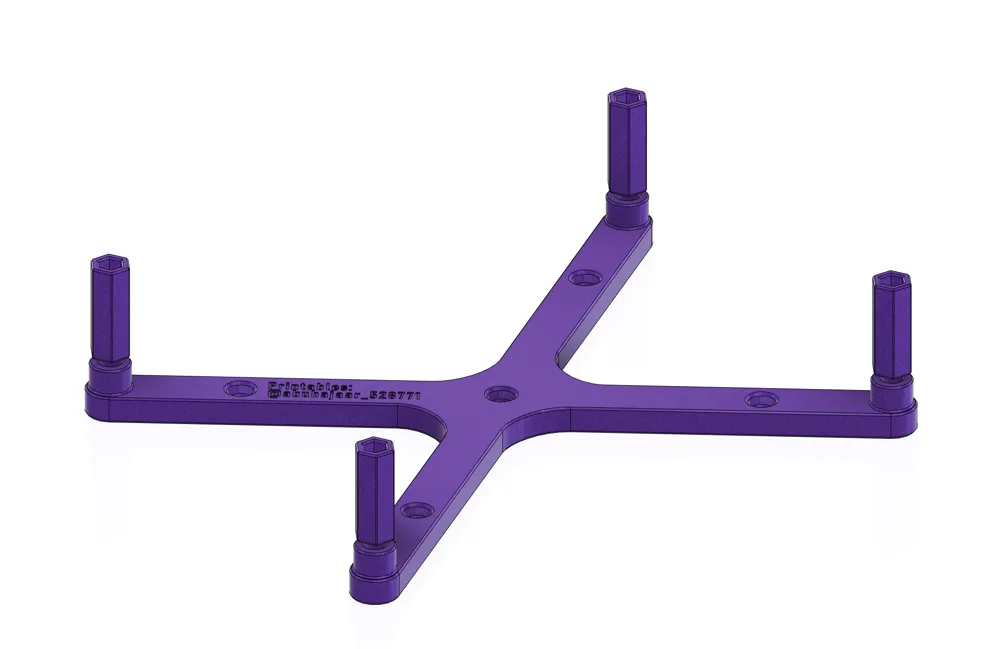

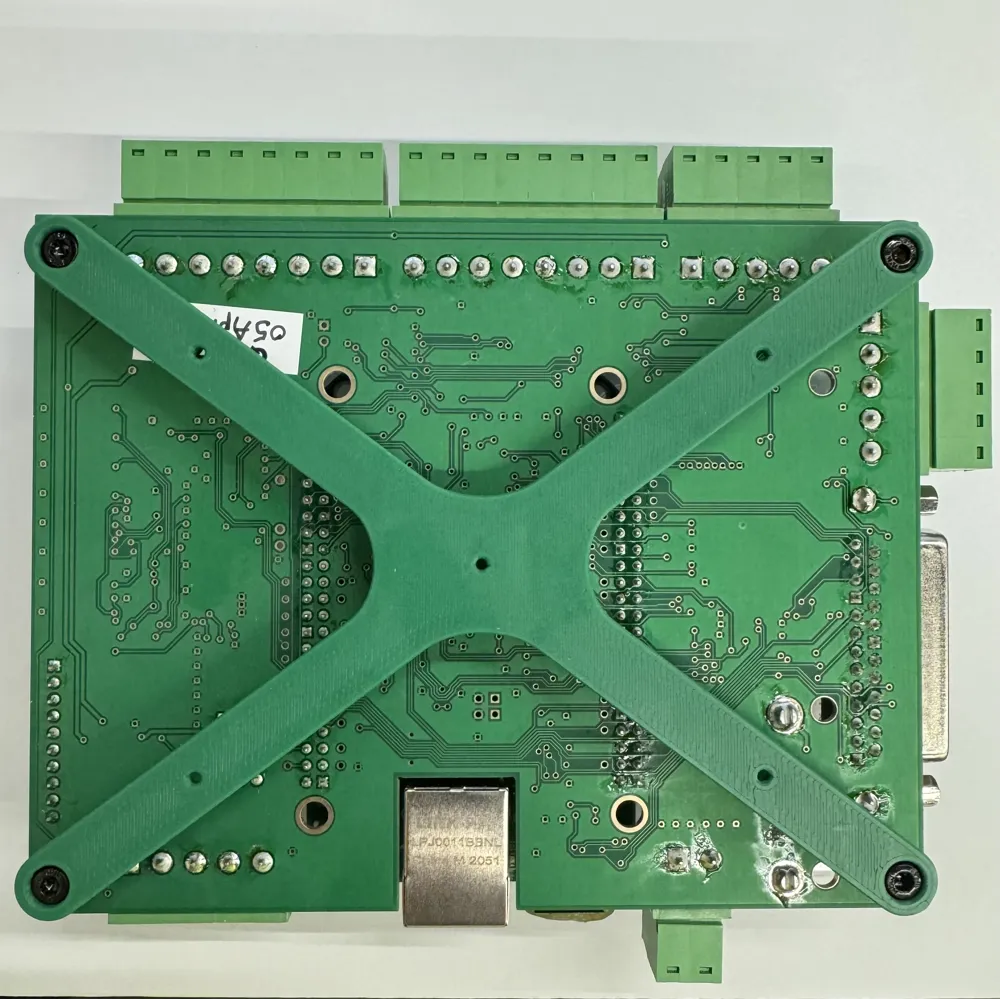

Mounting Bracket for Centroid Acorn
IP Report
Print Profile(3)
0.16mm layer, 4 walls, 30% infill
Designer
1.2 h
1 plate
0.16mm layer, 4 walls, 30% infill
Designer
1.2 h
1 plate
0.6mm nozzle, 0.18mm layer, 3 walls, 60% infill
Designer
1 h
1 plate
Open in Bambu Studio
Boost
3
4
0
0
15
5
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
Requirements:
- M3x5x4 (Voron style) threaded inserts - x10
- If not using the standoffs, only 4 inserts needed.
- M3x12 Screws (or larger) - x4
- Screws for panel mounting - x5
Installation/Assembly:

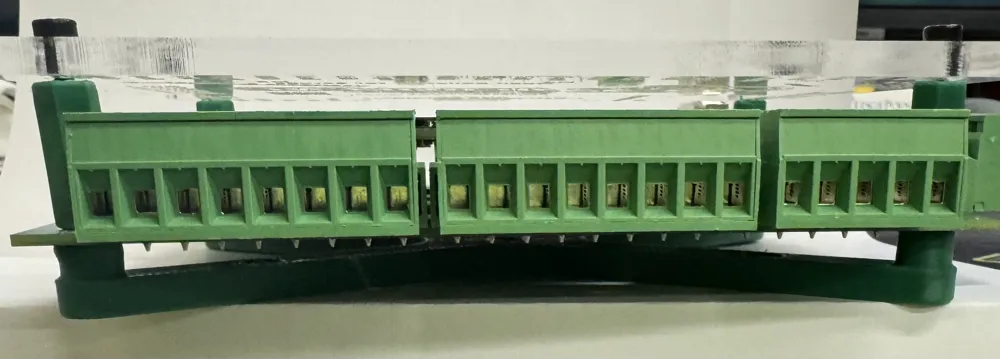

- Use the threaded inserts for mounting the board/standoffs. Recommended to use a filament with greater thermal stability like ABS/ASA, PC, or PET.
- My controller box is made from wood, so I have opted to use small self tapping screws for fixing the bracket to the panel. You may need to drill out the panel mounting holes as needed.
Notes
- I may upload a DIN rail compatible version if there is any interest
- Your DB25 breakout might not have the same mounting hole locations as mine
- CAD file available upon request
- Leave a make/comment/profile to suggest future improvements!
