Quick Connect Splicer for Teflon / PTFE
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 15% infill
Designer
25 min
1 plate
Open in Bambu Studio
Boost
18
25
2
0
48
28
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

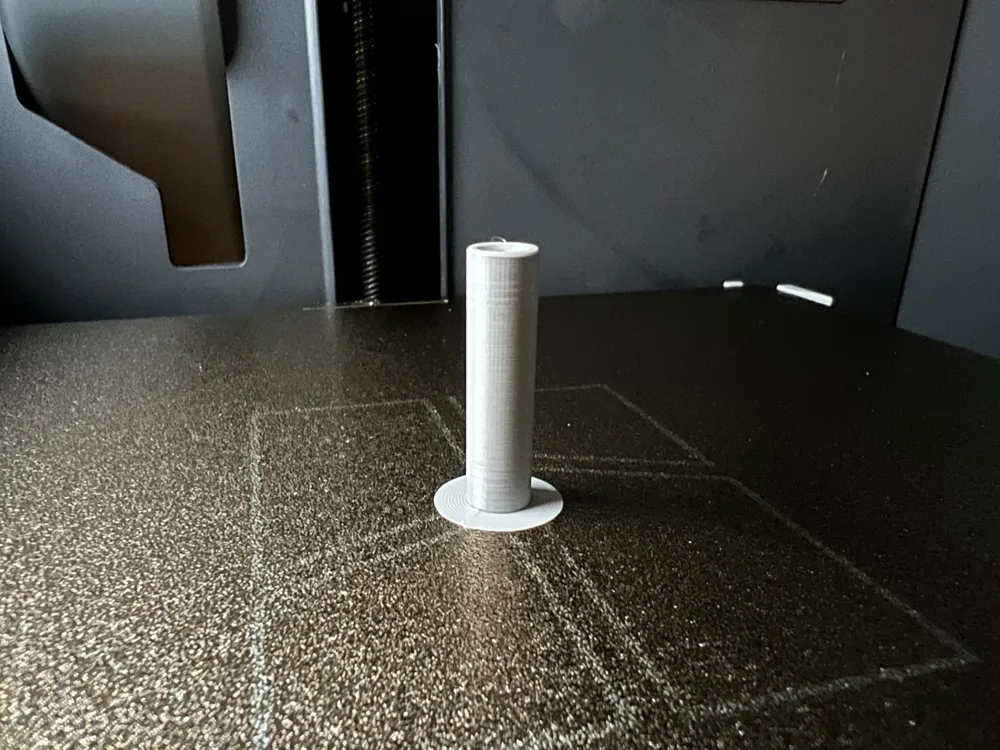

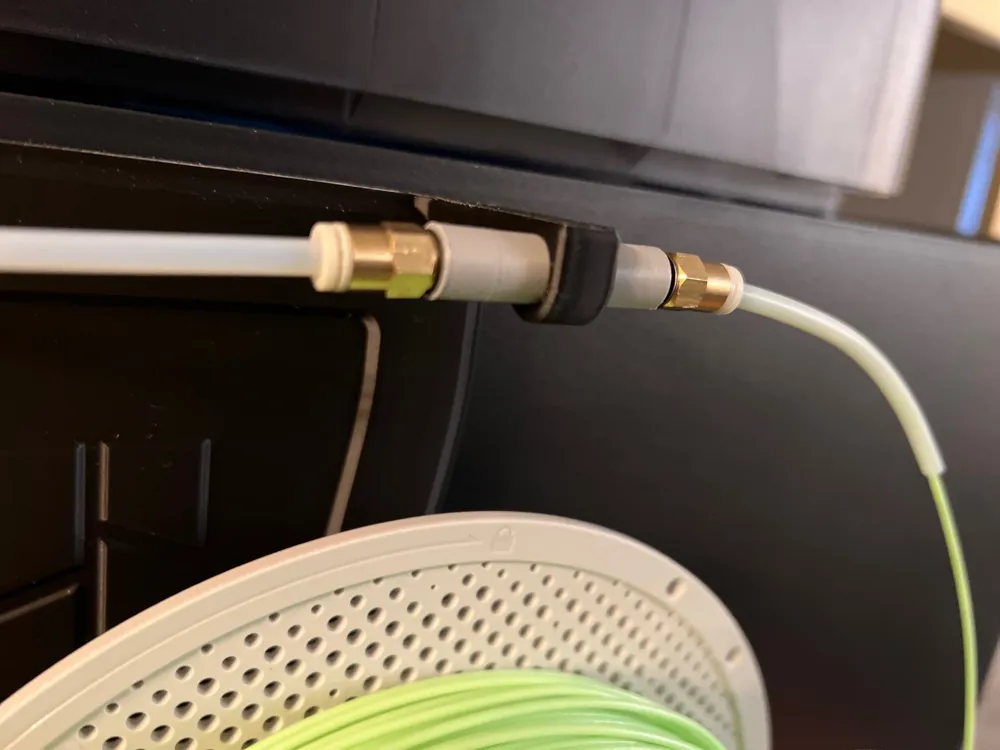

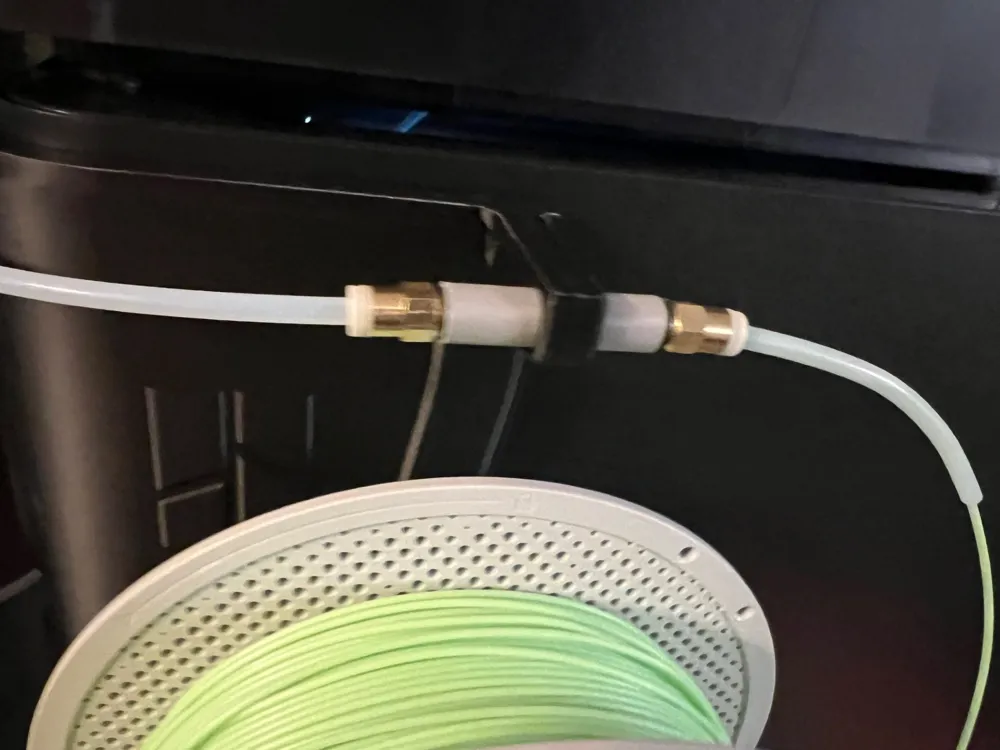

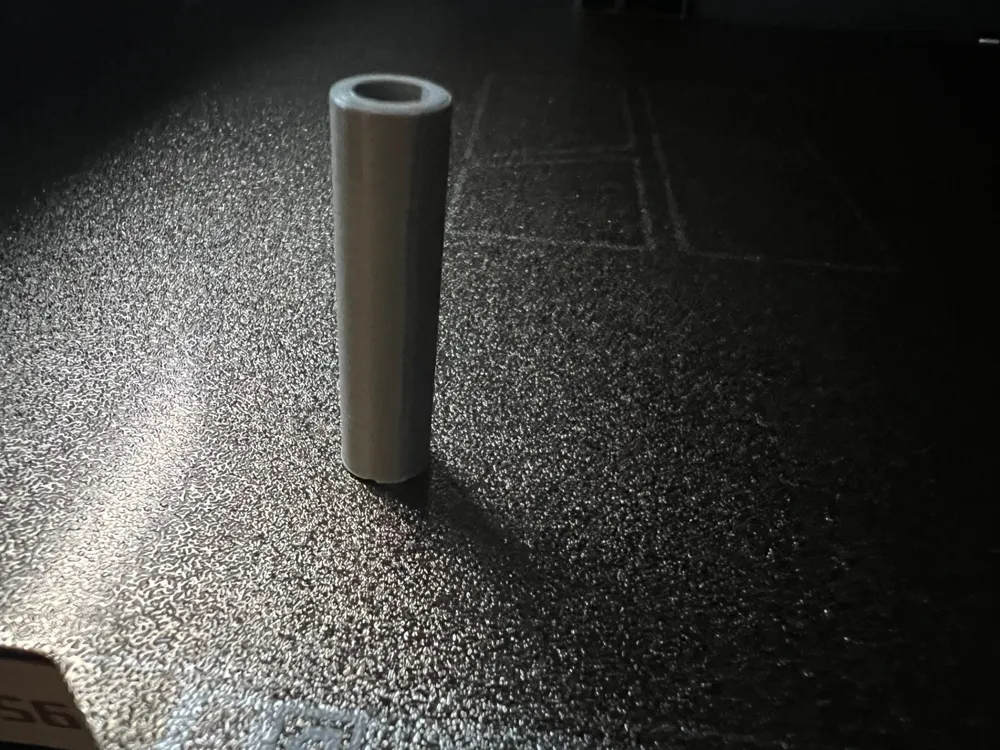

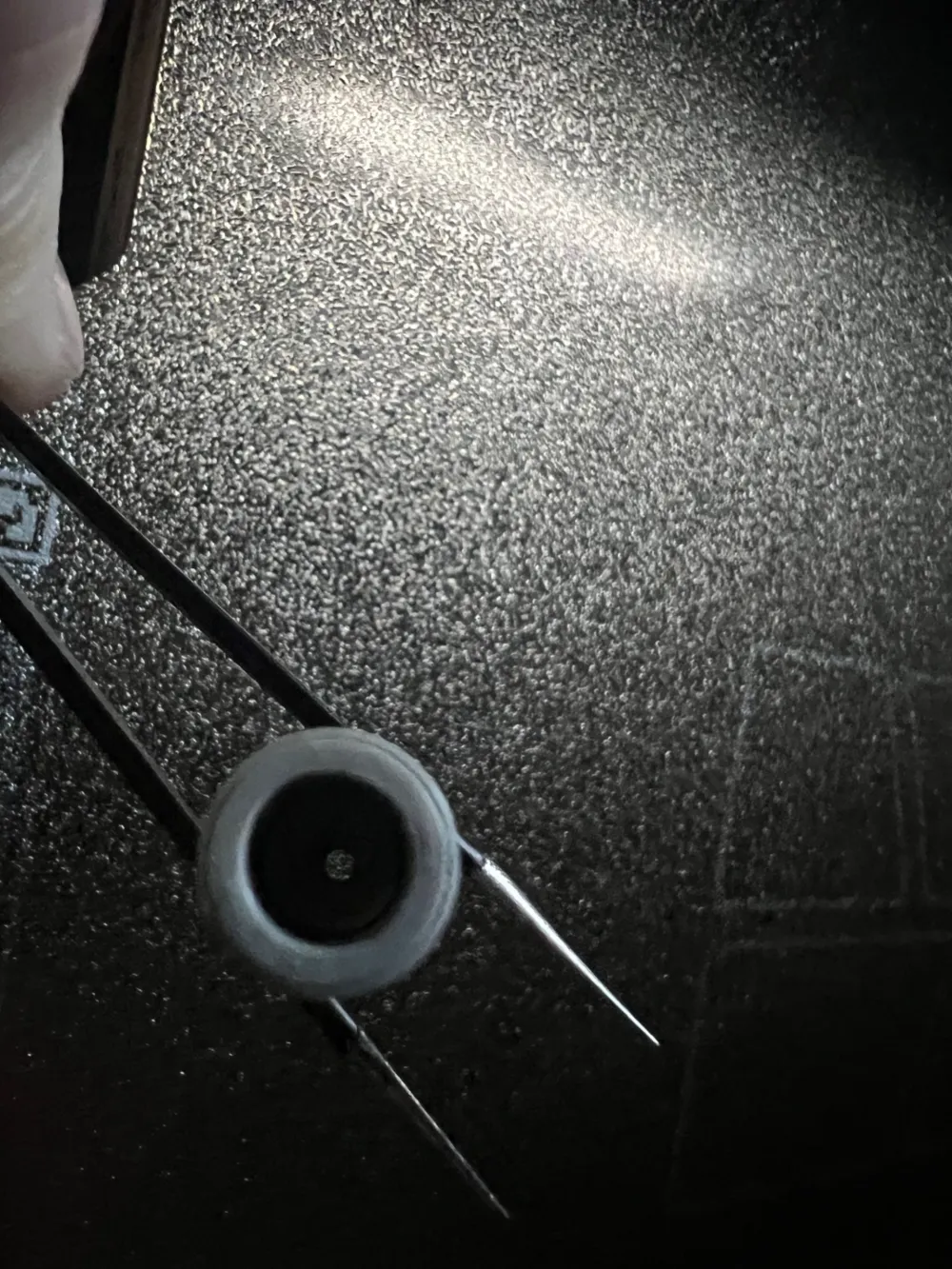

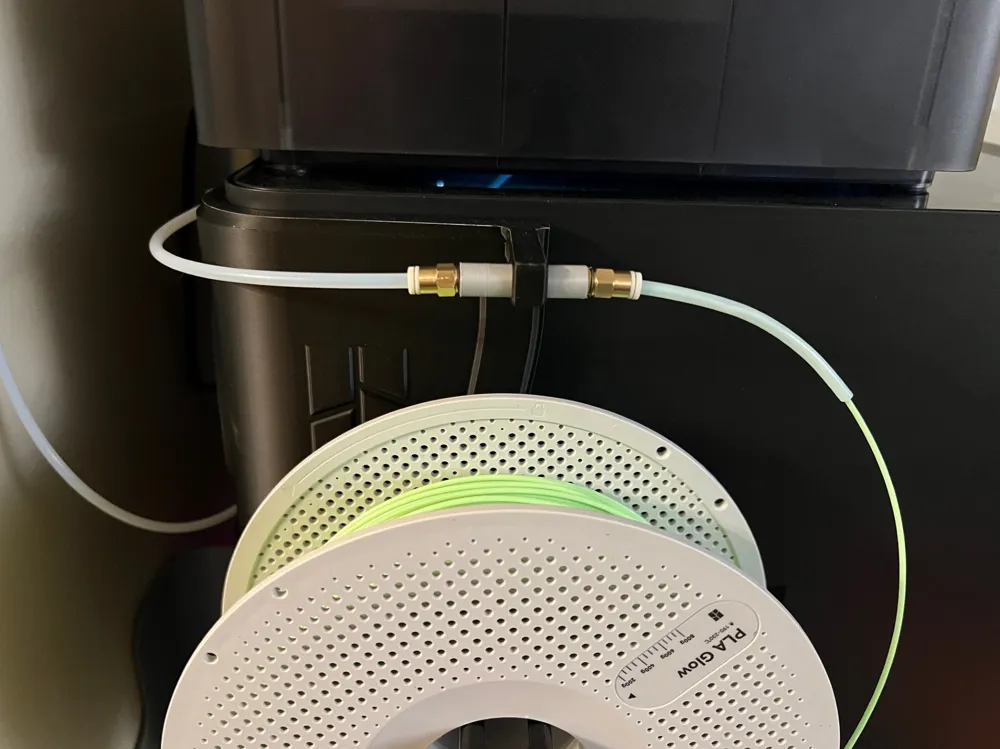

I needed to splice 2 PTFE tubes, and other models seemed to cause friction with the filament, so I designed this to allow 2 PC4-M6 PTFE / Teflon compression fittings to splice together seamlessly. This will print the female threads needed, which connects snuggly to a 2mm hole for the filament. Note, the print profile contains 100% and 101% scale versions, as some applications can use the extra play.
Prints both scaled versions of the models in about 20 minutes.
This is my first model, comments/suggestions welcome!
