MKS LS ESP32 PRO V2.1 Laser Engraver Mainboard Installation Box
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
4.1 h
1 plate
Open in Bambu Studio
Boost
7
3
1
0
45
3
Released
Description
Content has been automatically translated.

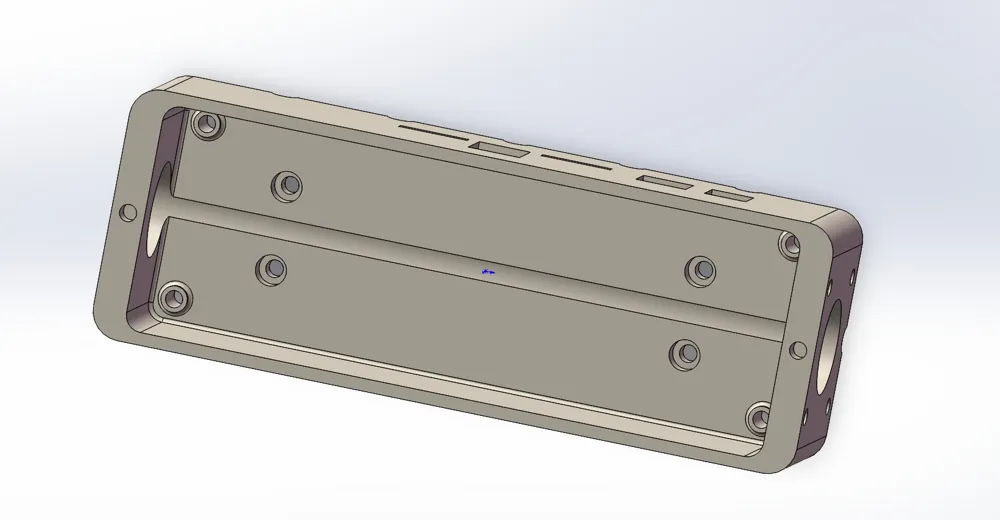

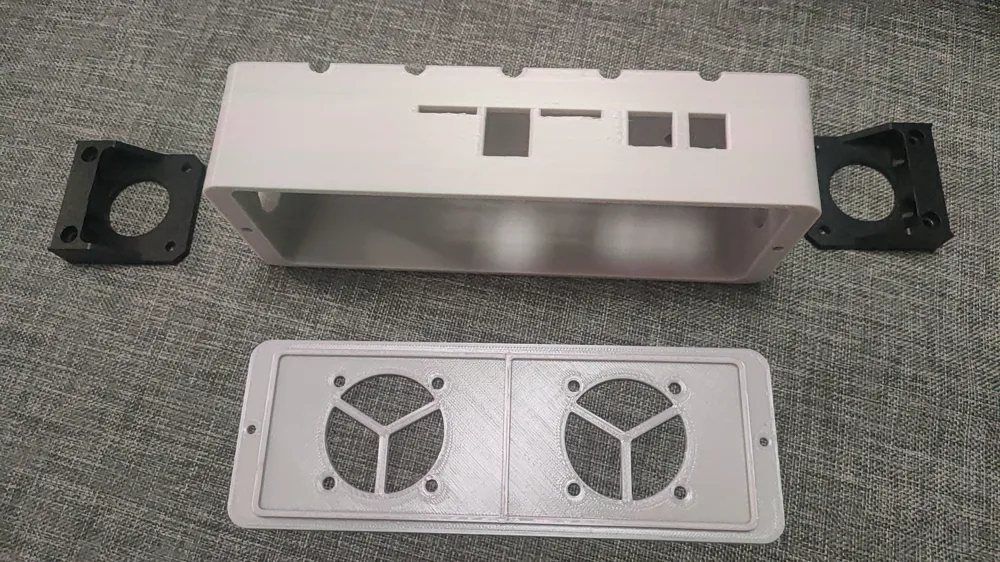

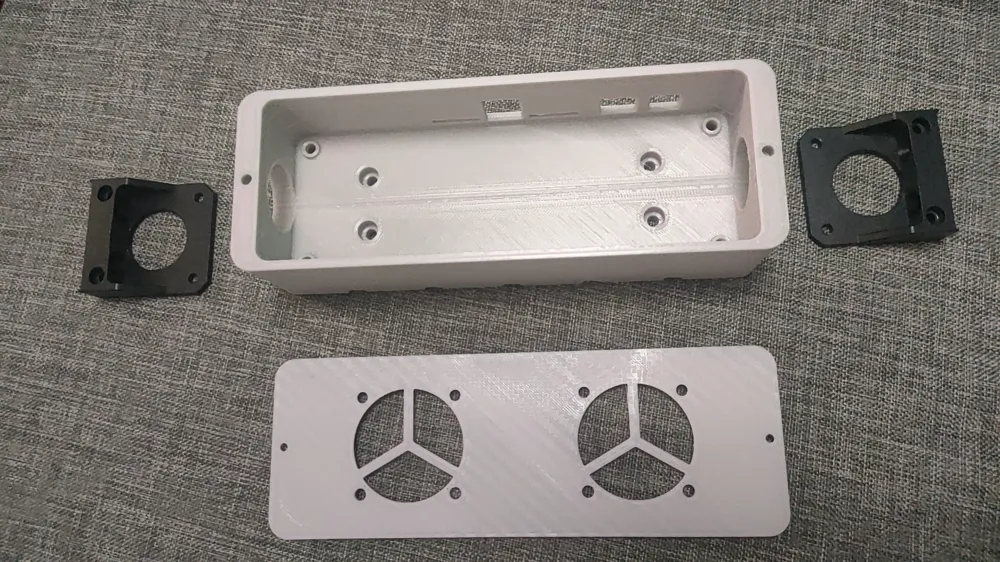

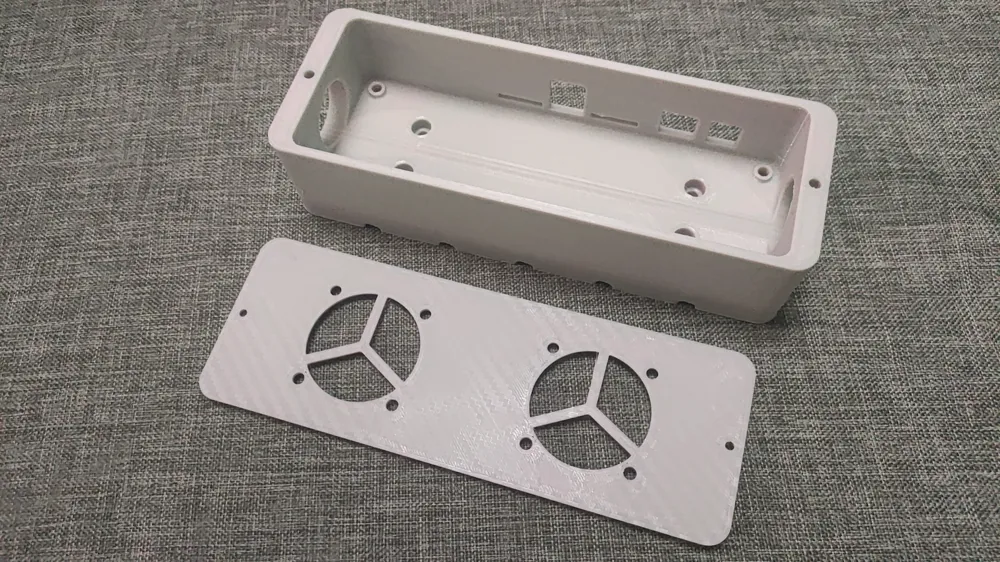

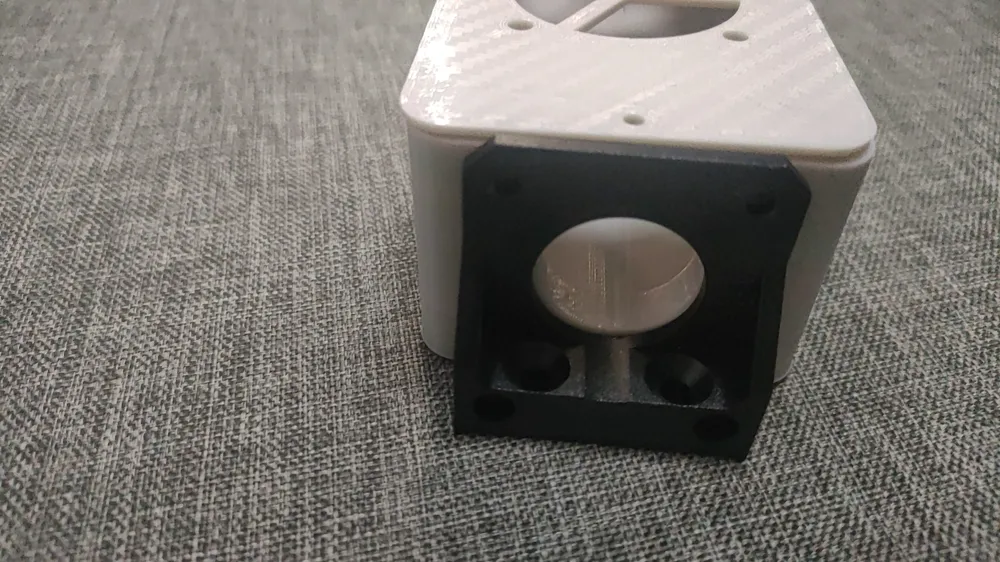

A mounting box suitable for the MKS LS ESP32 PRO V2.1 motherboard, which can be installed on 2040 aluminum profiles. There are two ways to fix it: 1. Direct fixing through the four M5 screw holes at the bottom of the box. 2. Two mounting plates for the 42 stepper motors suitable for 2040 aluminum profiles are required, fixed on both sides.

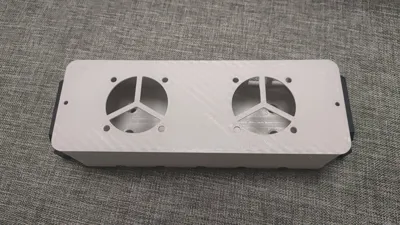

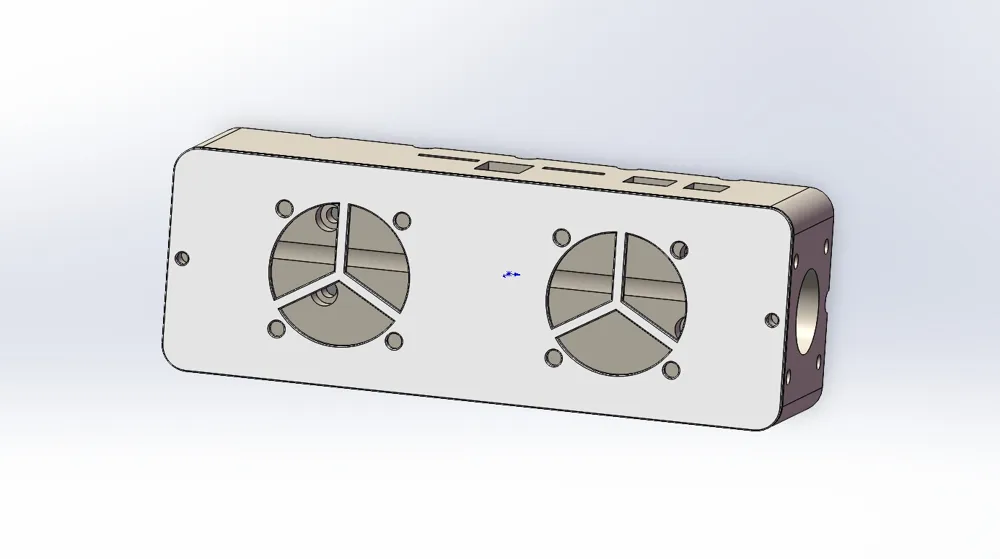

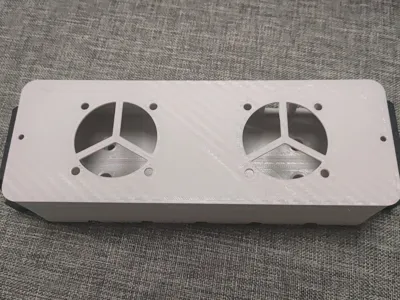

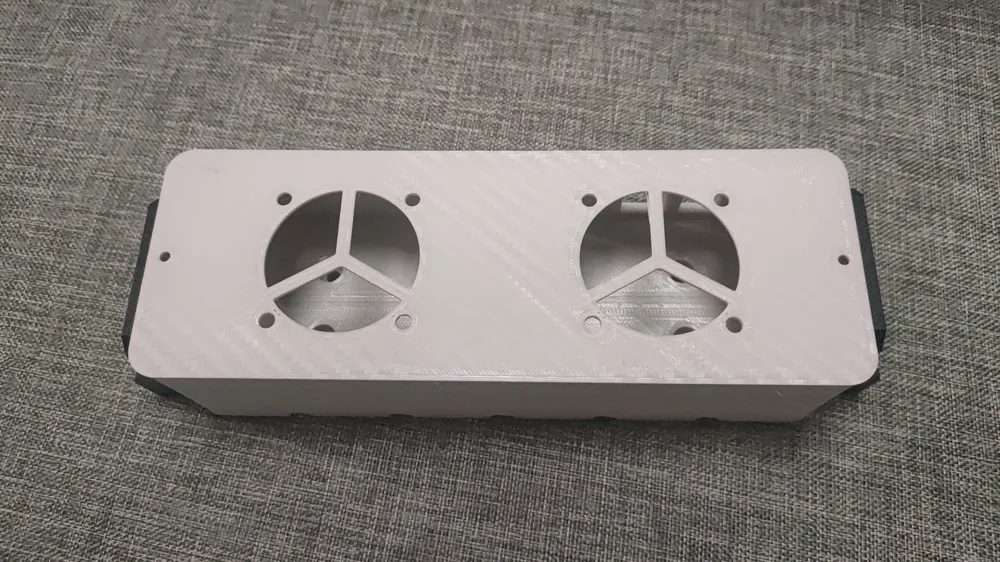

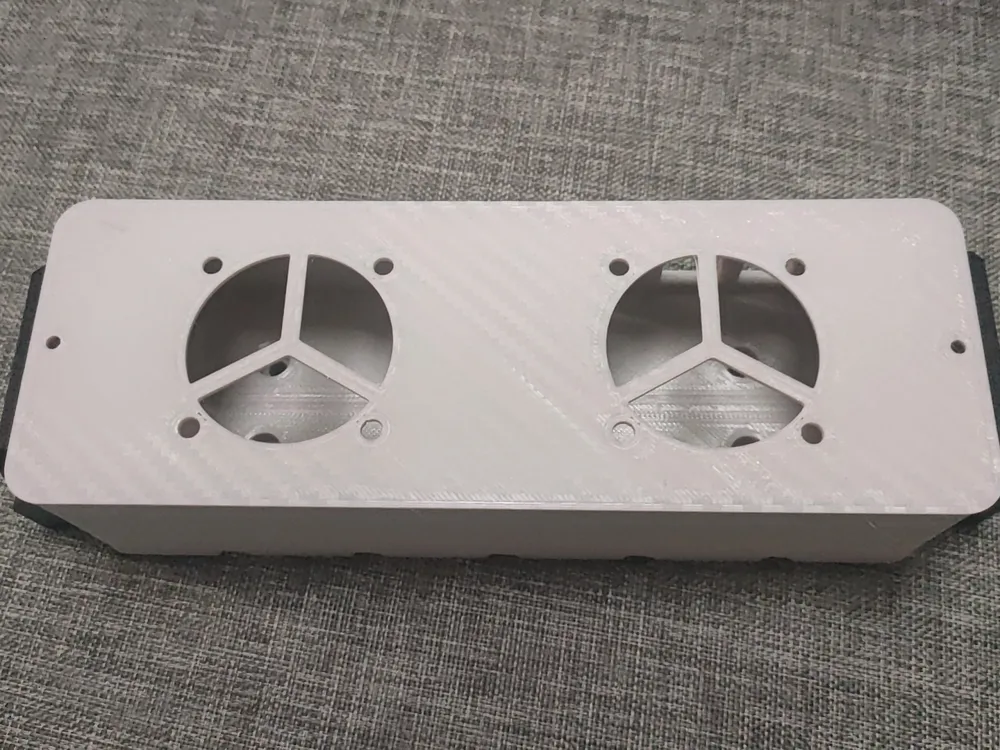

The top cover reserves two 4010 fan positions and is directly fixed with self-tapping screws.
Requires 3*4*4.2 earth-retaining nuts.
