Shinobi - Bonus stage

Hello,

I used to play Shinobi on Mega Drive and I loved this bonus stage, so I decided to recreated it in 3D : )

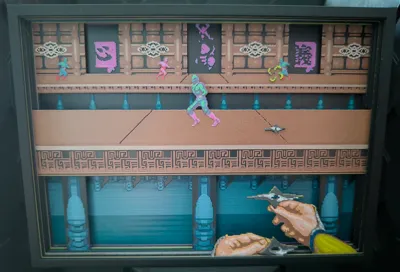

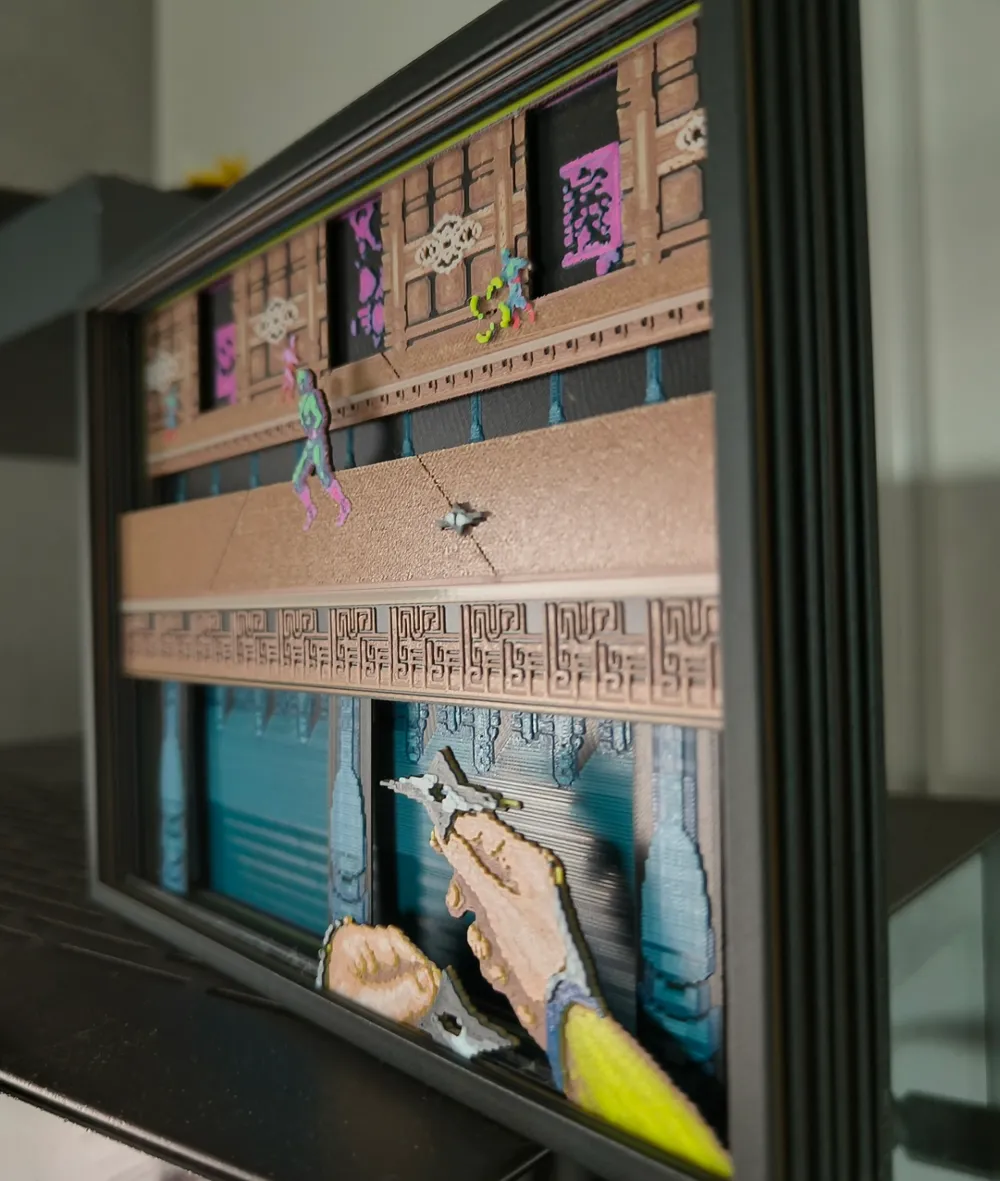

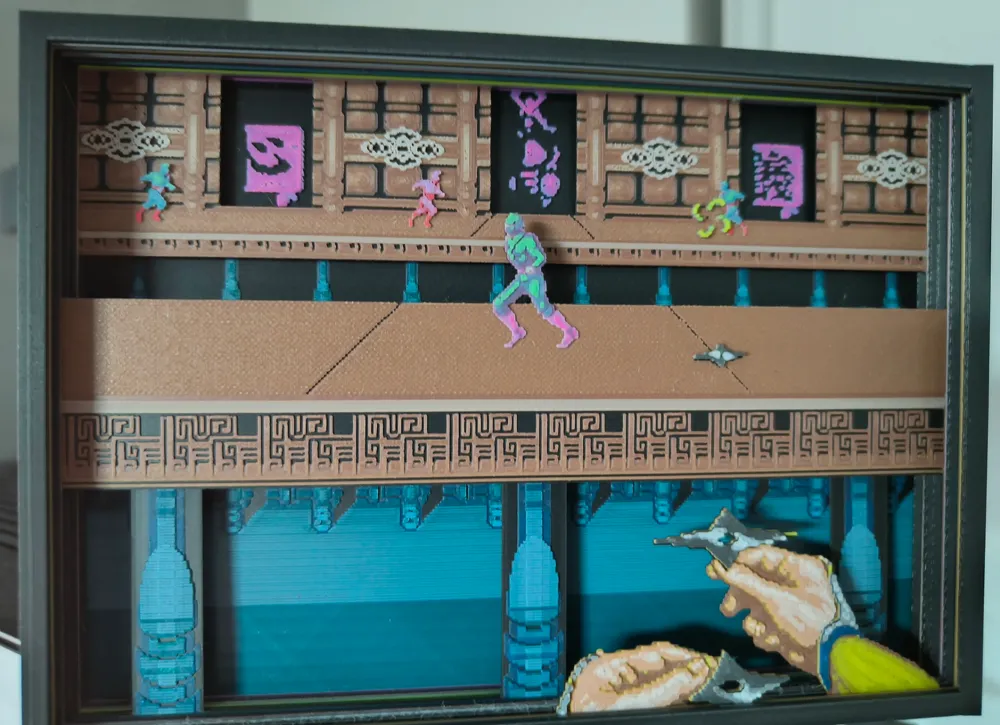

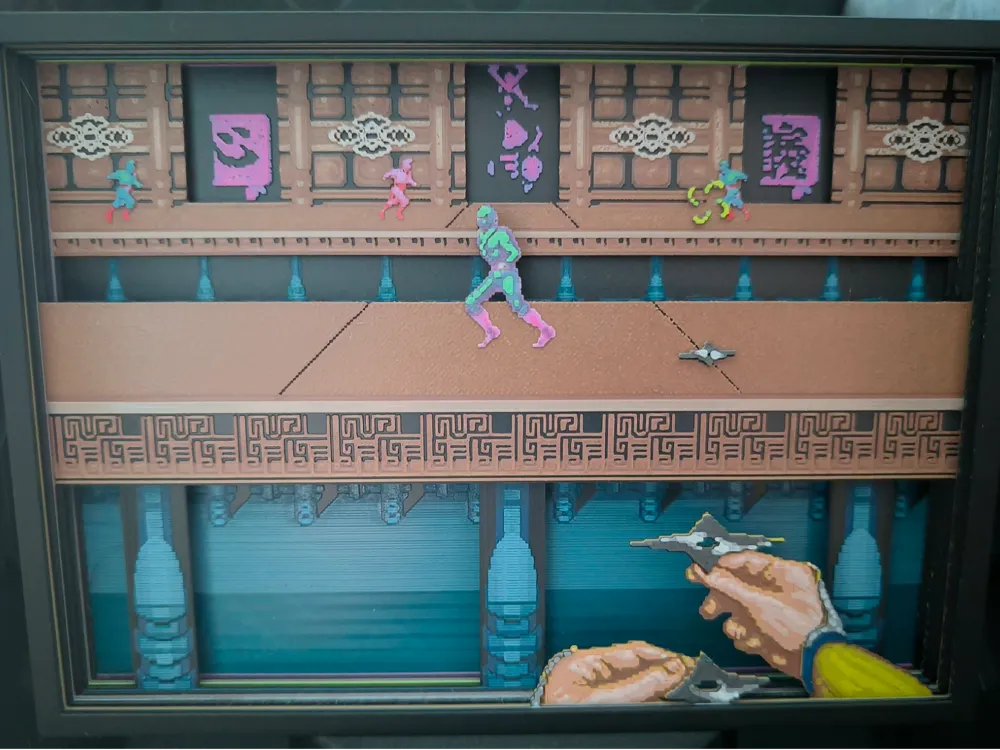

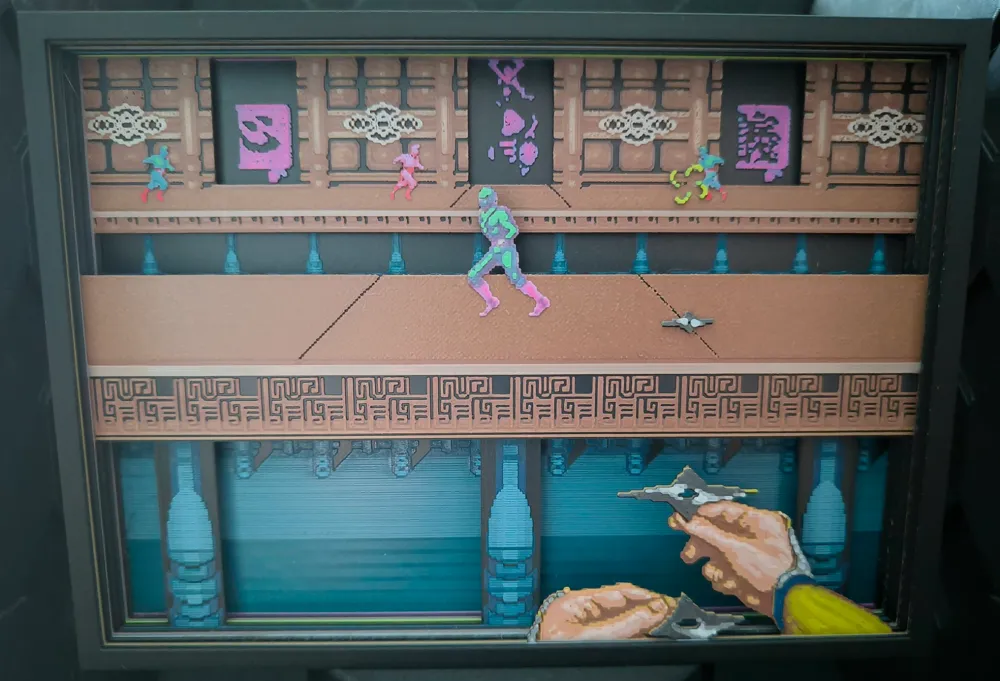

Shadowbox style, this includes a case and 5 different layers colored with Hueforge to insert on the right.

Be warned, I used a lot of different colors. You may be able to reduce some swaps or re-use some colors if you have high TD filaments.

I'll be honest, this made me order a third AMS.

Due to the color limit and unique nozzle size restriction in 3mf files, I had to split this print into 6 different print profiles.

There's one for each layer, and one for the case.

The "Case" and “Slide0” use a 0.4mm nozzle. The other slides are all using a 0.2mm nozzle.

Slide 0 :

Swap Instructions:
Start with Charcoal
At layer #6 (0.56mm) swap to Earth Brown
At layer #8 (0.72mm) swap to Coffee
At layer #10 (0.88mm) swap to Yellow
At layer #13 (1.12mm) swap to Brown
At layer #14 (1.2mm) swap to Latte Brown
At layer #15 (1.28mm) swap to Beige
At layer #17 (1.44mm) swap to Dark Blue
At layer #18 (1.52mm) swap to Blue
At layer #20 (1.68mm) swap to Steel Grey
At layer #22 (1.84mm) swap to Fossil Grey
At layer #23 (1.92mm) swap to Ash Gray
At layer #24 (2mm) swap to Ivory White for the rest.


Slide 1 :
Swap Instructions:
Start with Charcoal
At layer #14 (0.68mm) swap to Dark Brown
At layer #16 (0.76mm) swap to Earth Brown
At layer #18 (0.84mm) swap to Coffee
At layer #22 (1mm) swap to Beige
At layer #26 (1.16mm) swap to Purple
At layer #28 (1.24mm) swap to Magenta
At layer #32 (1.4mm) swap to Green
At layer #34 (1.48mm) swap to Blue Gray
At layer #35 (1.52mm) swap to Stone Blue
At layer #37 (1.6mm) swap to Grass Green
At layer #42 (1.8mm) swap to Steel Grey
At layer #46 (1.96mm) swap to Fossil Grey
At layer #48 (2.04mm) swap to Ash Gray
At layer #50 (2.12mm) swap to Ivory White for the rest.


Slide2 :
Swap Instructions:
Start with Charcoal
At layer #10 (0.52mm) swap to Dark Blue
At layer #13 (0.64mm) swap to Blue
At layer #17 (0.8mm) swap to Green
At layer #20 (0.92mm) swap to Stone Blue
At layer #22 (1mm) swap to Cyan for the rest.


Slide3 :

Swap Instructions:
Start with Charcoal
At layer #14 (0.68mm) swap to Dark Brown
At layer #16 (0.76mm) swap to Earth Brown
At layer #18 (0.84mm) swap to Coffee
At layer #22 (1mm) swap to Beige
At layer #26 (1.16mm) swap to Ash Gray
At layer #28 (1.24mm) swap to Army Red
At layer #30 (1.32mm) swap to Purple
At layer #32 (1.4mm) swap to Lilac Purple
At layer #36 (1.56mm) swap to Green
At layer #38 (1.64mm) swap to Stone Blue
At layer #40 (1.72mm) swap to Grass Green
At layer #44 (1.88mm) swap to Yellow for the rest.


Slide4 :
Swap Instructions:
Start with Charcoal
At layer #10 (0.52mm) swap to Dark Blue
At layer #13 (0.64mm) swap to Blue
At layer #17 (0.8mm) swap to Green
At layer #20 (0.92mm) swap to Stone Blue
At layer #22 (1mm) swap to Cyan
At layer #27 (1.2mm) swap to Magenta for the rest.


Filaments used :

PLA BambuLab Matte Charcoal Transmission Distance: 0.1
PLA PolyTerra Earth Brown Transmission Distance: 0.1
PLA Forshape Coffee Transmission Distance: 2.7
PLA BambuLab Basic Yellow Transmission Distance: 5.2
PLA BambuLab Basic Brown Transmission Distance: 1.4
PLA BambuLab Matte Latte Brown Transmission Distance: 1.1
PLA BambuLab Basic Beige Transmission Distance: 3.6
PLA BambuLab Matte Dark Blue Transmission Distance: 0.1
PLA BambuLab Basic Blue Transmission Distance: 2.3
PLA PolyLite Steel Grey Transmission Distance: 1
PLA PolyTerra Fossil Grey Transmission Distance: 0.3
PLA BambuLab Matte Ash Gray Transmission Distance: 0.4
PLA BambuLab Matte Ivory White Transmission Distance: 3.4
PLA BambuLab Matte Dark Brown Transmission Distance: 2
PLA BambuLab Basic Purple Transmission Distance: 1.4
PLA BambuLab Basic Magenta Transmission Distance: 3
PLA BambuLab Basic Green Transmission Distance: 2
PLA BambuLab Basic Blue Gray Transmission Distance: 2
PLA PolyLite Stone Blue Transmission Distance: 0.1
PLA BambuLab Matte Grass Green Transmission Distance: 2
PLA BambuLab Basic Cyan Transmission Distance: 1.7
PLA PolyTerra Army Red Transmission Distance: 0.3
PLA BambuLab Matte Lilac Purple Transmission Distance: 2

Feel free to ask if you need more information about this print.

Happy printing !
