Hypercube E3D Titan carriage

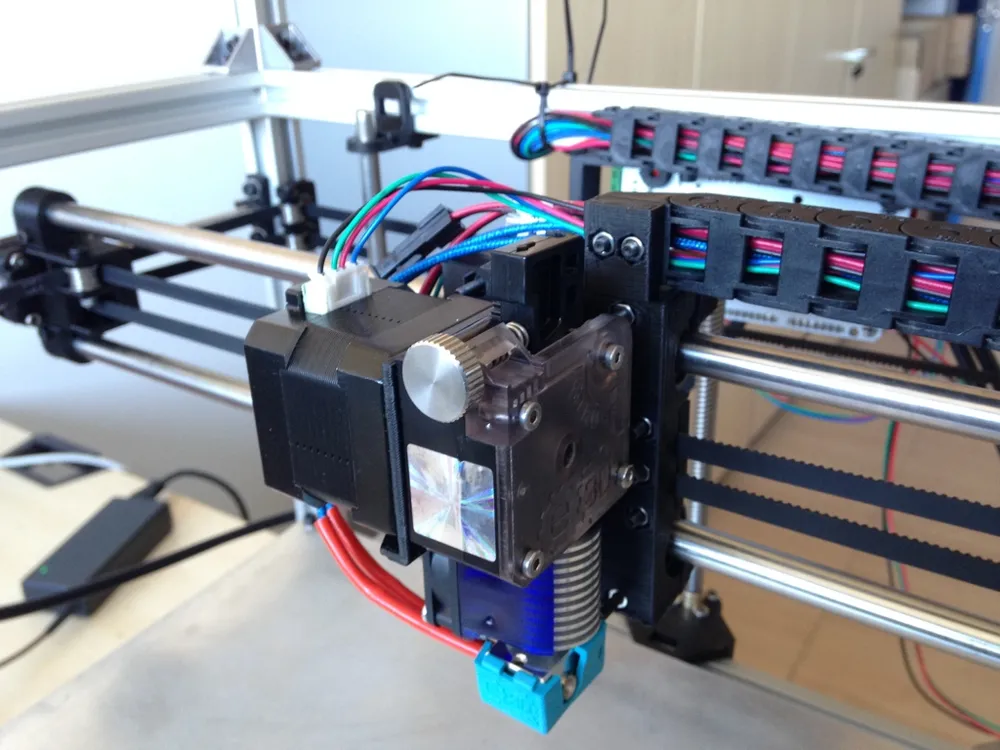

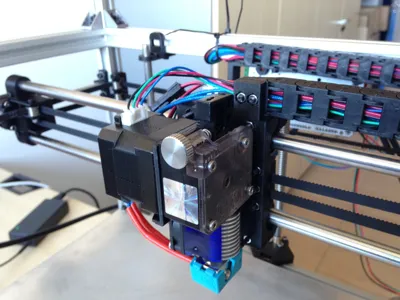

This is a new X carriage for the Hypercube, designed to hold the E3D Titan extruder.

The carriage has been designed with the objective of getting a heavy duty and reliable platform for a continuous production 3D printer. Features are:

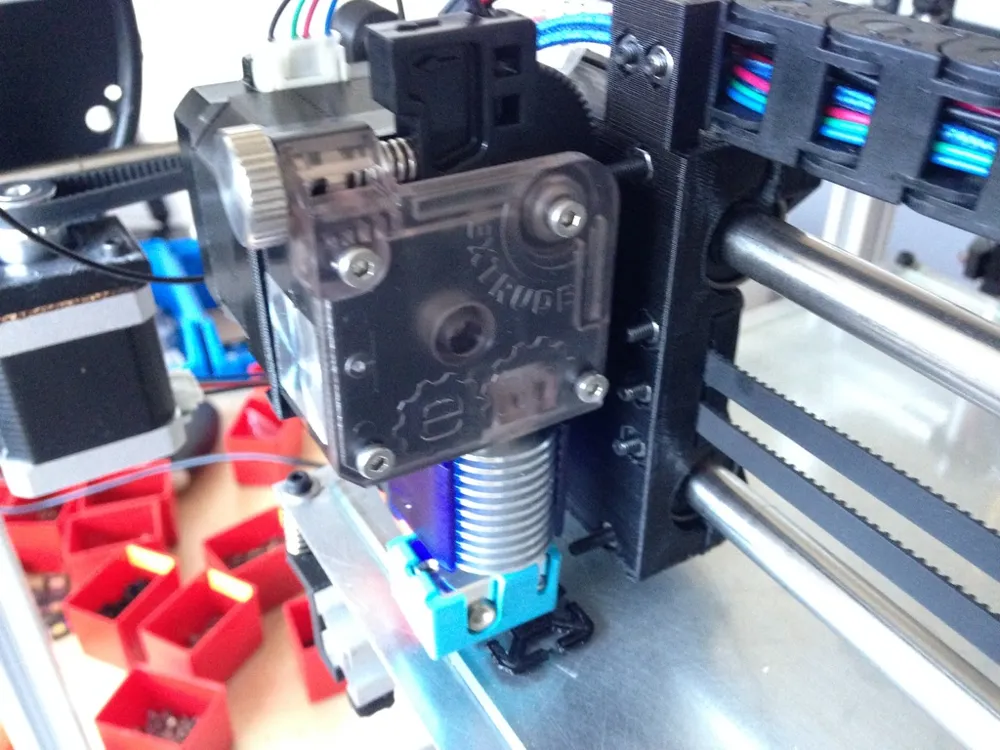

• Solid holder for the E3D Titan extruder, direct drive, and room for the hotend fan.
• Uses LM10LUU (long) bearings and 10mm smooth rod for the X axis, for increased stiffness, specially in printers with a long X axis. You can use the default Hypercube XY joiner files, since they are already prepared for 10mm rod, but you need to use steel, solid rod.
• Cable chain holder for 10mm chains.
• One piece design, apart from belt and bearing clamps.
• Every nut is enclosed.
• X endstop, just like in the original carriage.
• Individual belt tensioners, just like in the original design.

You need to print:

• 1x titan carriage

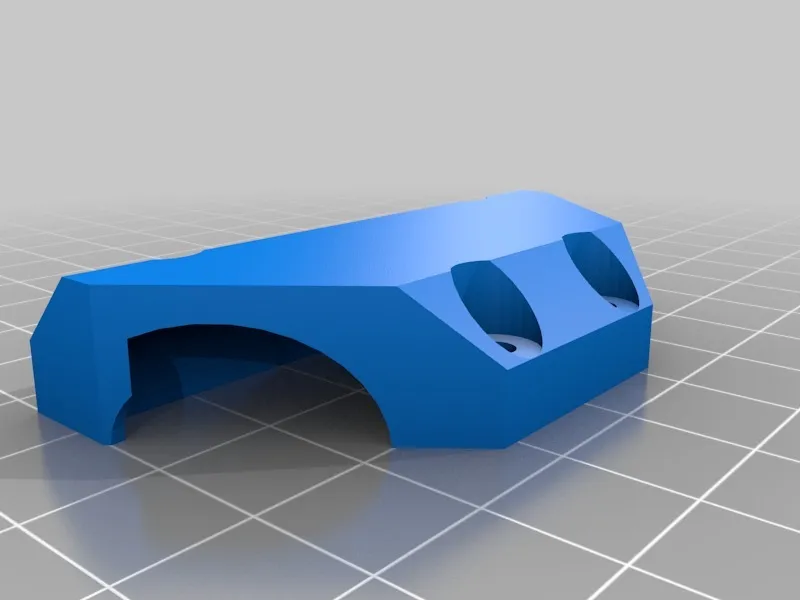

• 2x LM10LUU clamp
• 1x belt clamp

More info, updates and mods can be found in my Hypercube repository: https://github.com/diegotrap/hypercube
