Description

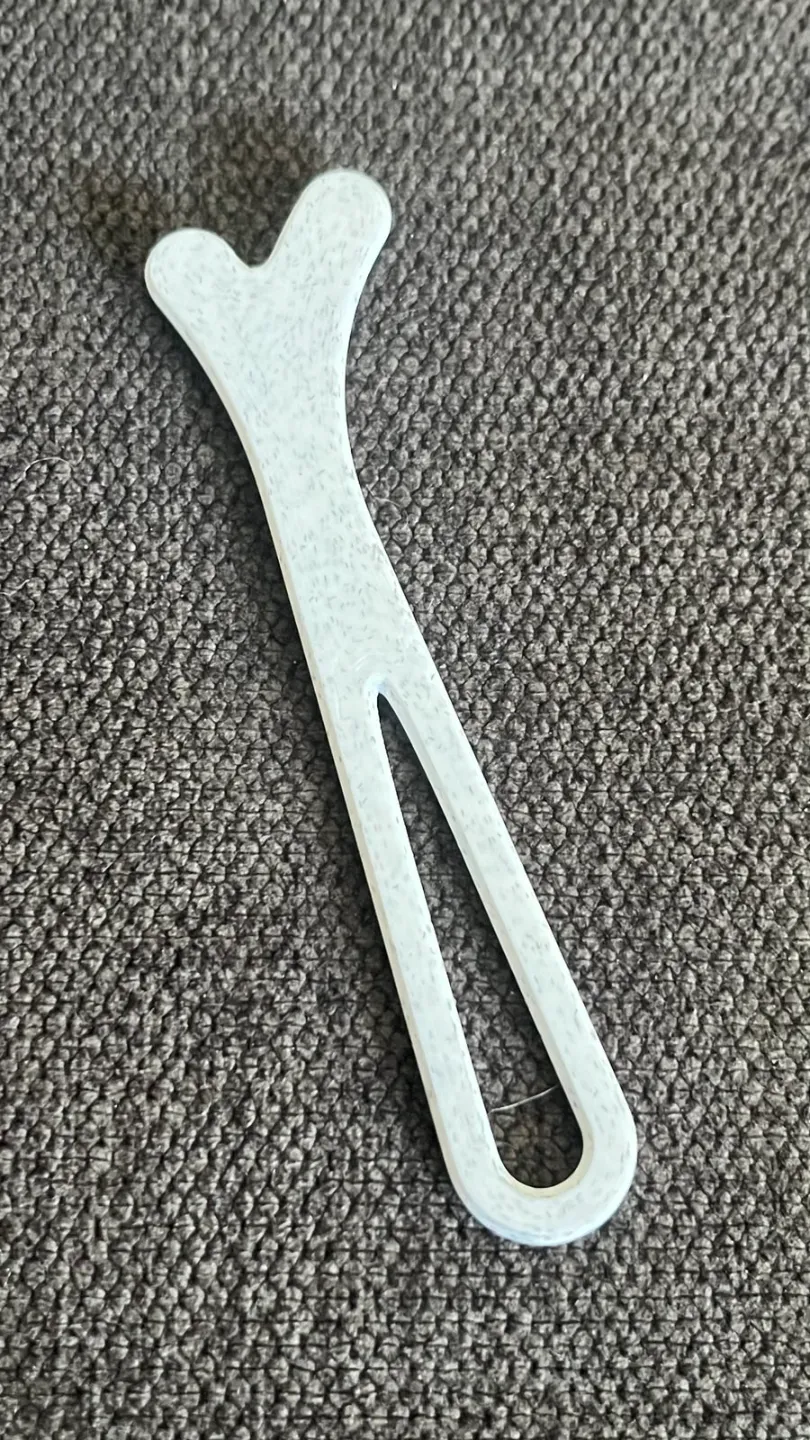

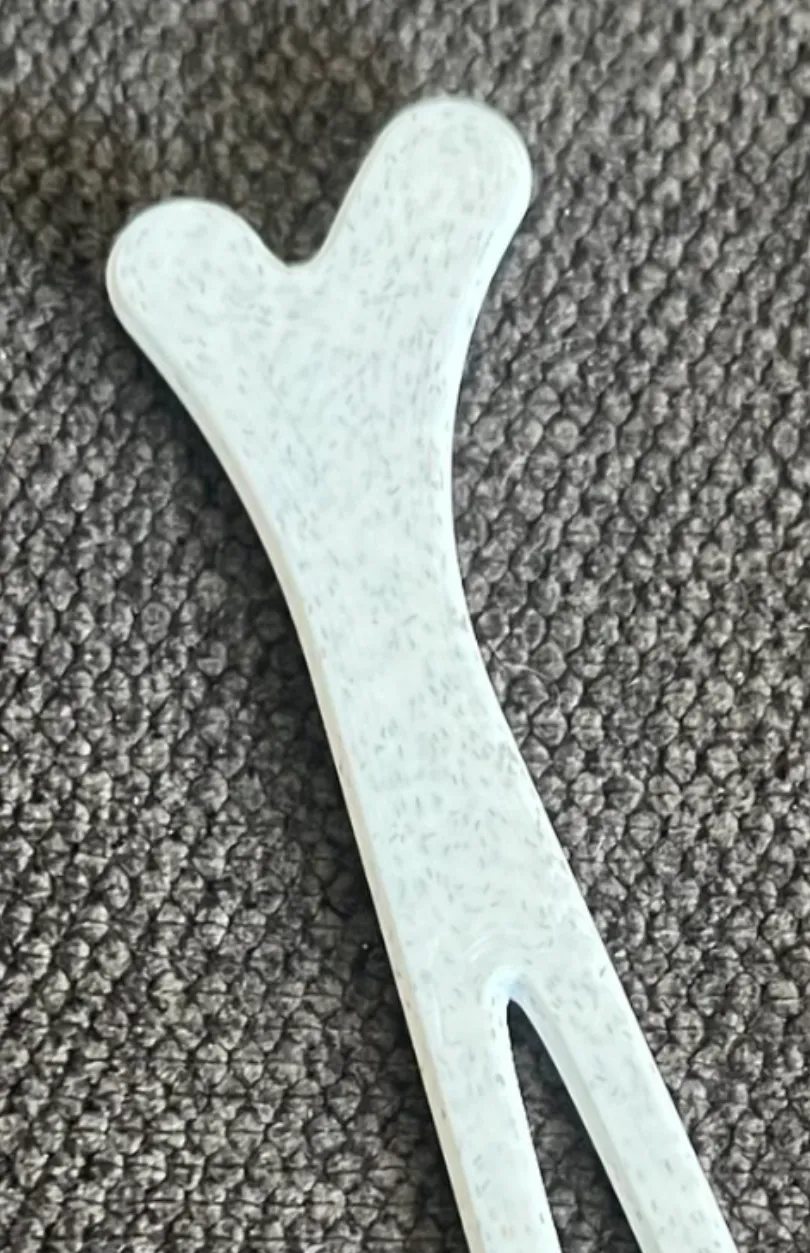

Whenever you need to insert some magnets to your creations, this miniature tool could became crucial.

Inserting these two magnets just before final layers will be the last time this process comes with difficulties :)



Magnets used are 3mm diameter 2mm height: https://www.amazon.de/-/en/gp/product/B0CBP8LGZC/



Please keep in mind couple of important print settings:

  • initial layer - 0.2mm
  • layer height - 0.2mm
  • pause the printer before printing the topmost two layers - that would be perfect time to insert your magnets
  • correct orientation of the magnets is quite important (hint: opposite)
