Cooler Master MB530P mesh front panel

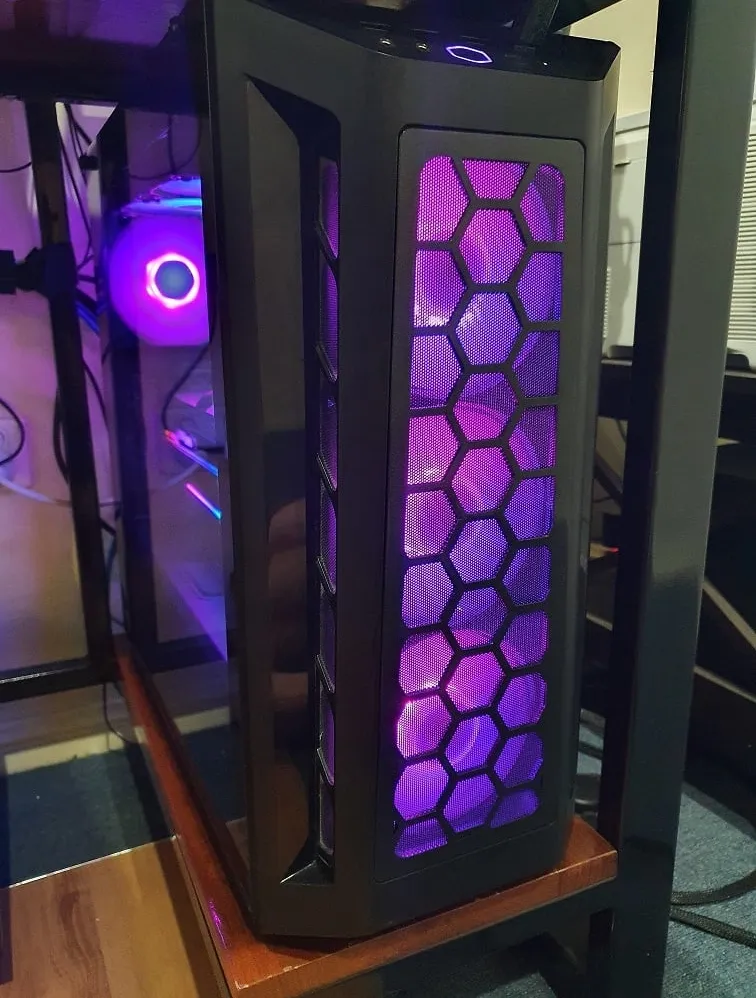

Mesh front panel for Cooler Master MB530P computer case. It's magnetically attached and doesn't require any permanent case modification.

Parts required:

• 4 screws to hold to the magnets - I used Flat head M3x5mm hard drive mounting screws
• 8 10x2mm round magnets - I had these already, but anything 8-12mm diameter around 4mm thick should work
• Epoxy or CA glue to join the pieces together
• Suitable mesh to sandwich between the halves https://www.amazon.com.au/HOMYL-510x300mm-Computer-Dustproof-Cooler/dp/B07H31TSK1/

Notes:

• If you don't want to use magnets, the screws that hold the glass panel in also work with this design
• The panels have been split to fit on a 200mm print bed

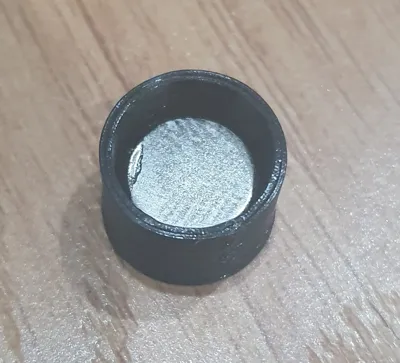

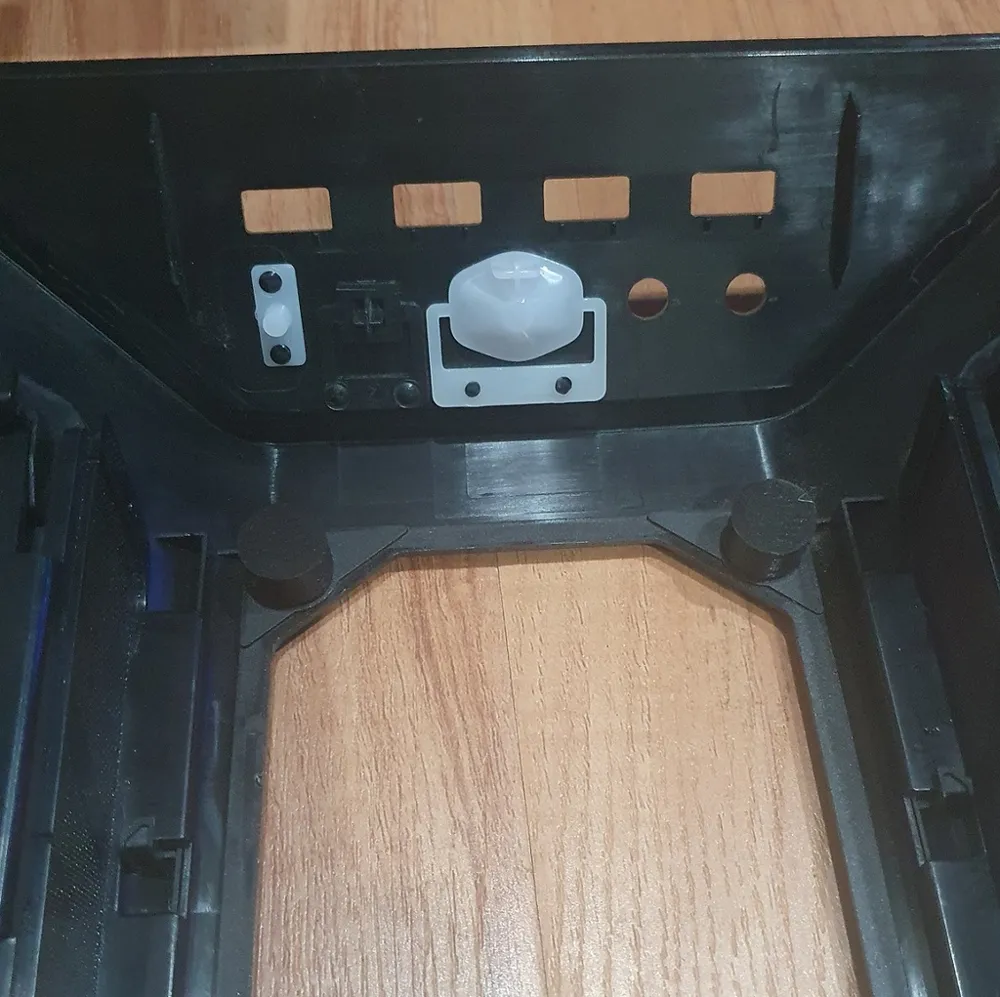

• The magnet holders should be a tight fit on the spigots for the original glass screw holes so glue isn't required
• The screw holes on the outer panel are slightly undersized to accommodate various sizes
• Print Outer Panel Top with supports for the overhang at the join

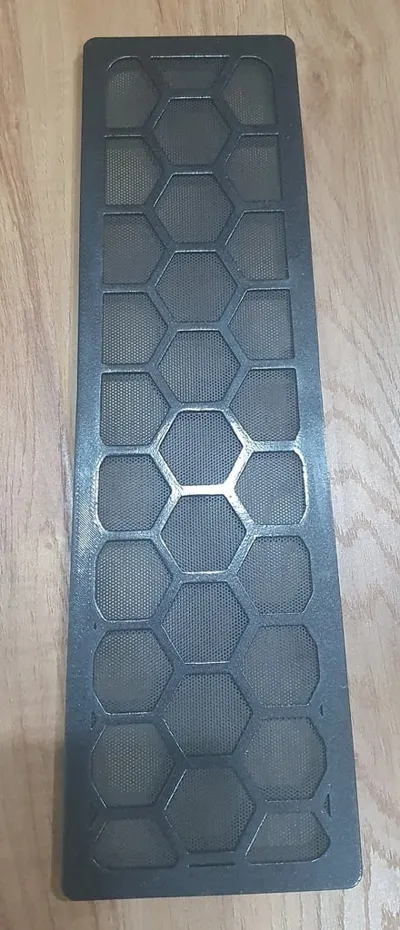

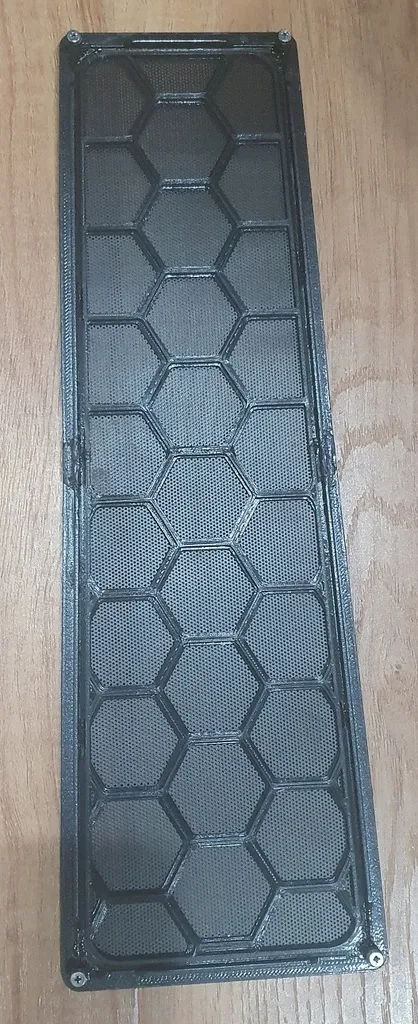

• Sandwich the mesh between the inner and outer panel and glue it all together

This is a re-upload from my Thingiverse account - print settings have not been tested.
