Hager GP413P Gamma 13/18 Electrical Cabinet Key
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 40% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
4
4
0
0
4
2
Released
Description
Content has been automatically translated.
Hello,

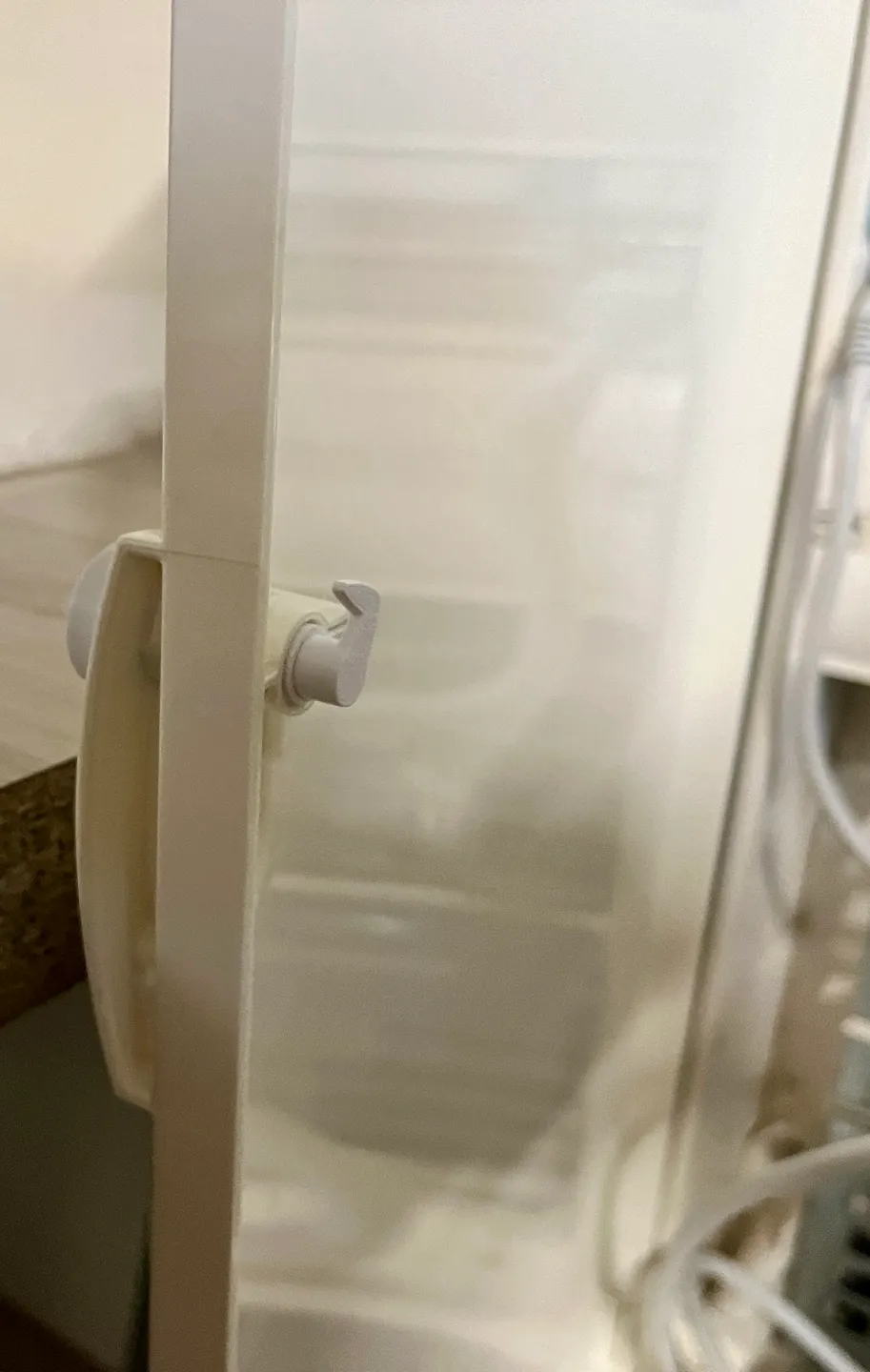

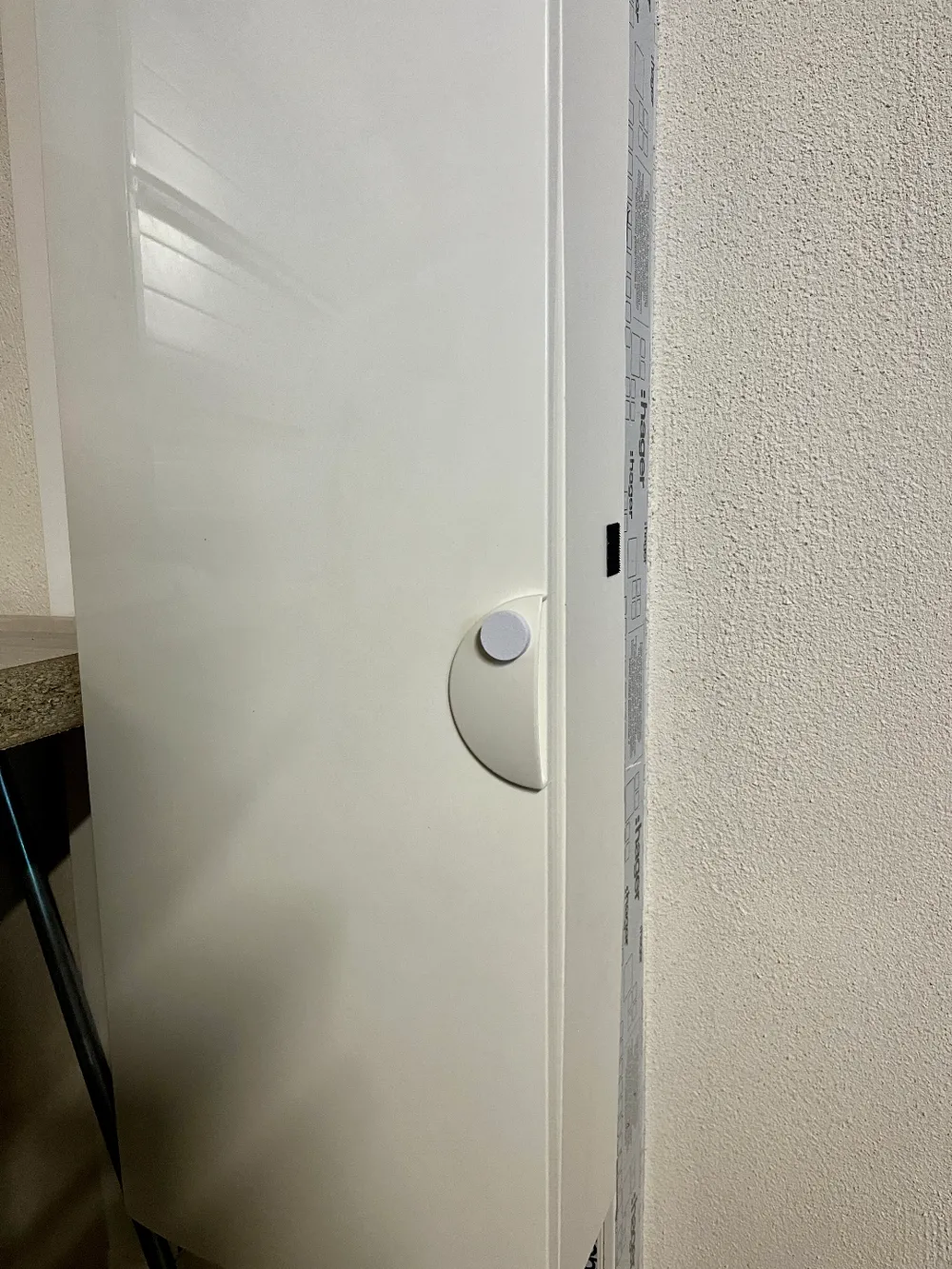

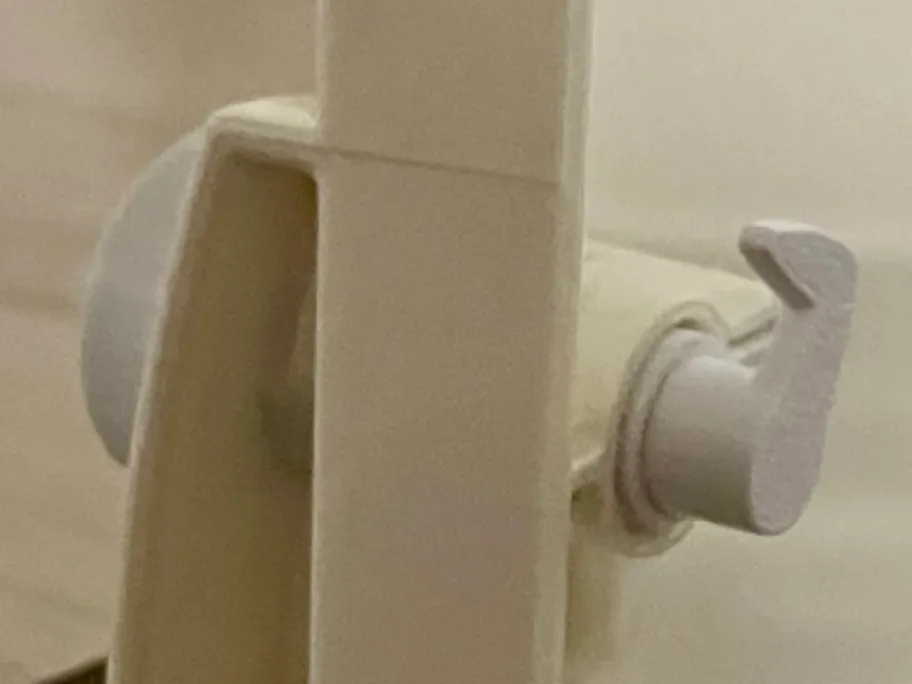

The official GZ35A closing device is quite expensive and metal for the door of my Hager Gamma 13 GP413P cabinet. I decided to model a simple handle to keep the distribution door closed. It works with PLA but I think it will be stronger with PETG or ABS. You will need to print the 3 parts and then assemble them on site with a dual-material glue.
Instructions:
1/ Drill the door in the intended place (Screwdriver or drill).
2/ Put the printed strike plate in the hole.
3/ Put glue in the hole of the square connector provided for this purpose (Careful, not too much).
4/ Wait a few hours for it to dry.
Enjoy!
Thank you also for your feedback and comments.
Maoris
