Inner Solar System
Print Profile(0)
Description
Summary
English (kind of !) :

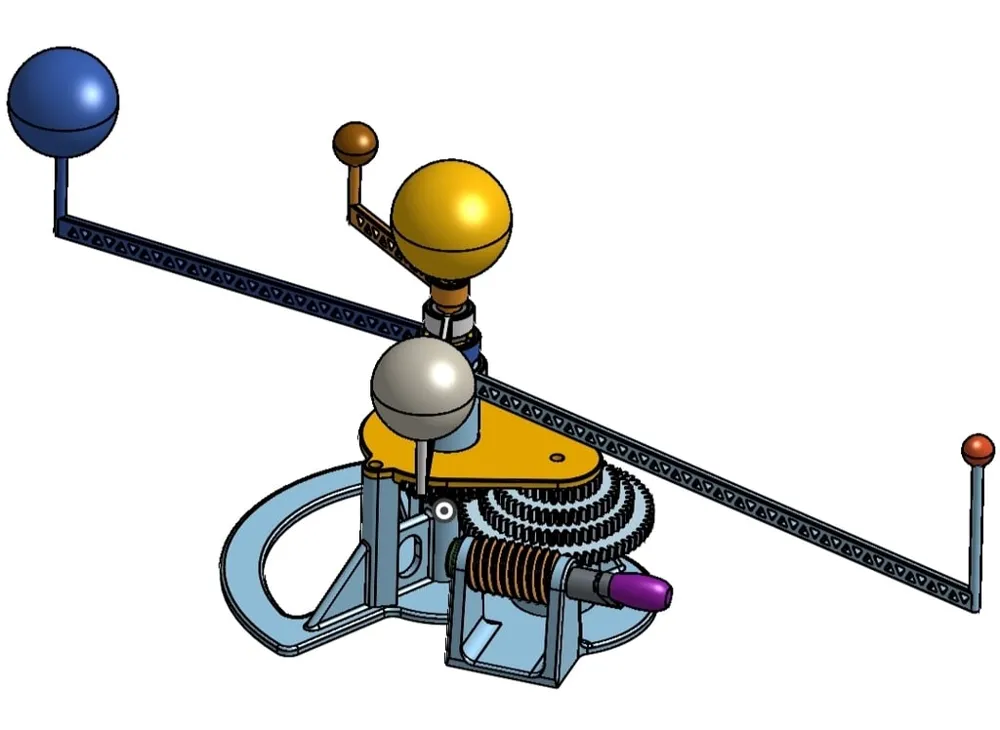

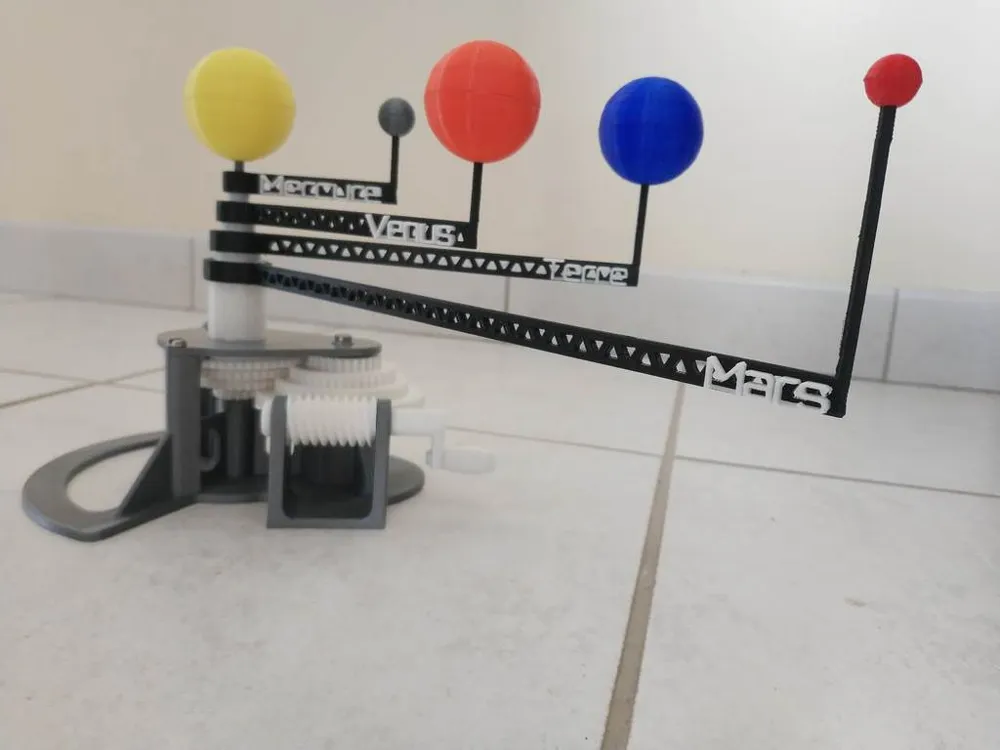

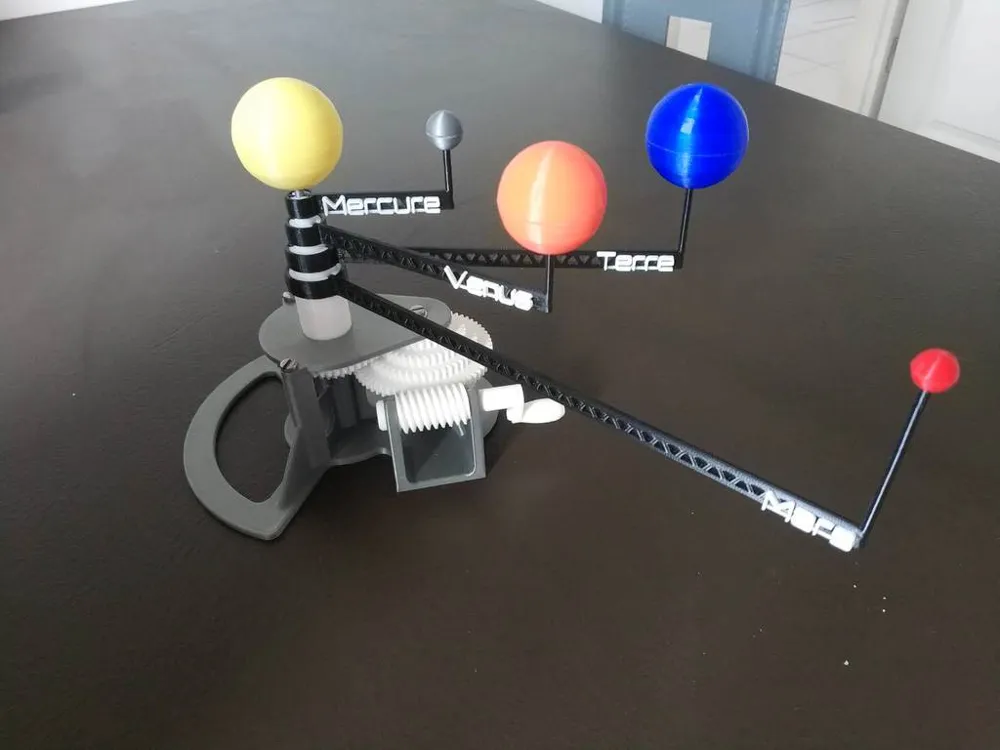

These are the first four planets in the solar system. The diameters of the planets are scaled to each other (except the sun) as well as the distance between the planets.
The relative rotational speeds of the planets around the sun are also respected.
The planets labels were made with this thing via customizer (height 8mm and depth 2mm) : https://www.thingiverse.com/thing:714444
Need at least a 200x200 mm build plate (for Mars arm)
Need 3 M4 screw and glue for the planets and the labels
Lubricate well the mechanism ! (tolerance are pretty tight)
This thing was strongly inspired by this : https://www.thingiverse.com/thing:3428770. Thanks to the creator !
French :
These are the first four planets in the solar system. The diameters of the planets are scaled to each other (except the sun), as well as the distance to the sun.
The relative rotational speeds of the planets around the sun are also respected.
The names of the planets were made thanks to this object via customizer (height 8mm and depth 2mm) : https://www.thingiverse.com/thing:714444
Requires at least a 200x200mm build plate for printing the arm of Mars (diagonally)
Need 3 M4 screws and a little glue for the planets and the names of the planets.
Lubricate the mechanism well !!
This object is strongly inspired by this one : https://www.thingiverse.com/thing:3428770. Thanks to the creator !
Video : https://youtu.be/ujPBTPROytA
Print Settings
Resolution:
0.2 except for the worm and maybe Mercury gear
Filament: Any Pla
Notes:
No support needed except for the arms ( just a little bit from the built plate)
Print the worm vertically at 0.1
For the sun axis, you may need a small brim
All the crank parts should be printed at 100% infill
No support needed except for the arms (arms) : only from the plate
Print the worm vertically at a resolution of 0.1 mm
For the sun axis, print a small "brim"
All crank parts should be printed at 100% infill
How I Designed This
Onshape
