Cars Garage

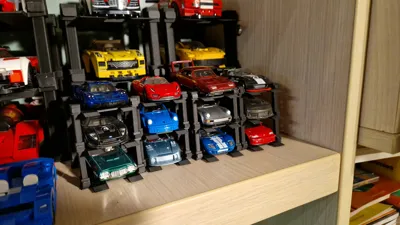

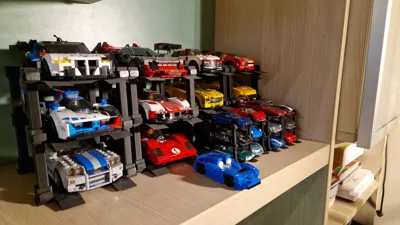

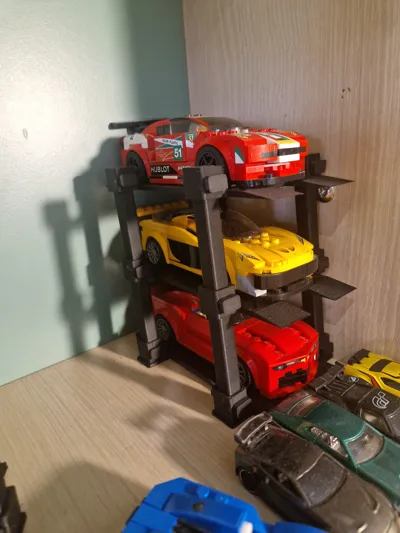

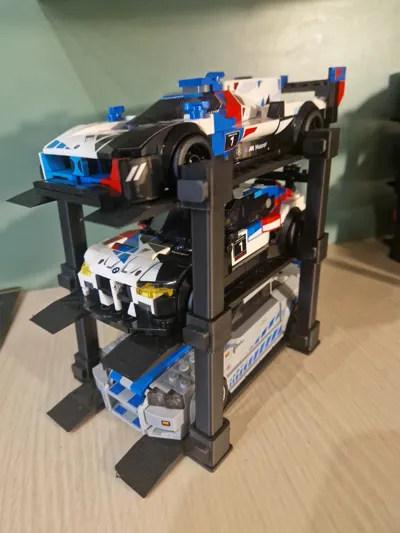

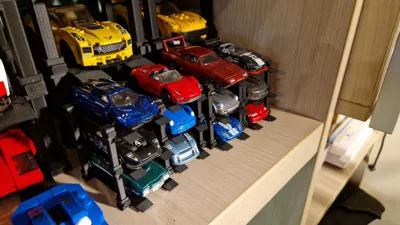

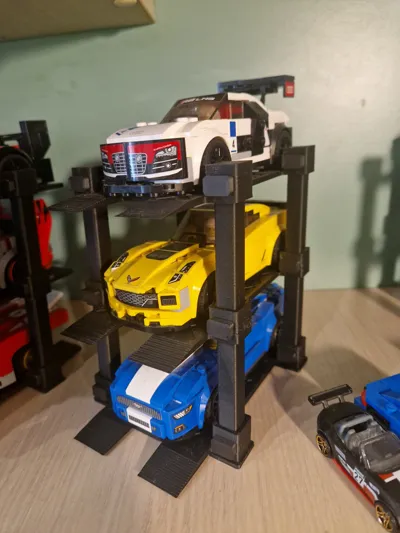

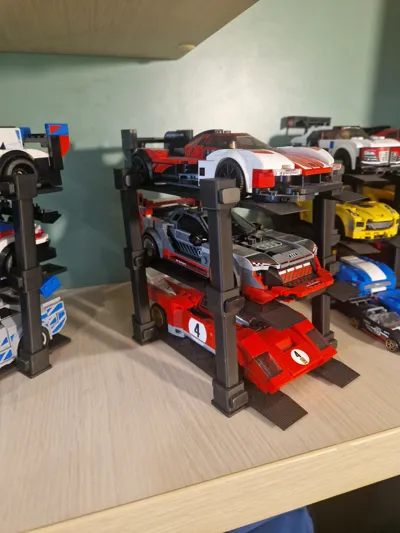

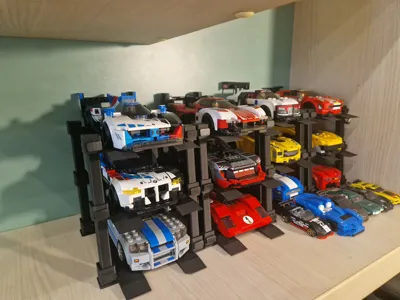

Have you encountered the problem of not having enough space to show off your extremely cool car collection? Well i certainly did! This is your solution! you can stack 3 cars on top of each other, this way making room for 2-3 times more collectibles. There are 2 versions: one for cars that are at most 7 studs wide (55mm) and a second one for at most 9 studs wide (71mm). The standard height for one garage space is 60mm, but in case you need to have it taller, you can skip the middle layer and use the bottom and topmost trays. Both versions use the same legs and the same pins for stacking.

If you want to stack more than 3, feel free to dm me, so i can make a custom model that fits your needs, at no additional cost!

In case you want to modify it yourself, feel free to do so, using the onshape link below, as well as the step files provided. Have fun!

I used a Bambu Lab A1 Mini to print everything, so any printer with a volume bigger or equal to 180mm cubed, will do perfectly.

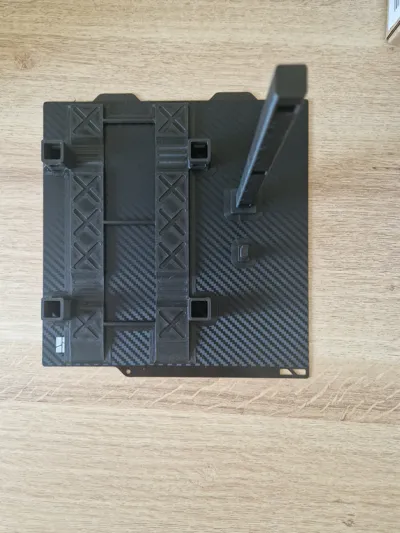

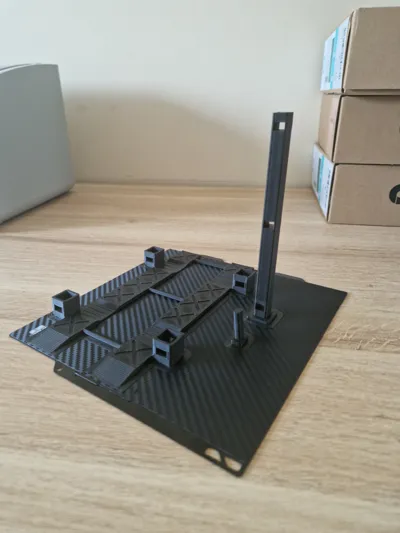

I recommend a layer height of 0.2mm. The use of supports/brim is up to you! However, you should print them in the orientation that is shown in the picture with all parts on the print bed.

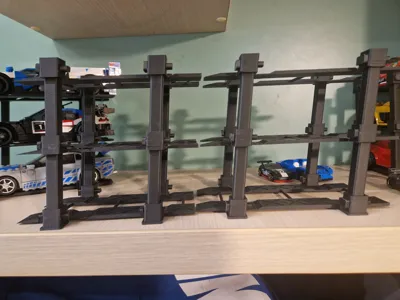

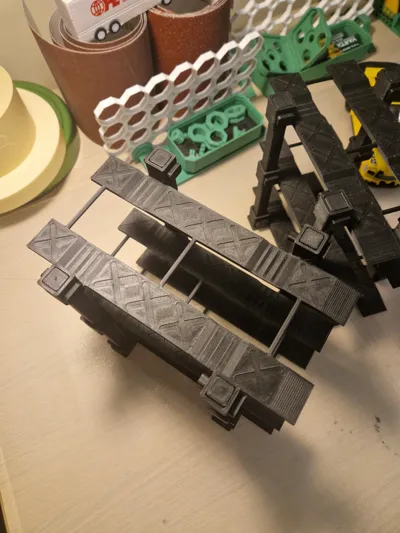

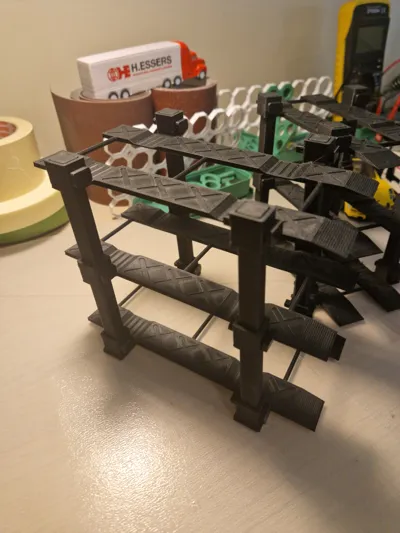

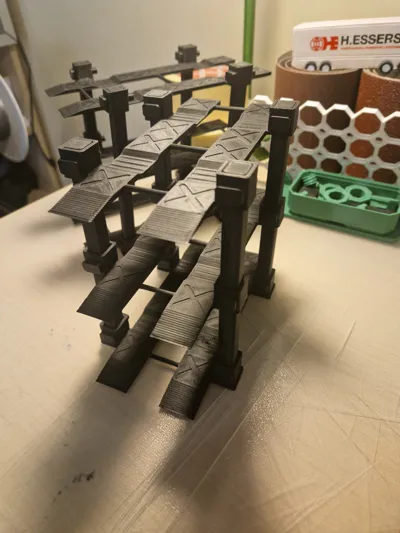

ASSEMBLY: you will need 3 trays (same size: 7-stud/9-stud), 4 legs, and 12 pins(4 per tray, 3 per leg). You slide the legs through the slots in the trays, and then put the pins in place, to secure everything. That's all!

https://cad.onshape.com/documents/2a0e6b843b89c217ff231809/w/3fe4206c037f600122b48851/e/45c1d11e014b13f455390435?renderMode=0&uiState=66ae2764b17c4f177f5e0e2f
