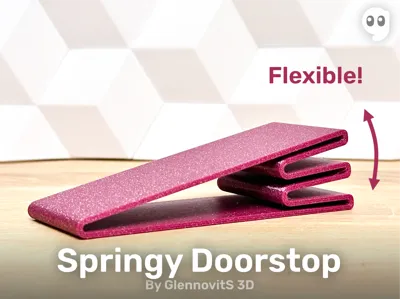

Springy Doorstop (flexible and in multiple sizes!)

Updates

9. Nov 2023 - Added multiple new versions. Both with higher and lower angle (to fit more doors) AND all versions with a normal and a pointy version (where the tip is not rounded, to fit under doors with less space below)

Description

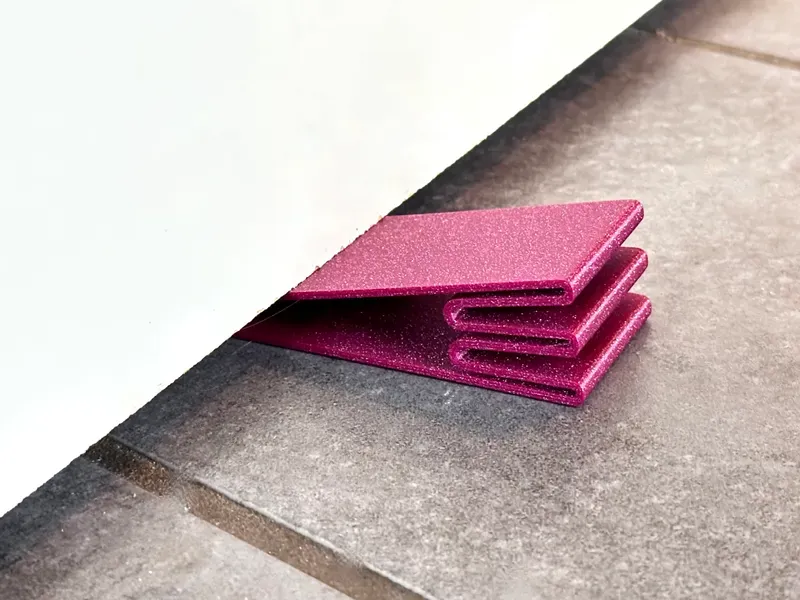

Want a minimalistic doorstop, that is easy to print and uses the material flexibility to lock the door in place - then look no further!

Overview

This doorstop comes in multiple sizes, and can be scaled to your liking. So give it a go, try it out, and if you want, print another one that is smaller/bigger, stronger or more flexible - to be the perfect fit for your door!

Sizes

The model comes in 24 versions now.

It comes in 4 sizes:

• Small
• Medium
• Large
• X-Large

There are also 3 angles to fit different space below different doors:

• Low angle
• Default
• High angle

And there are 2 styles of the tip

• Default (rounded at the tip)
• Pointy (to fit under very tight spaces)

All of the versions are 40 mm in width as standard, but can be scaled up and down in the slicer (just scale the Z direction)

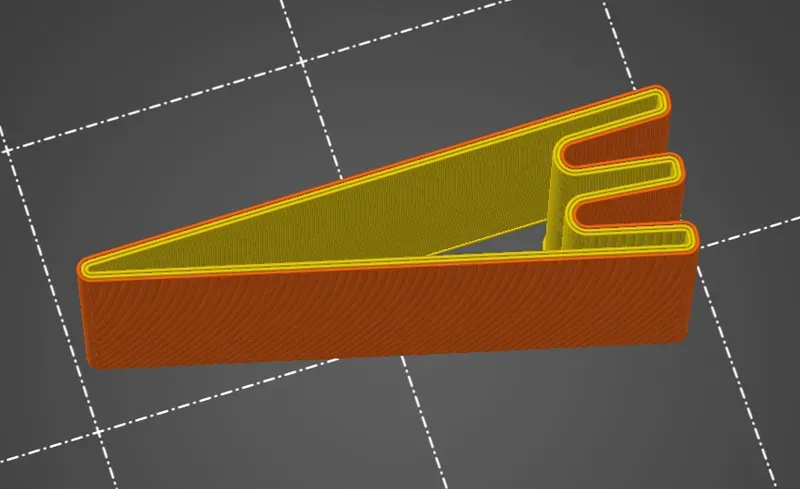

Print instructions

• Speed on first layer: 50% (To ensure good bed adhesion)
• Infill: 0% (to make the model 'springy’)
• Top/bottom layers: 0
• Perimeters: 2-3 (try out different combinations - the ‘springyness’ is very depending on this parameter AND the material of your choice!)

You can also to a stylised version with exposed infill if you like that look. Makes the model less flexible, but more stylised - your choice.

• Infill: 5-15%
• Infill pattern: Honeycomb (or gyroid or whatever you like the best!)

Happy printing!
