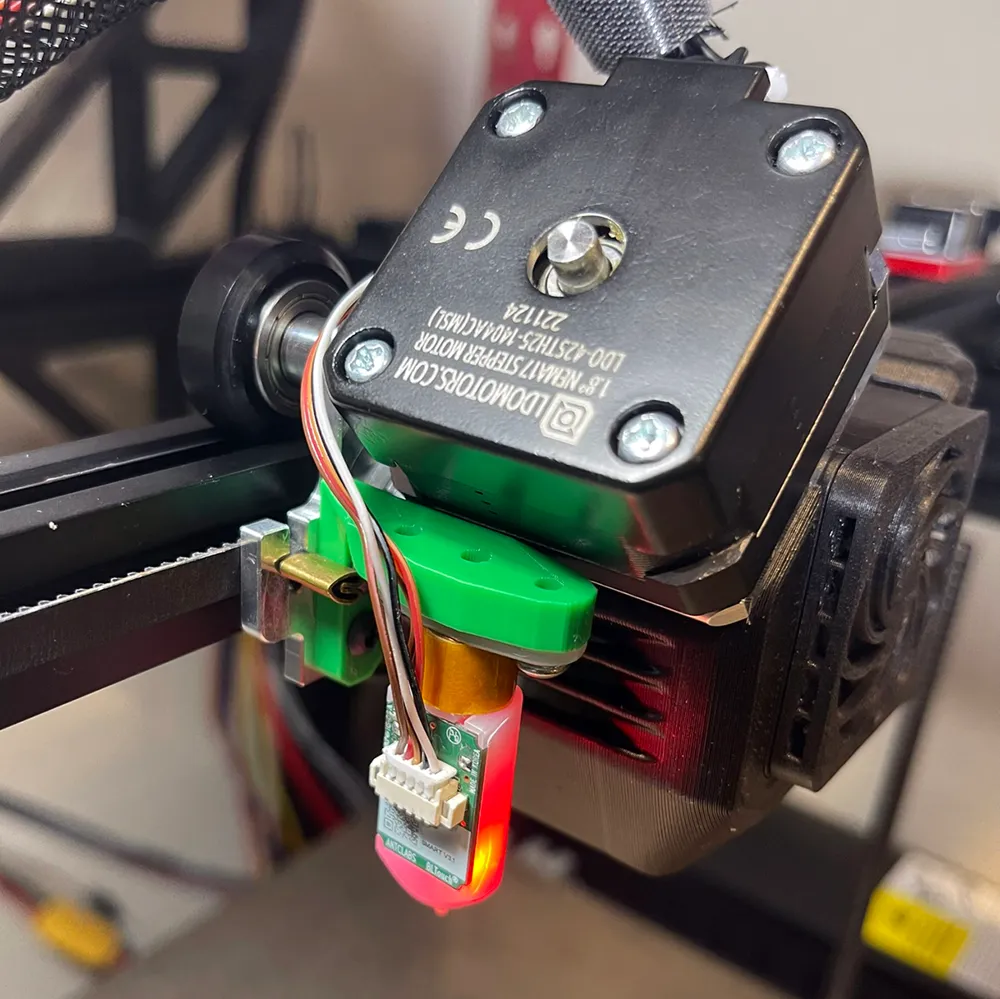

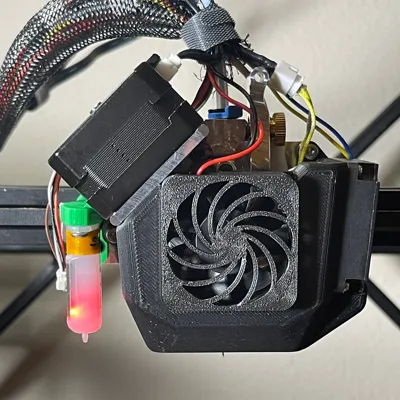

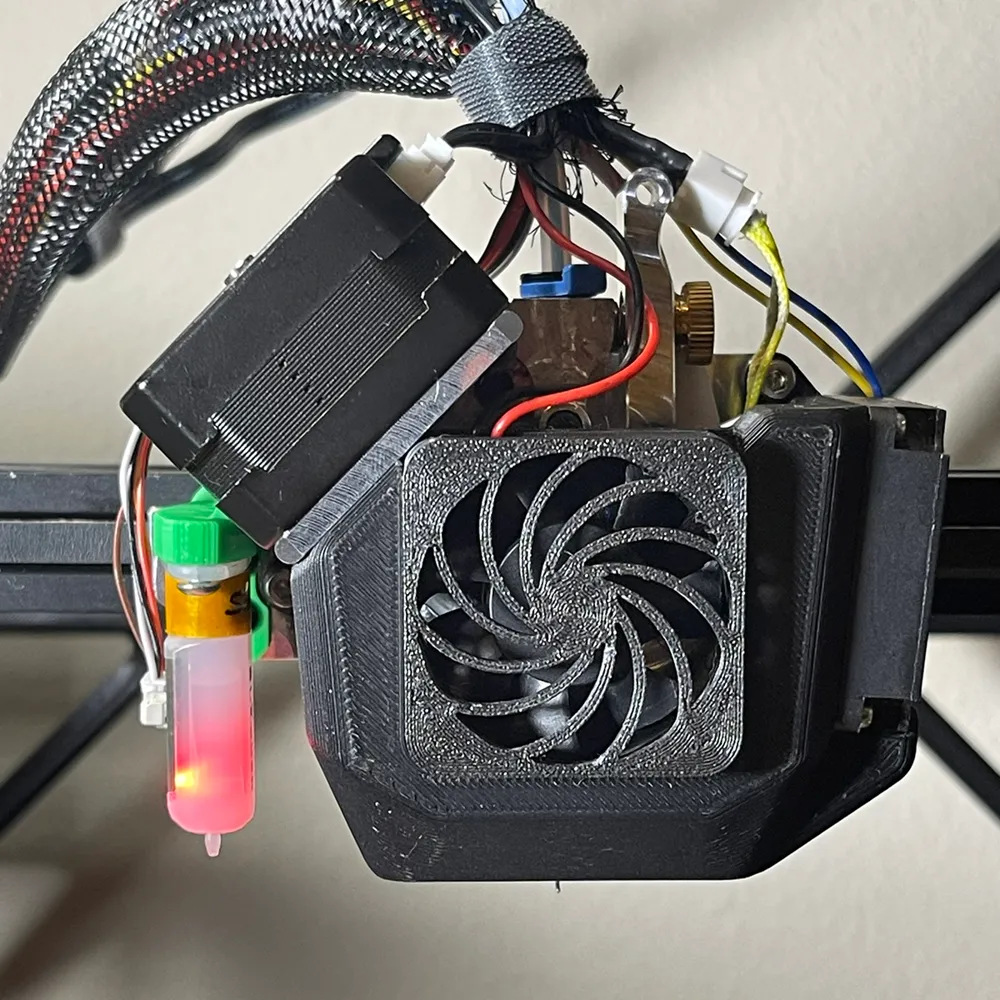

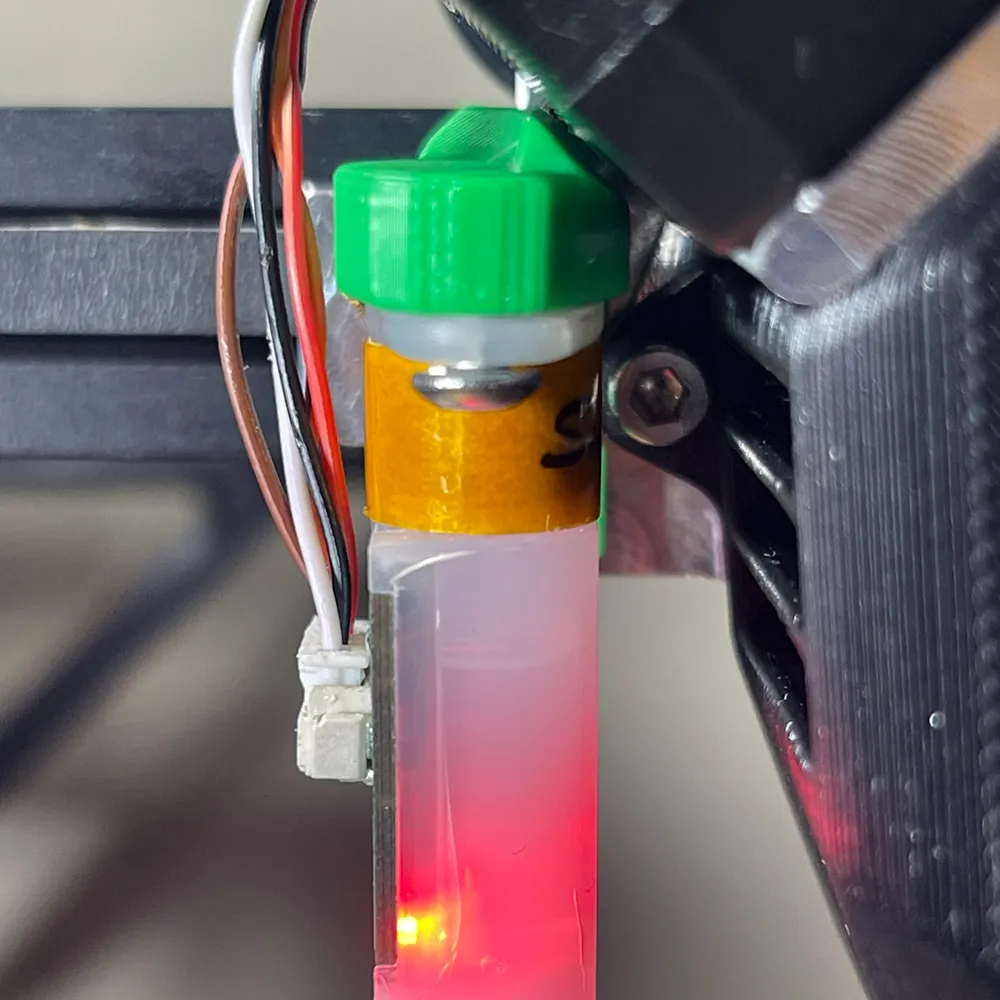

BLTouch Mount for MicroSwiss NG REVO and Ender 5 Plus

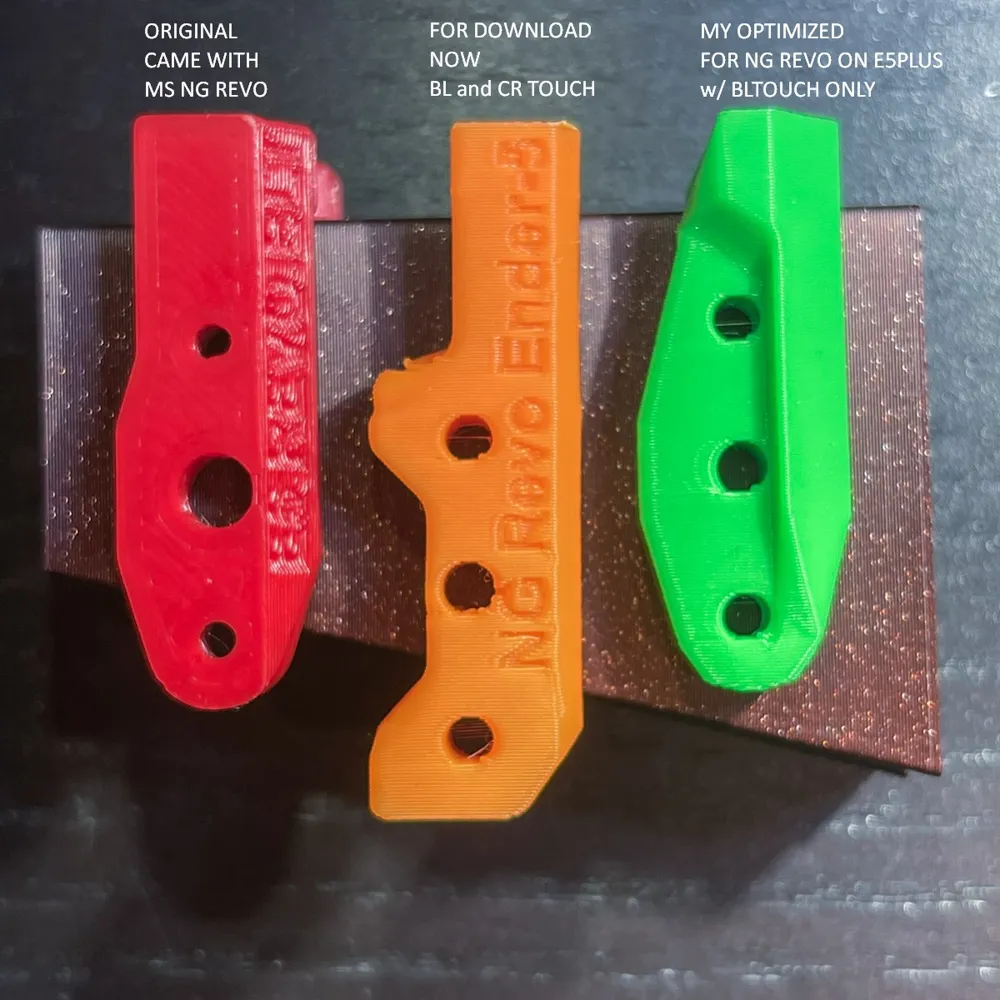

I have the Micro Swiss NG Revo and it came with a compact bracket that supported BL touch. It kept the probe offsets close to the stock carriage. However after a print failure, the bracket broke. Now, the one available for download is longer and more flimsy because it needs to support both BL and CR touch. (https://www.printables.com/model/752863/files)

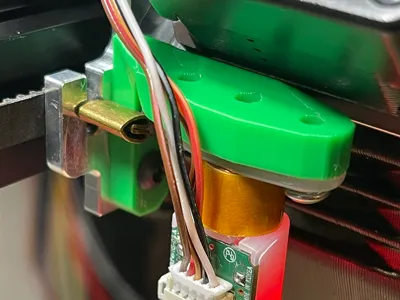

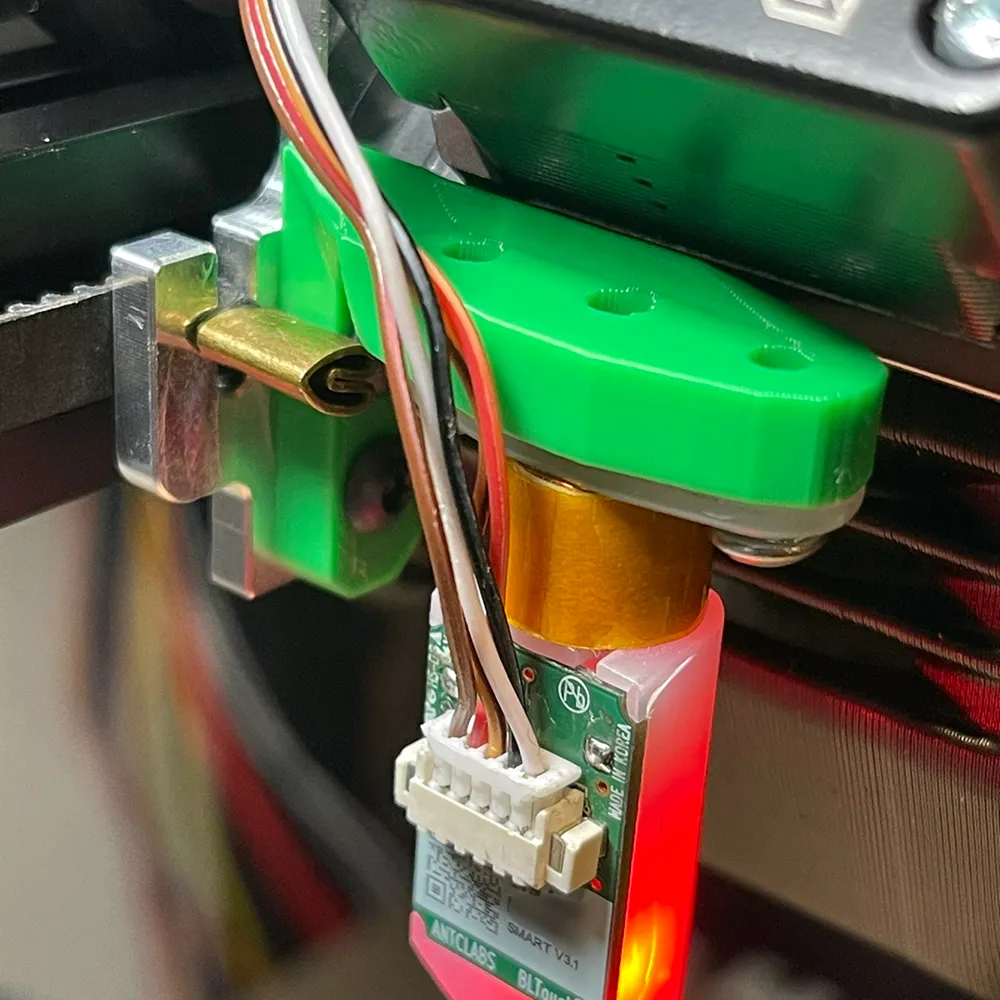

I made a remix of that that restores the compact nature of the original, adds a strengthening spine on the top.

Using this with the MS NG Revo, the probe offsets are -44, -13 for x and y and the z will be approx -2.4 to -2.5 but you should definitely tune that for your exactly setup.

Print settings are any basic .4 nozzle with .2 layer height settings that work well on your printer. Recommend 4 walls and 50% infill of some type. This should print as the model loads in your slicer with the back of it down on the build plate.
