ESP32 CAM Kit Case
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 10% grid infill
Designer
1.3 h
2 plates
Open in Bambu Studio
Boost
48
107
29
13
287
127
Released
Description

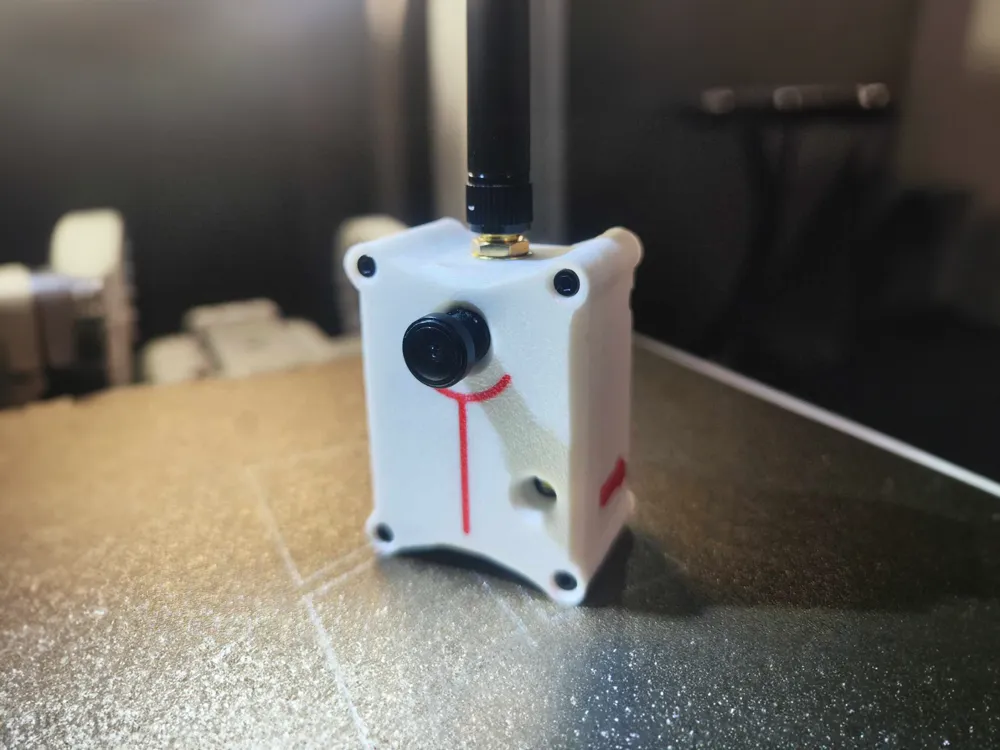

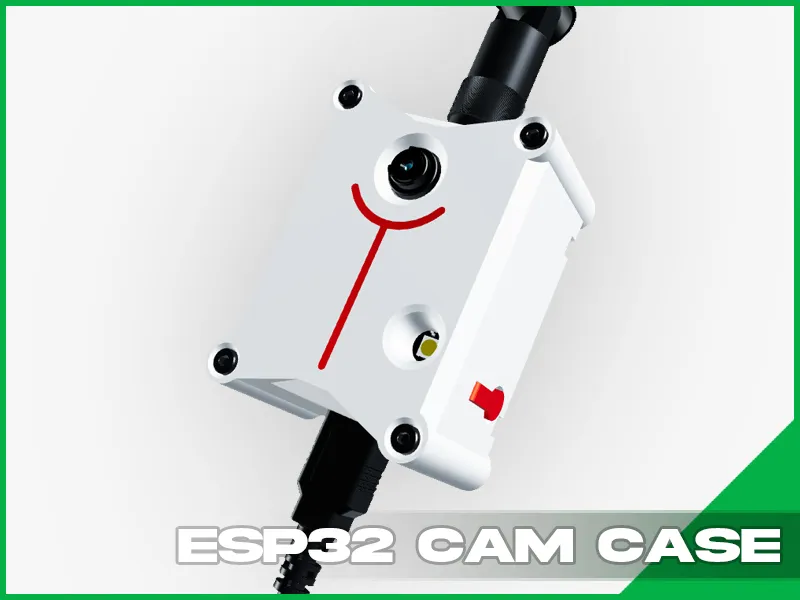

This 3D-printed case is designed specifically for the ESP32-CAM module, providing secure housing and easy mounting options. It features:
- A dedicated slot for a Wi-Fi antenna at the top, SD card and a USB micro cable connection at the bottom.
- Easy to access camera side buttons!
- Holes for 1.2mm zip ties on the back, allowing flexible mounting options.
- Four holes on the back to adapt for additional self made mounting.
- Requires 4 M2x12mm hex screws for assembly—screw holes are designed for self-tapping into plastic for easy installation.
- Printed using the provided profile for optimal fit and durability. PLA works great but PETG give much more durability
Perfect for IoT, surveillance, or other ESP32-CAM KIT projects!
Additionally, all STEP files are available for download, allowing users to edit and adapt the case to their specific requirements.
Case was made based on this module HERE
