Woodcraft MT09 clipon plate central clamp

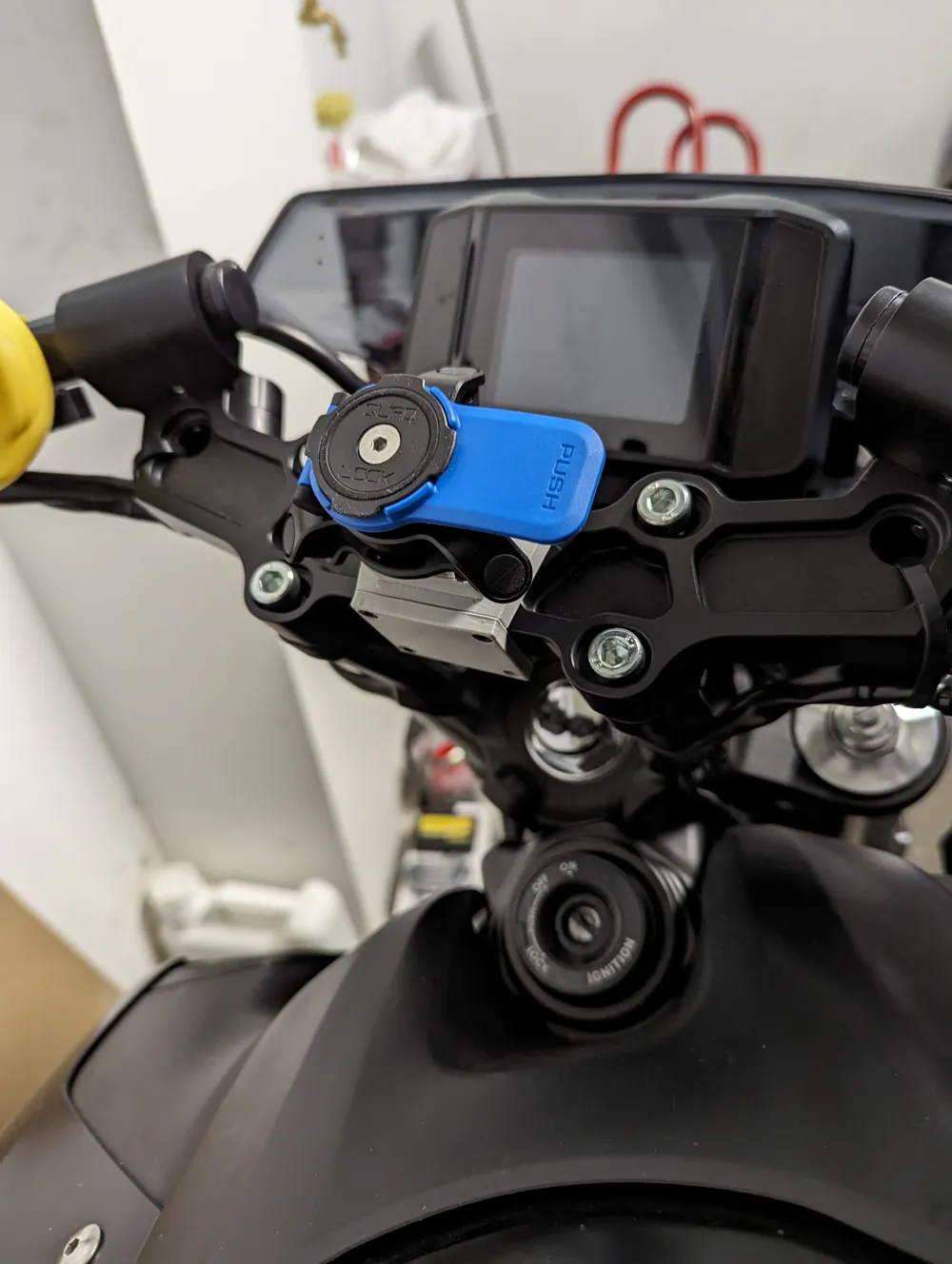

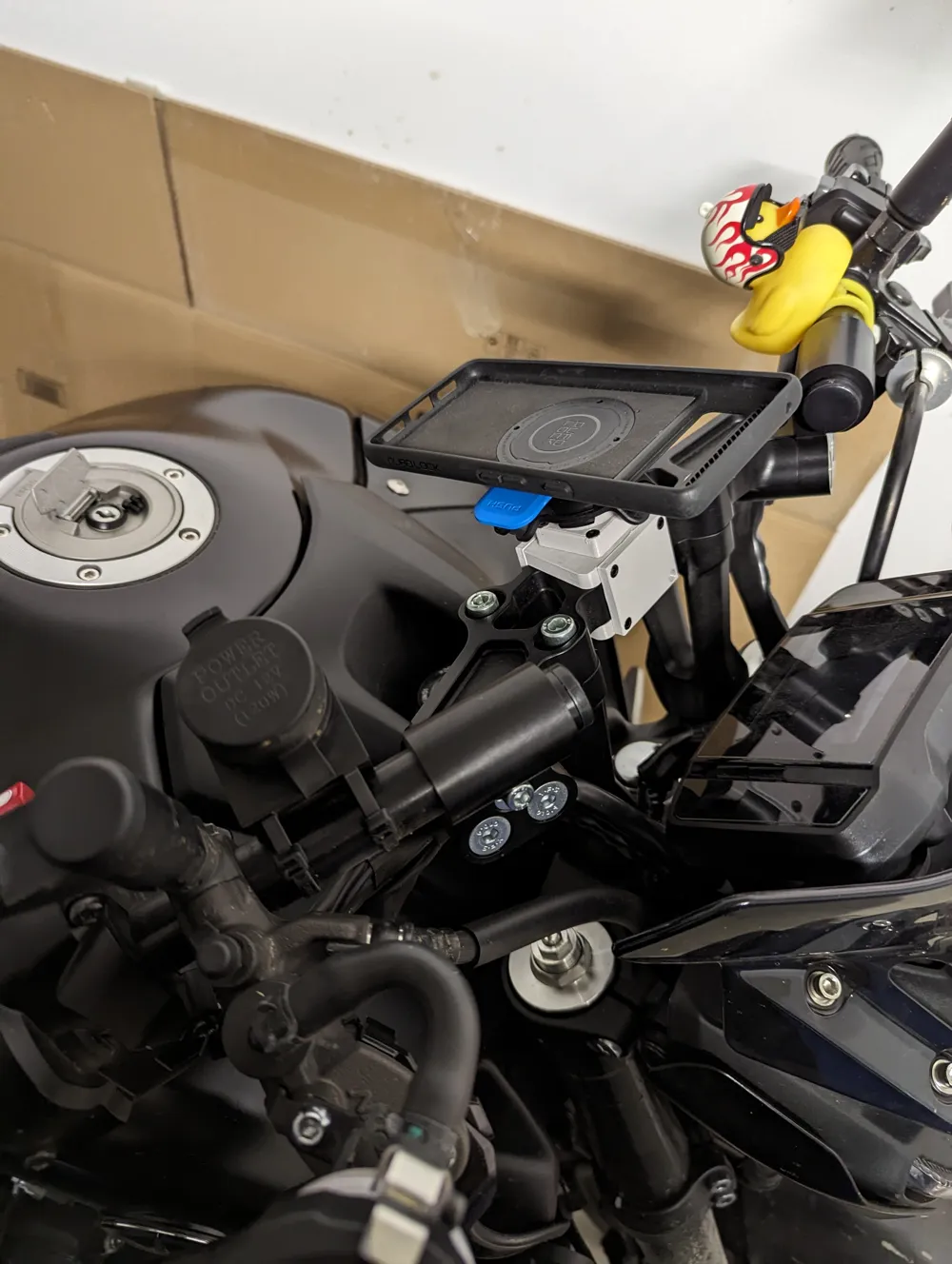

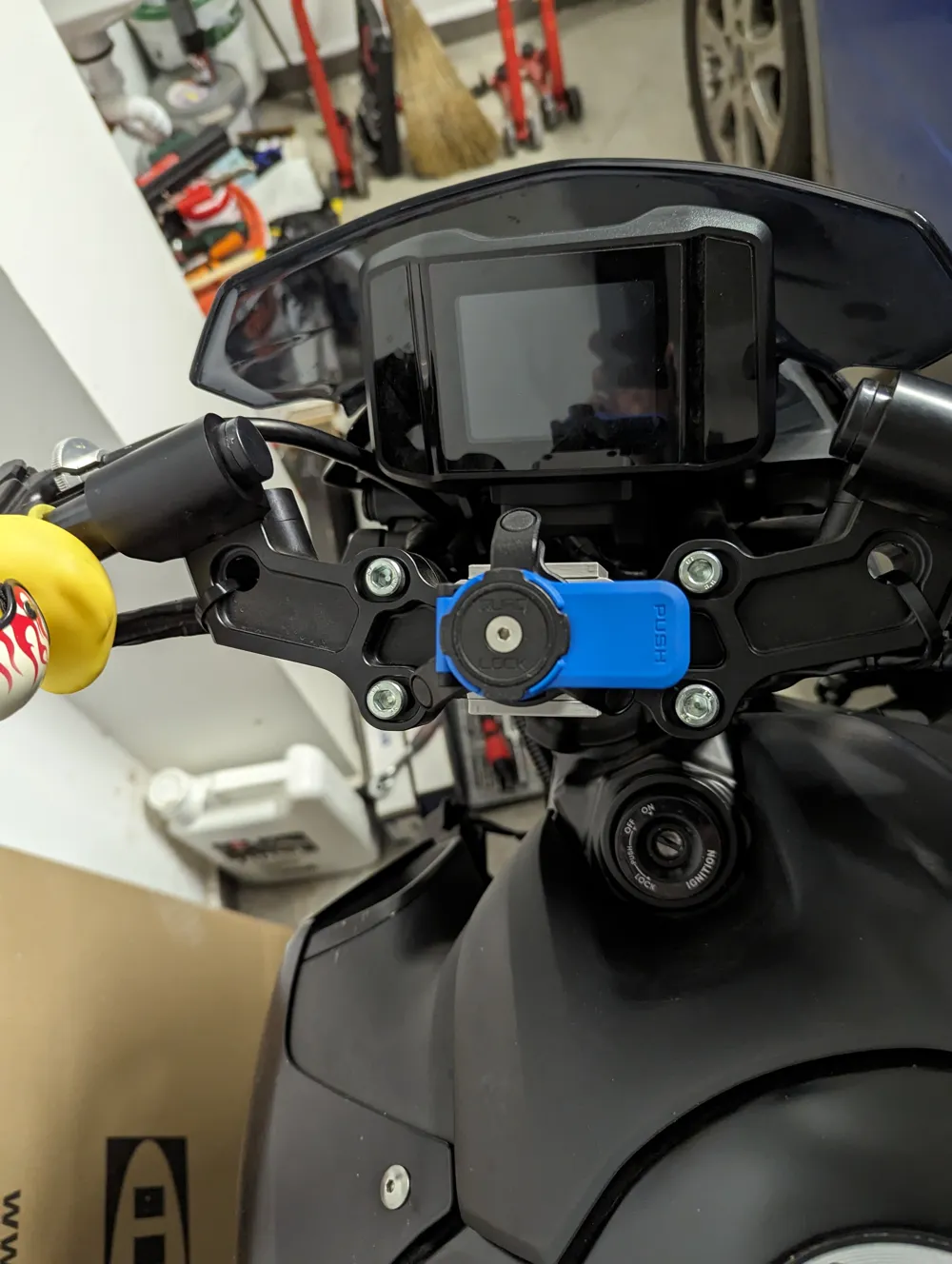

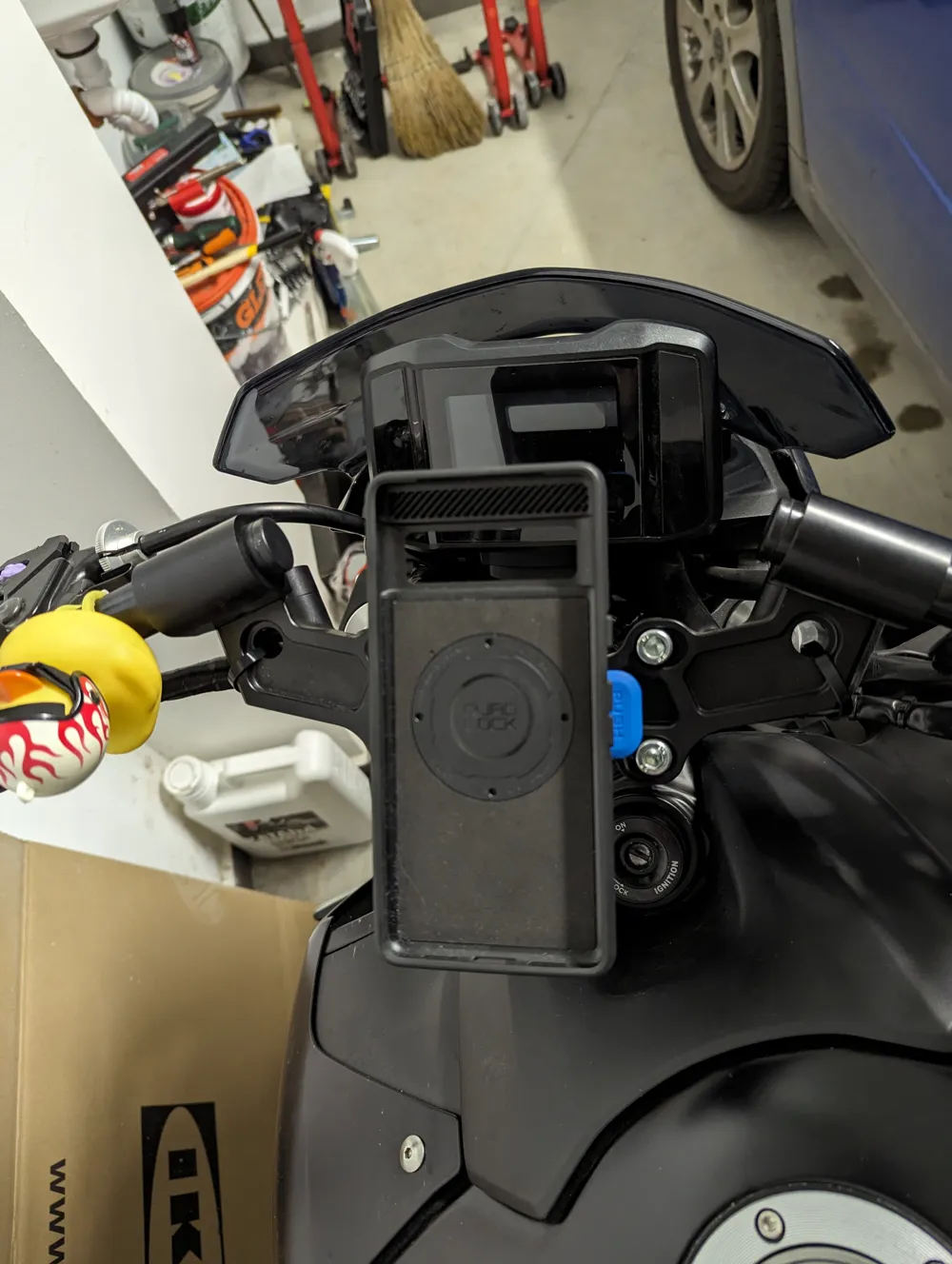

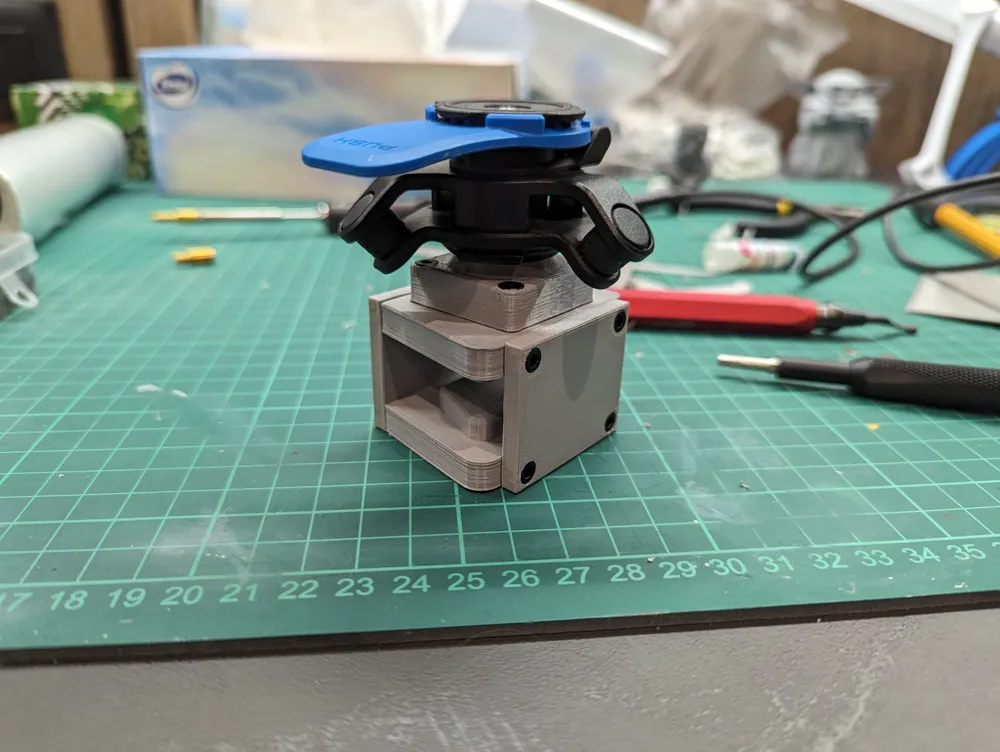

This mounting clamp is intended to provide a way to attach a quadlock mount centrally on my Woodcraft clipon adapter plate.

The Woodcraft plate features some really neat ribs and holes between them. The clamp fits in the central hole, clamping it from both sides.
The model features a modular design allowing for custom adapter plates if someone prefers a different phone mounting system. I like quadlock so I repurposed this great model into an adapter plate for my clamp.

For the assembly you will need:
M3 threaded inserts + screws
(OPTIONAL) M5 threaded insert for the quadlock adapter plate(I'm assuming you have a quadlock mount to repurpose for this).

PLA is out of the question for this one. I would recommend PC or ABS/ASA.
No supports should be required if all parts are oriented correctly.
