M3x30 - partially threaded screw for Rugged Box
Remixed by
IP Report
Print Profile(2)

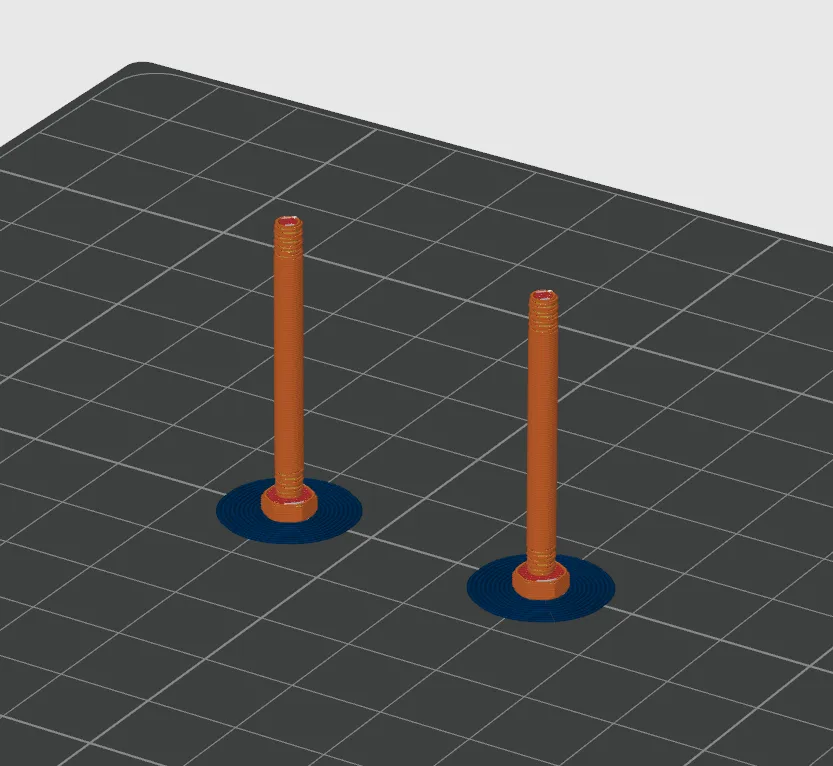

pins for rugged box - 0.2mm layer, 5 walls, 15% infill
Designer
16 min
1 plate

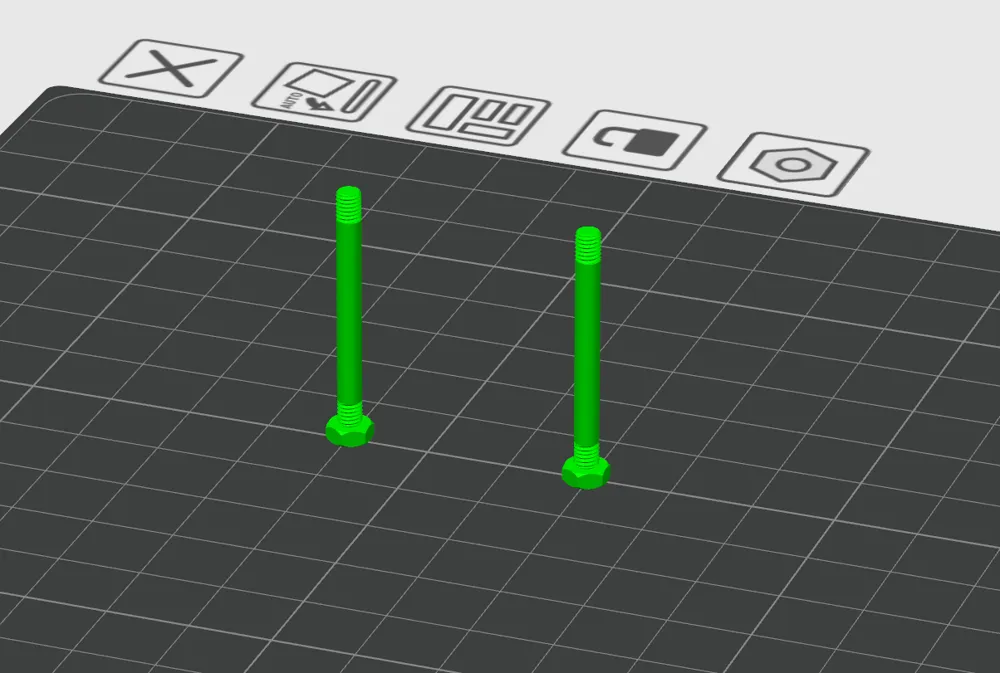

Print Horizontal for Strength - 0.2mm layer, 5 walls
13 min
1 plate
Open in Bambu Studio
Boost
368
1099
173
33
2.9 k
2.4 k
Released
Description

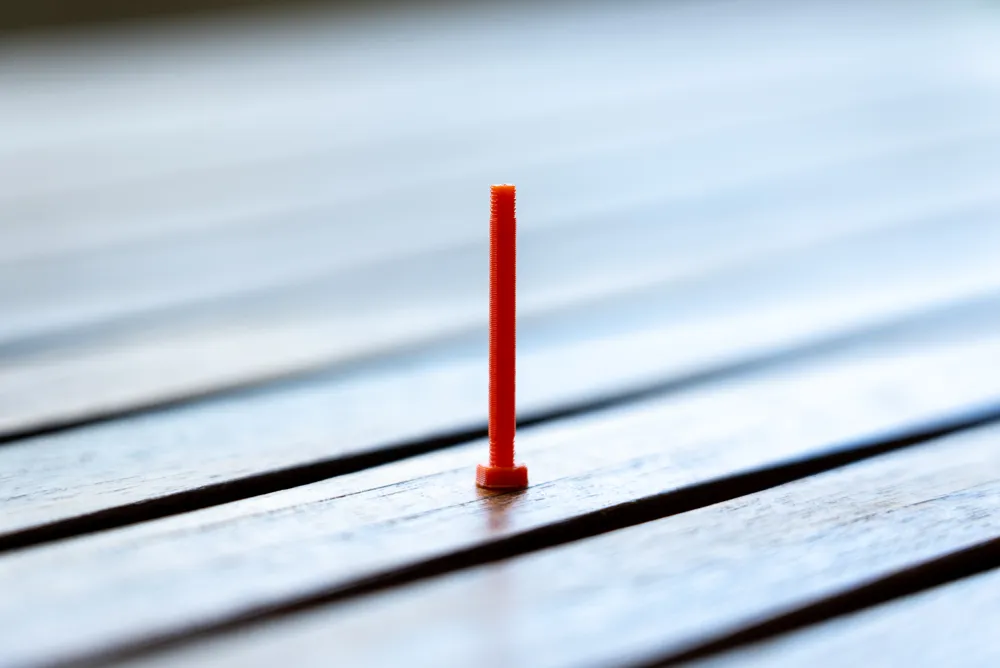

this is a remix of the m3x30 bolt you need to build “rugged boxes”
You should use this bolt for the locking pin meckanism, it only has thread on the first and last 5mm, so it will look much cleaner than a normal screw.

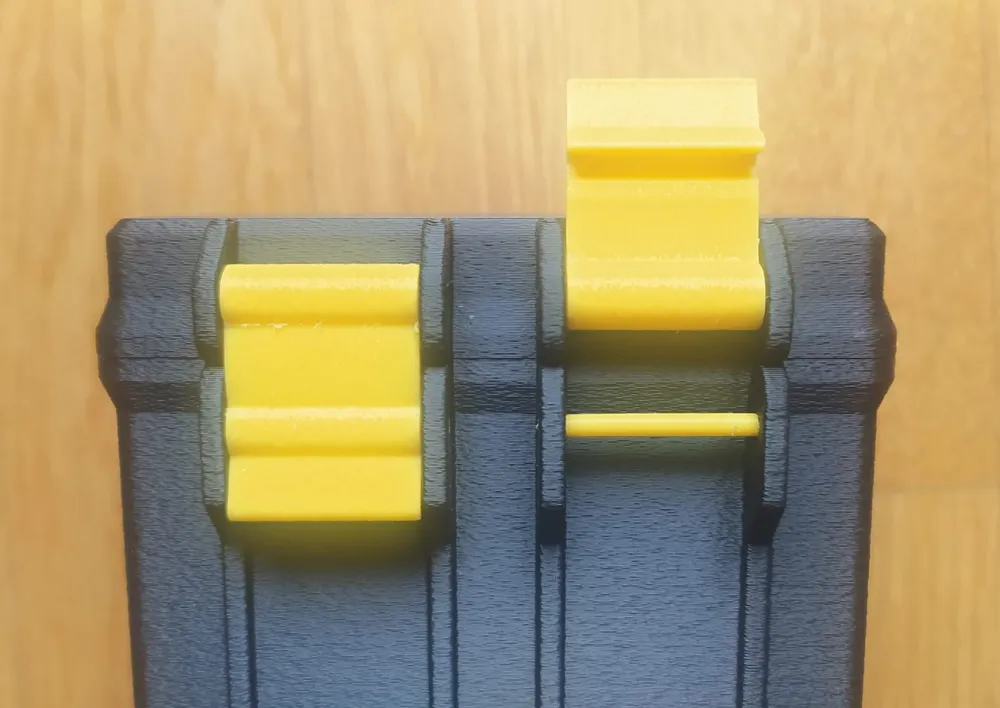

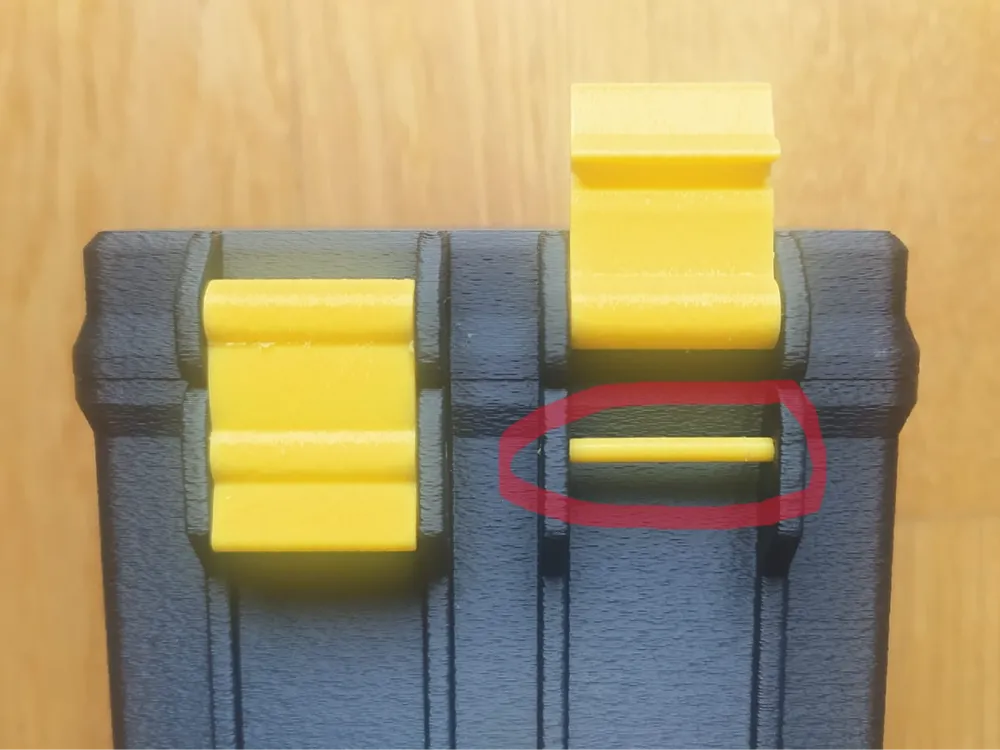

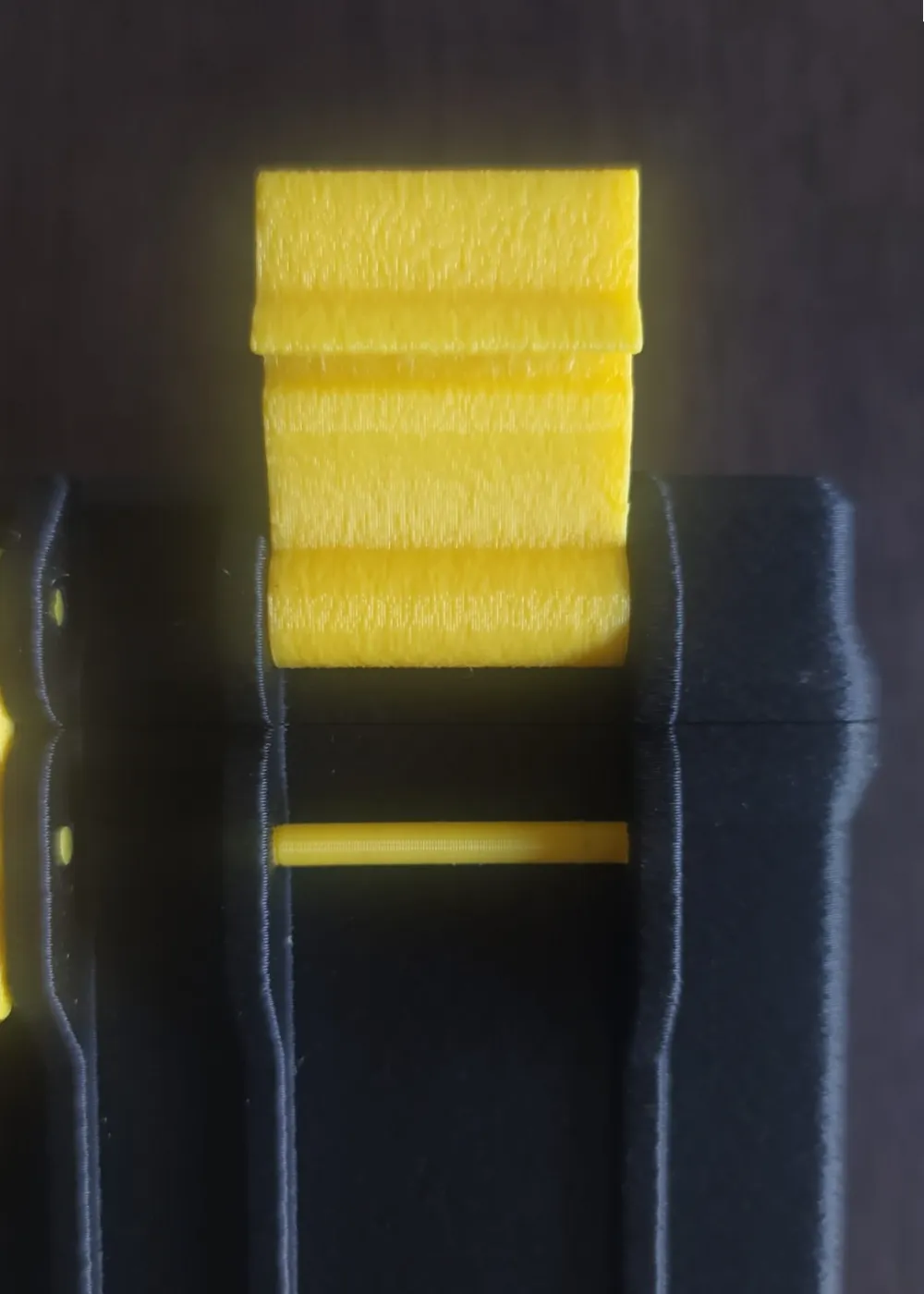

In my case, see the picture, i broke the head of the bolt and pushed the pin in to have it even cleaner
different lenghts (15, 20, 25, 30, 35, 40mm) available on my profile
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
