Air Ventilation Grid Collection and Customizable
Print Profile(2)
Description
Air Ventilation Grid / Grille Collection (rectangular - round) - Griglia di ventilazione misure varie (rettangolare - tonda) - Parametric

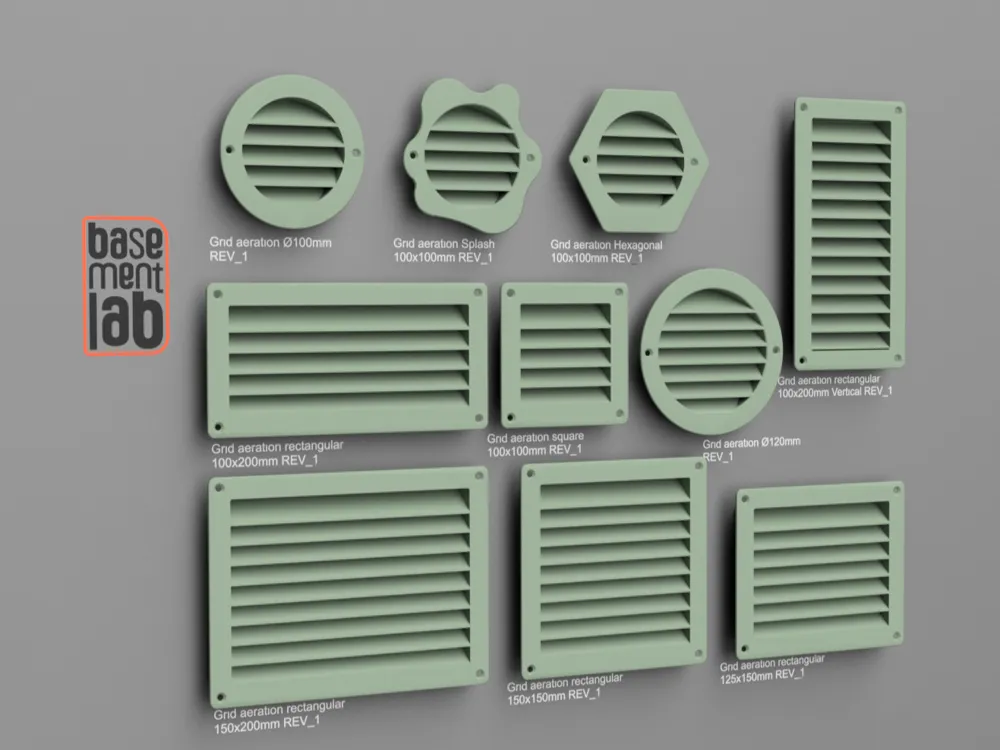

Overall dimensions:
- Hex100mm
- Ø100mm
- 100x100mm
- 100x200mm
- 100x200mm vertical (NEW)
- 125x150mm
- 150-150mm
- 150x200mm
- Ø120 (NEW)
- Ø100mm Splash Design (NEW)
Customizable Parametric Version
- Parametric Circular Grid Rev1 no fixing holes
- Parametric Circular Grid Rev2 with fixing holes
- Parametric Rettangular Grid Rev2 with fixing holes
09/02/2025 Update: added REV_1 Series (Clean up the geometries)
06/05/2025 Update: added customizable version
Boost Me (for free)
All our designs are free to download and use—because sharing drives innovation.
Your support fuels our creativity. Thank you for your boost!
#bambulab
Resize to adjust dimensions

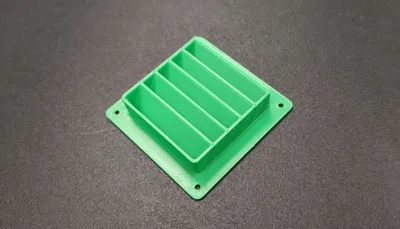

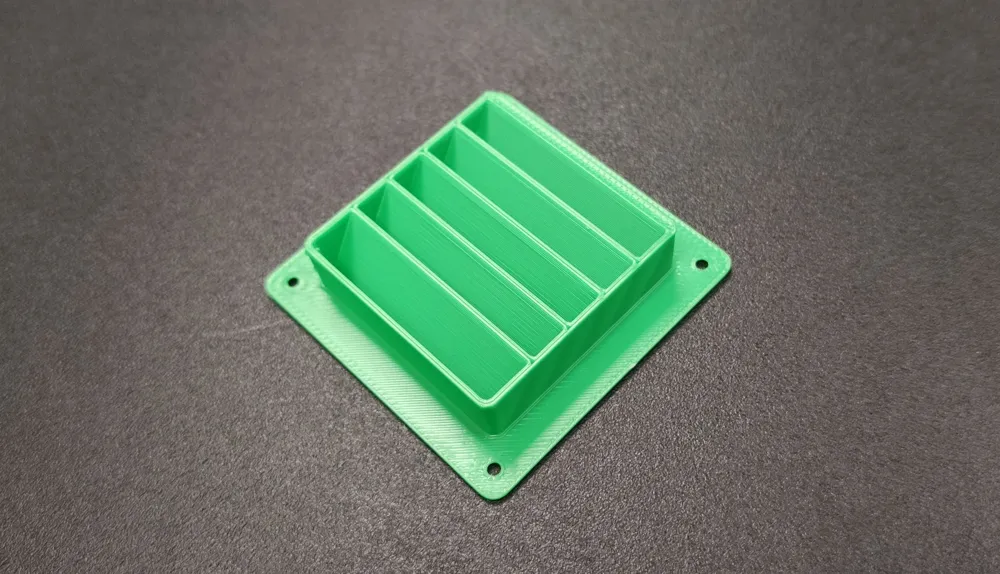

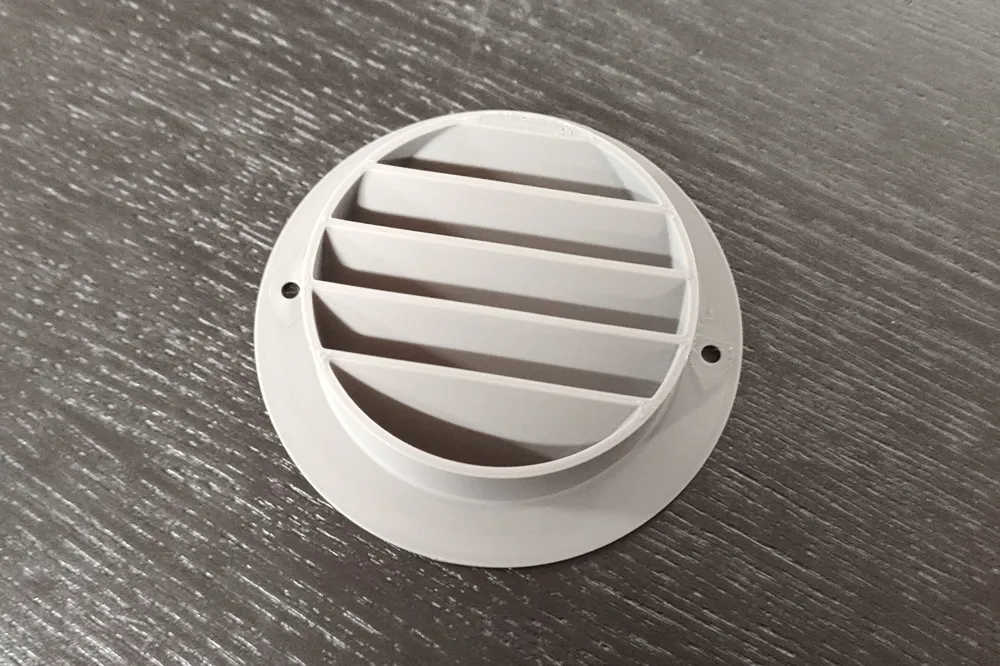

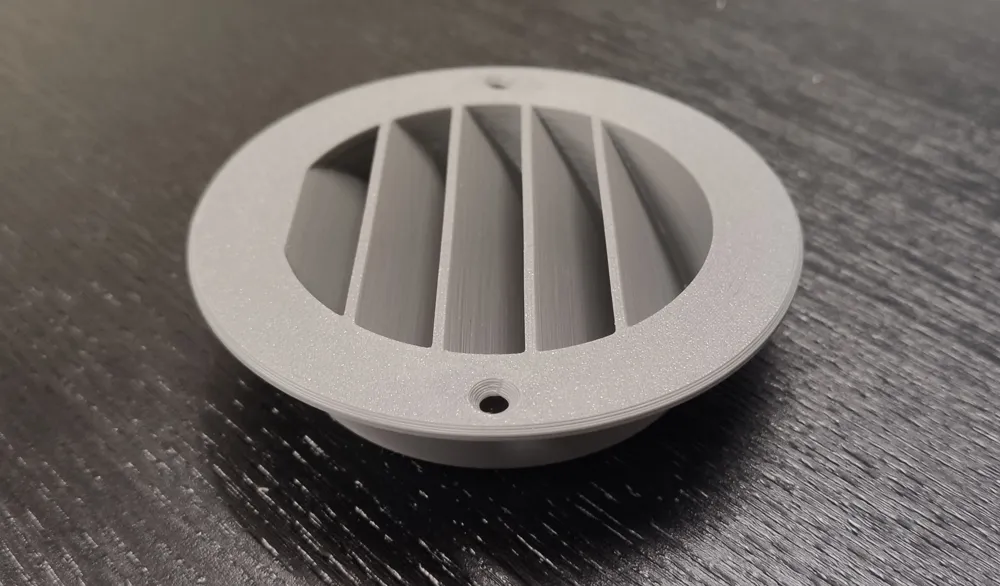

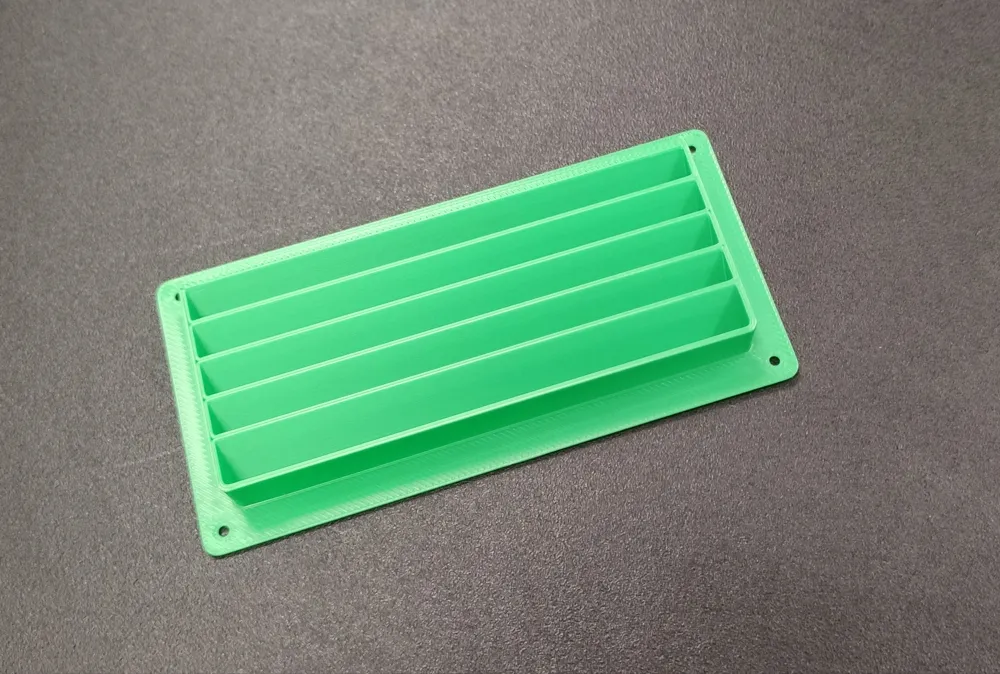

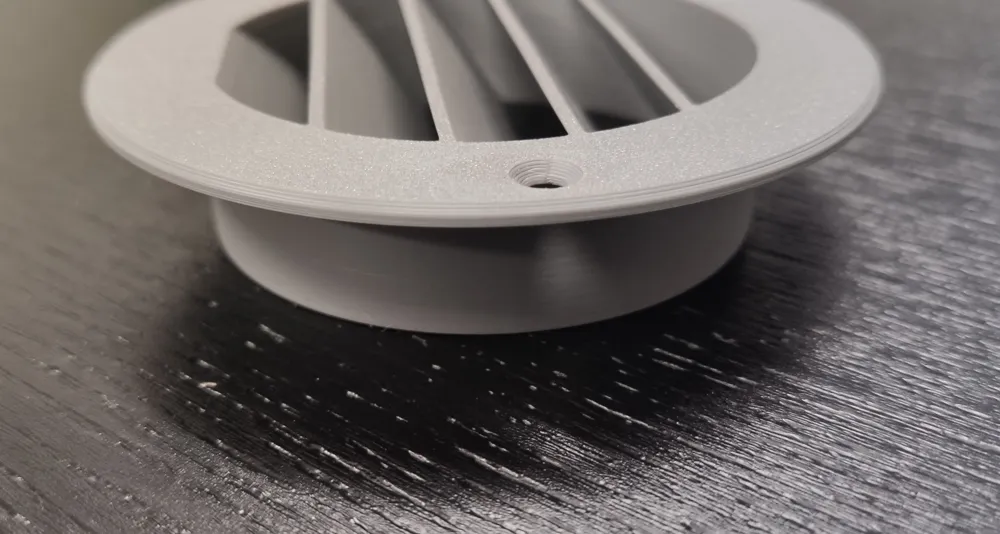

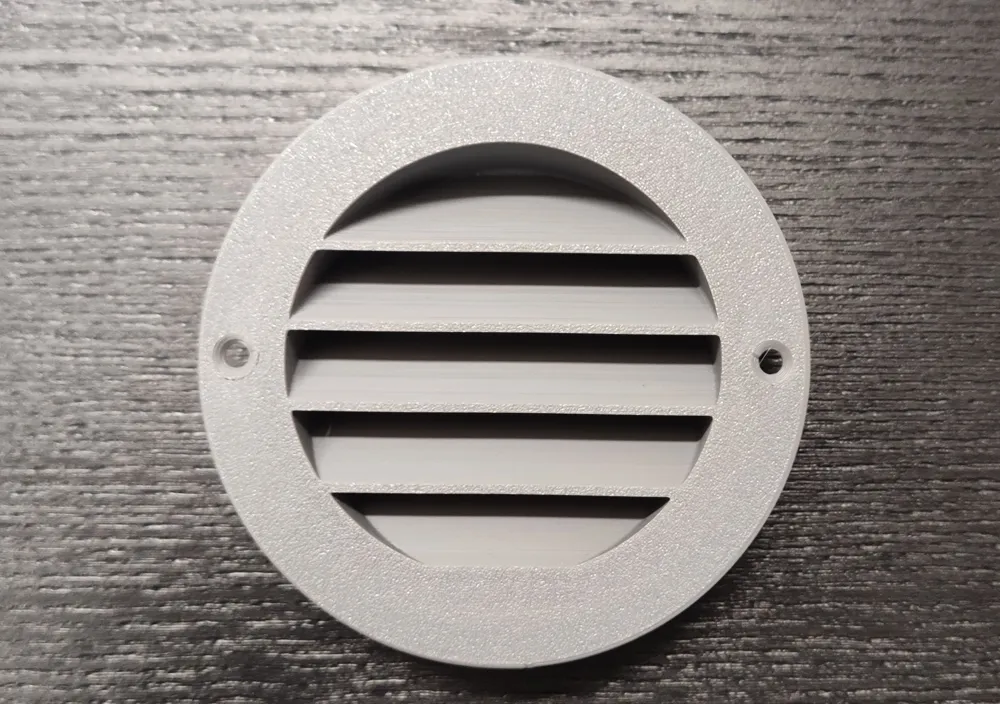

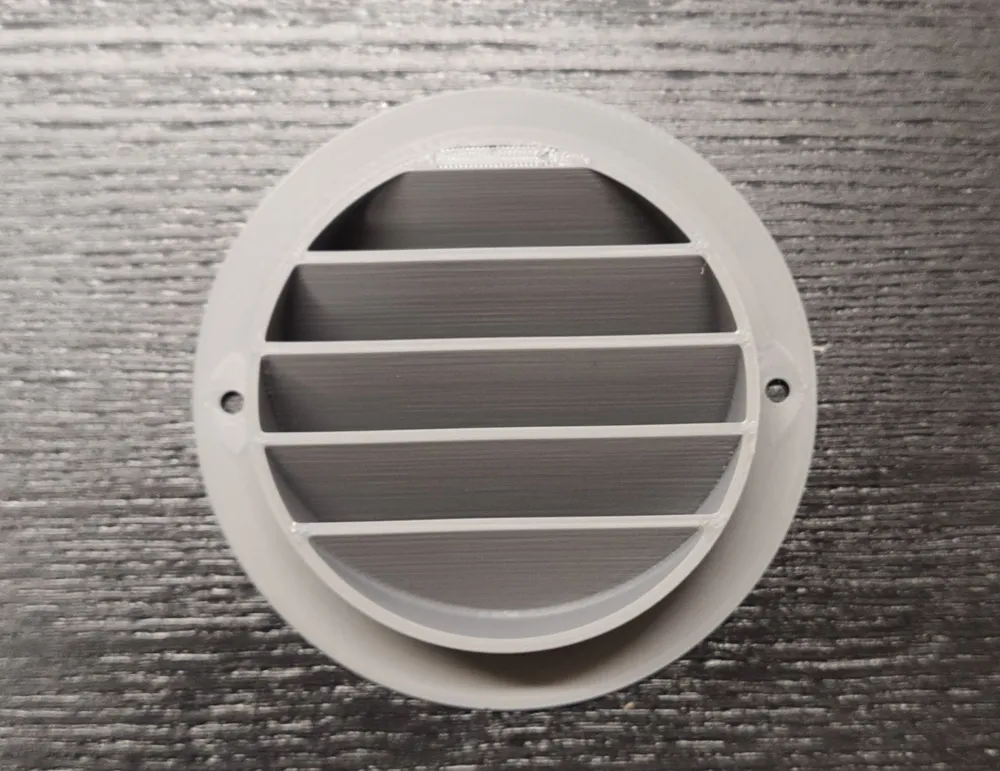

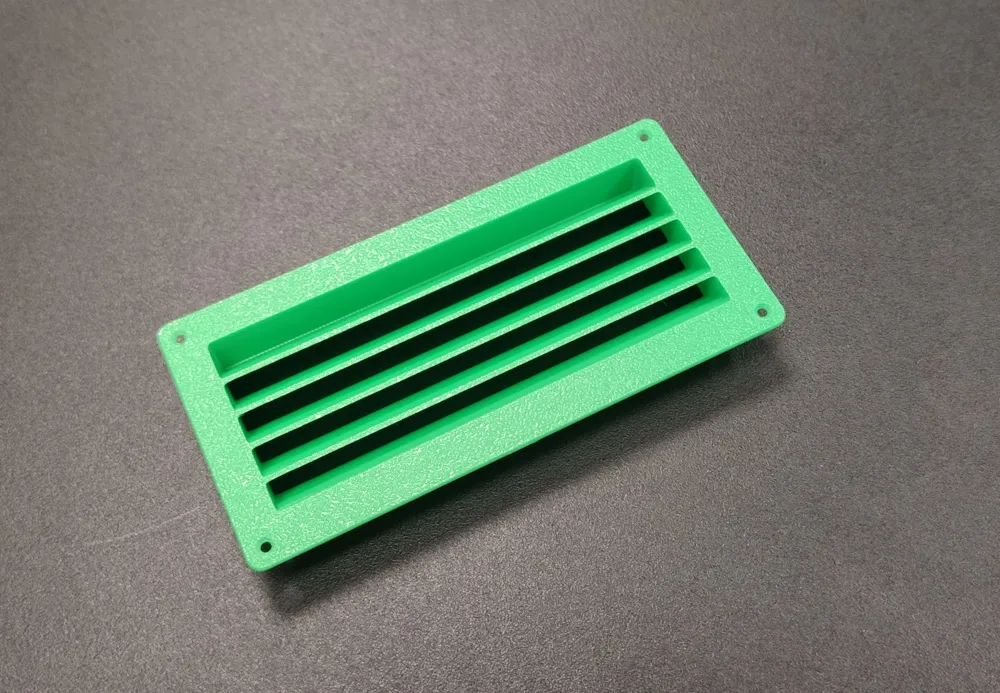

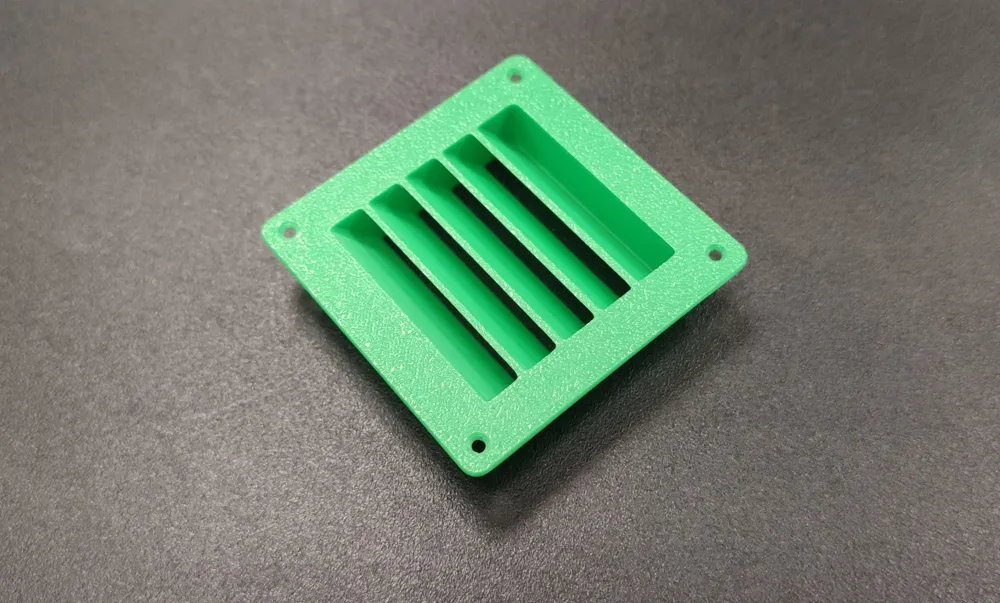

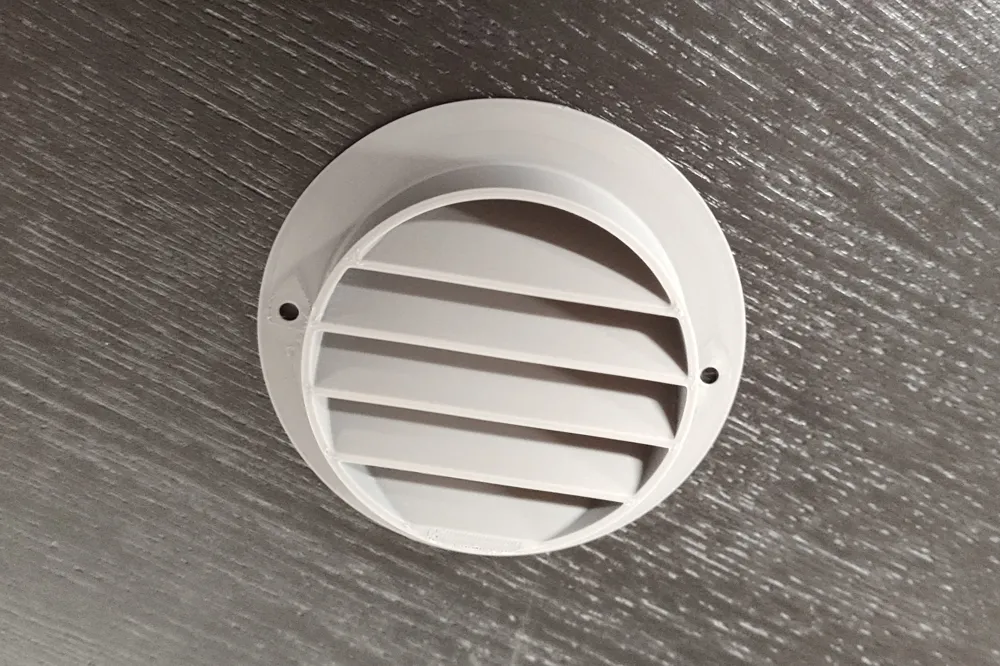

*Technical Note on Parametric Variations: This profile supports a wide range of customizable dimensions. The uploaded real-life photos represent a "Reference Sample" to demonstrate printability, tolerances, and surface quality. Since the model is parametric, it is physically impossible to provide a unique photo for every user-generated variation. The core design has been fully tested and verified.
