Cable Guide/Glider for Chainhoist
Print Profile(1)
Description
This Cable Chain Guide is made for the quick and easy cable management for rigging systems.

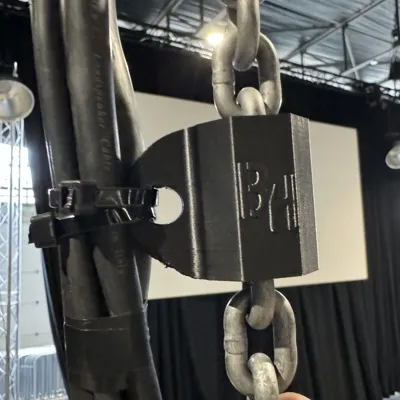

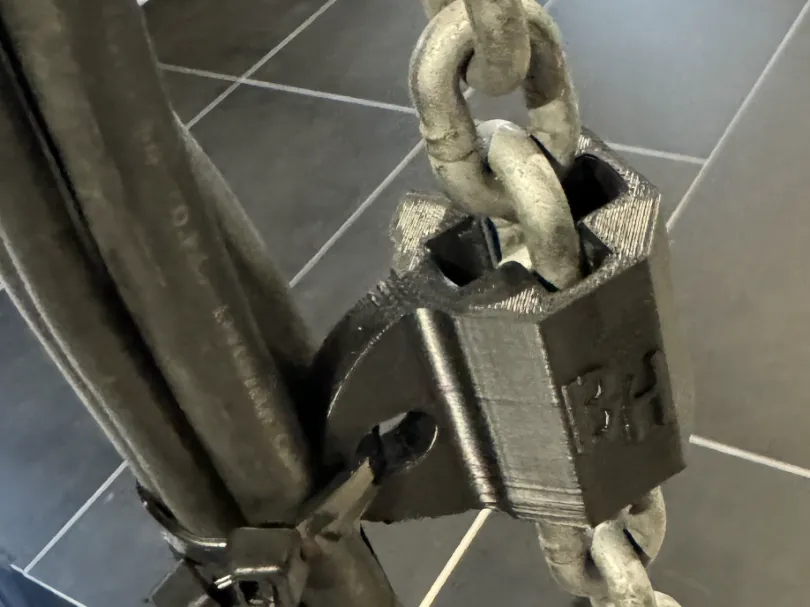

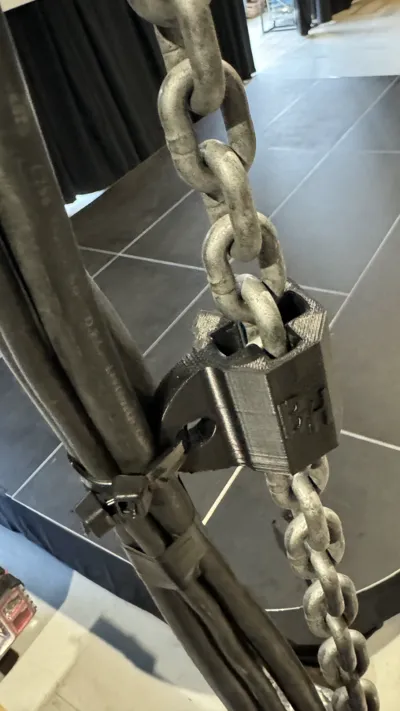

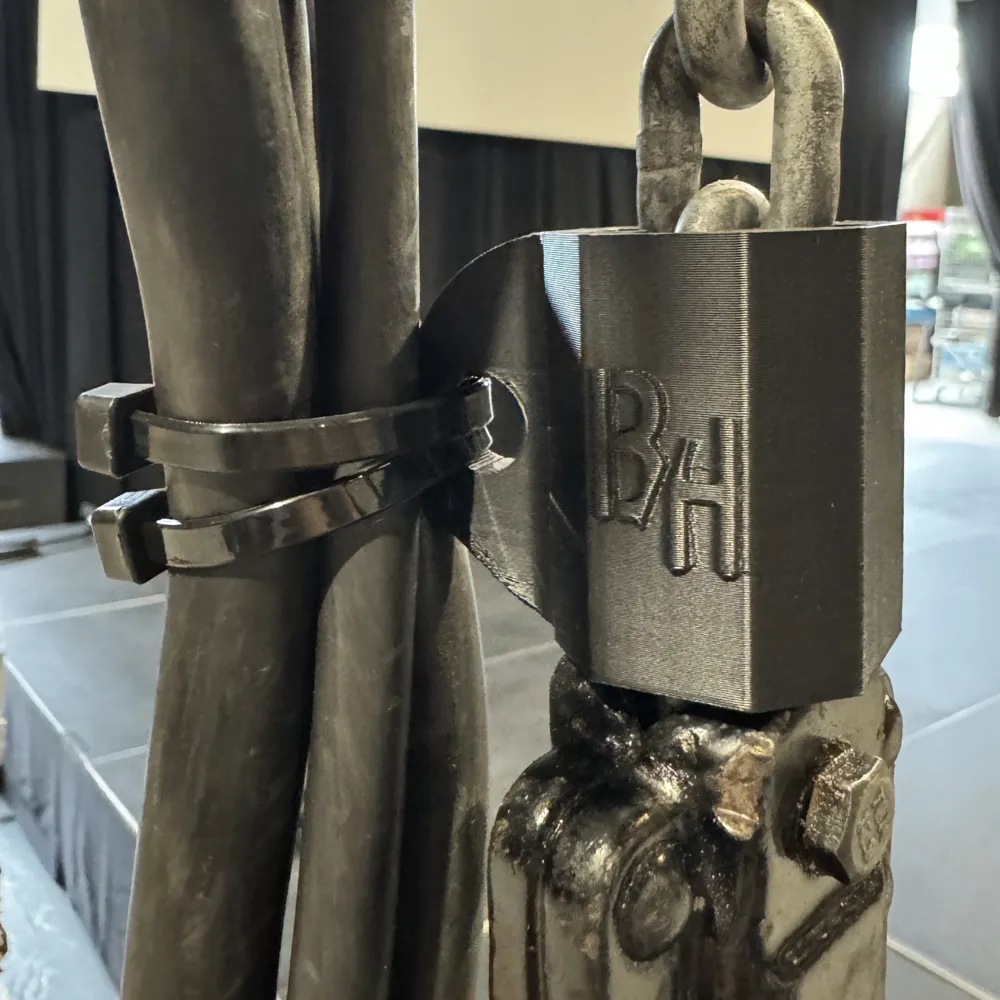

Attach multiple guides on your rigging chain and attach your cable loom on it with a small shackle or cable tie's.

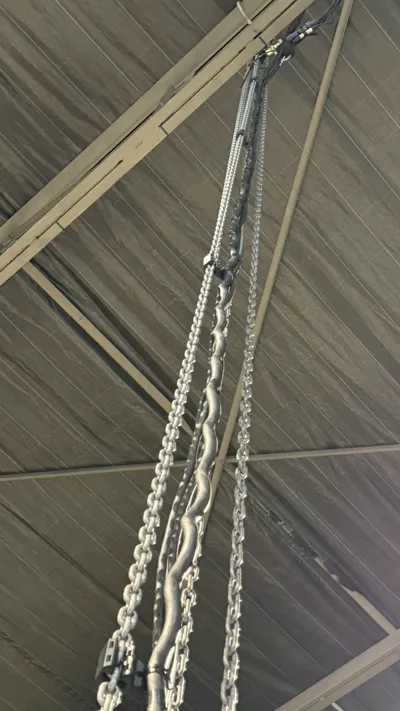

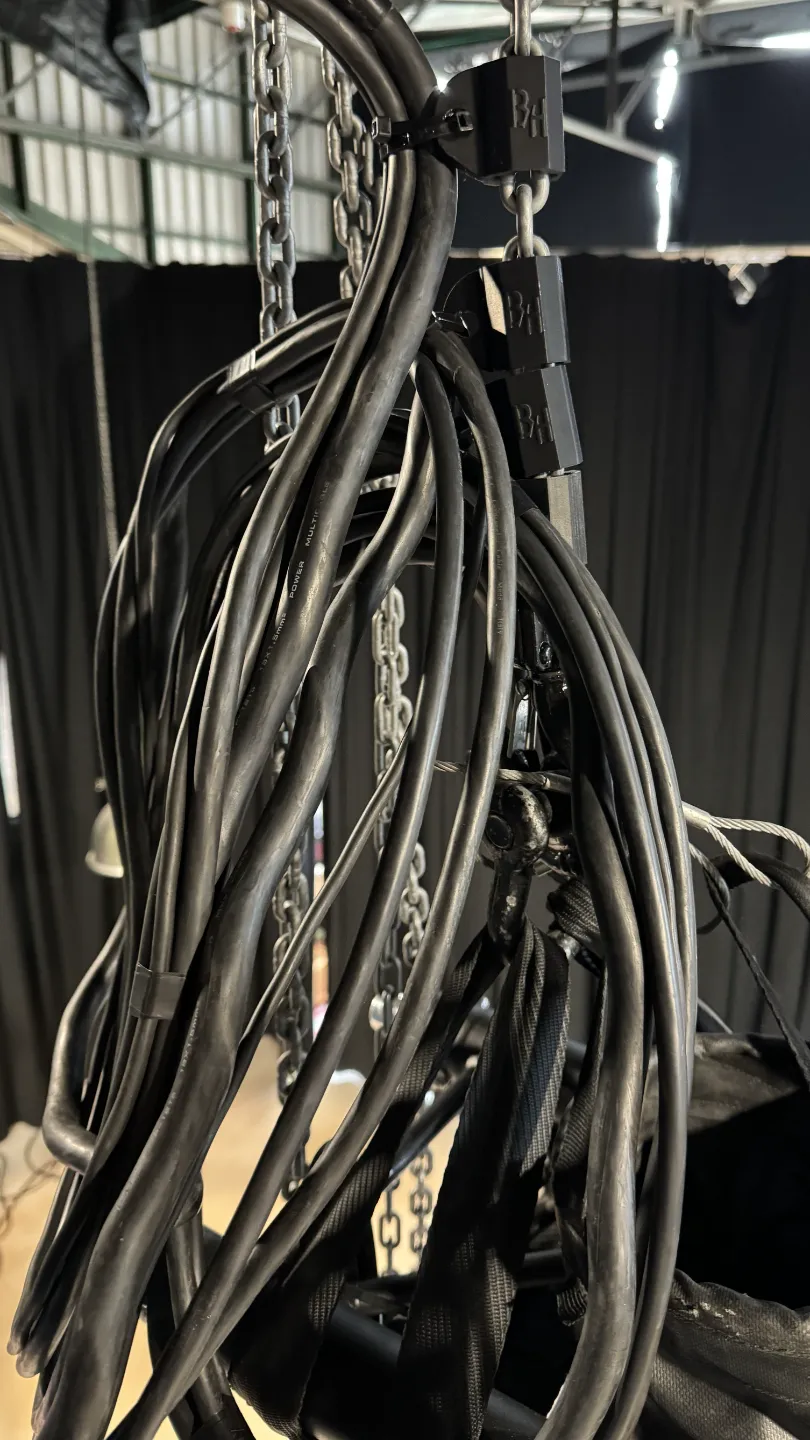

When moving the chain up and down the cables will be neatly organized with no extra time spent organizing it going up and giving it some slack when going down.
Tip: Very usefull in a permanent setting where a rigging system only need to go up and down sometimes for some small changes.
* Guide cannot be attached or detached if the chain is under load!
* Made for 6mm Chain
* Cable Attaching point = Max 10mm
* Small Rectangle holes can be used to reduce the load on the otherside of the opening, optional use and depends on the cable weight/material used.
Model can be adjusted to your needs, send me a message or comment.
