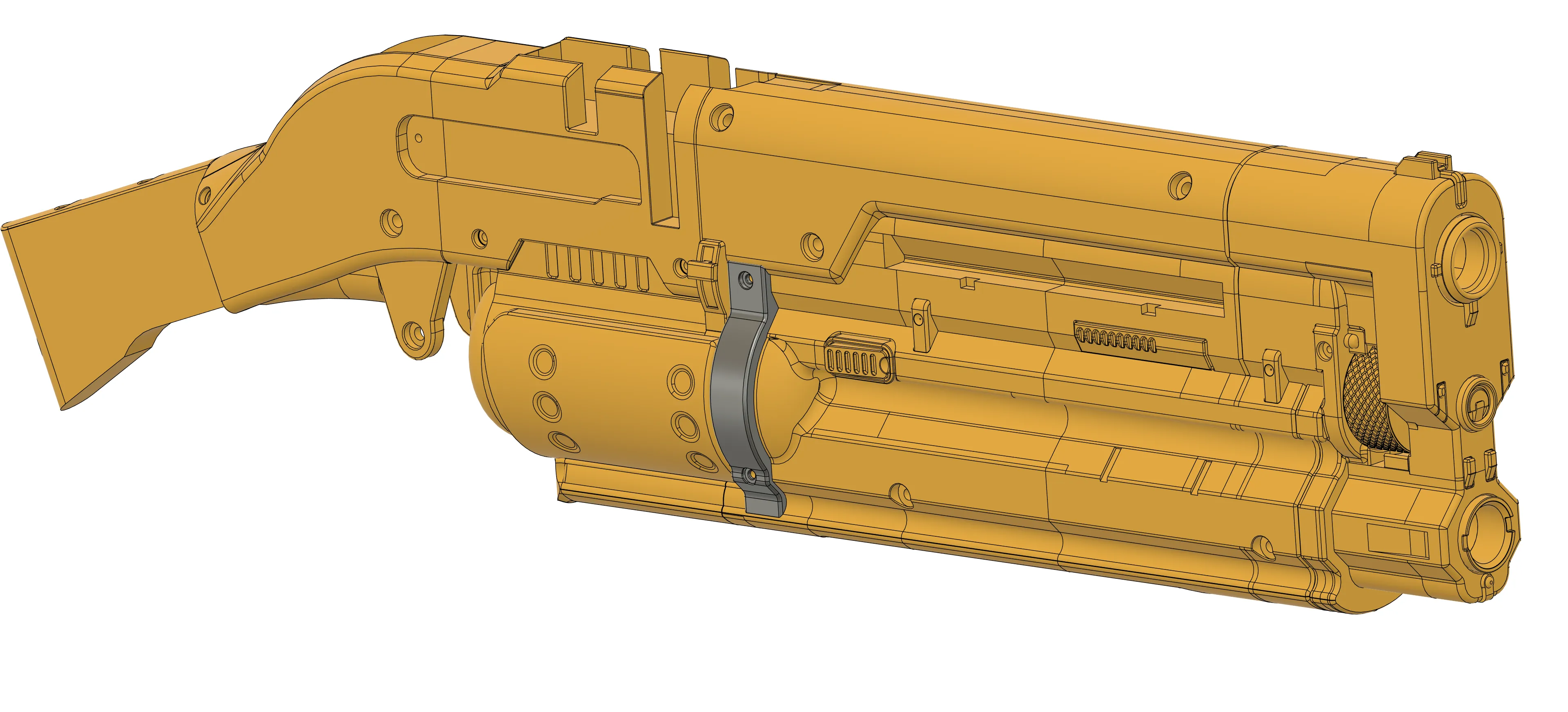

PKD M1887 Shotgun

Blade Runner: Black Lotus/ PK-D M-1887 Shotgun

UPDATE added 3mf Printprofiles for Printers with 250x250mm buildvolume , they where to big to upload regulary in one profile and its against the ToS to split a model into multiple Printprofiles for whatever reason…. construction assistance down below  including placement instructions for the screws, because upload restrictions again.

scroll down to see all steps

this is a project for advanced promakers. if the assambly help i created is not matching your expectations or standards im not sorry.

This Model is heavy inspired by the Shotgun Brooke Marlowe use in the Anime Blade Runner: Black Lotus.

I used a lot of screenshots as reference material to create this "Replica" but unfortunately almost every scene he use his Shotgun are either very dark or the movements was too fast wich made it difficult to see all details on the screenshots clearly,
so i had to bring in a few own ideas for the design.

I think Marlowe used a personalized version with brass screws, lever and a little ornament on the wooden grip , showing an M on it, (according to Blade Runner2049 wood is very expensive in the world of Blade Runner ), so I decided to make a steyer emblem and a blank version.

Note: Non Functional Replica for deco without moving parts

If you have any questions please contact me.

Hardware:

1meter 2,5mm cable  to make 3 strips for each side

Plastic superglue

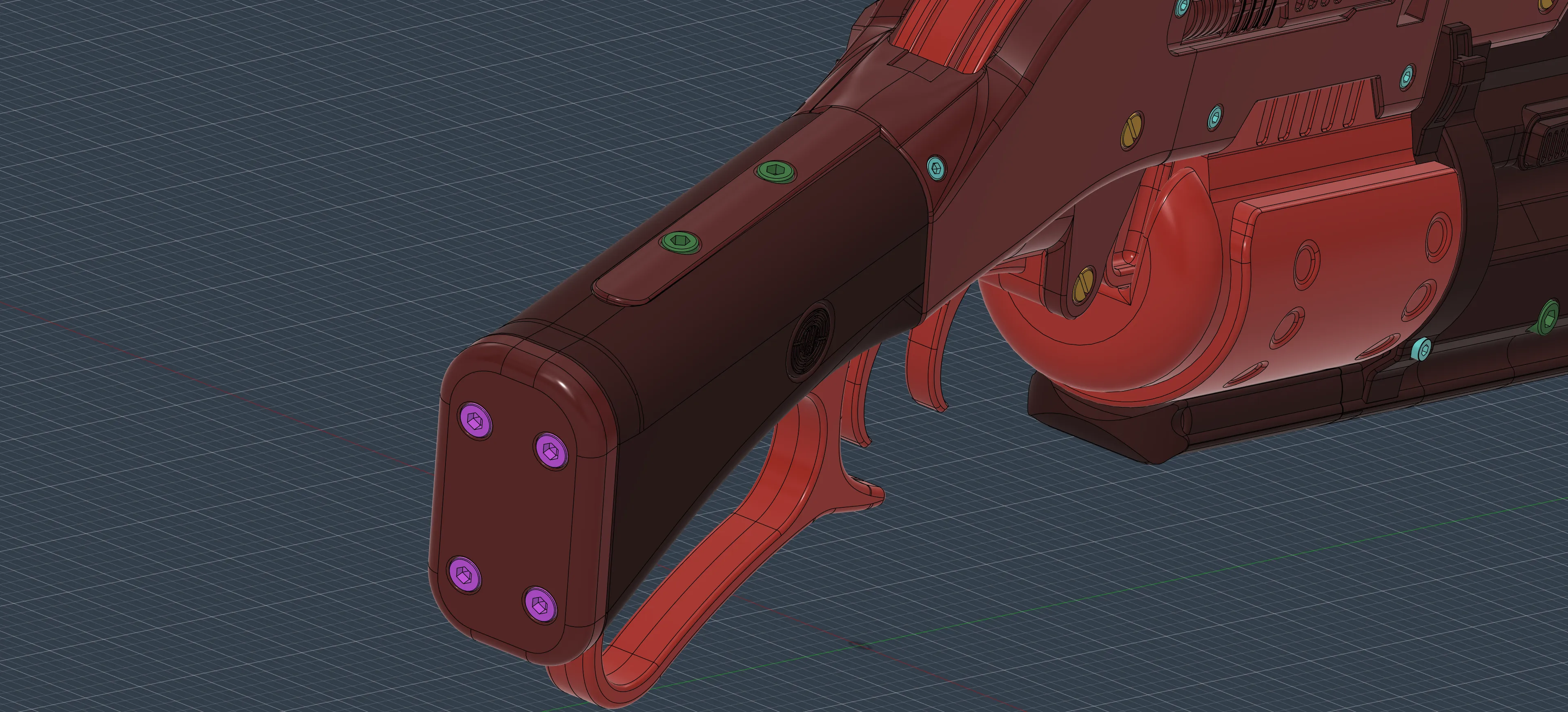

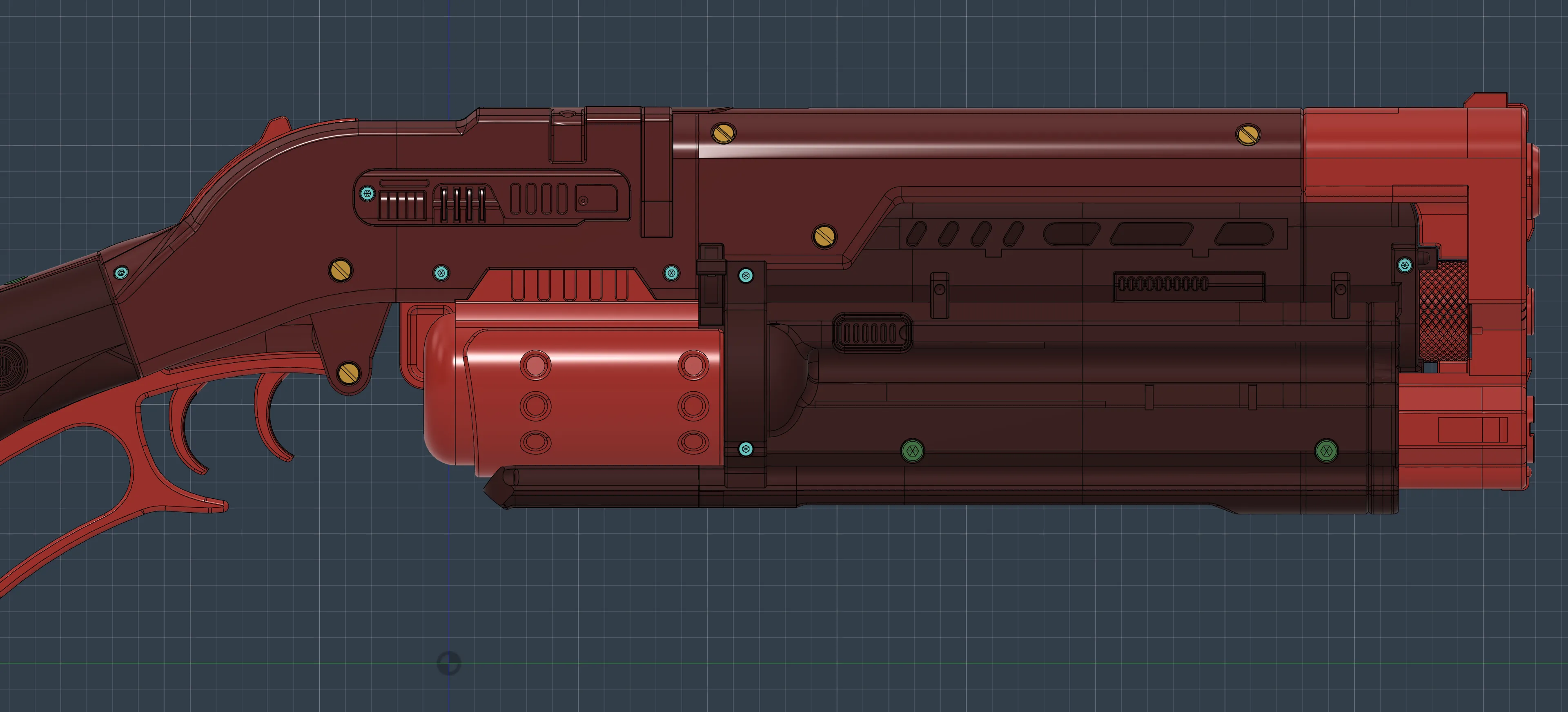

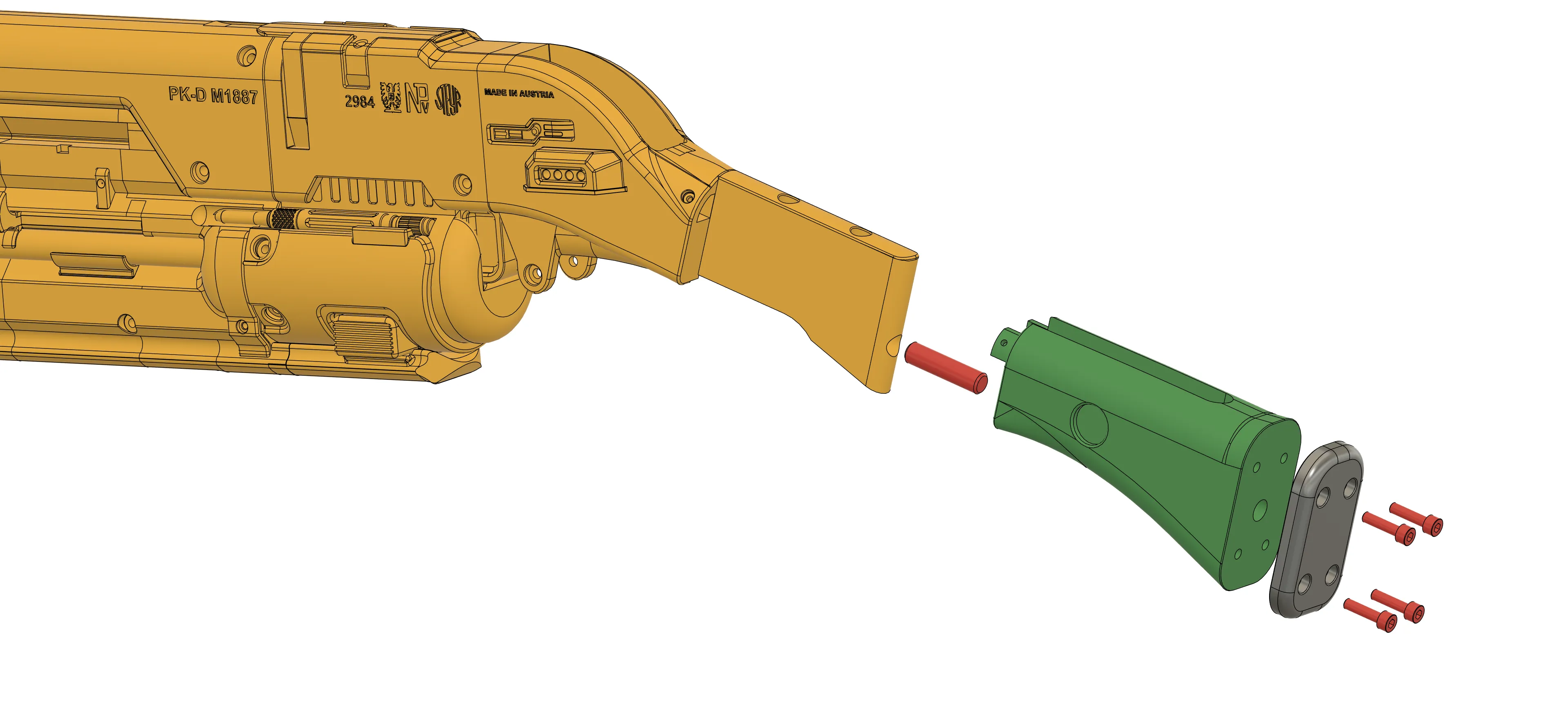

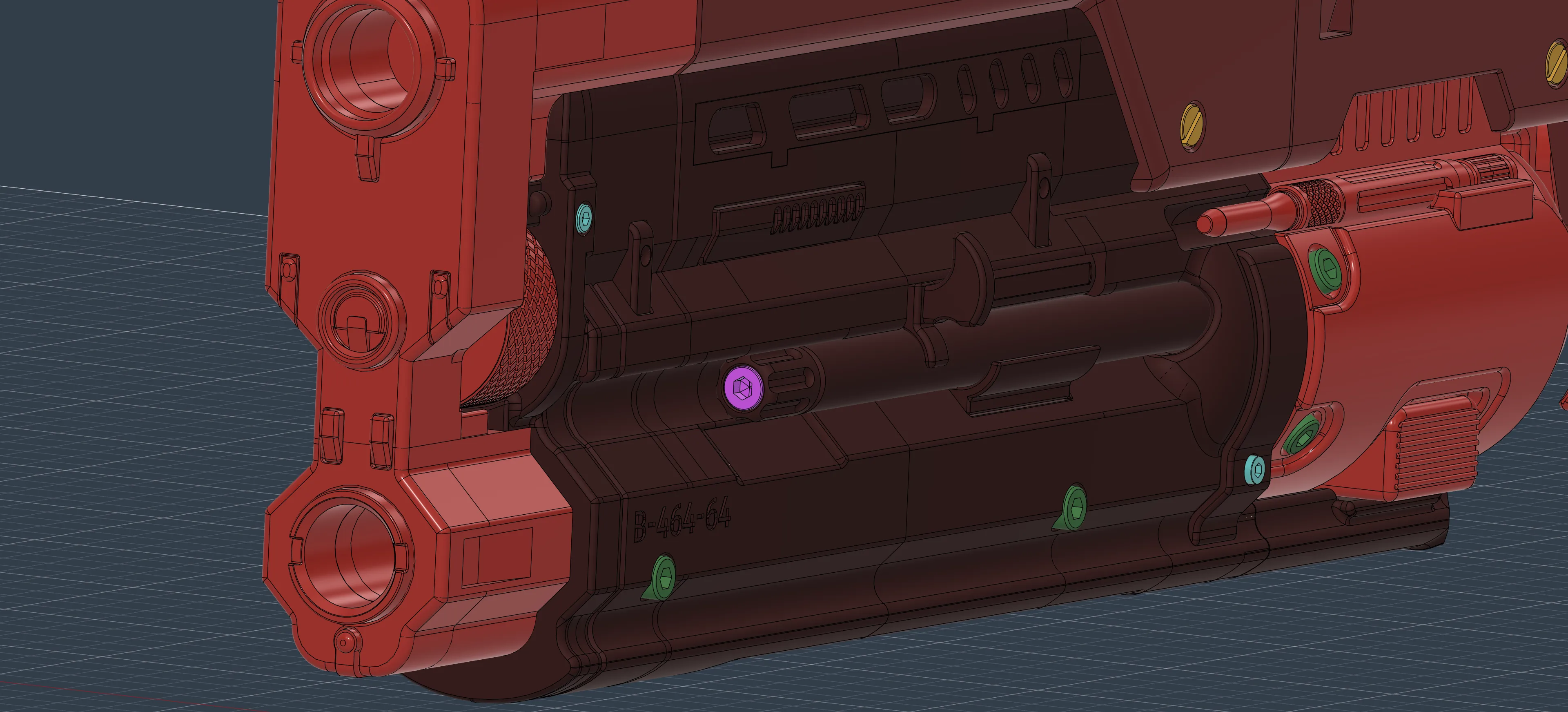

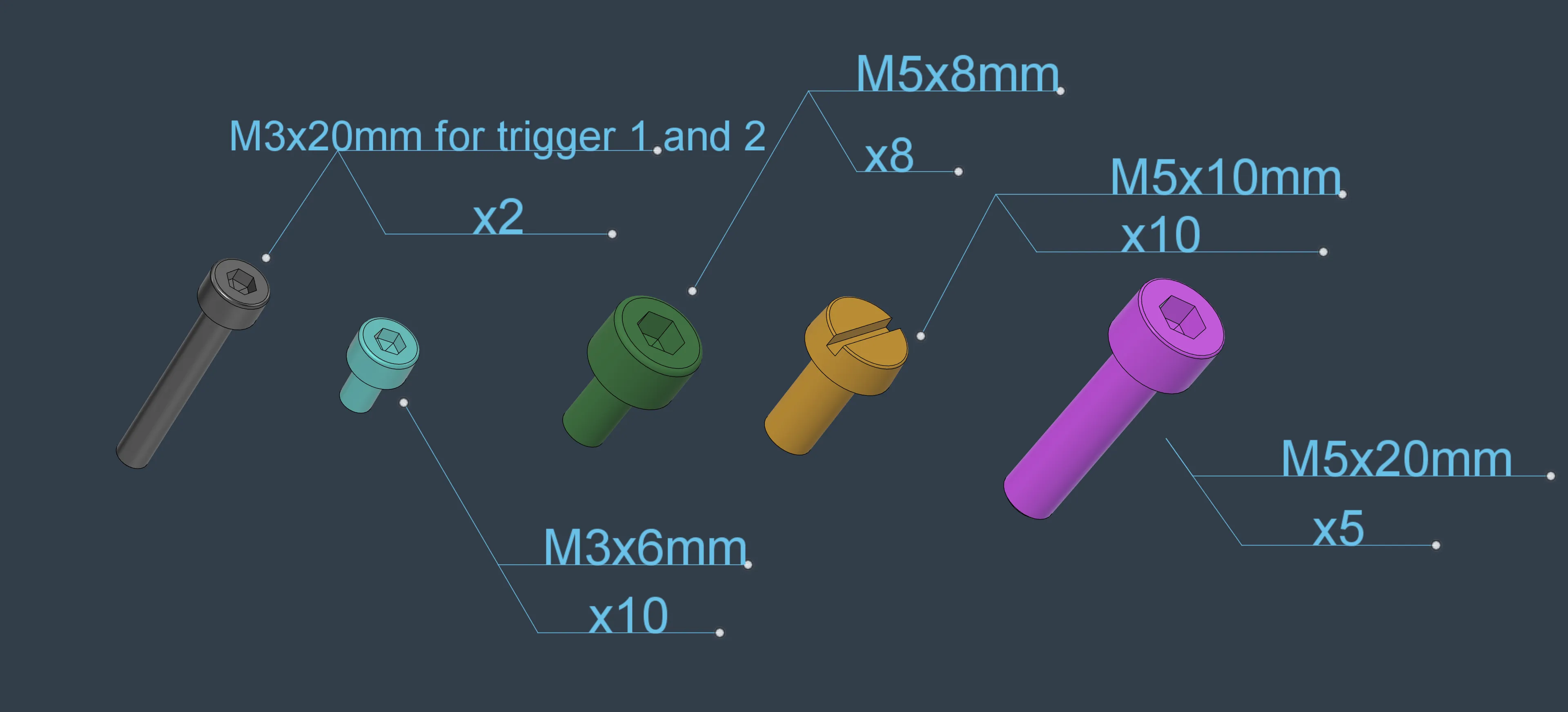

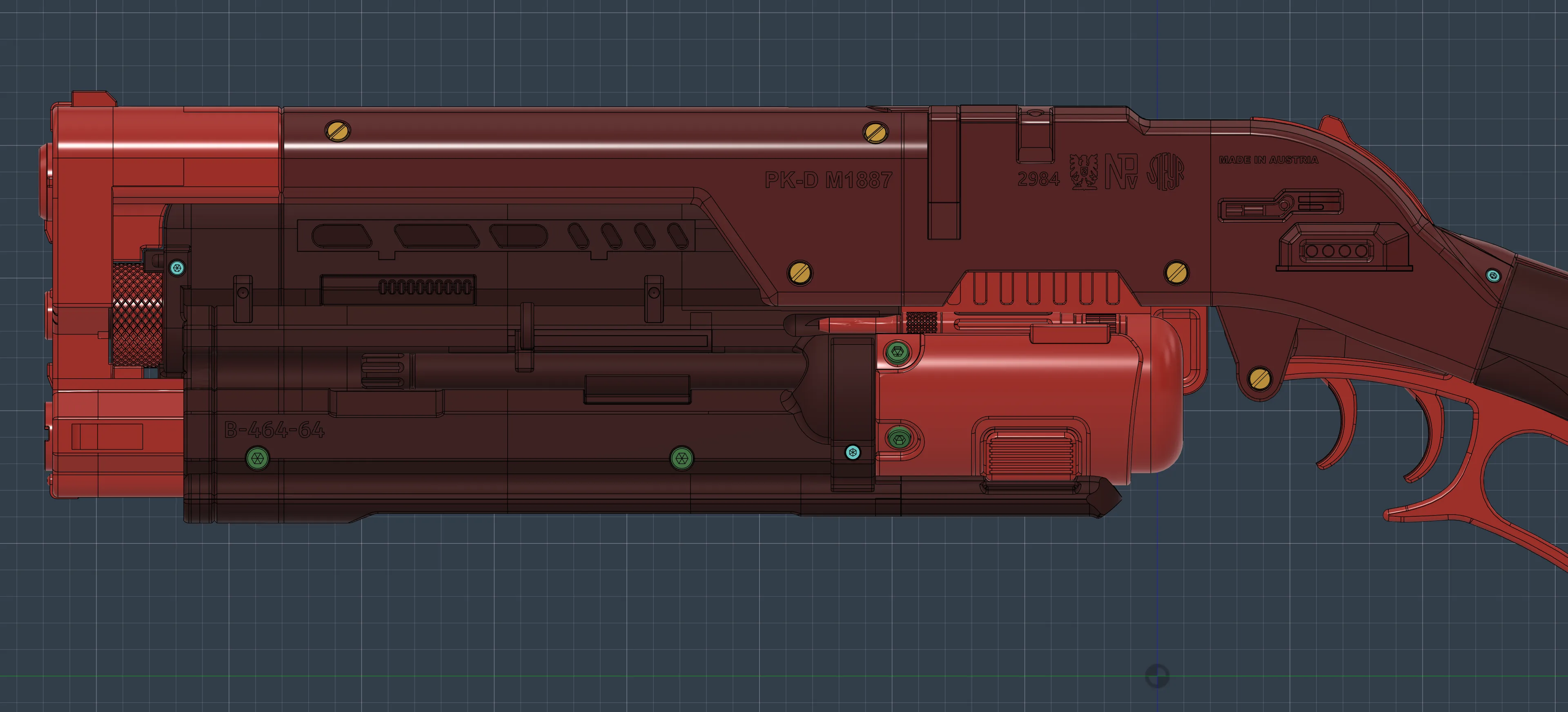

cylinderhead screws:

M3 x6mm Hex (x10)

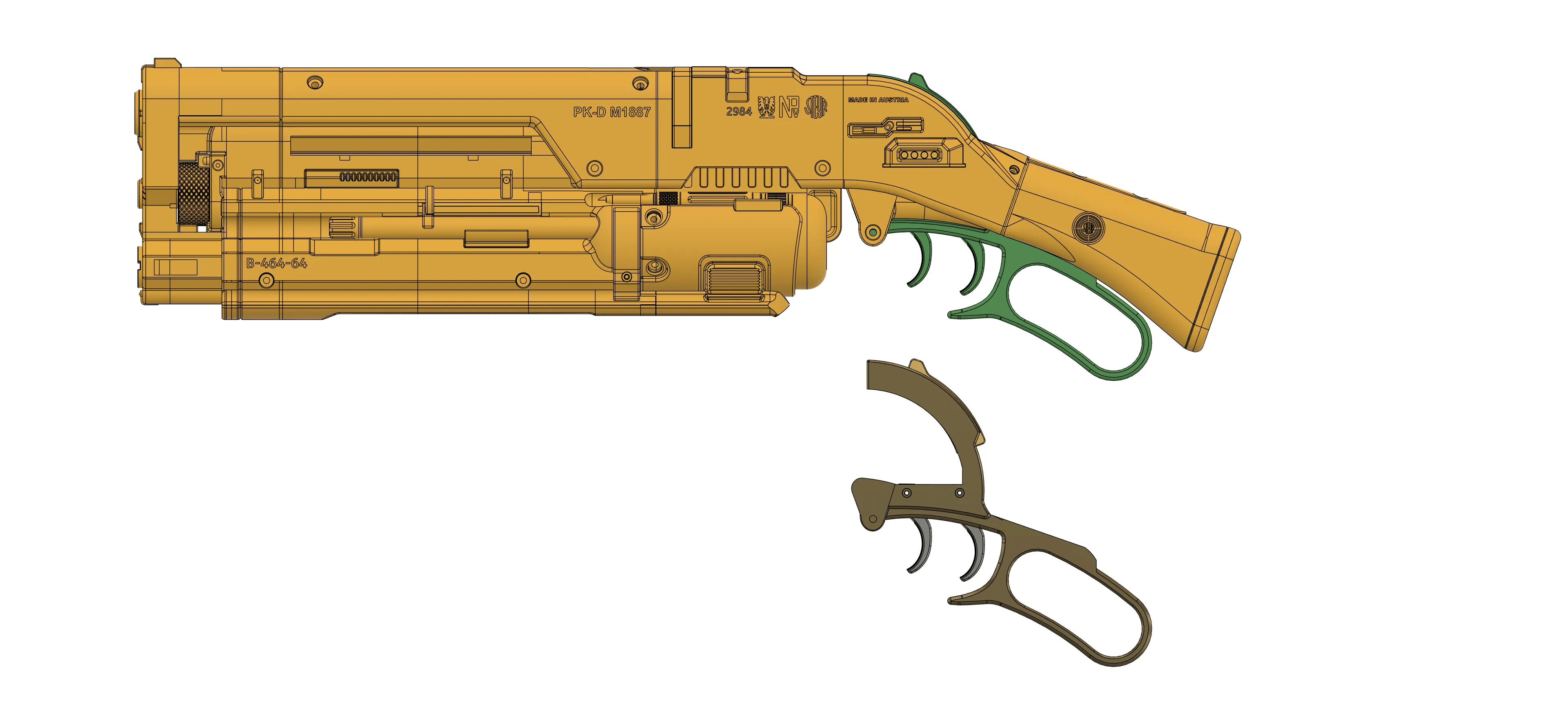

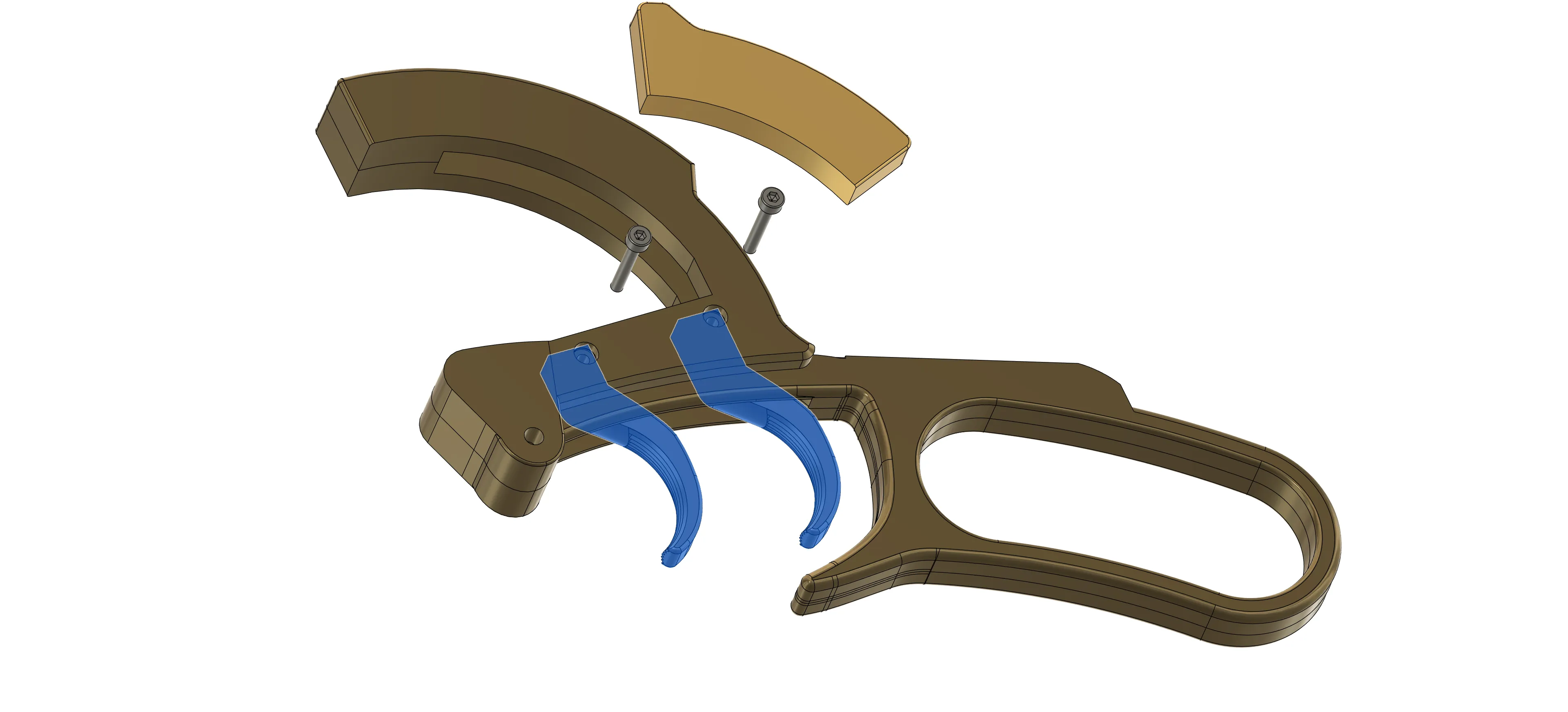

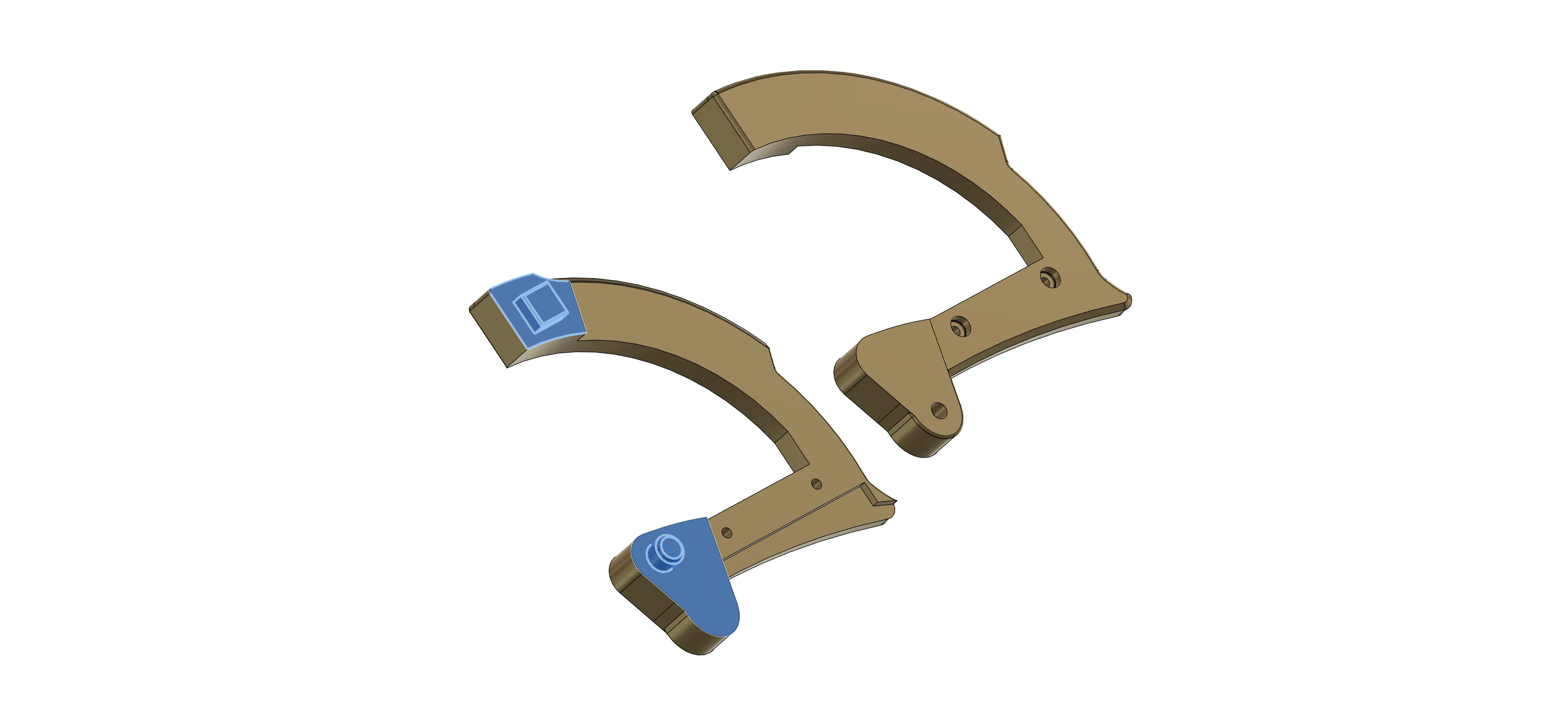

M3x20mm Hex (x2) to fix the triggers

M5 x8mm Hex (x8)

M5 x20mm Hex (x5)

M5x10 slotted (x10)

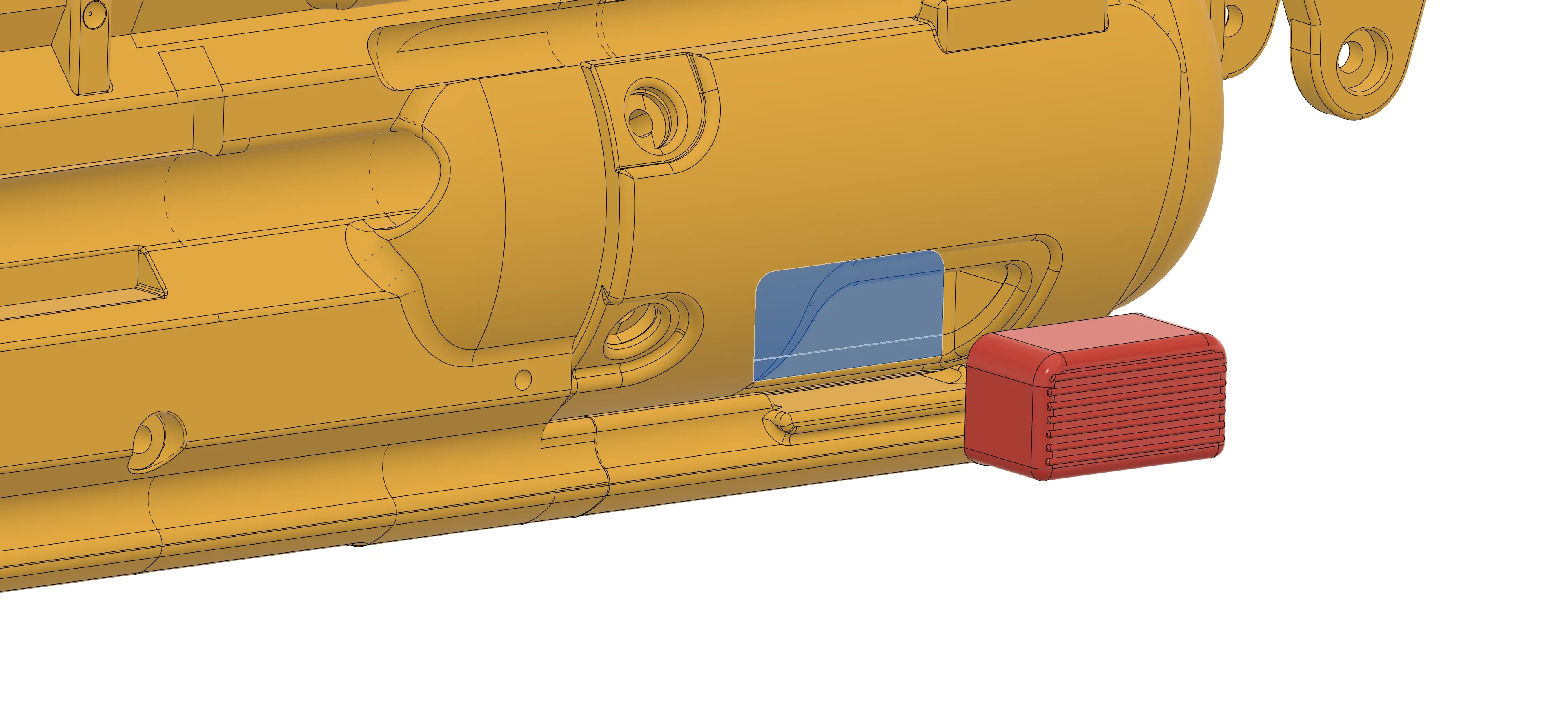

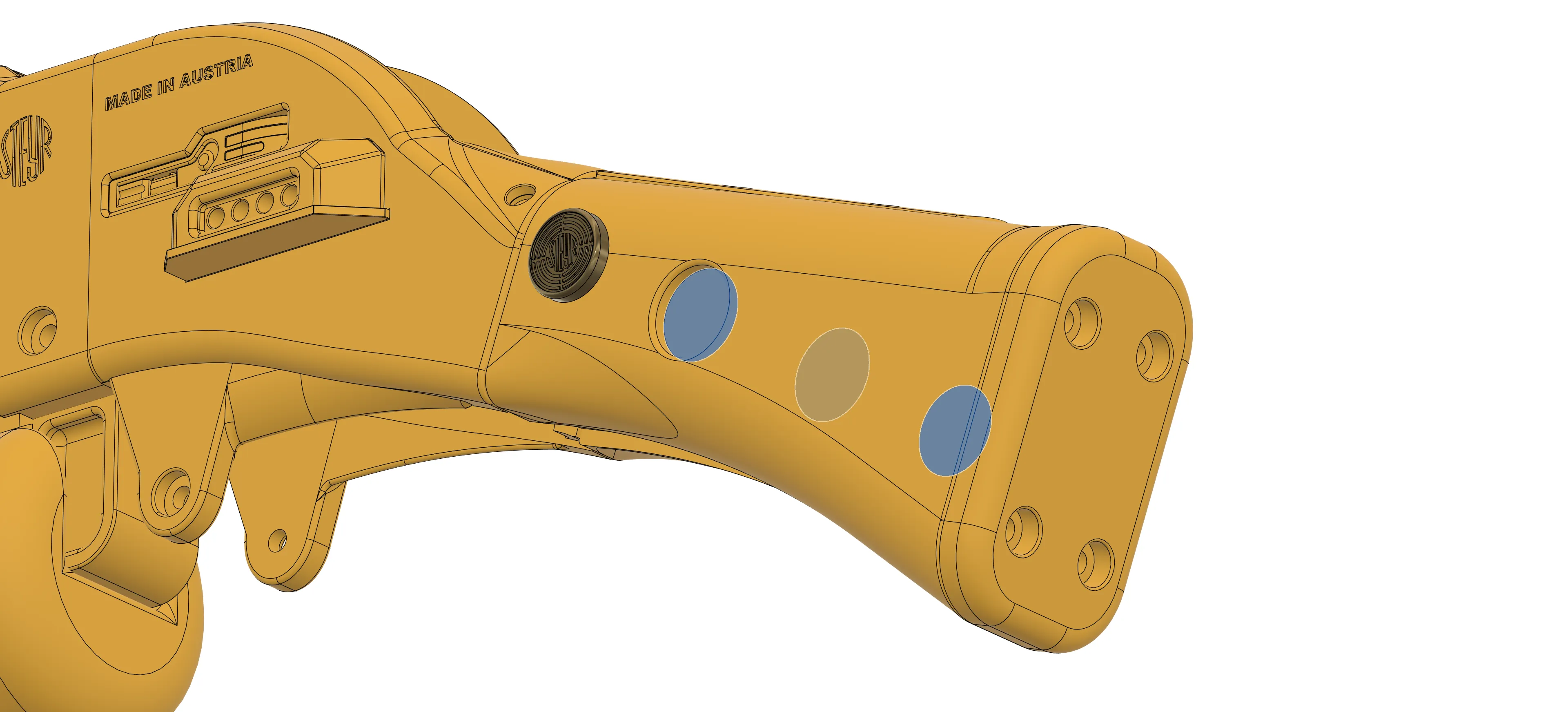

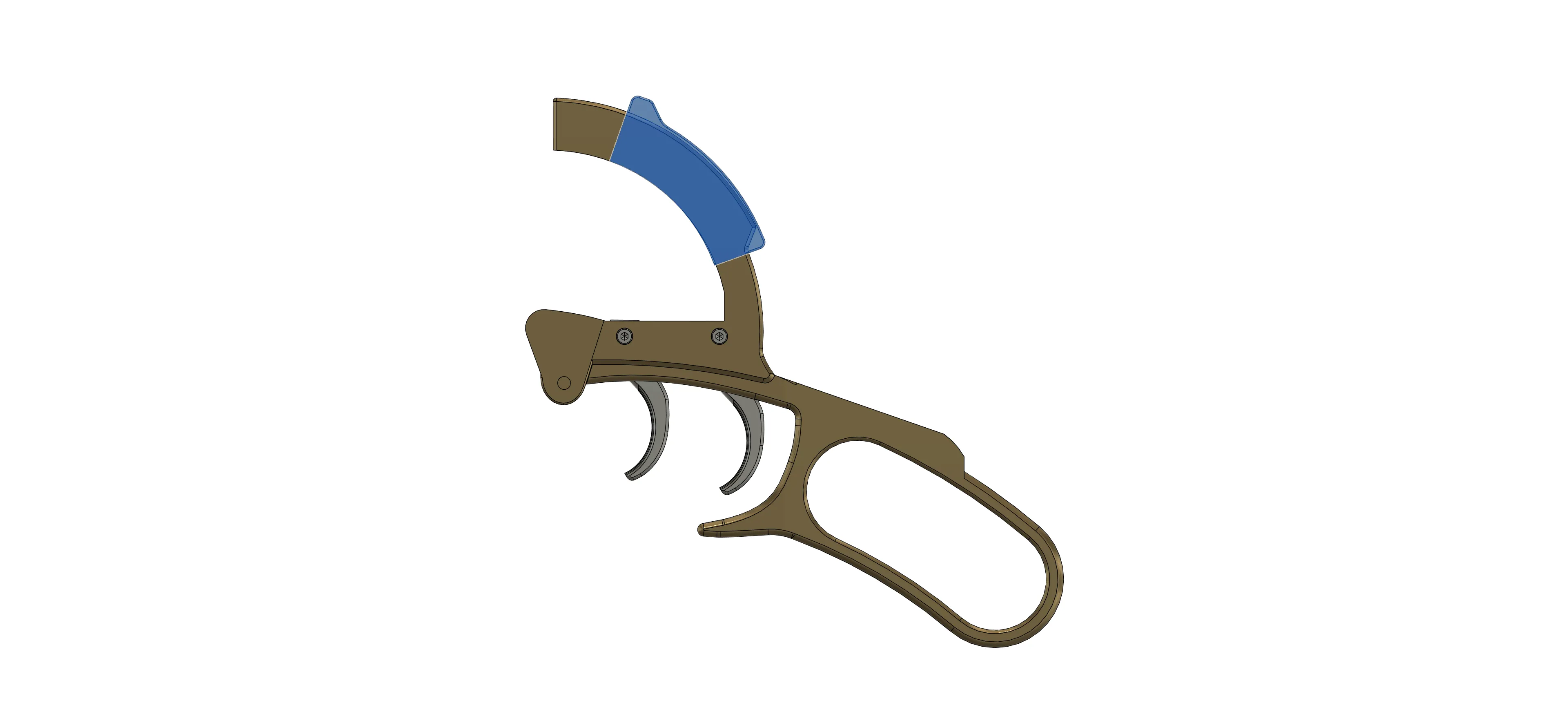

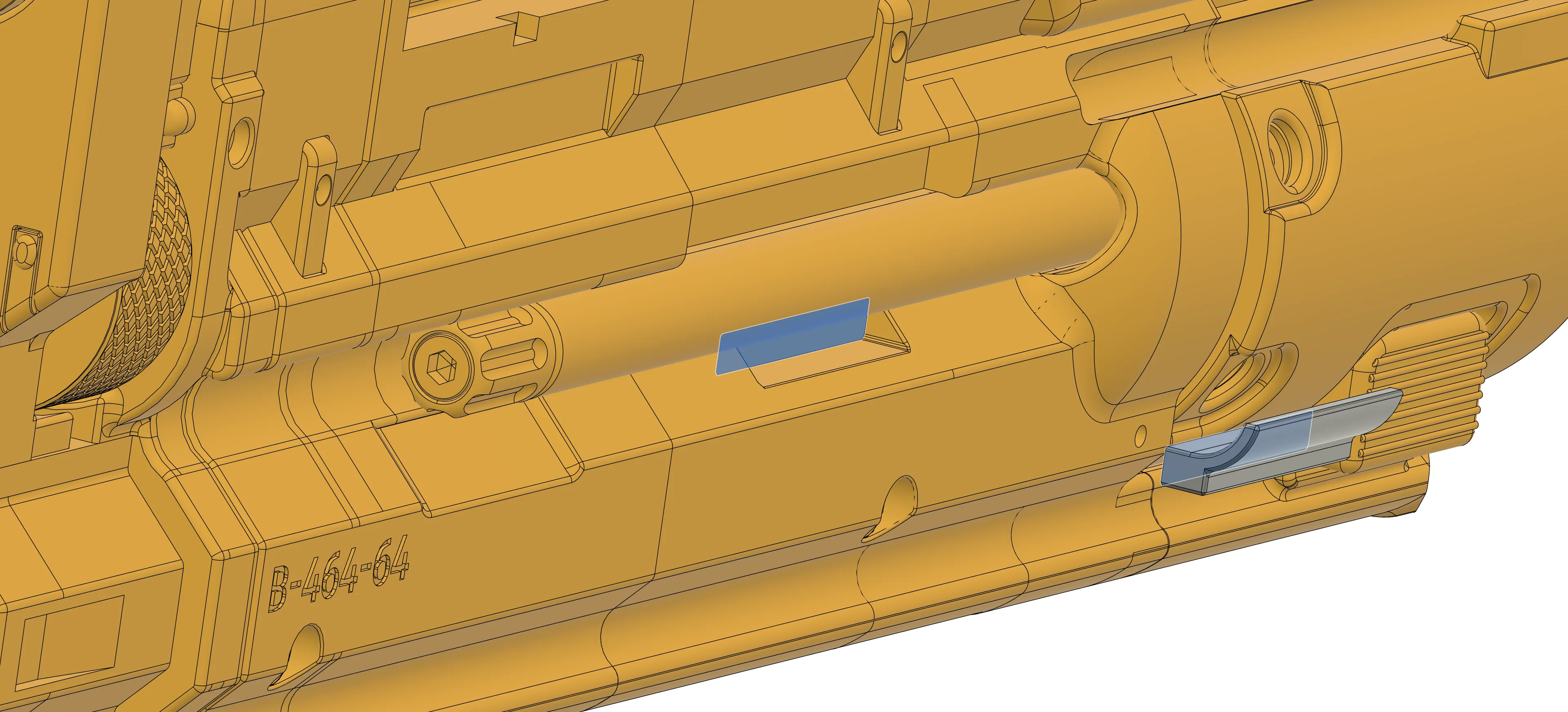

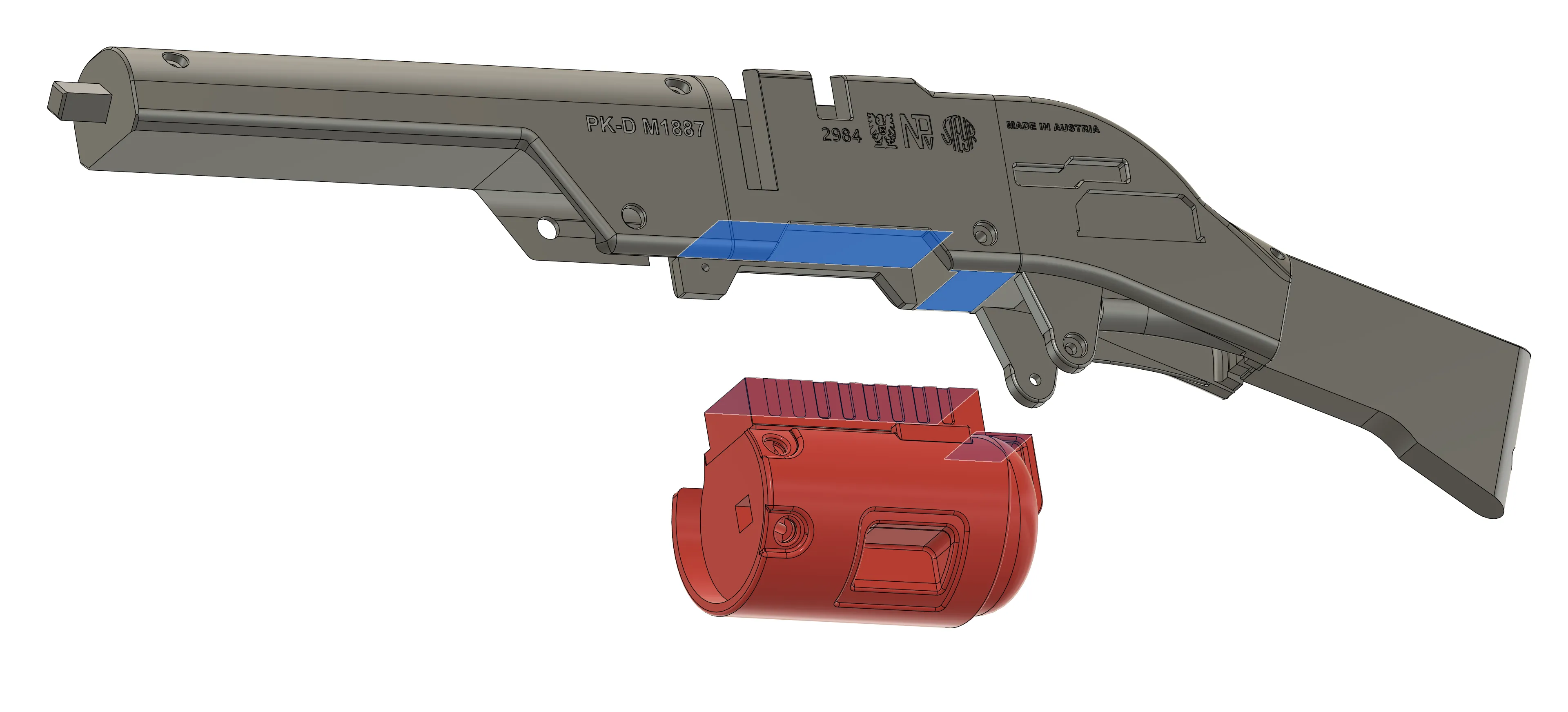

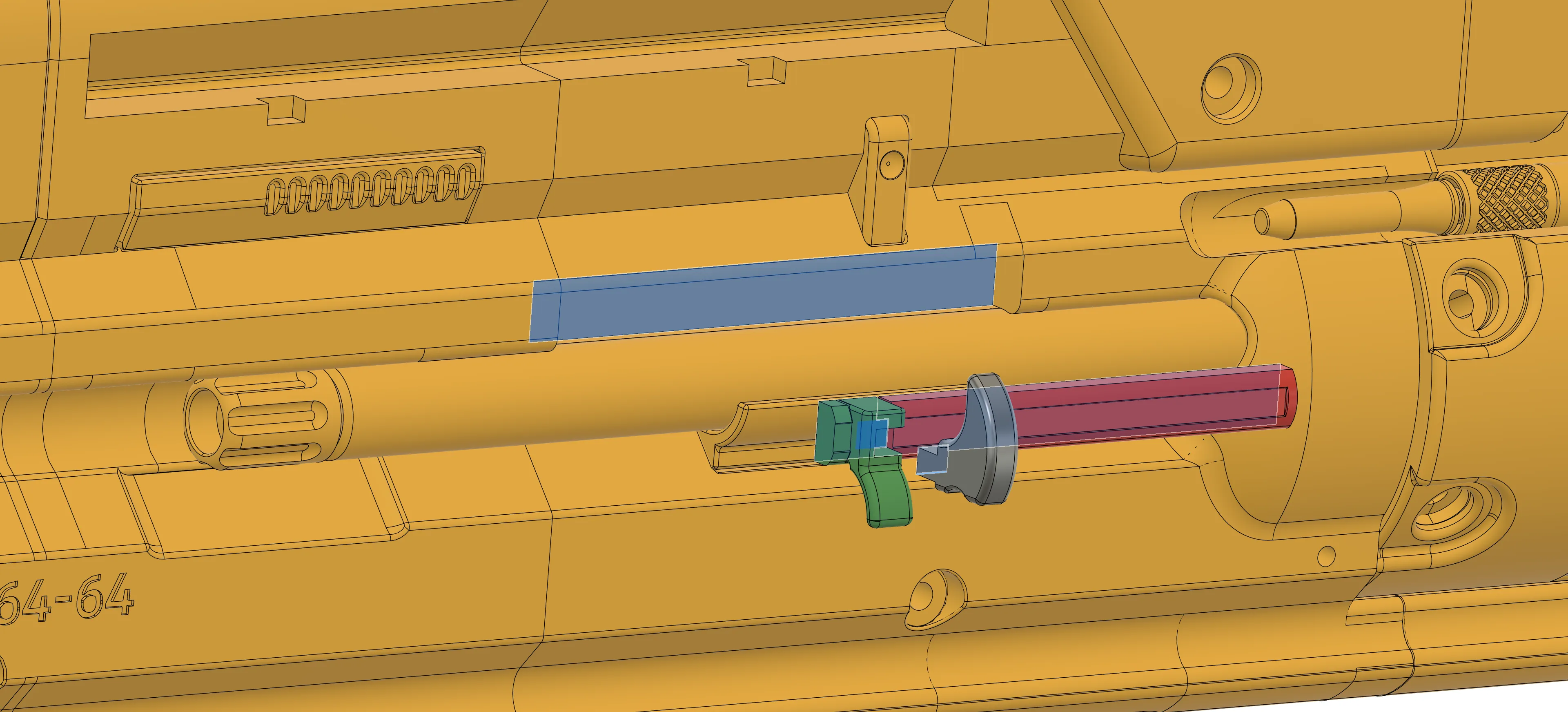

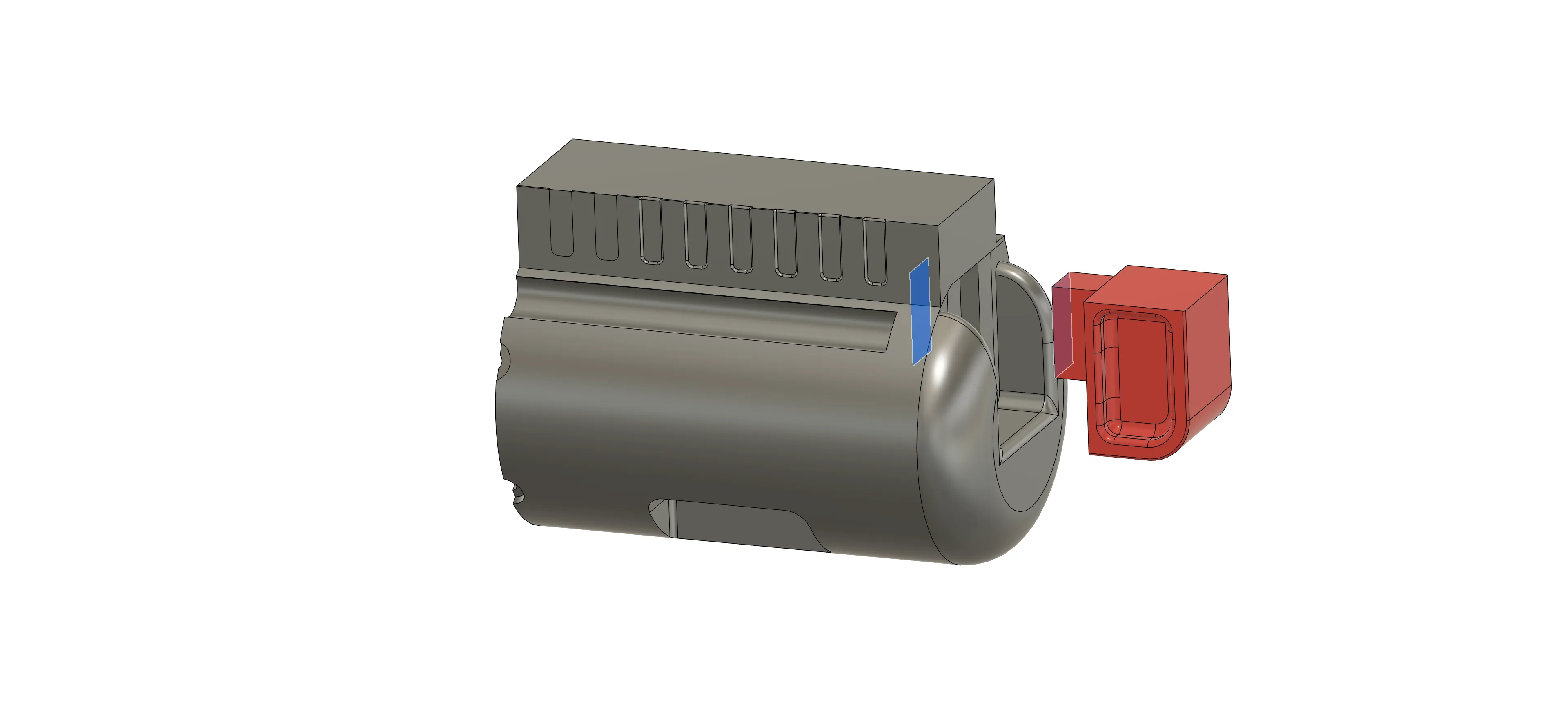

do not glue the blue marked part yet after placement!

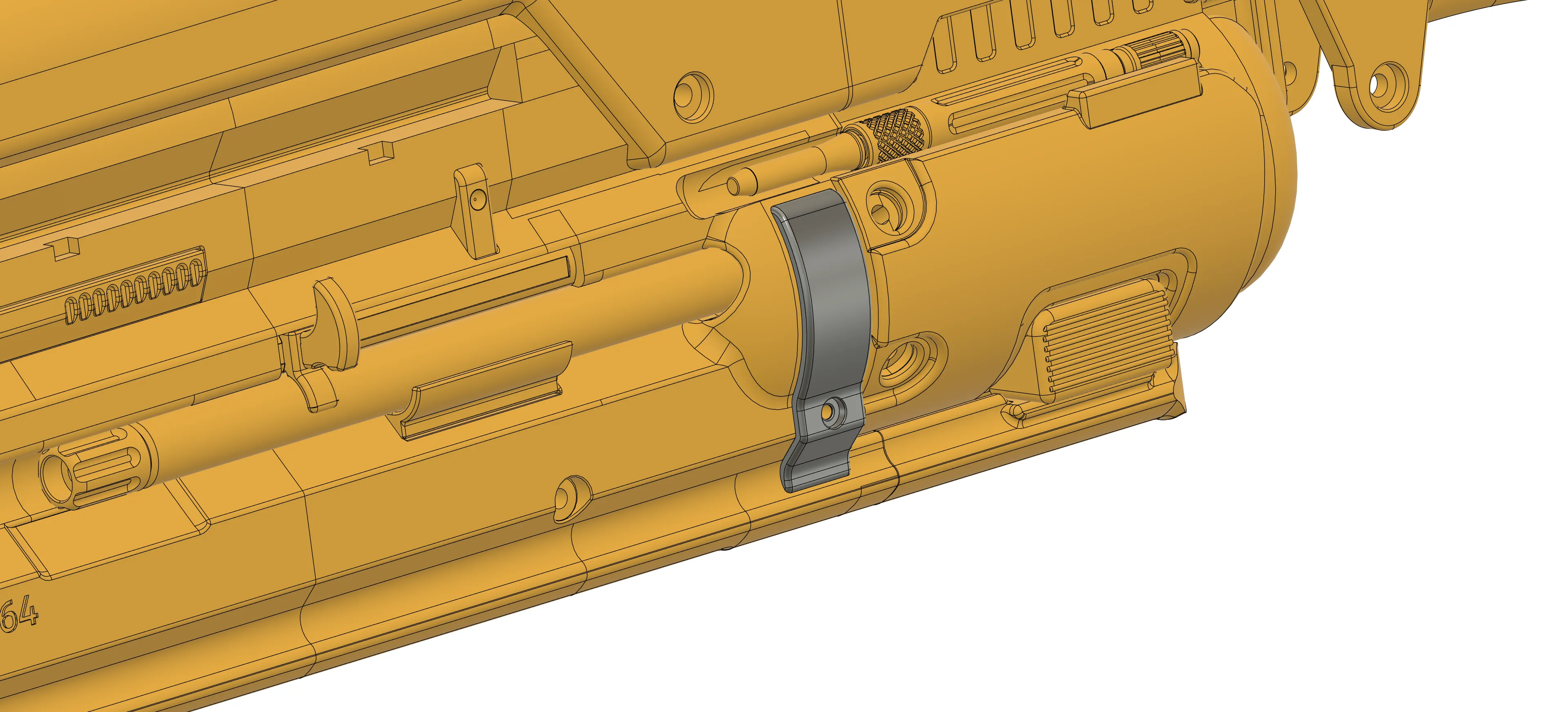

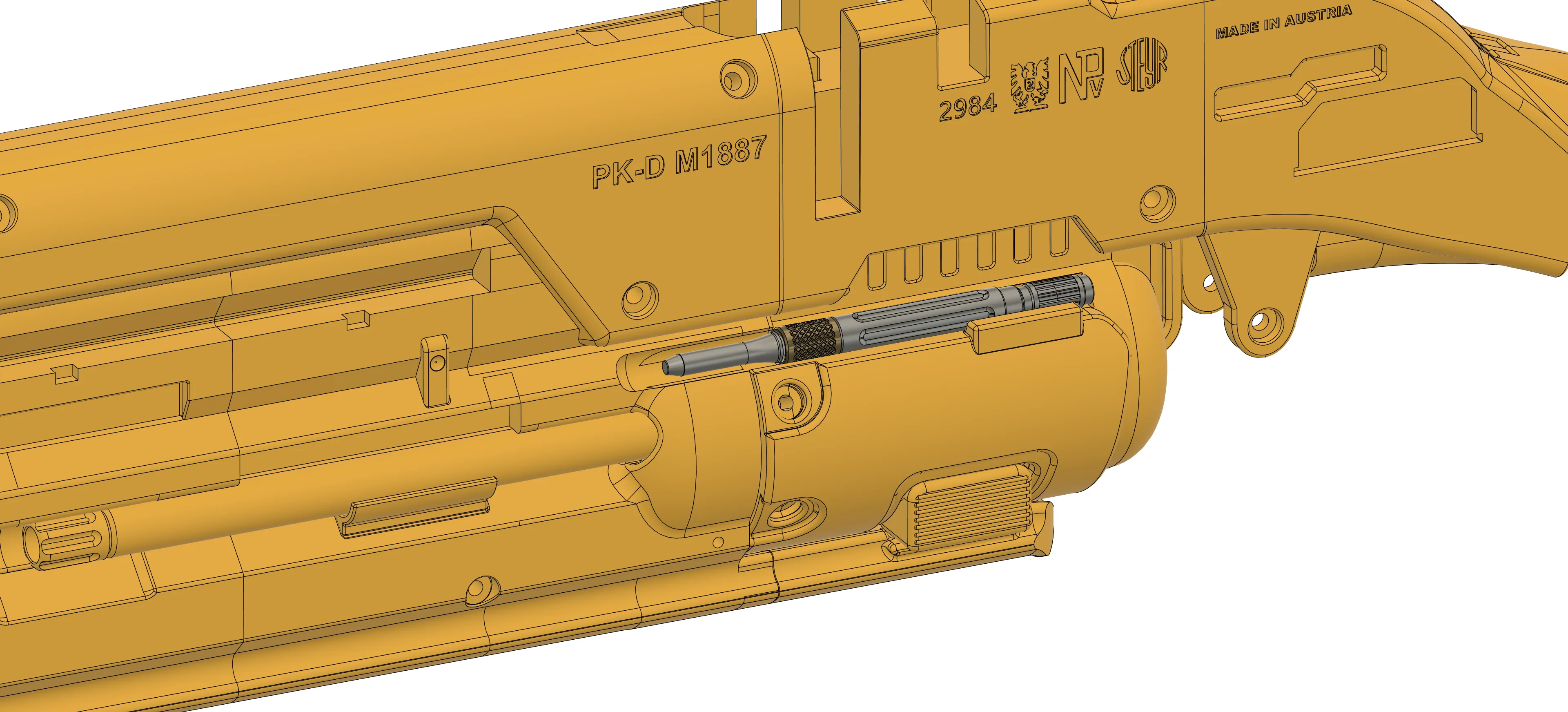

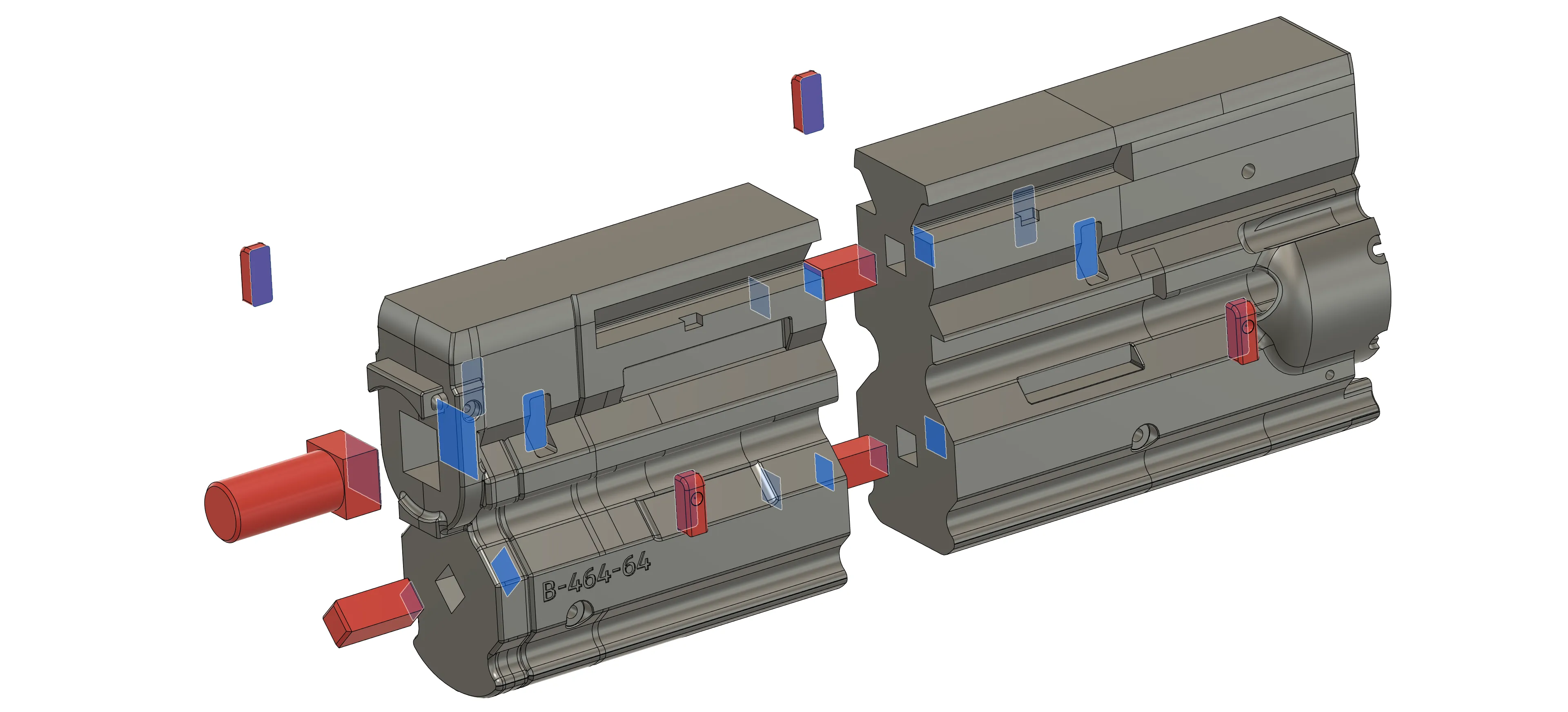

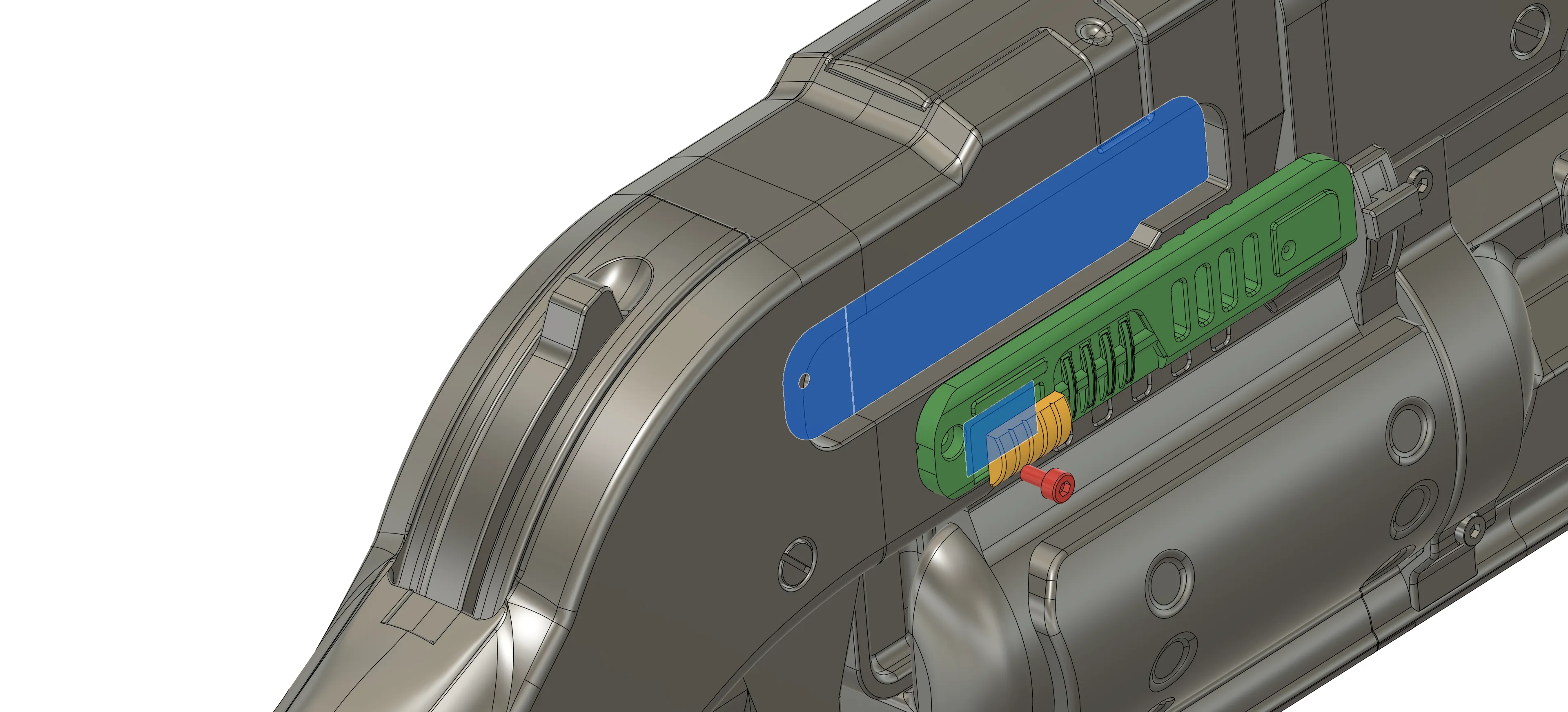

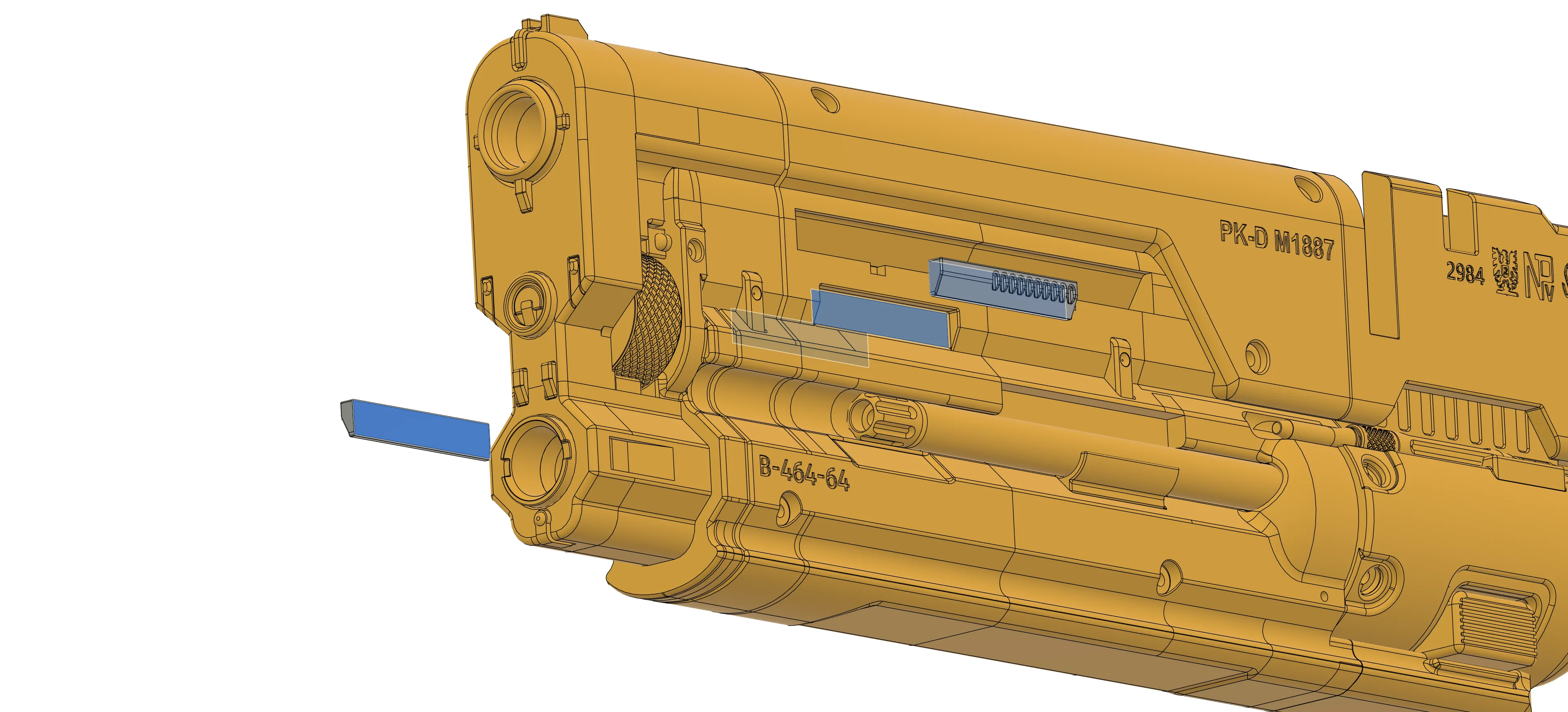

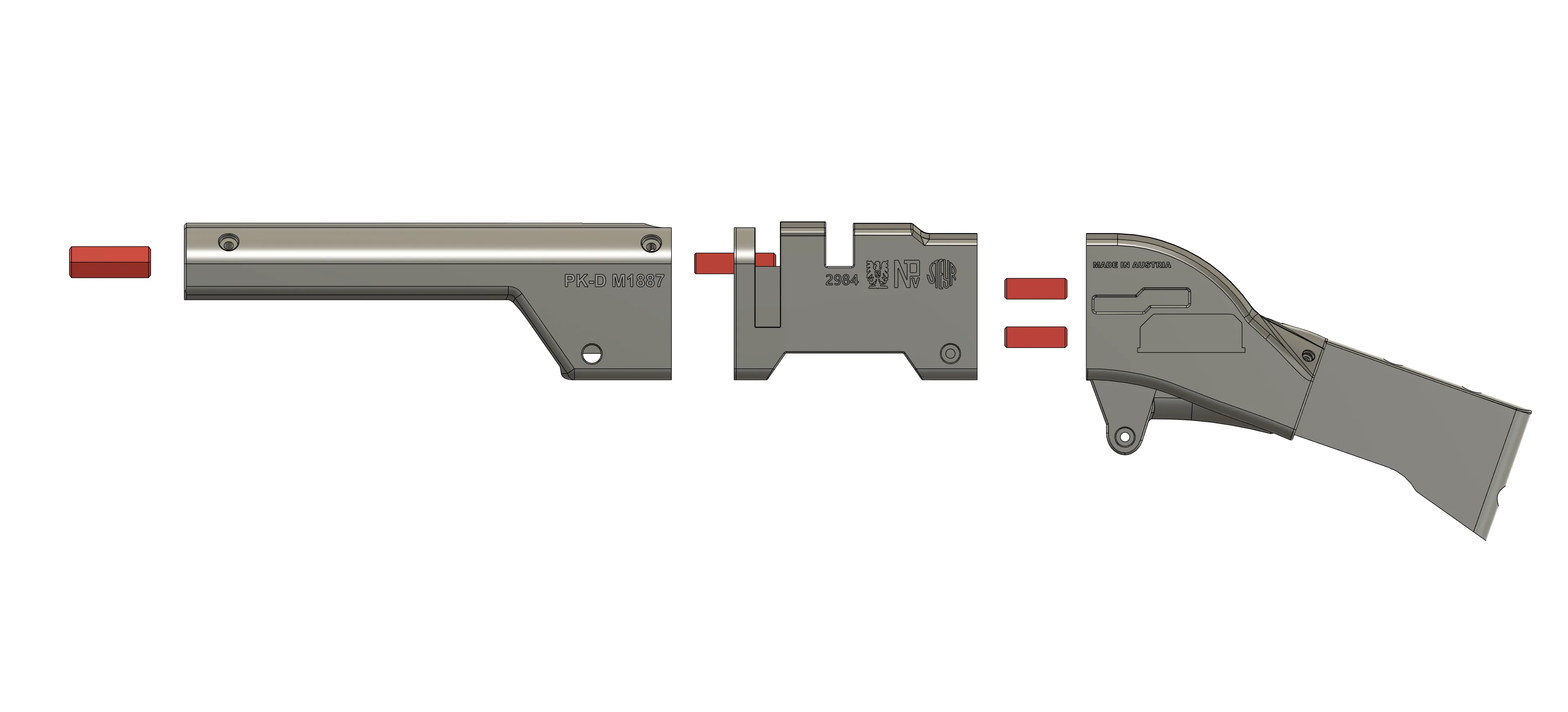

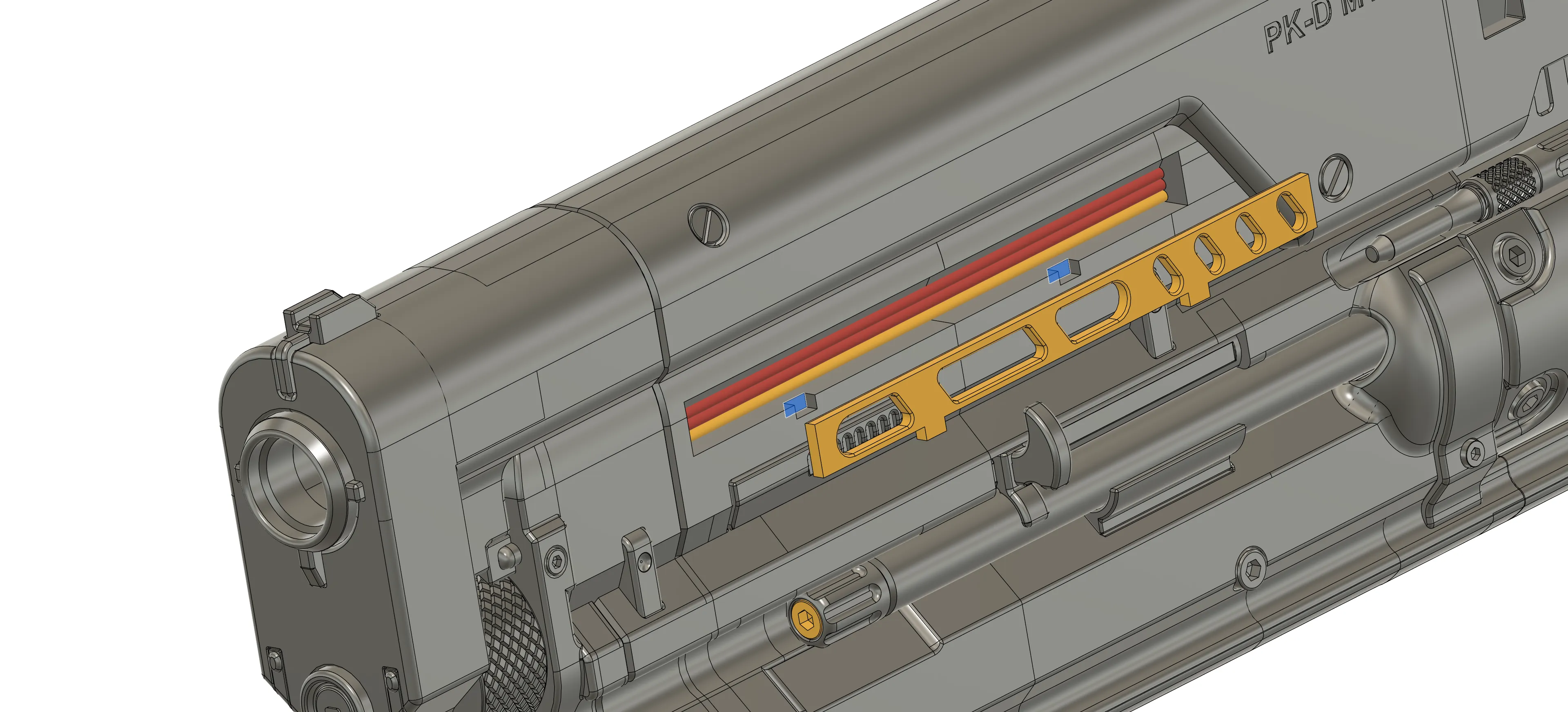

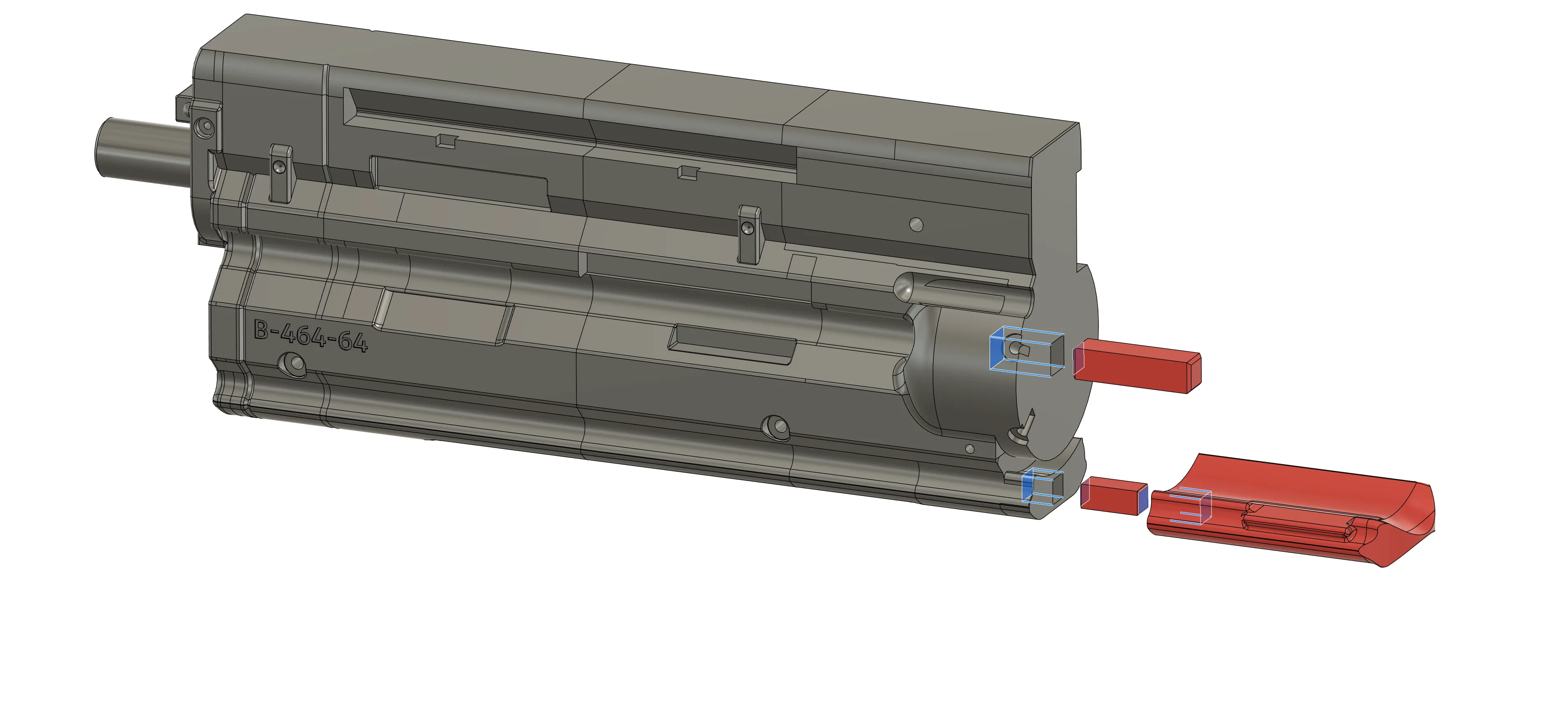

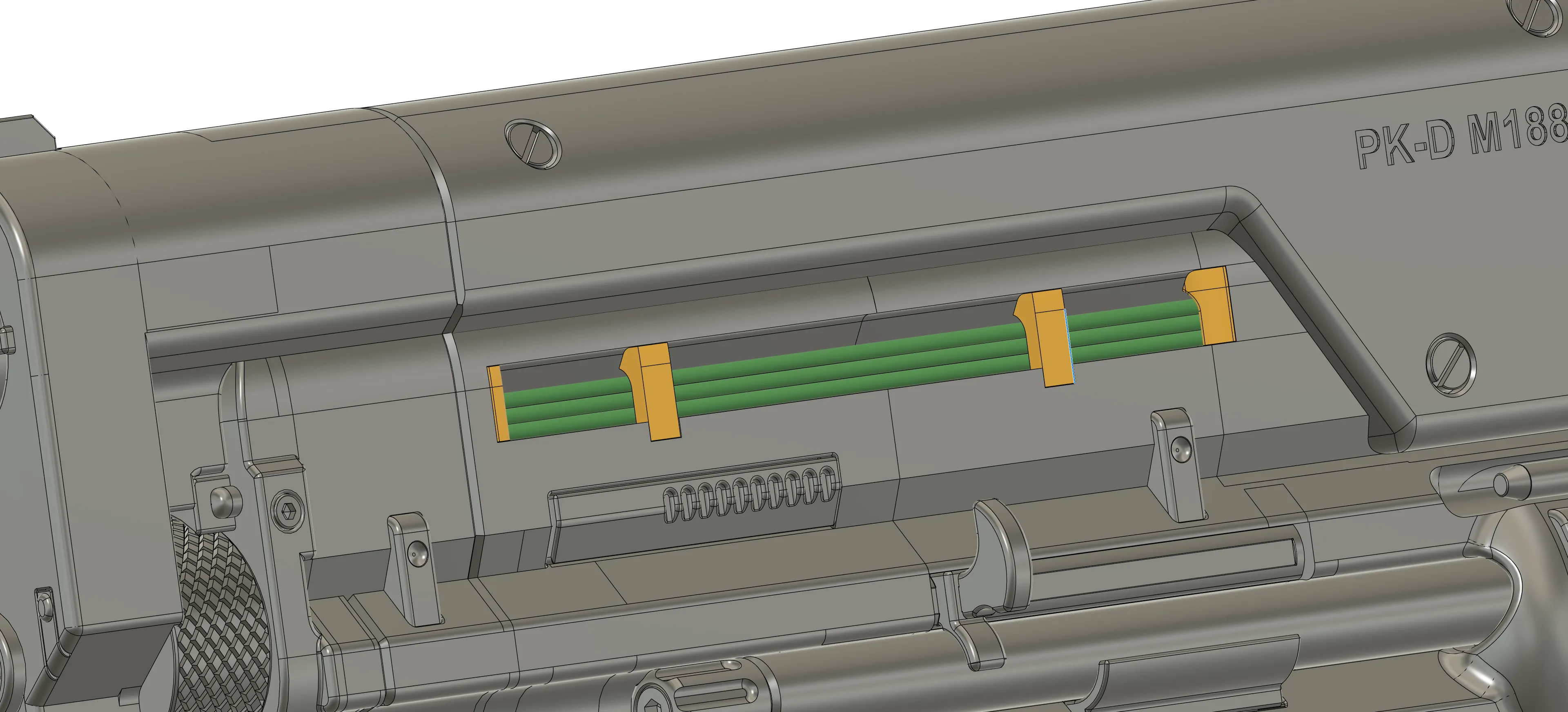

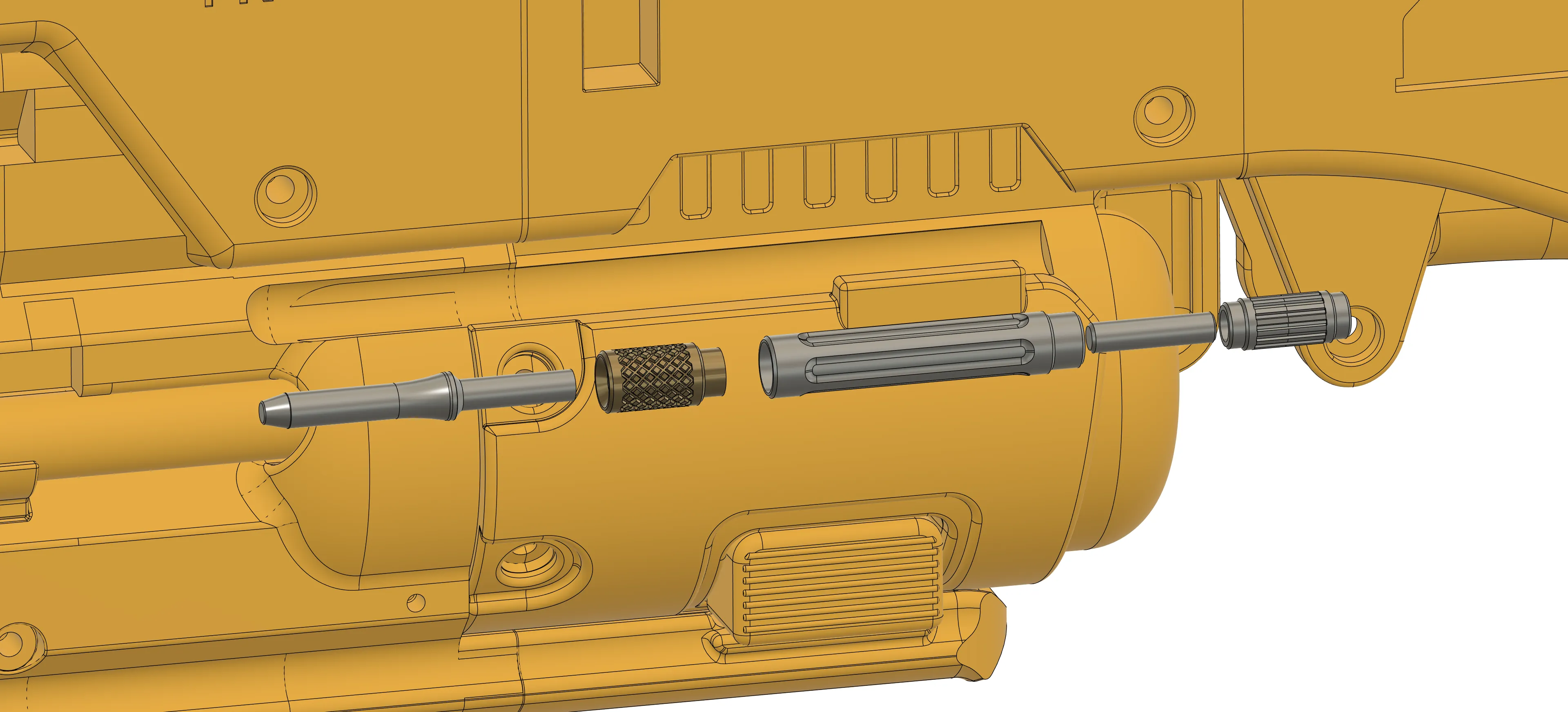

the stripes or rods are just visual helps to show where to put the cables before adding the desired parts shown down below ( i added custom cable covers its on you wich one you want to use)

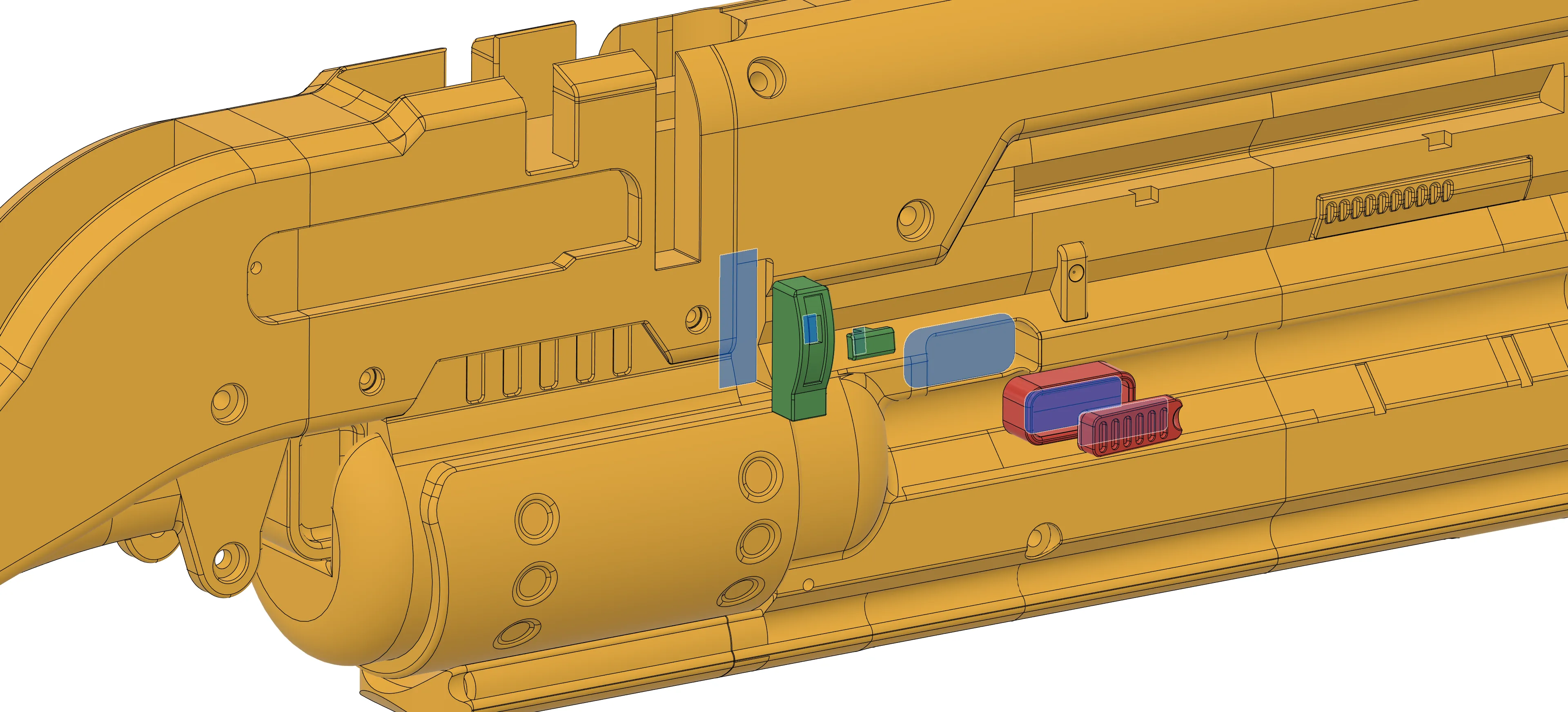

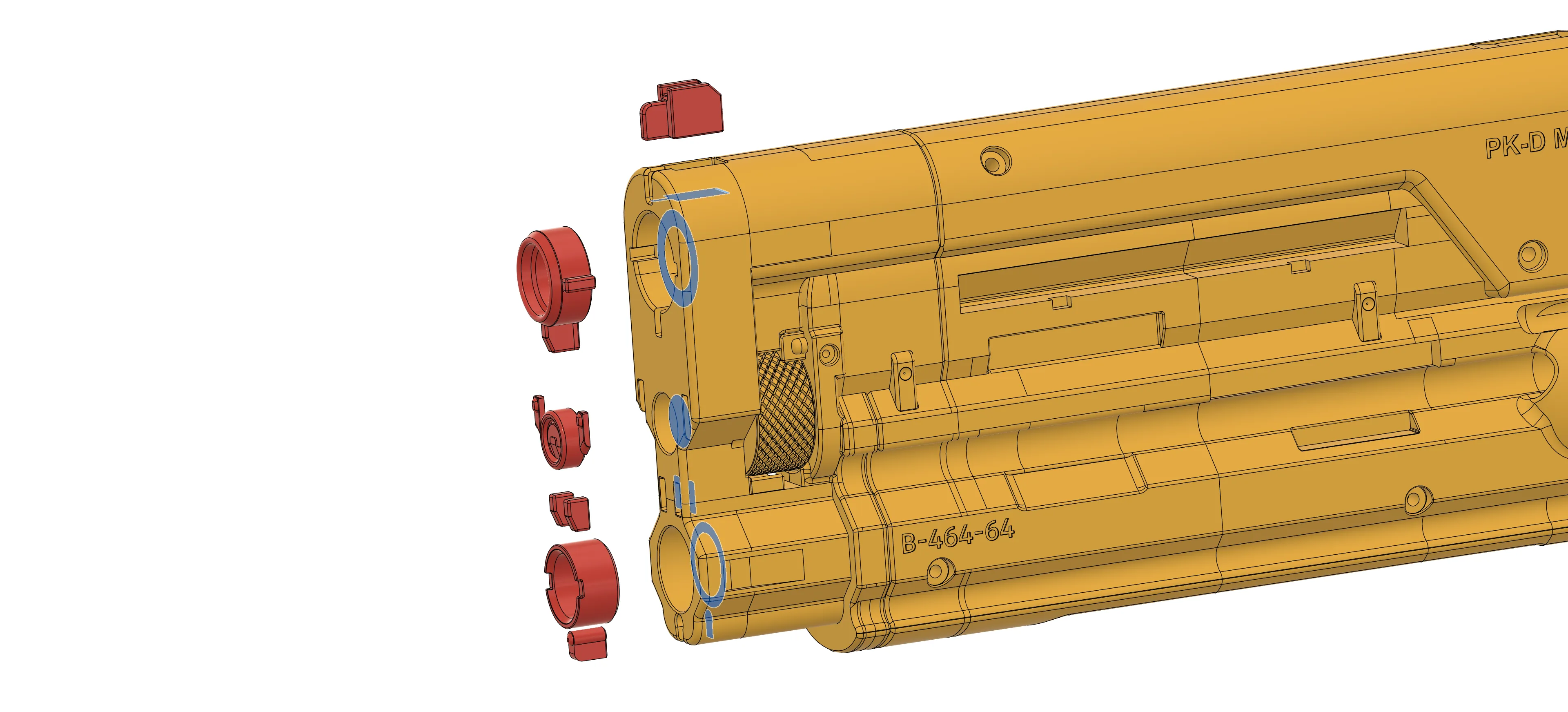

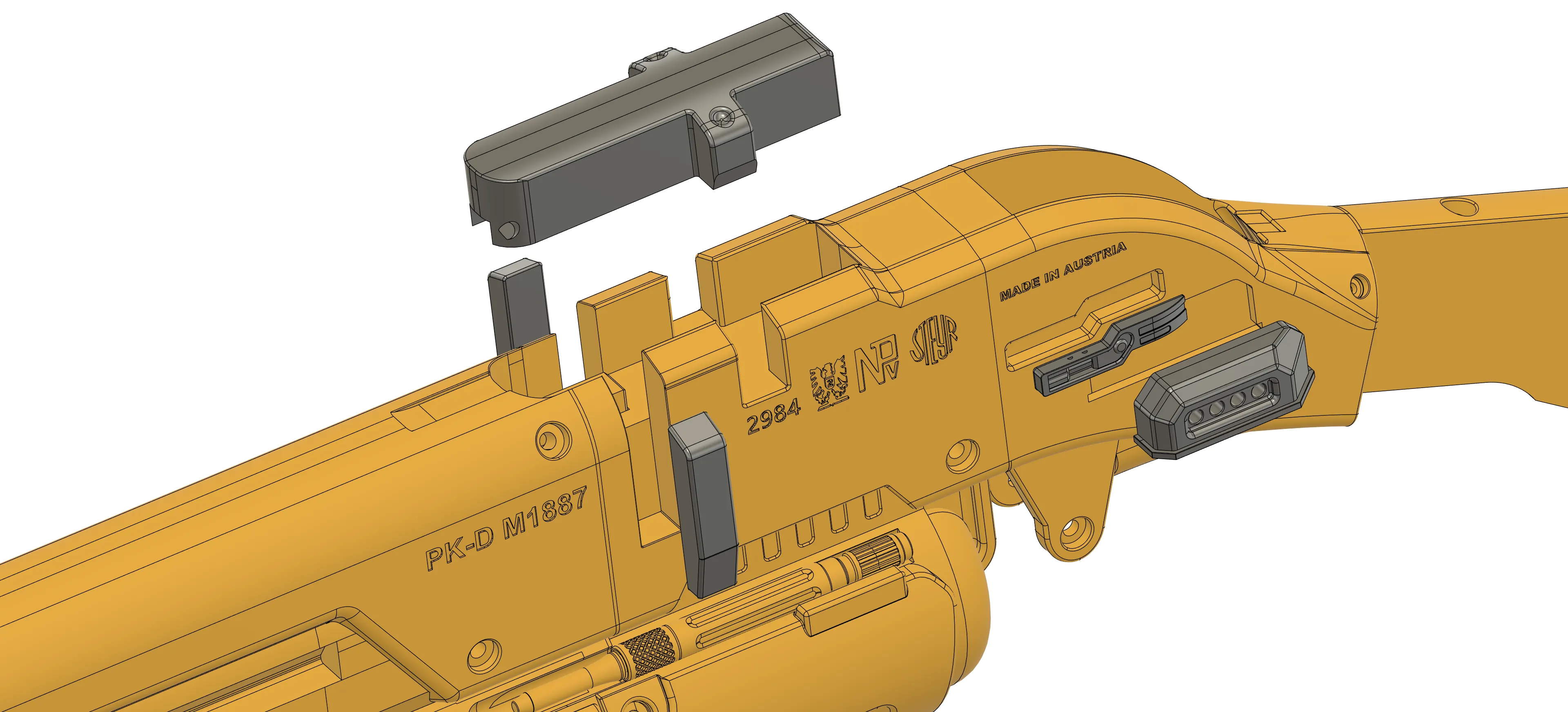

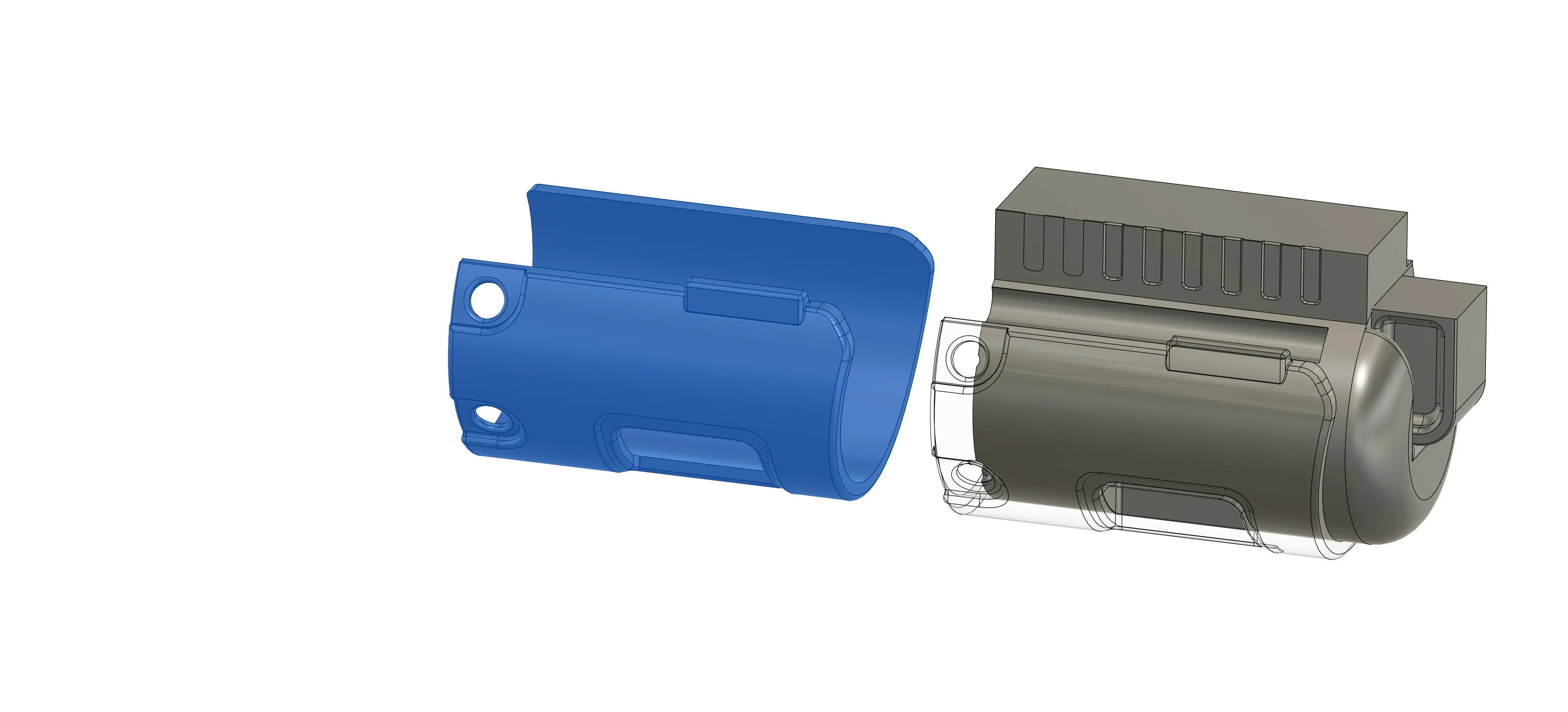

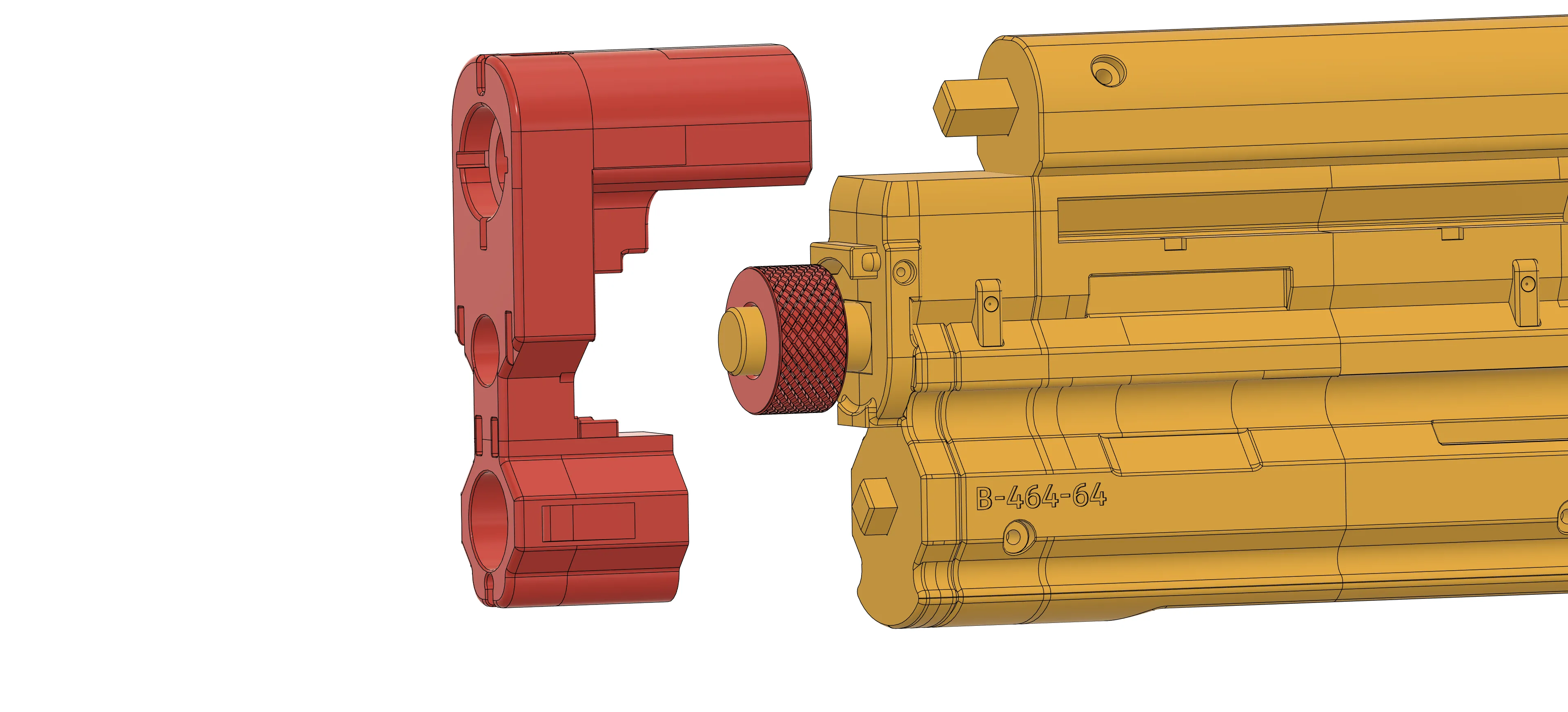

the pieces down below are matching more the version from the cgi anime series
