V2 Radius Guide 10-110mm + Gridfinity Holders

NEW VERSION V2 of my Radius guide for woodworking.

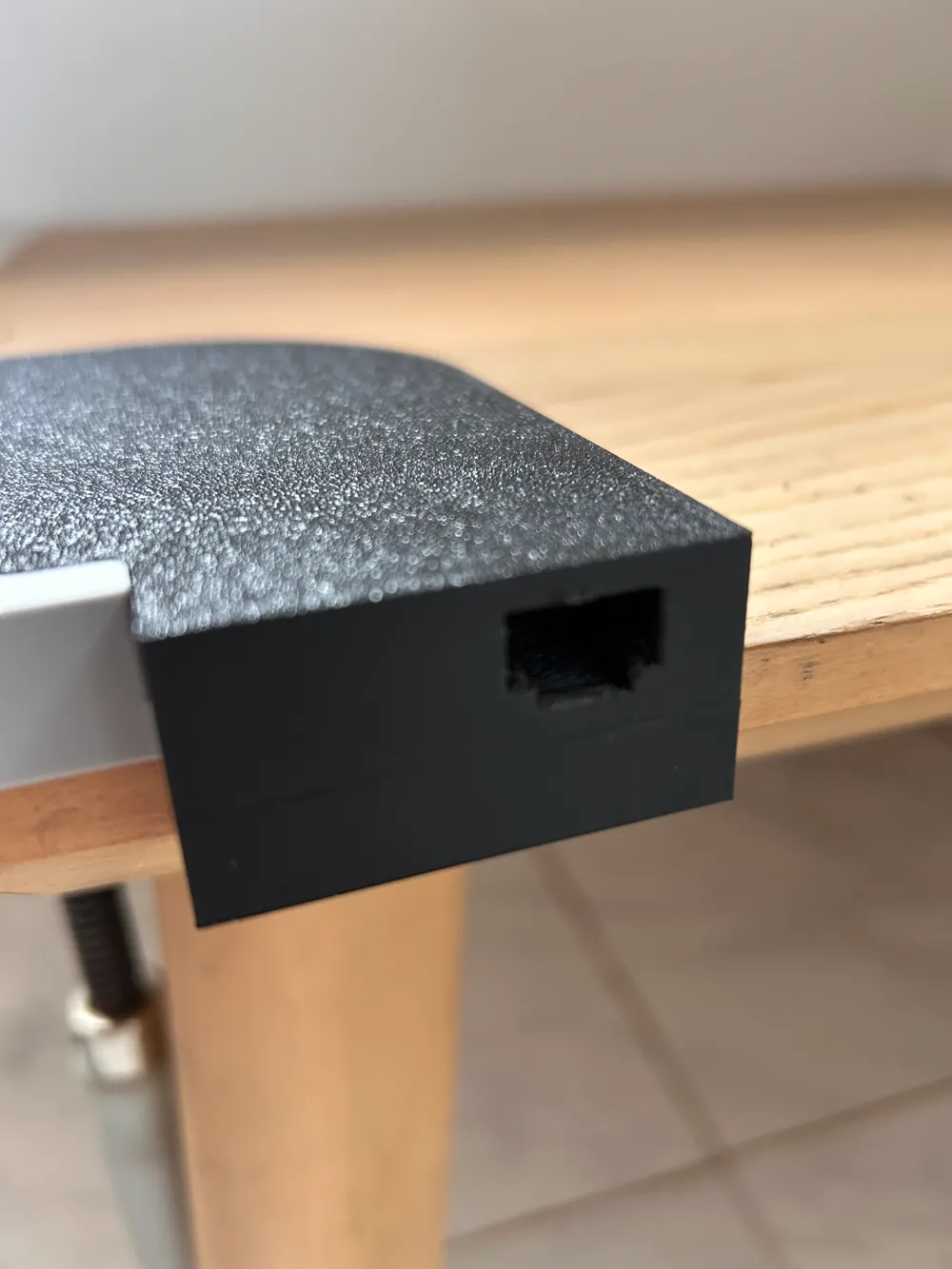

Now with grooves to use with tracksaw clamps (the model is thicker than V1 to fit grooves)

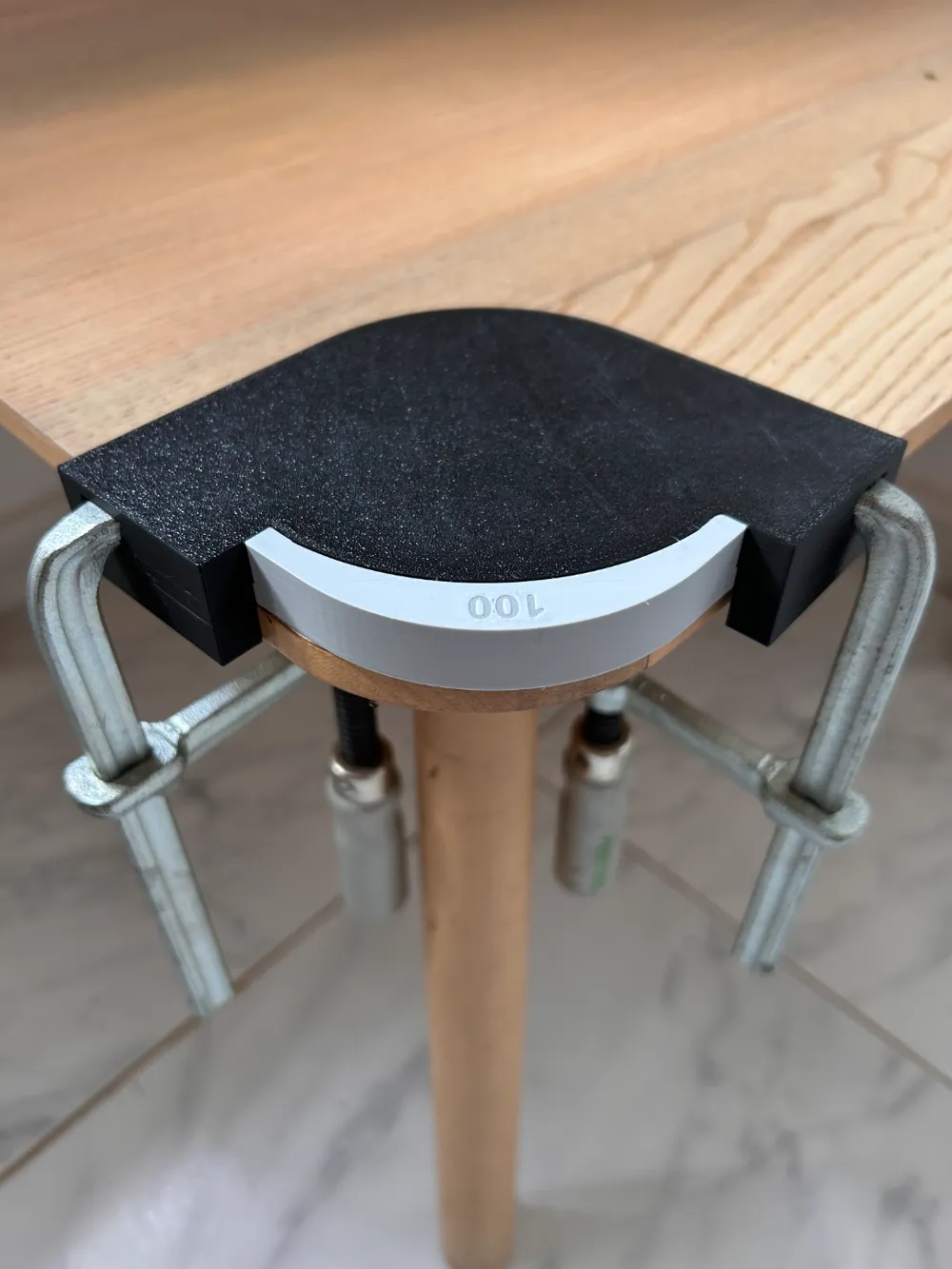

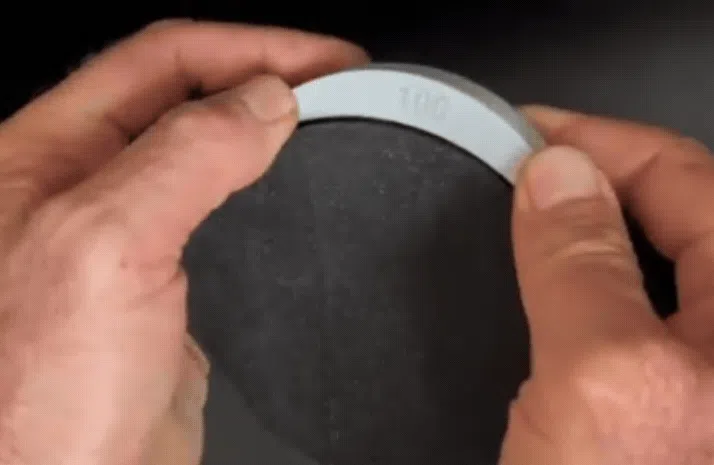

Elements from 10 to 110mm, easily snap-fit.

The file includes the 'gridfinity' storage box for radius and for main body, i also put gidfinity grids (42x42mm)

The guides are marked on the last layer, which you can print in a different color.

I printed all in PLA 0.2 layer for main body and radius, 0.28 for gridfinity elements

The main body is reinforced under clamp grooves in print profile

Note:

• for those who already print V1 gridfinity holder, no need to print the new one, it's the same
• Main body is printing with supports for clamp grooves, they can be tricky to remove, you can use 6mm chisel  it fit perfectly
