Pancake Nema Mounts Easythreed K9 Max UltraProPlus

There I was looking forward to constructing my very own Easythreed K9 Max Ultra Pro Plus. When suddenly I realised I had ordered the wrong shape of motor.

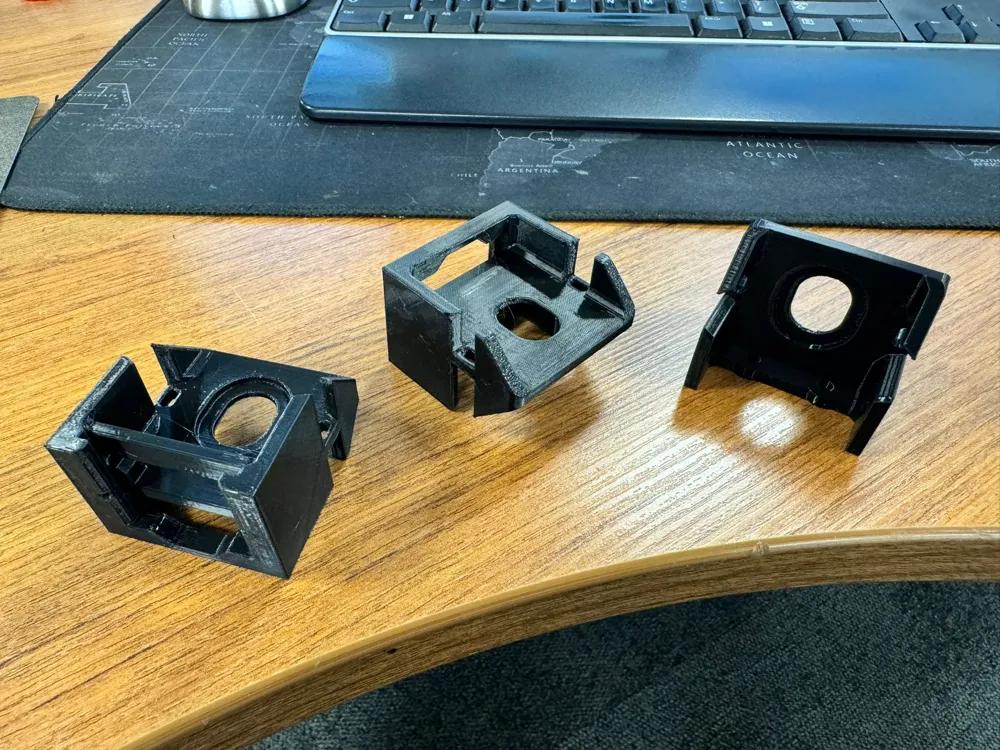

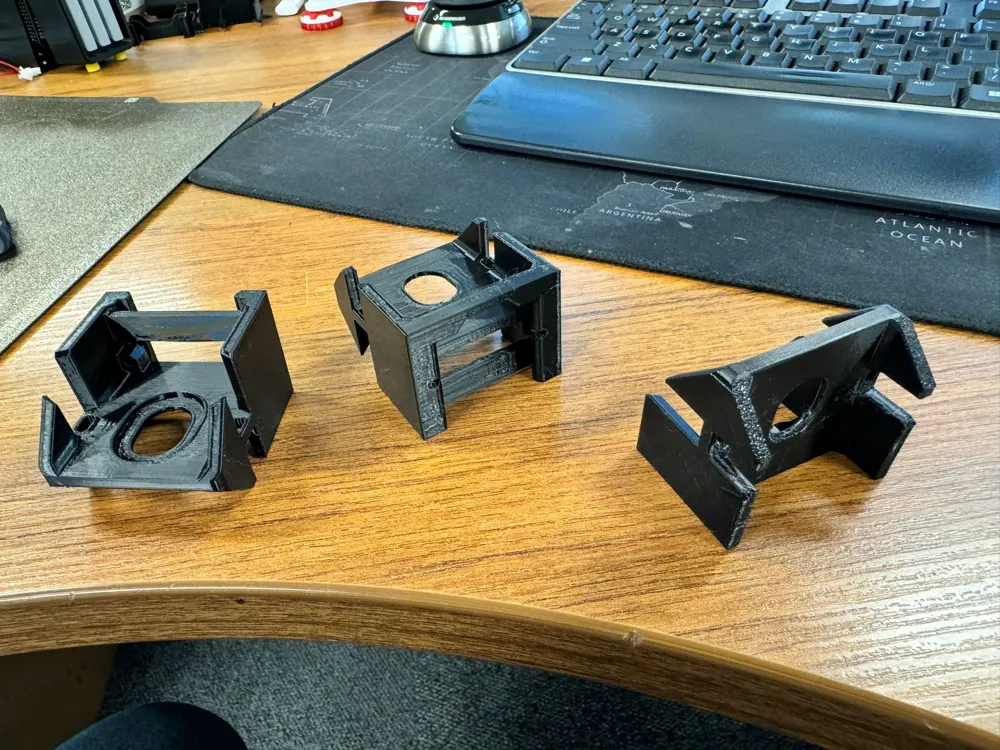

The cheapest NEMA14 motors I found on AliExpress were these, (6BYG1204-A-6QHT), which of course do not have the same mounting holes as the regular square type. So instead of returning them I did what any self respecting 3D printing person would do, and changed up the model to fit this other type of stepper. Fortunately not too much change was needed, I did have to cut into the side rib so this will affect strength but I printed them with 6 walls and 50% infill so unless the motor melts I doubt anything will happen to them.

Big ups to Made with Layers (Thomas Sanladerer) for the original models (and the insane idea of doing something this stupid):

I actually like this printer because it's great travel size

I am planning to make more modifications, when I do I'll add them to this listing.
