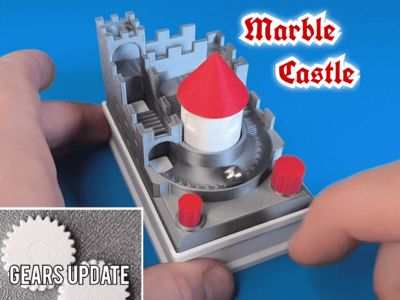

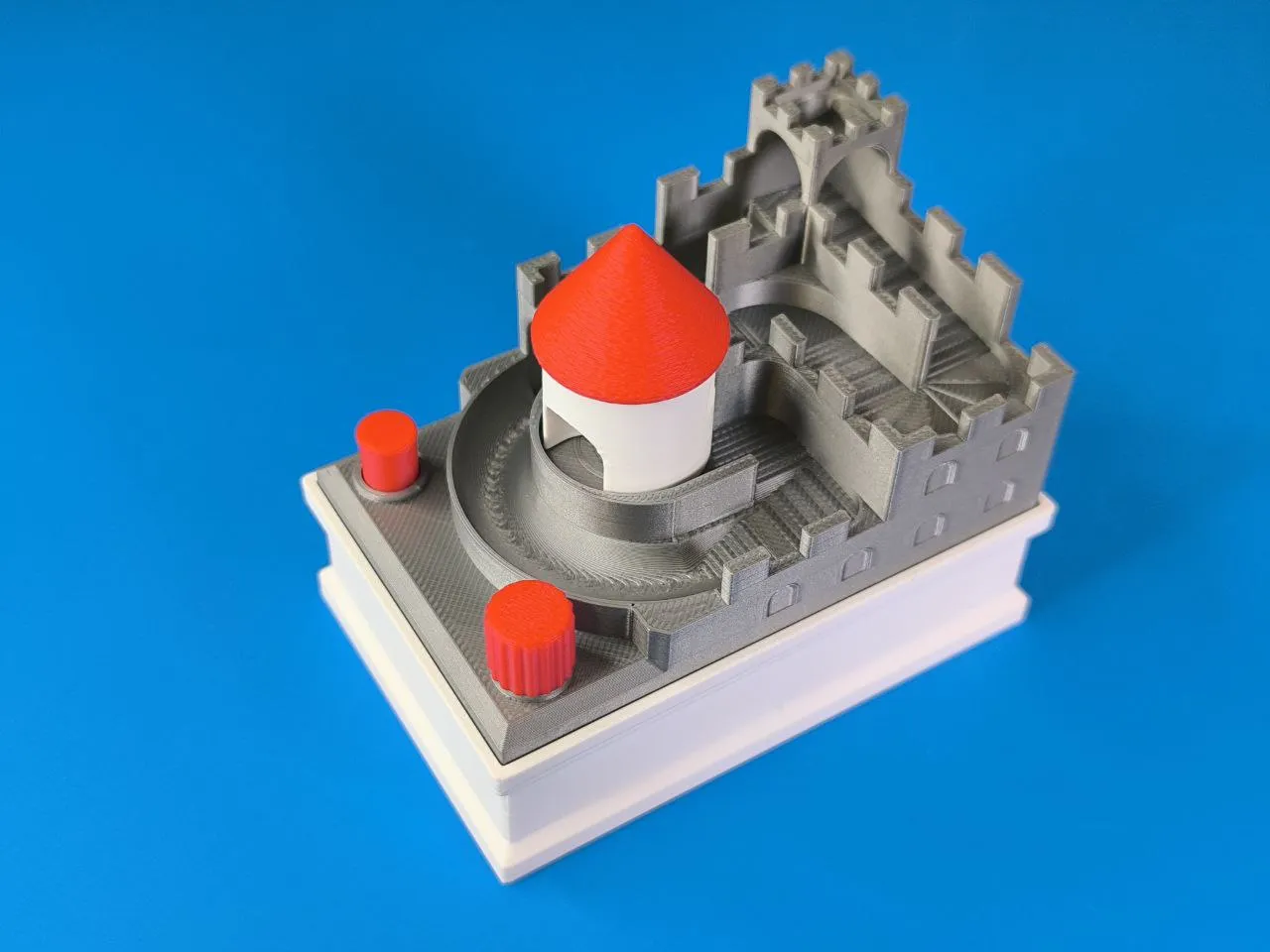

Marble Castle is a functional, easy printable Toy for your Desk.

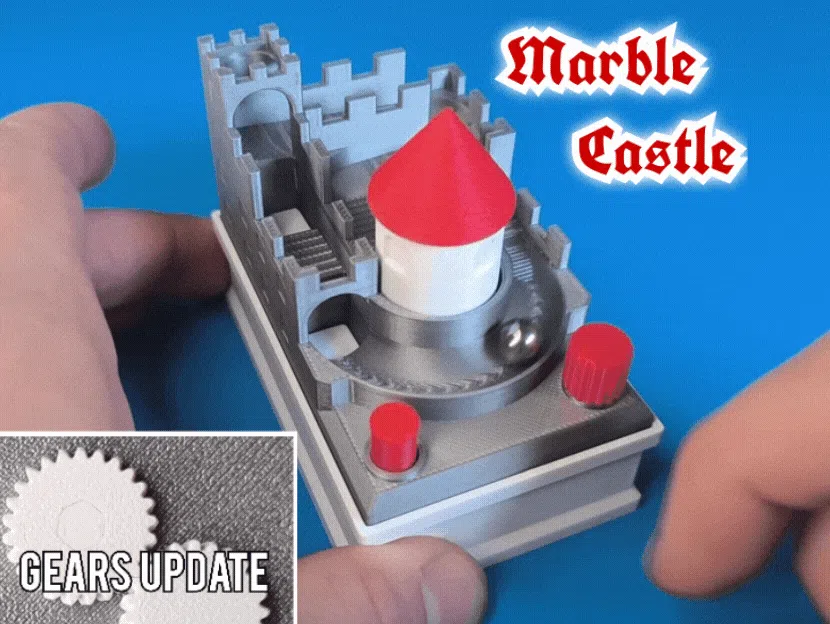

Push the Button to let the marble climb the stairs and turn the knob to rotate the house so the ball goes further.

New Update V3 with Gears! Old Version in RAW Files

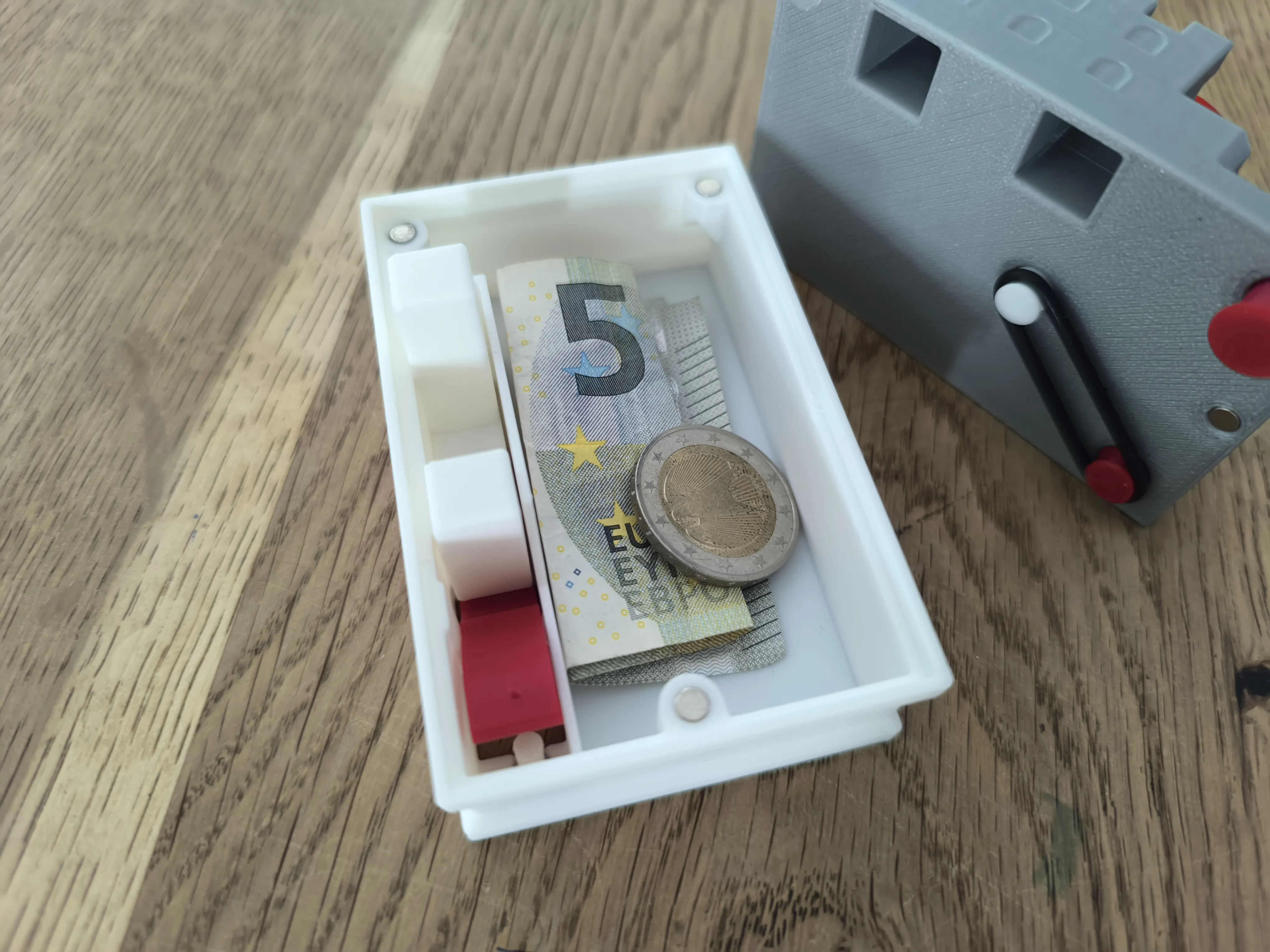

If you use magnets you get also a secret Compartment

What you need to assembly:

Ø7mm-Ø10mm marble/steelball
optional 6 pieces Ø4x 2mm magnets
optional Spring Ø5x25 (works without spring through gravity, but more fun with spring)

All needed non printed Parts are included in the Maker's Beginner Kit, choose the Kit or individual parts if you buy through Maker Supply.

Assembly

Insert 6pcs 4x2 Magnets and make sure the polarity is correct before apply glue. The magnets in the base and the magnets in the castle should attract each other.

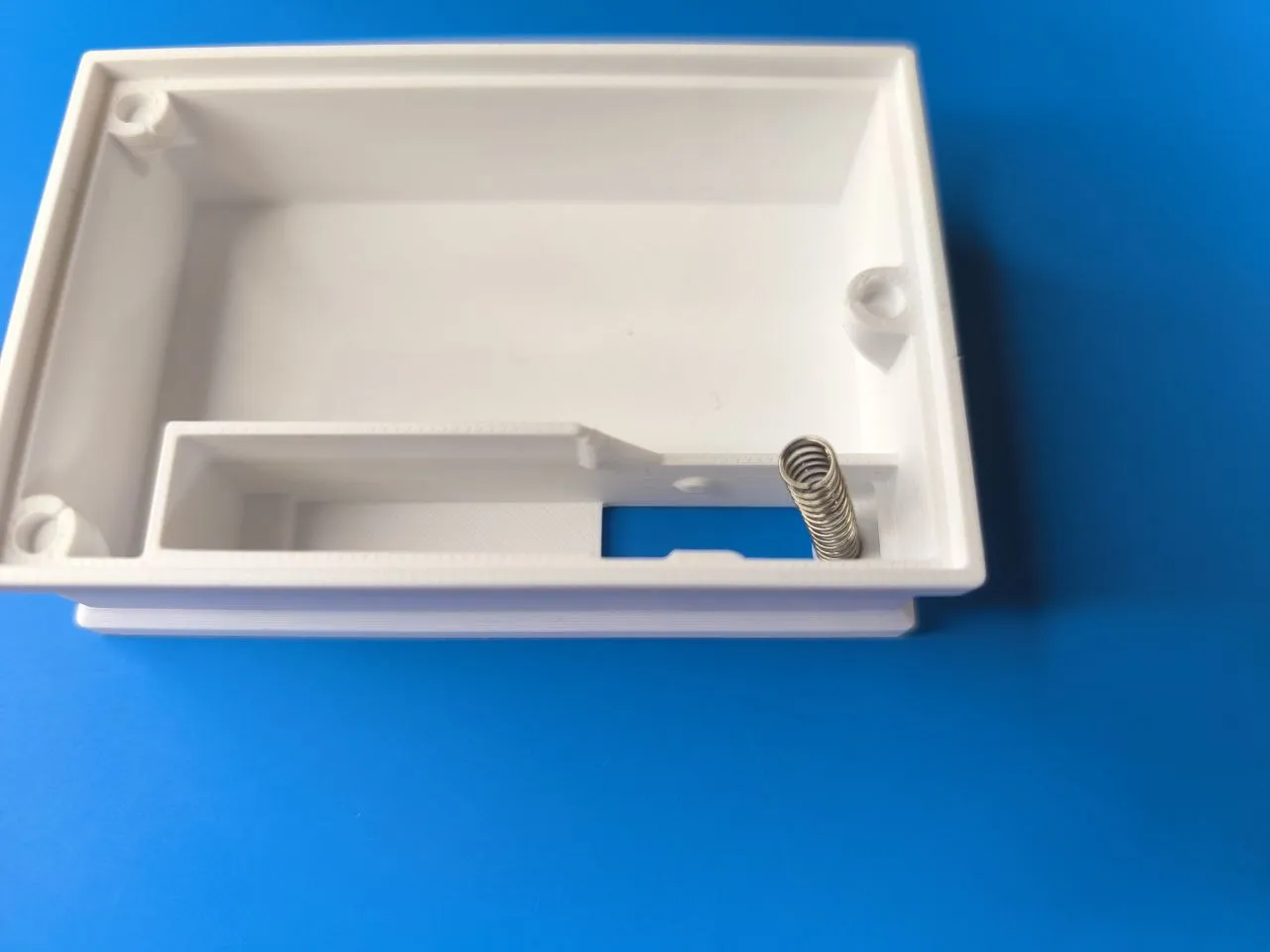

**Insert the Spring** Tip: You can cut the length for preferred resistance

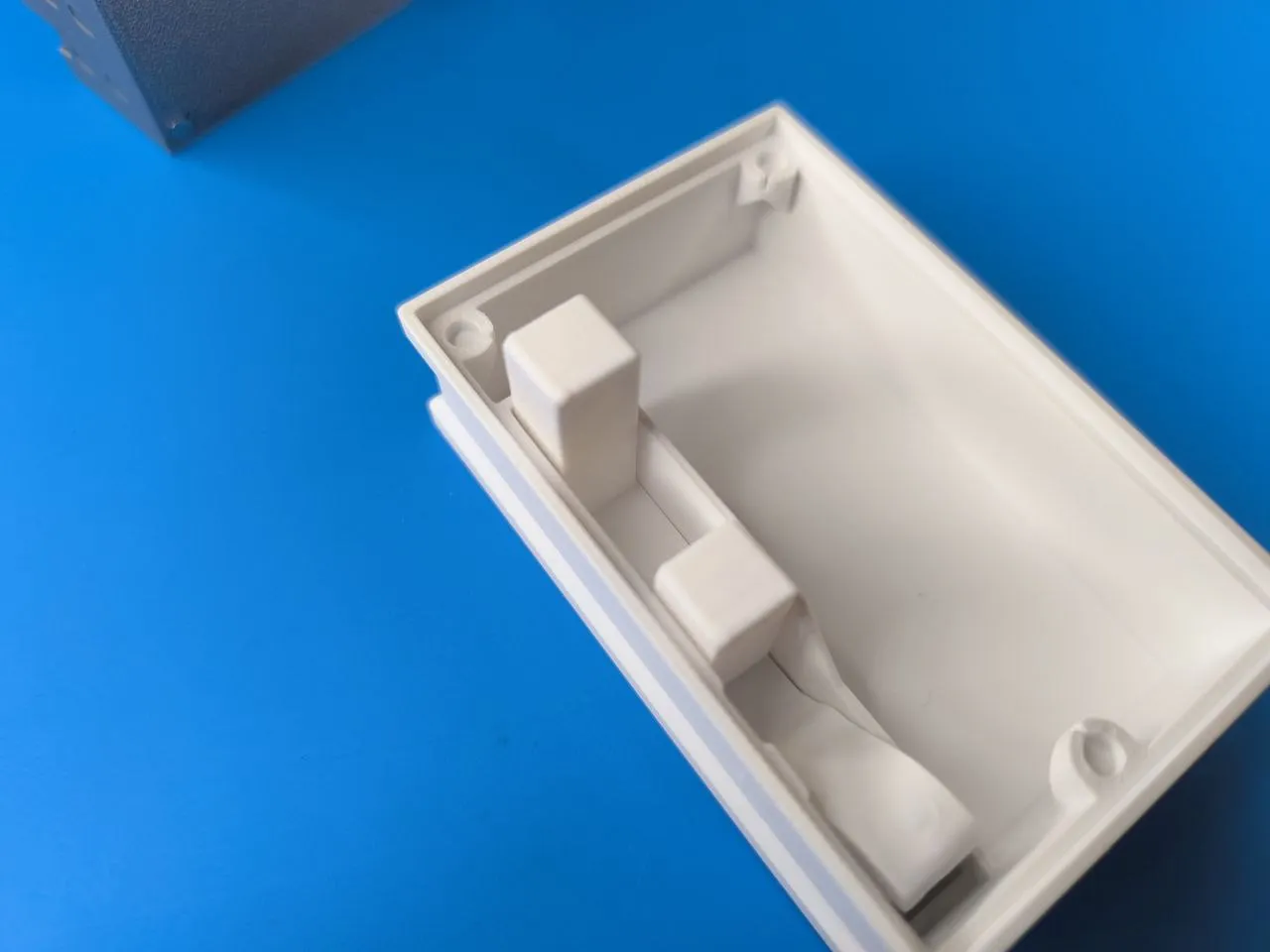

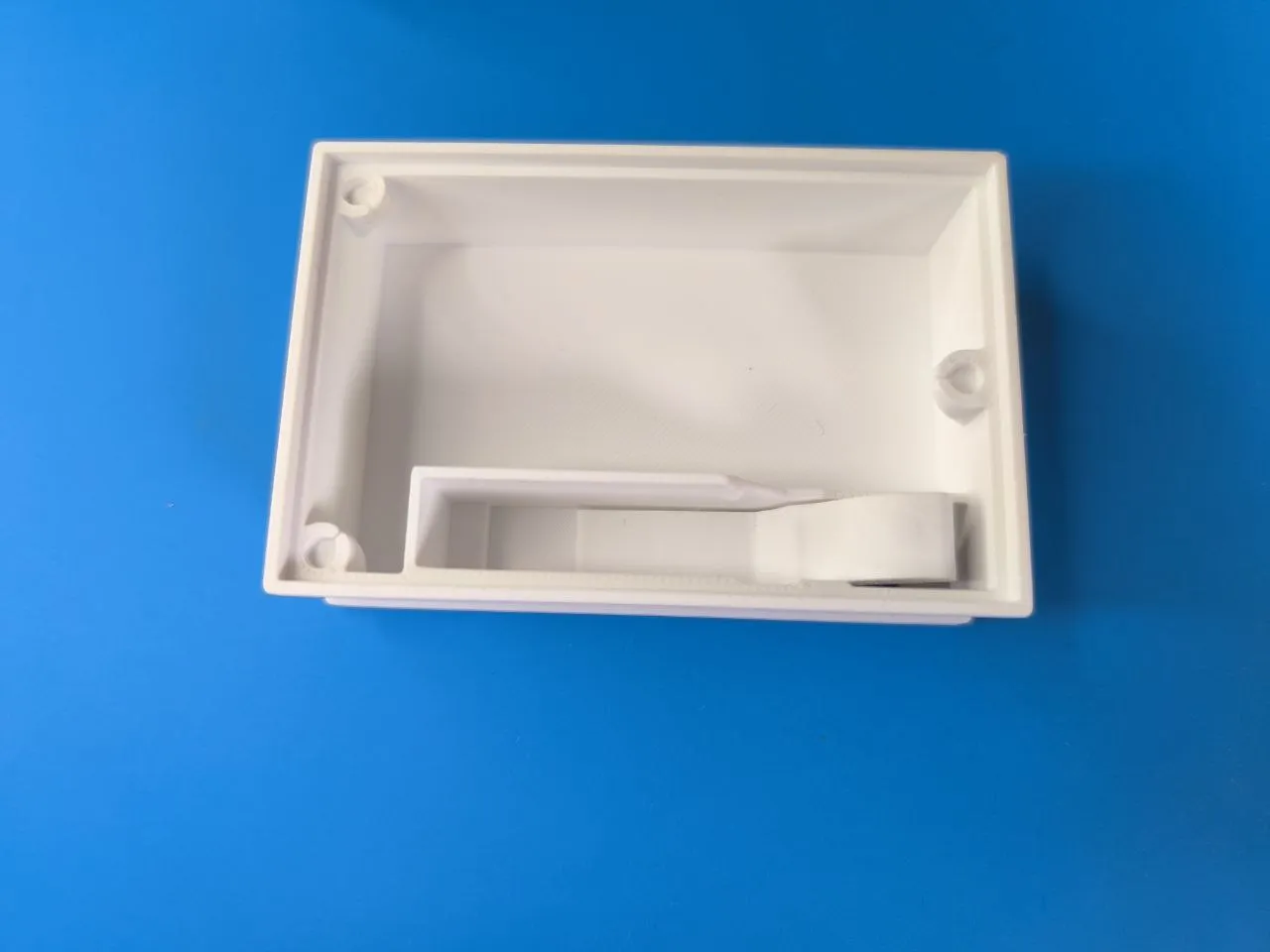

**Push the lever with some force in place**

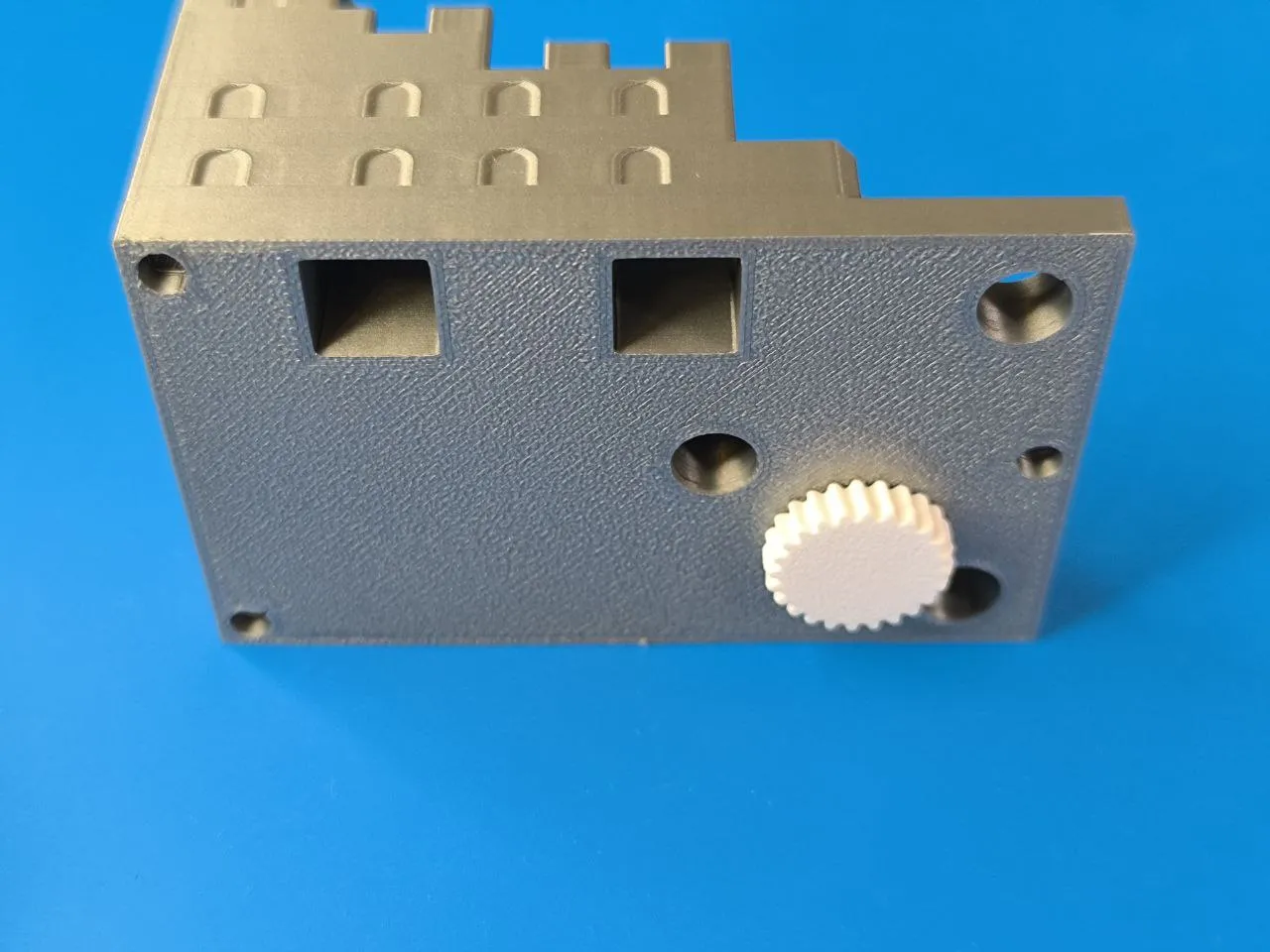

**Press the 24 tooth gear in the second hole as shown**

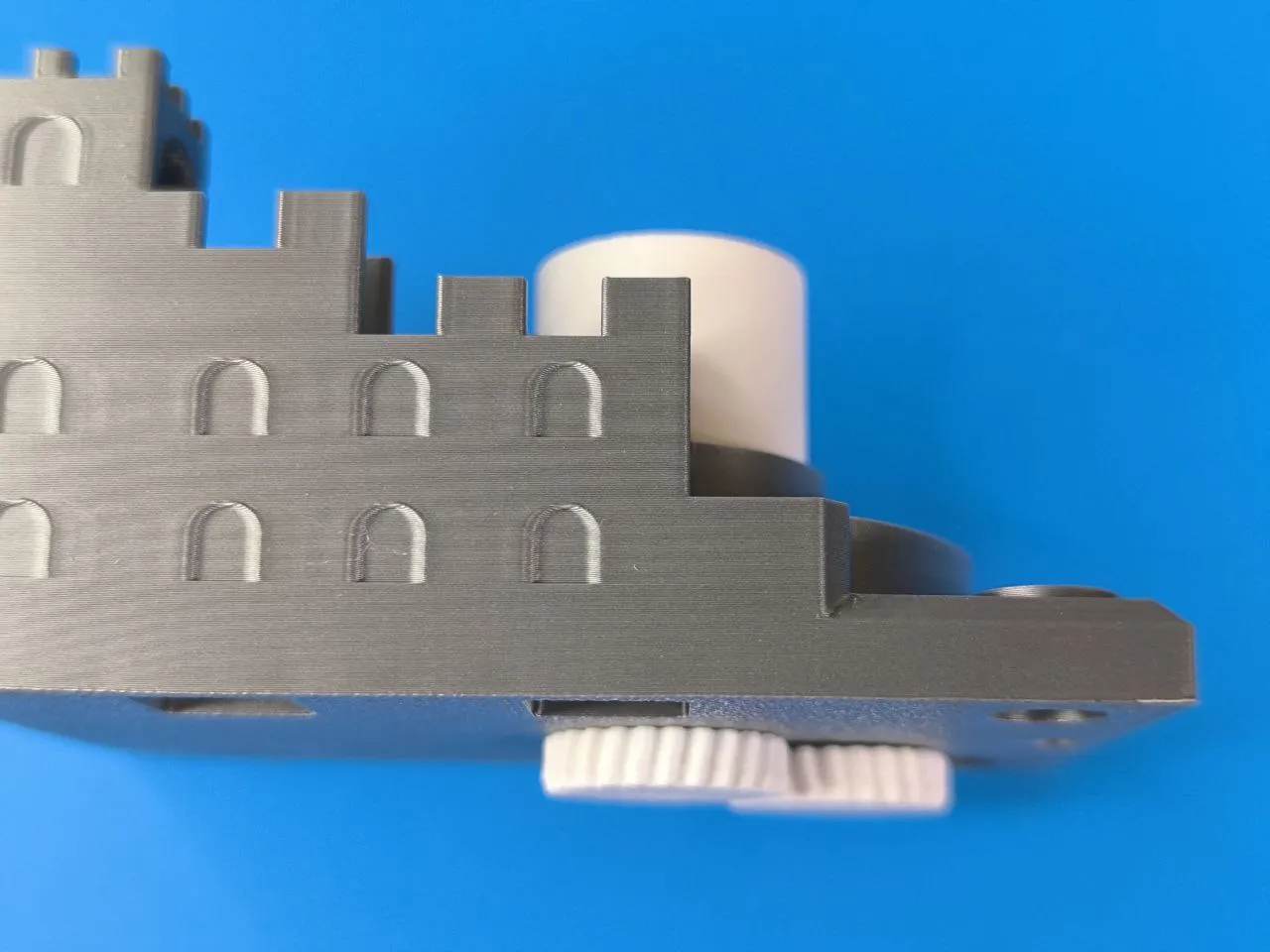

**Take the house and push it into the hole than press the 25 tooth gear to the hexagon shaft**

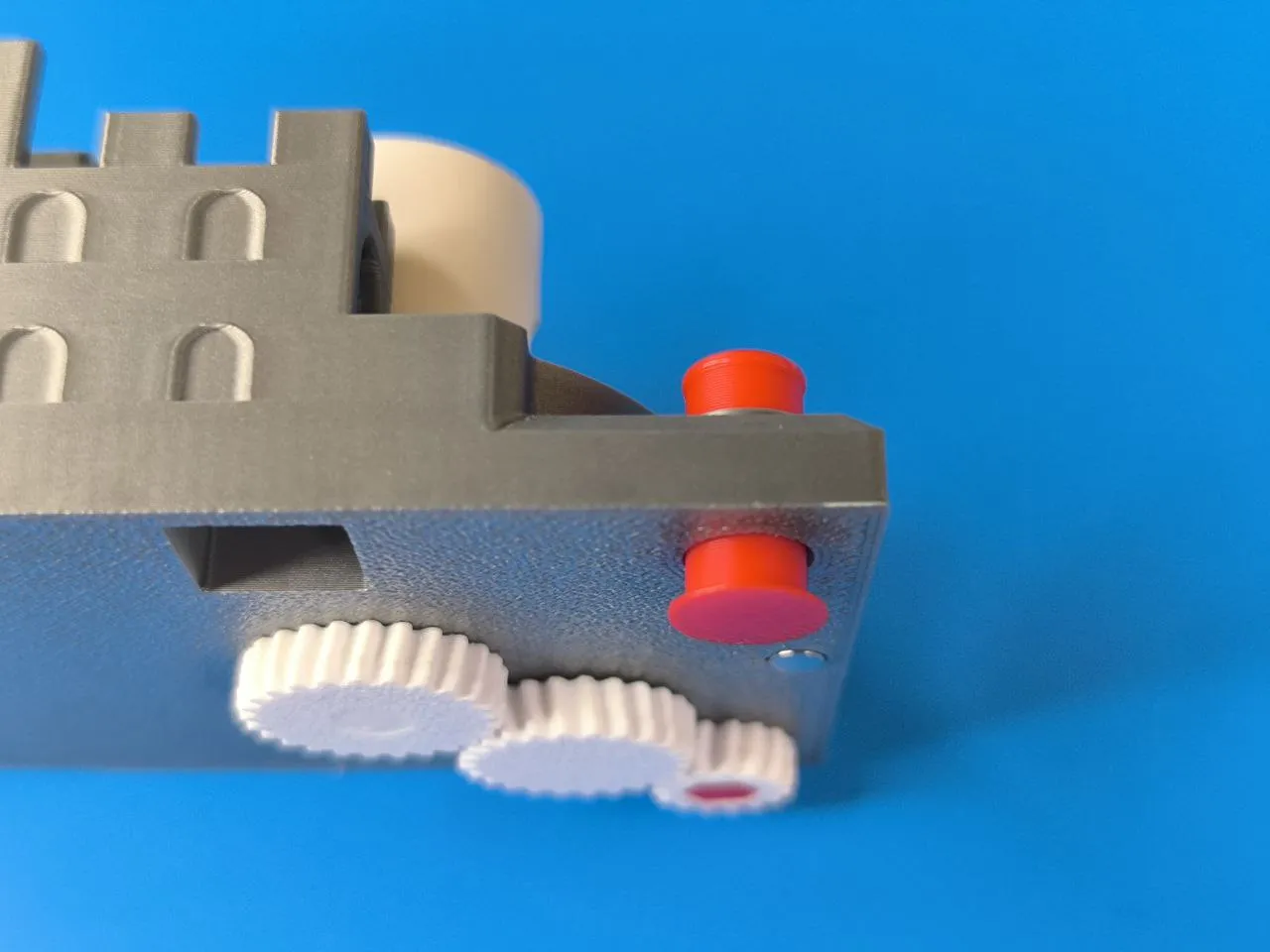

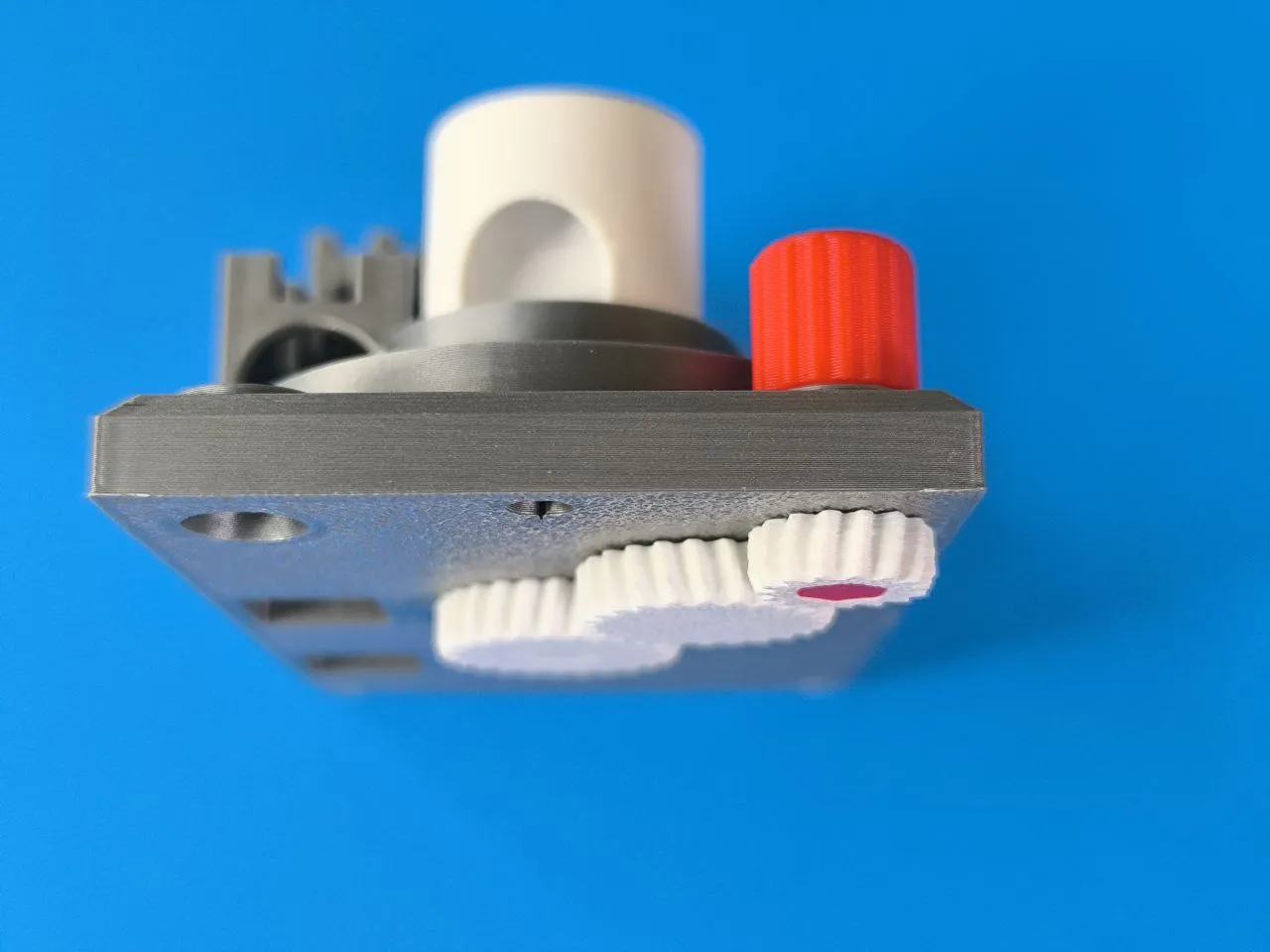

**Push the knob in the right hole and press the small gears to the hex shaft**

**Push the Button from underneath through the hole**

**Merge Base and Castle part and glue the roof onto the house! Have fun🎉**

More Marble Castle:

Have a look at my D14 Rework & the Motorized Version, as well.

A like & follow costs nothing, just like the 3D model! Thank you 🤗

Boost Me (for free)

Changelog:

V3 Update 12.01.26

gears instead of O-ring
fuzzy skin roof
several clearance optimized

V2.2 Update 07.01.26

slithly bigger shafts

V2.1 Update 25.10.24

extend magnet holes

Update 29.09.24

Optimized for OD24x2.5mm (fuzzy skin and Ø)
section holes for better spinning
reworked stairs
Ø4x2 Magnets instead of Ø10 => Bigger usable compartment
Optimized for Spring
Button get a notch
added printable ball

Update 10.11.23

Added a revision hole in the base for spring mechanism
optimized some clearance
