N64 Cartridge Holder - Customizable for 1-14 carts

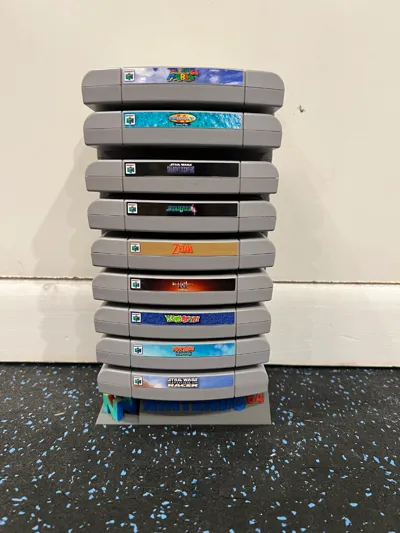

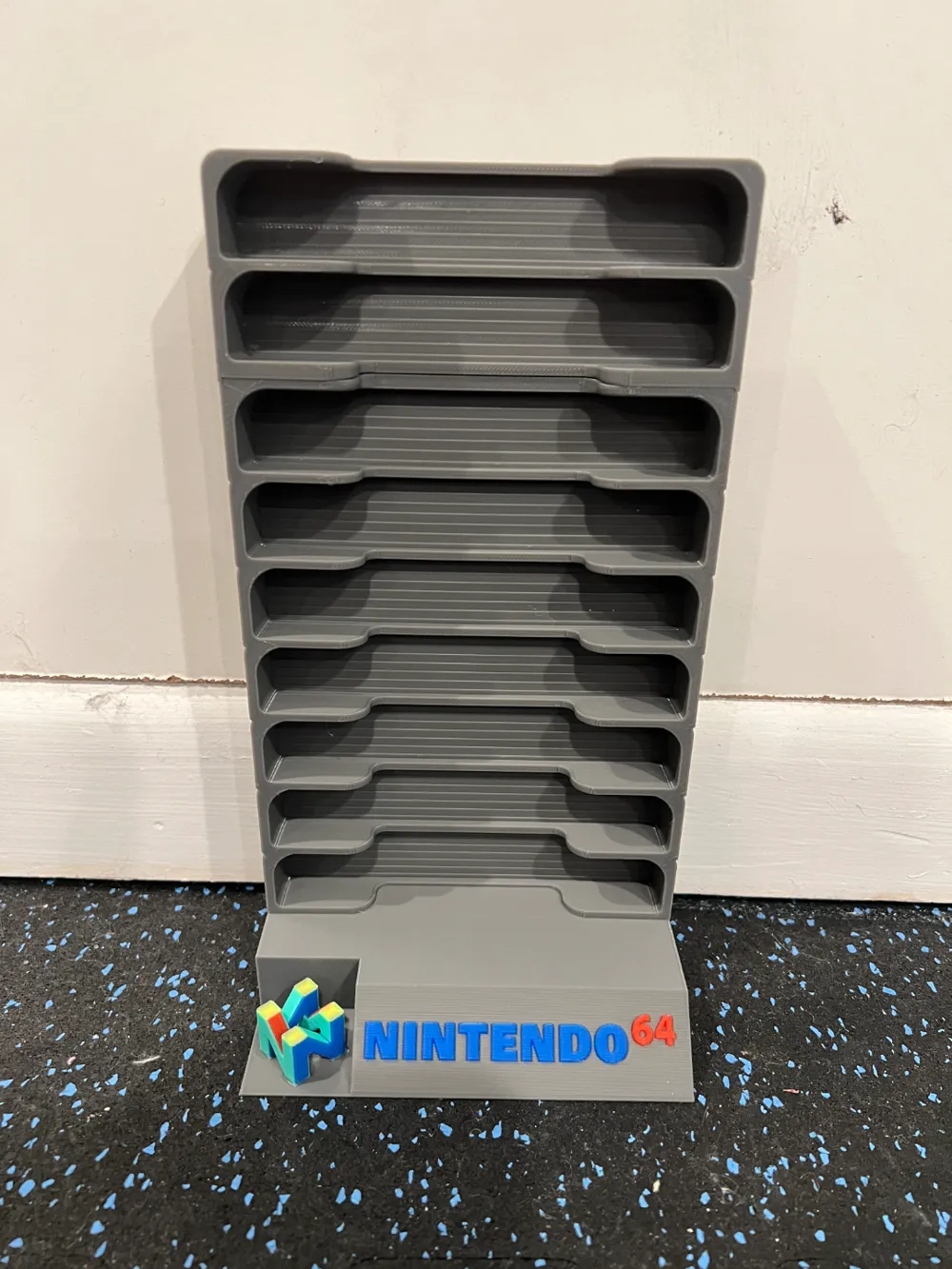

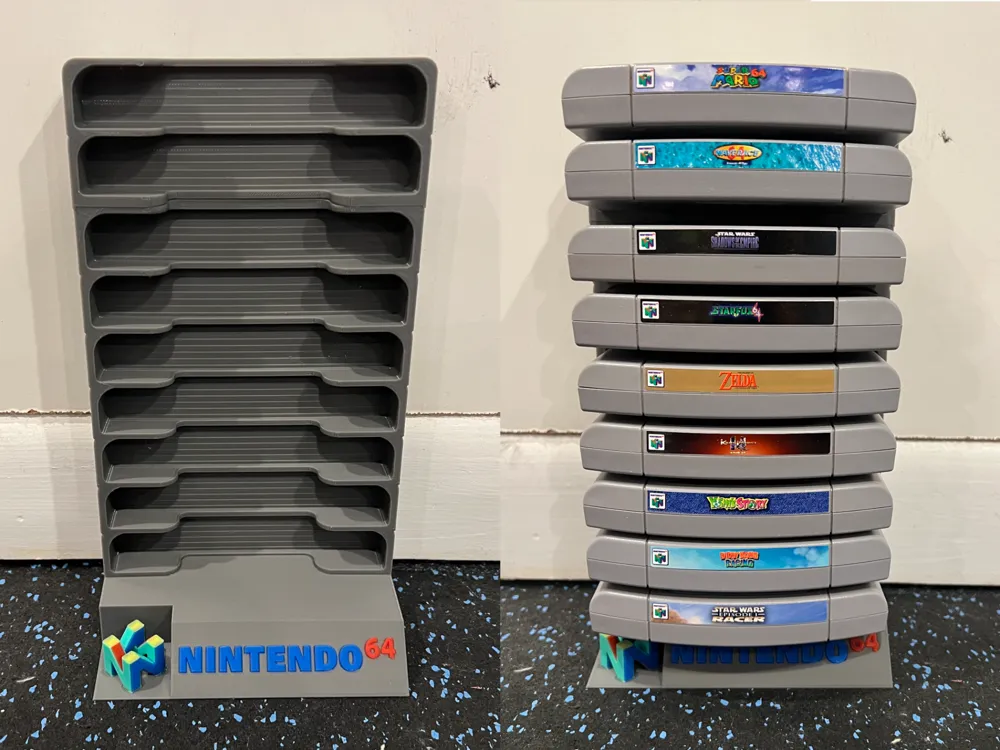

This is a Nintendo 64 cartridge organizer which is designed to hold your games vertically to save space, and can be printed on the A1 Mini. Based on your needs, I've given you the ability to create an organizer ranging in size from 1 to 14 games. The slots on the cartridge holder are loose so they won't scratch your carts, but are also at a slight incline so that they won't fall out. They also only have walls on the sides, there is nothing where the game's label is so you don't need to worry about scratching your labels.

If you only want an organizer for 1-7 games, print from plates 2-8, these are “stand alone” models that will print the entire organizer (minus the 3D N logo, see below). For larger organizers you'll want to print the “Bottom” model on plate 1, and one of the “top” models on plates 9-15. There are recesses on the bottom part and guides on the top part to help you piece them together. It isn't too tight a fit, I gave it a small amount of tolerance so that you don't get frustrated putting these large pieces together. I combined mine with super glue and threw a few small clamps on the sides as it dried. The purpose of this design is to allow you to print large organizers on the A1 Mini. I've included approximate heights of each plate on the plates name (always rounding up to the nearest 1/8th inch) so that you can figure out what you can fit into your space. The “top” models will tell you the combined height of the entire assembly.

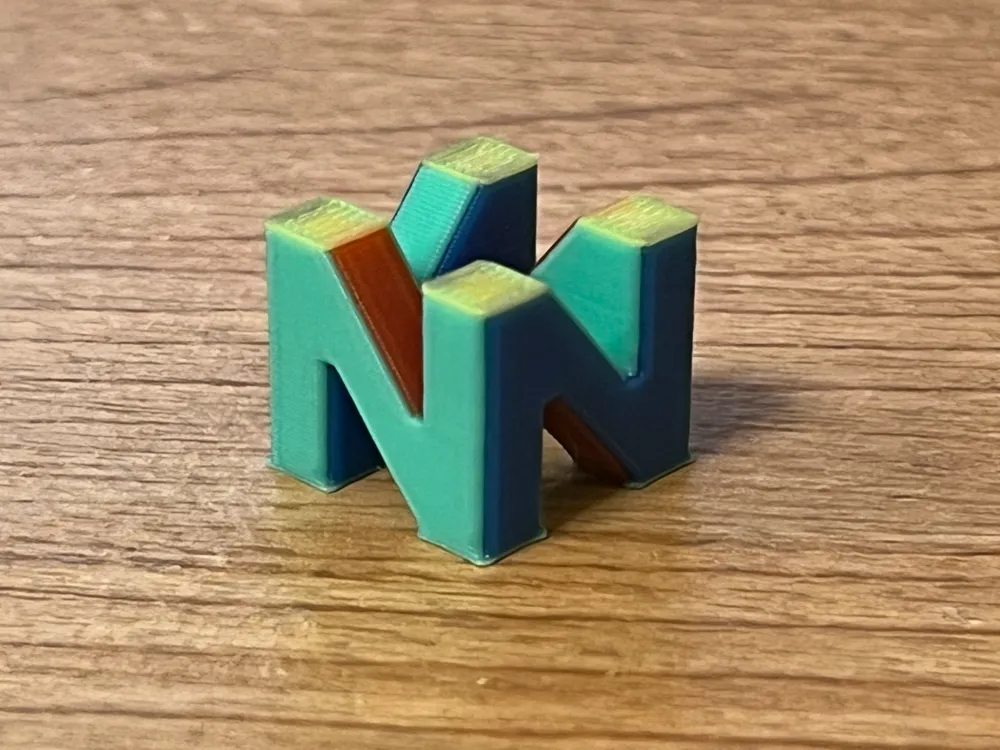

The “bottom” model and the “stand alones” (plates 2-8) also contain a Nintendo 64 logo along with 4 little indents to the left of it. On plate 16 you will find the 3D N logo which gets glued into these indents. Green goes on the left, blue on the right, yellow on top. Both the front and back are colored identically so it will look correct from 2 different angles. Of course these logos do create a lot of color changes, so if you don't want that you can easily just remove the paint and make it a solid color (a solid green N would probably look just fine). I highly recommend that if you are printing the N in full color that you print multiple copies at once to minimize the amount of poop that the print creates.

Of course the 3D N logo can also be printed as its own model, I printed an extra one to display in my game room.

This is fan art and is not licensed by Nintendo, please do not sell copies of it.

Also, be sure to check out my N64 Cartridge Holder Drawer as well!
