Description

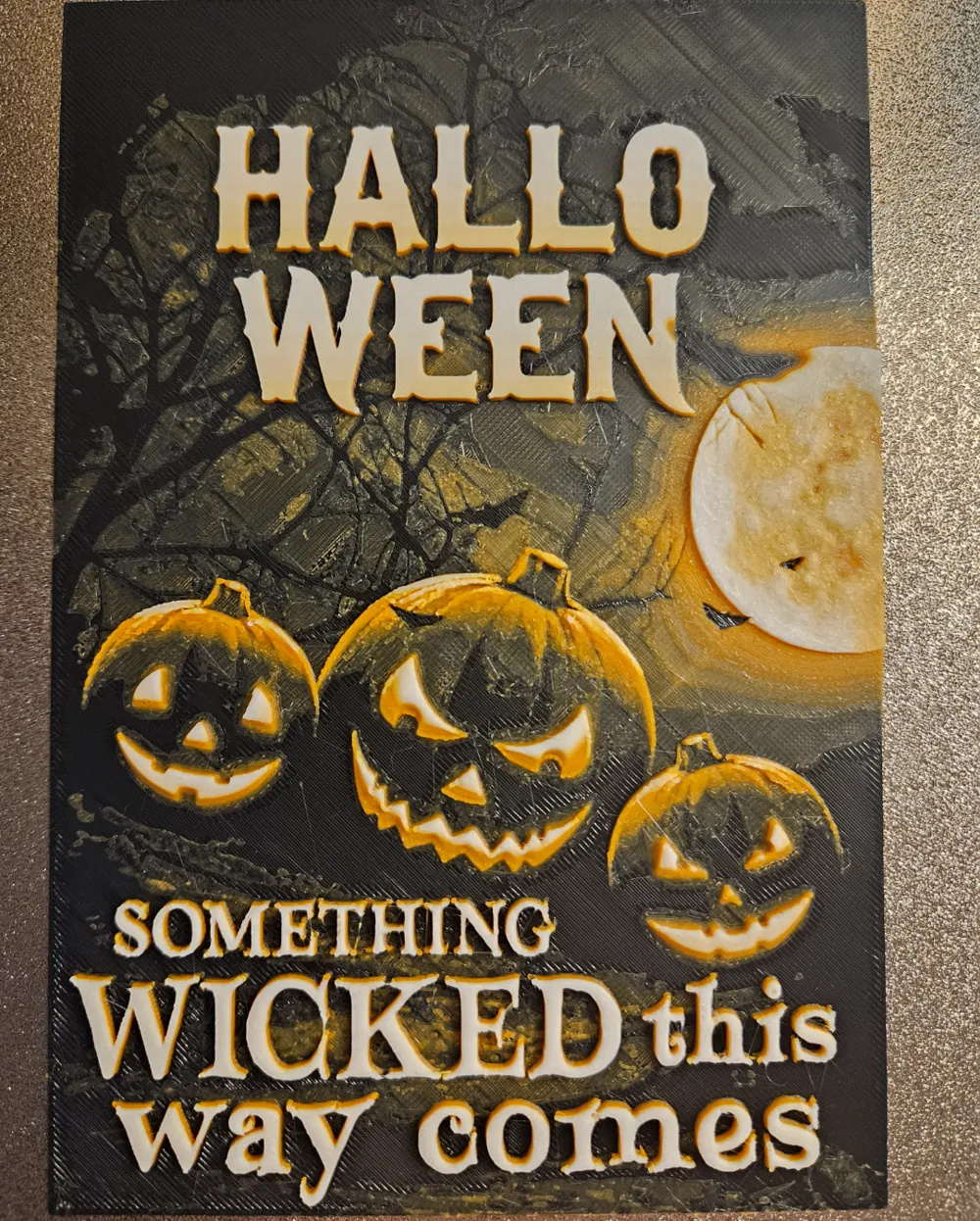

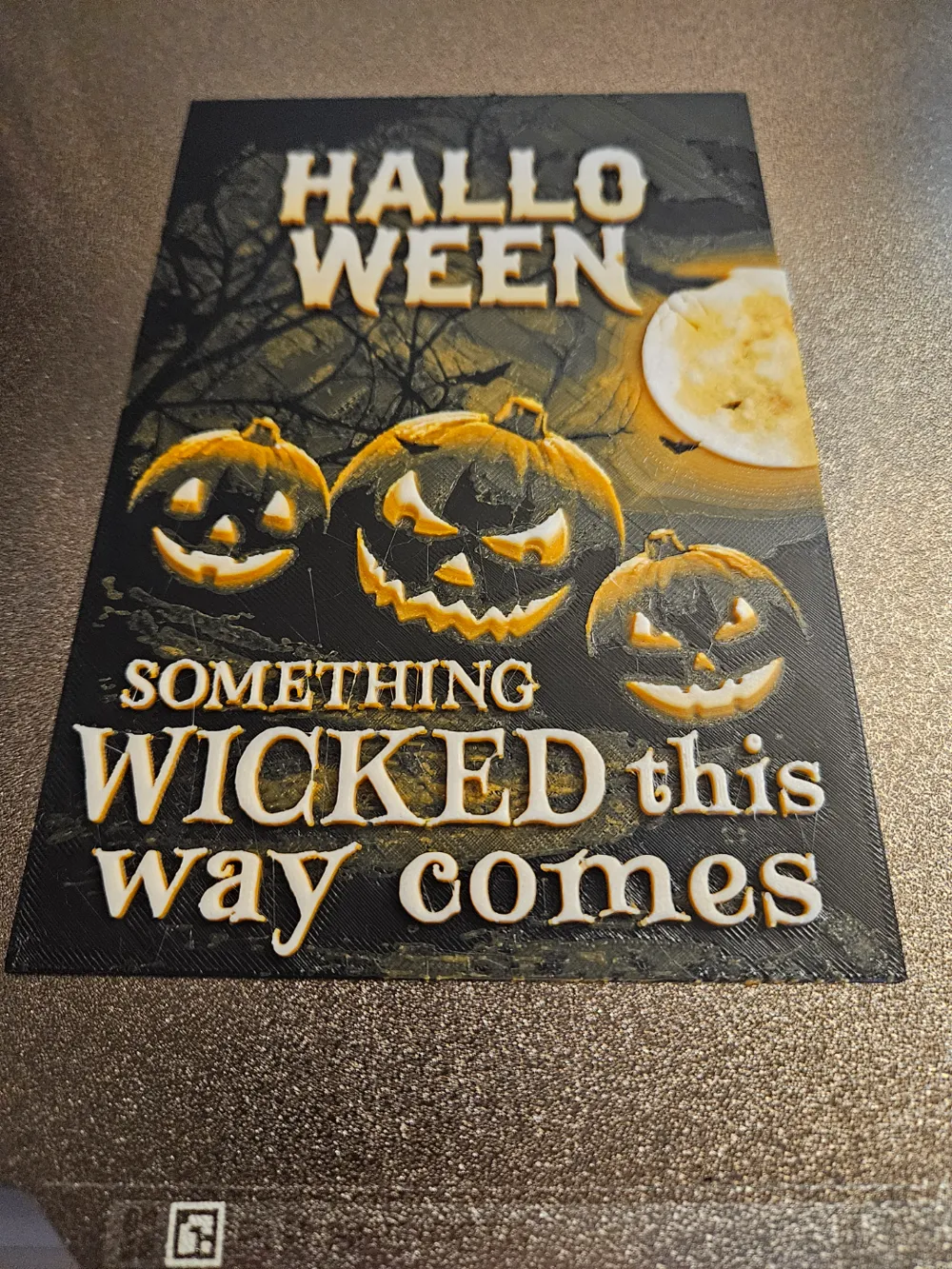

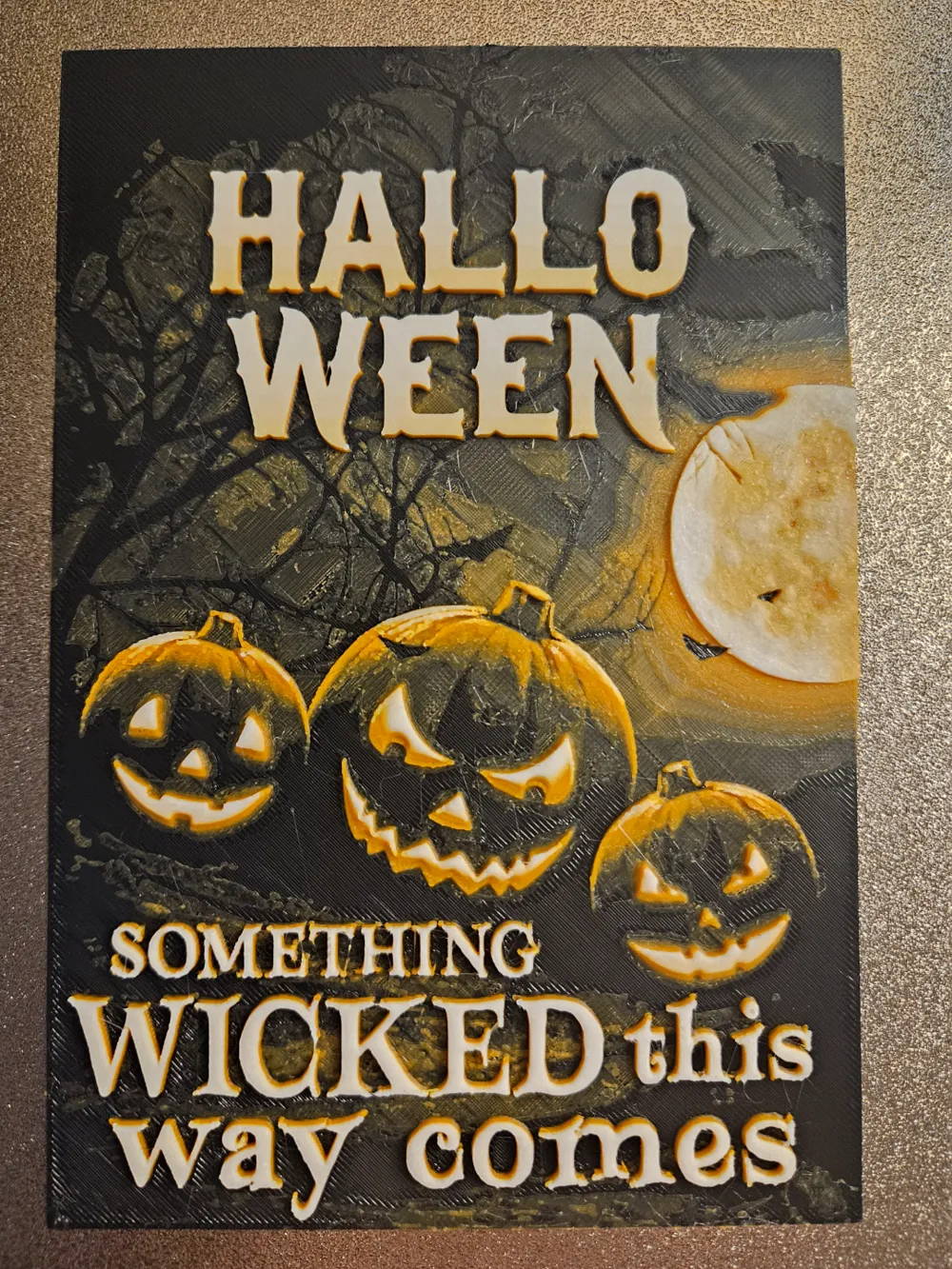

Something wicked this way comes, Halloween Hueforge. Looks amazing.

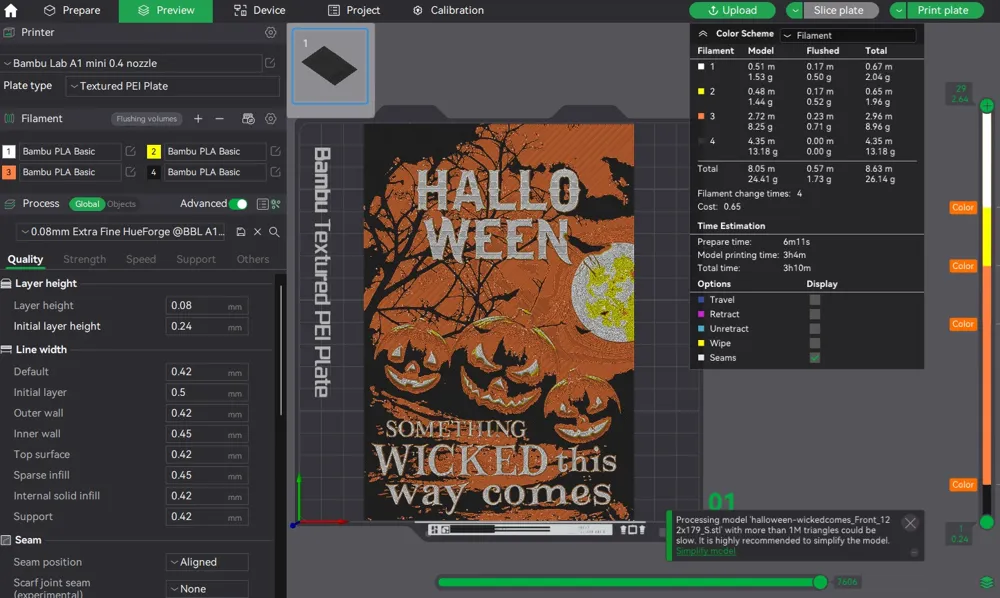

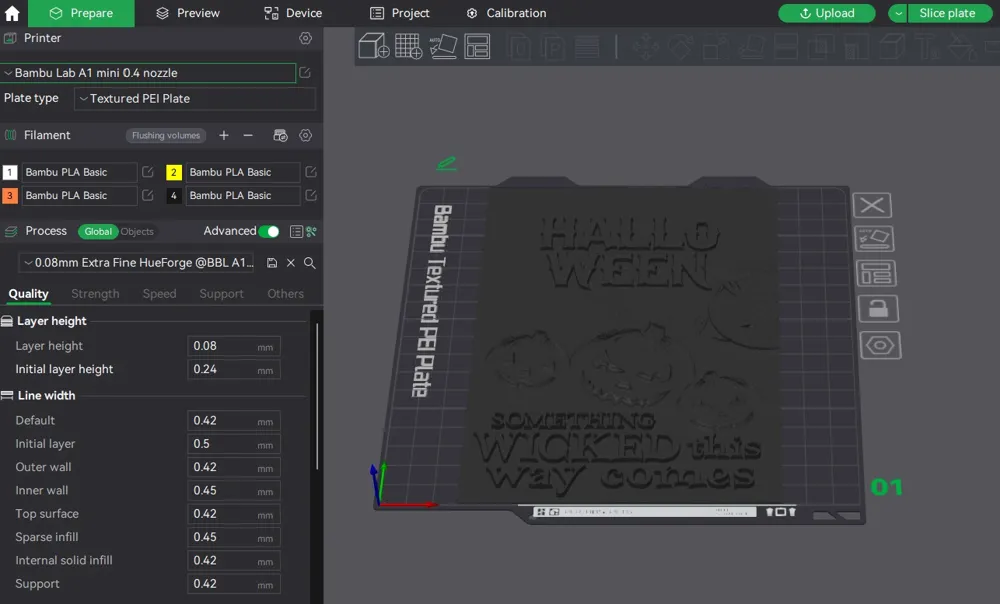

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.24mm



The Model is 121.72x179mm in size


You may print at higher layer heights below the Min Depth of 0.48mm


The Max Depth is 2.7mm and the Actual Depth is 2.6mm



Filaments Used:
PLA+ Sunlu Black Transmission Distance: 0.6
PLA+ Sunlu Orange Transmission Distance: 5
PLA+ Sunlu Pure Yellow Transmission Distance: 5
PLA+ Sunlu White Transmission Distance: 5


This print uses 4 unique filaments



Swap Instructions:
Start with Black
At layer #5 (0.56mm) swap to Orange
At layer #16 (1.44mm) swap to Orange
At layer #20 (1.76mm) swap to Pure Yellow
At layer #24 (2.08mm) swap to White for the rest.

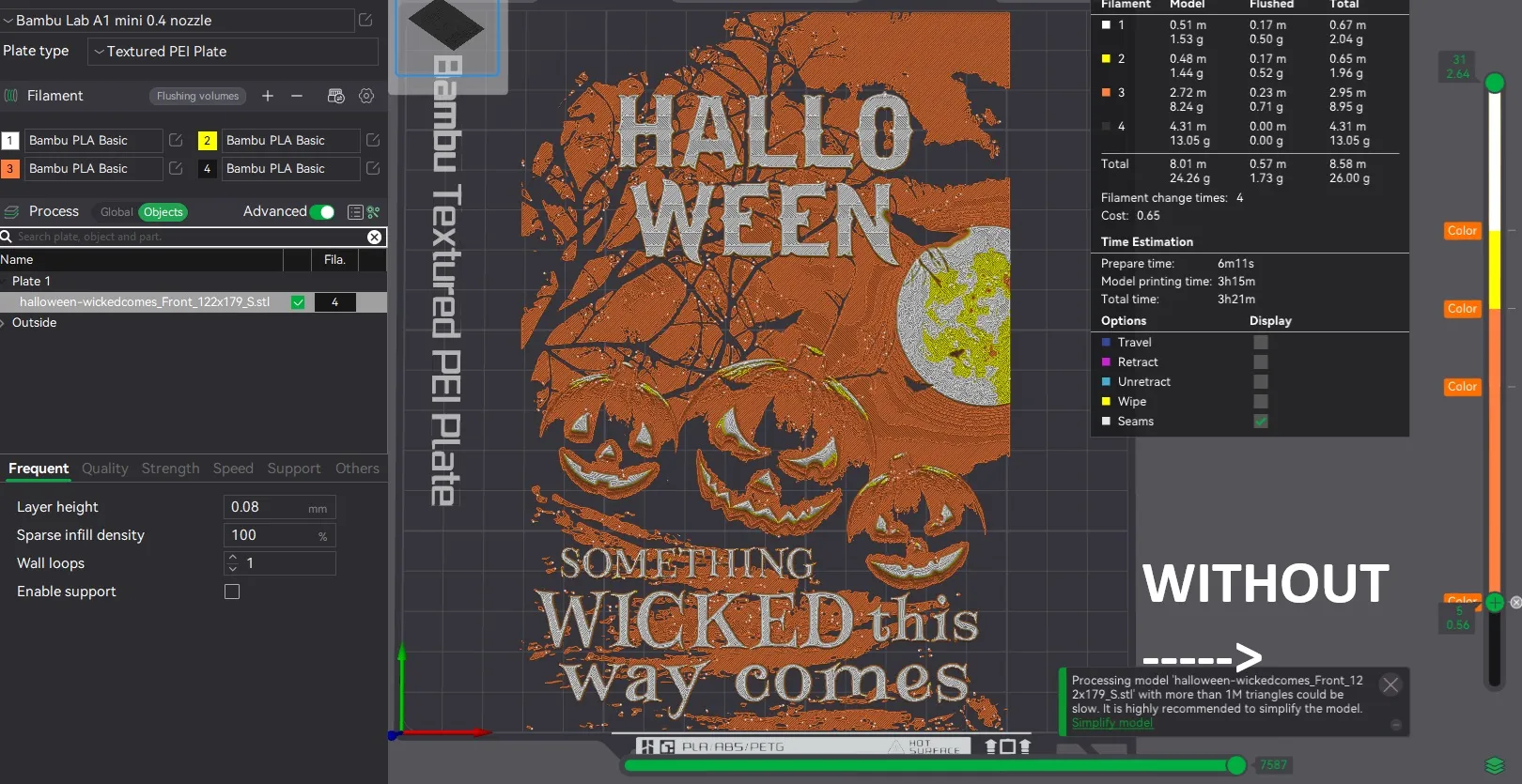

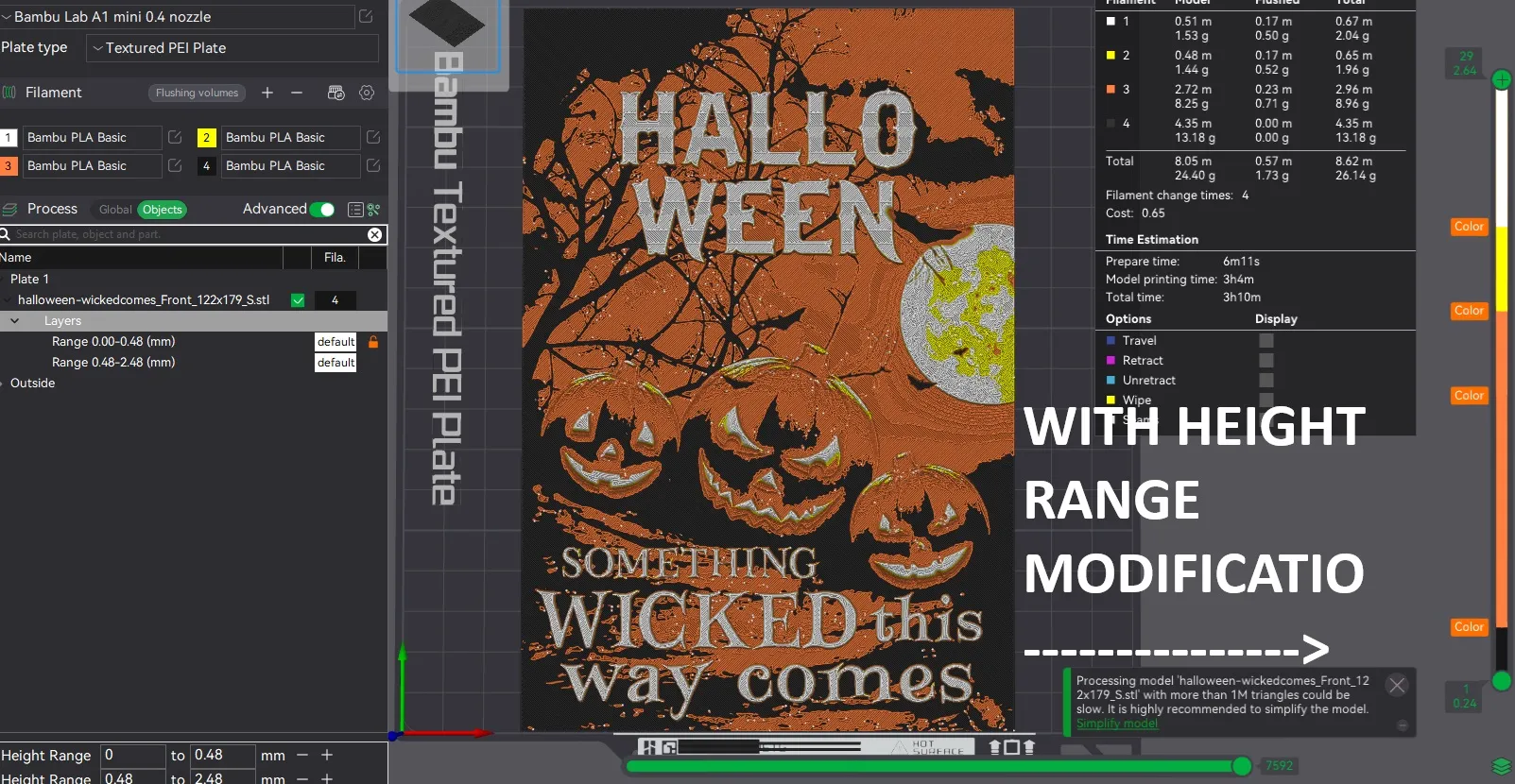

EDIT UPDATE:    There is a  height range modifier to speed up this print, it only saves 10+ mins for this print. Because of the height range modification the swap numbers might not line up, you can simply remove the height line modifications in the slicer if you need the swap numbers to line up to instructions above.

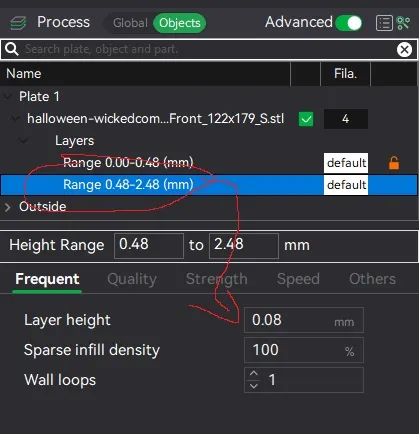

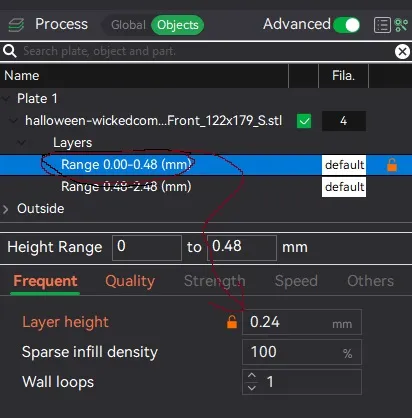

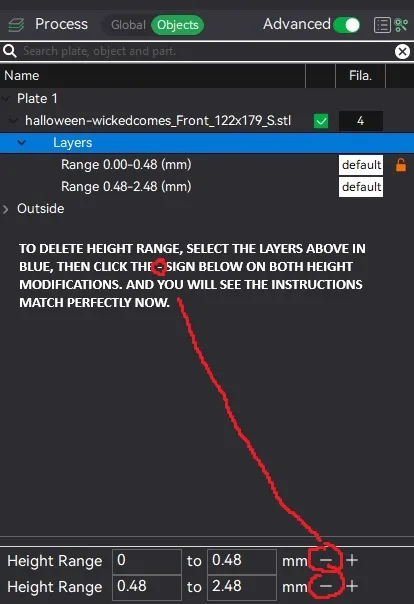

To remove click the "Object" button if its not already selected, on plate 1, you should see the column "layers", and underneath the layers you will see the height layer modifications. To remove these layers so it matches the instructions above, clicked on the column "layers" and it should highlight as selected, you will see a little down below both height ranges appear with a MINUS - and PLUS + sign, just click the - minus sign on both of those, re-slice and it will now match the instructions above. Added screenshots to help.
